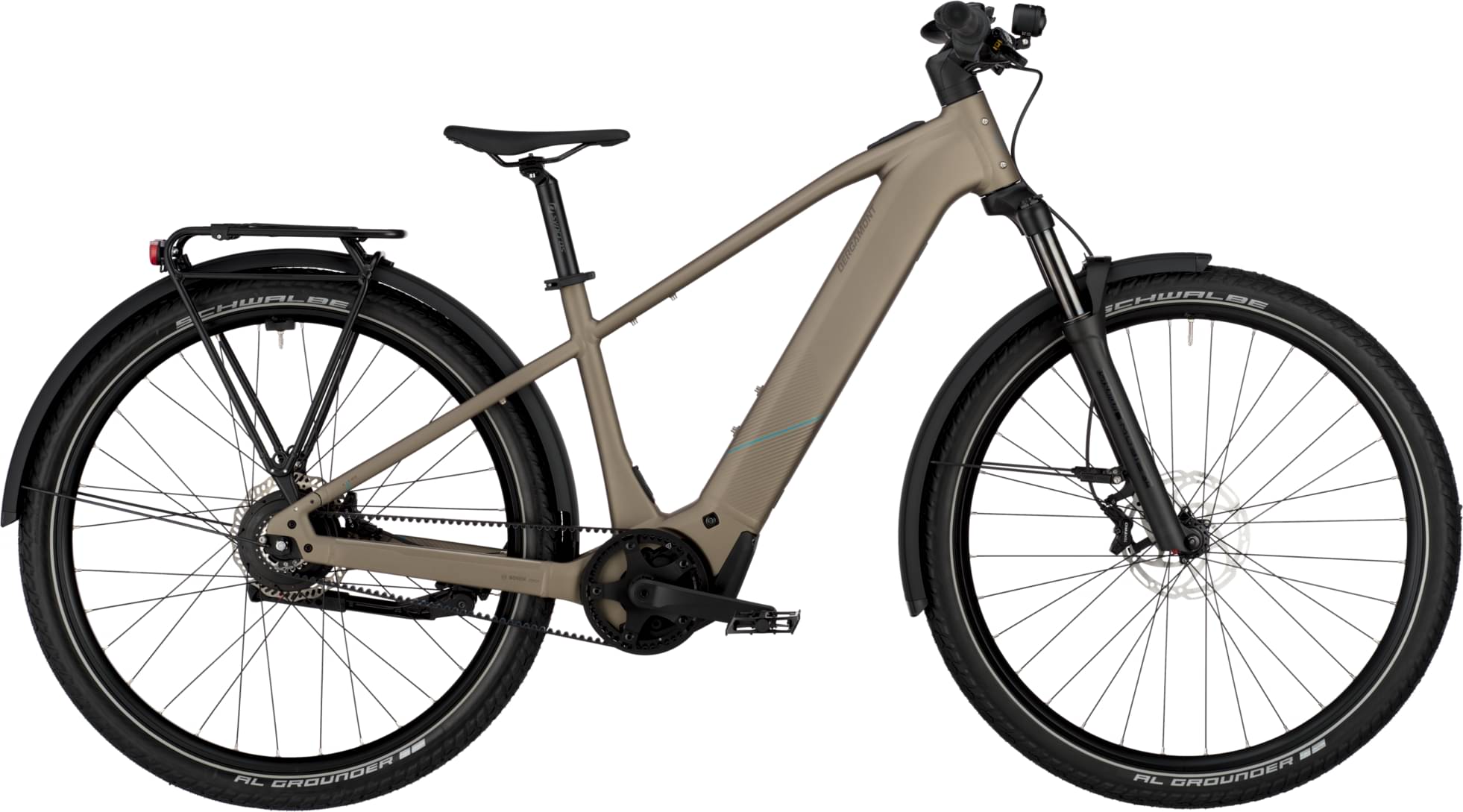

Bergamont E-Revox Tour 10 Belt 2024
2024 E-bike
Estimate price |
6,048$
Weight | 29.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour MOBIE
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 800 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", super lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour Mobie 34 DS, air, 120 mm, 15x110 mm axle
Drivetrain
Shift Levers
Enviolo, MC-Twist-Pro
Cassette
Gates CDX, 24t
Crank
FSA CK-220, 165 mm, belt, 46t
Bottom Bracket
Bosch, Isis
Chain
Gates CDX Carbon Drive Belt, Center-Track
Pedals
Trekking alloy, platform
Wheels
Front Hub
Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle
Rear Hub
Enviolo Trekking, 6-bolt, disc
Rims
Cross X18, disc, eyelets, width: 30 mm
Spokes
stainless, black
Tires
Front: Schwalbe Al Grounder, Performance, RaceGuard, reflective stripe, 60-622 Tube: Schwalbe SV19FB Light, Rear: Schwalbe Al Grounder, Performance, RaceGuard, reflective stripe, 60-622 Tube: Schwalbe SV19FB Light
Brakes
Brakes
Tektro HD-M745, hydraulic disc brake, 4-piston
Brake Levers
Tektro HD-M745, hydraulic disc brake
Cockpit
Stem
Syncros AM 2.0, 0°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Syncros MTB Comfort, lock-on
Headset
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Smart System, Performance Line CX, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 800 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.552 mm | 1.51 mm | 1.474 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 738 mm | 746 mm | 768 mm | 789 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 663 mm | 669 mm | 678 mm | 687 mm |
| Reach | 412 mm | 431 mm | 449 mm | 466 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Length | 400 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1226 mm | 1234 mm | 1256 mm | 1277 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 791 mm | 792 mm | 830 mm | 864 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
