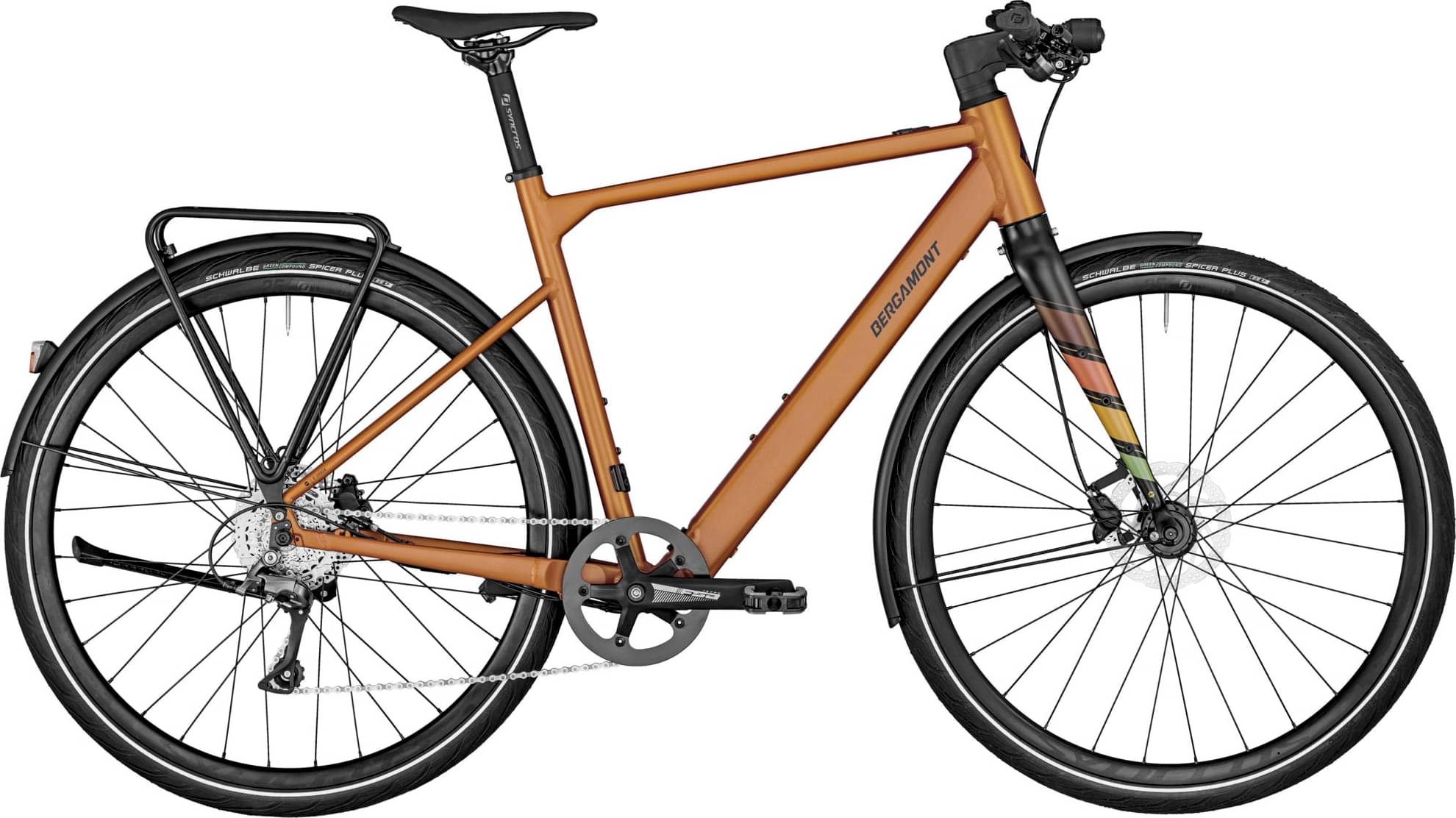

Bergamont E-Sweep Sport 2024
2024 E-bike
Estimate price |
3,140$
Weight | 17.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Mahle integrated DT battery, 36 V Li Ion, 250 Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, integrated battery
Suspension Fork
Sweep Alloy, flatmount, triple mounts, quick release
Drivetrain
Rear Derailleur
Shimano Claris, RD-R2000, long cage
Shift Levers
Shimano Claris, SL-R2000, 1x8-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG41, 11-34t
Crank
FSA CK-201, 42t
Bottom Bracket
FSA, BSA
Chain
KMC Z8
Pedals
Urban alloy
Wheels
Front Hub
Syncros Capital 2.0 wheelset, disc, with Mahle X35+ hub engine
Rear Hub
Syncros Capital 2.0 wheelset, disc, with Mahle X35+ hub engine
Rims
Syncros Capital 2.0 wheelset, disc, with Mahle X35+ hub engine
Spokes
Stainless, black
Tires
Front: Schwalbe Spicer Plus, Kevlarguard, reflective stripe, 40-622 Tube: Schwalbe SV17A Light, Rear: Schwalbe Spicer Plus, Kevlarguard, reflective stripe, 40-622 Tube: Schwalbe SV17A Light
Brakes
Brakes
Shimano BR-UR300, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Satori Viper, - +/7°
Handlebar
Syncros 3.0, riserbar, width: 660 mm
Grips
Syncros Urban
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros
Motor & Battery
Motor
Mahle X35+, 250 W, 36 V, max. 25 km/h
Battery
Mahle integrated DT battery, 36 V Li Ion, 250 Wh
Charger
Mahle charger, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.709 mm | 1.651 mm | 1.647 mm | 1.676 mm | 1.706 mm |
| Front Center | 634 mm | 647 mm | 658 mm | 669 mm | 680 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 639 mm | 639 mm | 649 mm | 667 mm | 686 mm |
| Reach | 374 mm | 387 mm | 394 mm | 398 mm | 402 mm |
| Top Tube Length | 545 mm | 570 mm | 605 mm | 615 mm | 625 mm |
| Seat Tube Length | 435 mm | 455 mm | 495 mm | 535 mm | 575 mm |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1094 mm | 1107 mm | 1118 mm | 1129 mm | 1140 mm |
| Bottom Bracket Drop | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm |
| Standover Height | 742 mm | 741 mm | 744 mm | 751 mm | 758 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
