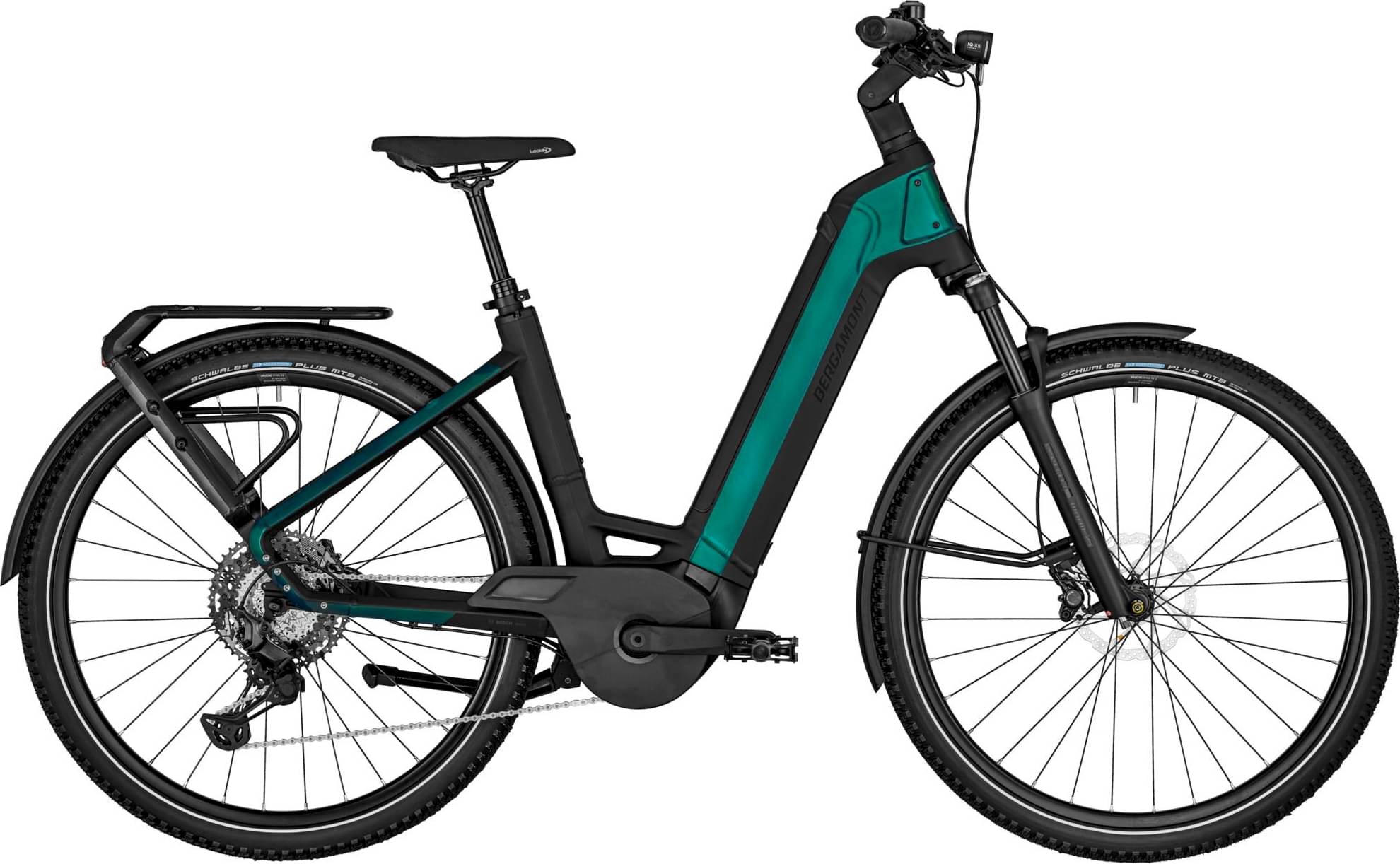

Bergamont E-Ville SUV Elite 2024
2024 E-bike
Estimate price |
5,583$
Weight | 28.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour Mobie 25 Air, LOR DS, 100 mm, 15x100 mm axle
Drivetrain
Rear Derailleur
Shimano Deore XT Linkglide, RD-M8130, Shadow Plus
Shift Levers
Shimano Deore XT Linkglide, SL-M8130, 1x11-speed, rapidfire plus-shifter
Cassette
Shimano Linkglide, CS-LG600-11, 11-50t
Crank
FSA CK-745, 38t
Bottom Bracket
Bosch, Isis
Chain
Shimano Linkglide, CN-LG500
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano FH-MT401, centerlock, disc, quick release
Rims
Ryde Rival 23, disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Marathon Plus MTB, Smart Dual Guard, reflective stripe, 54-622 Tube: Schwalbe AV19, Rear: Schwalbe Marathon Plus MTB, Smart Dual Guard, reflective stripe, 54-622 Tube: Schwalbe AV19
Brakes
Brakes
Shimano Alfine, BR-S7000, hydraulic disc brake
Brake Levers
Shimano Alfine, BL-S7000, hydraulic disc brake
Cockpit
Stem
BGM E-Bike, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Seat
Saddle
Selle Royal Lookin BGM Basic Athletic
Seatpost
Syncros Duncan, dropper post, 120 mm travel, remote
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.605 mm | 1.639 mm | 1.667 mm | 1.698 mm |
| Front Center | 655 mm | 665 mm | 677 mm | 688 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 634 mm | 654 mm | 672 mm | 691 mm |
| Reach | 395 mm | 399 mm | 403 mm | 407 mm |
| Top Tube Length | 595 mm | 605 mm | 615 mm | 625 mm |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 499 mm | 499 mm | 499 mm | 499 mm |
| Wheelbase | 1145 mm | 1155 mm | 1167 mm | 1178 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheels | 700 | 700 | 700 | 700 |
