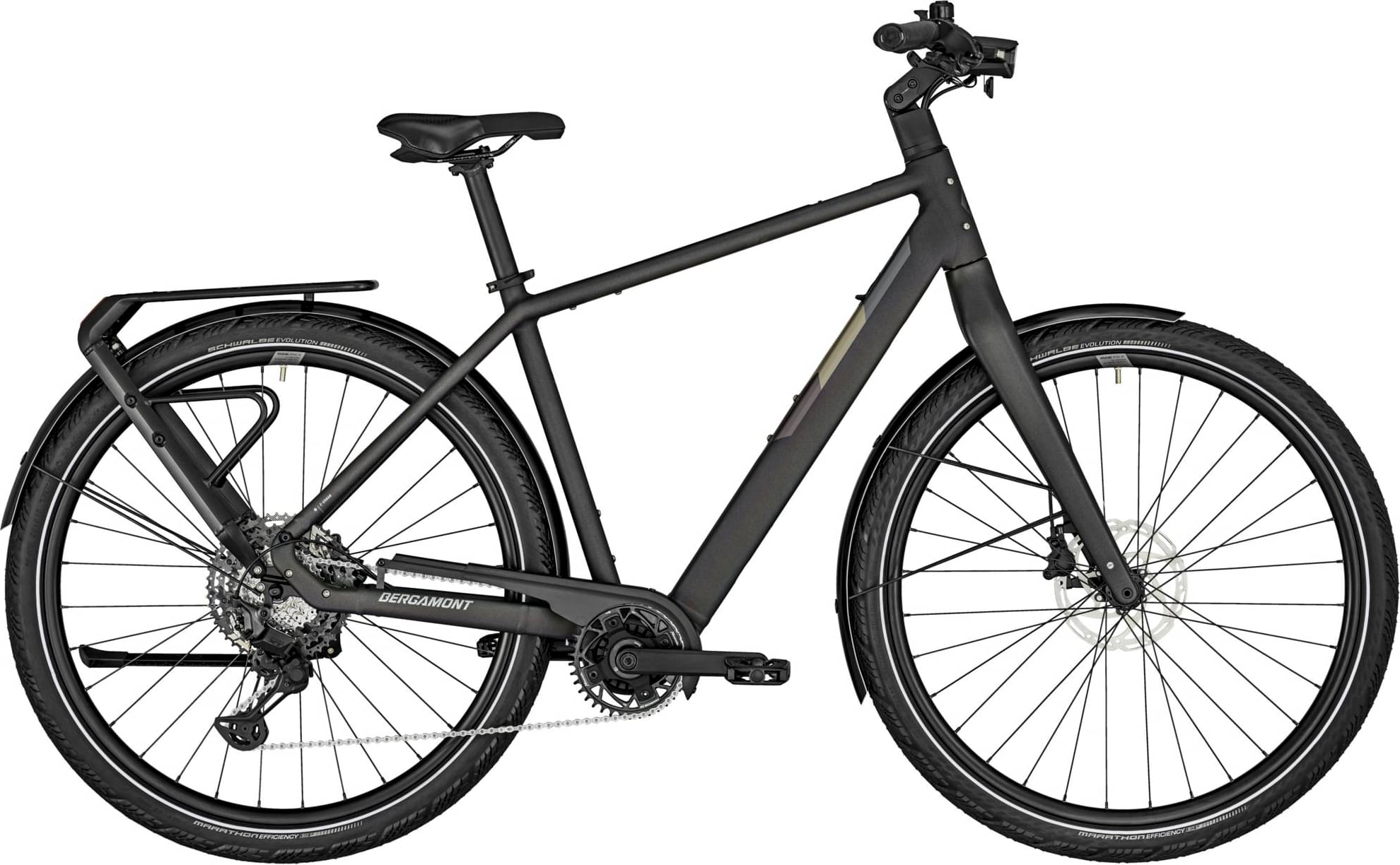

Bergamont E-Vitess Elite Gent 2024
2024 E-bike
Estimate price |
4,652$
Weight | 19.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT -
Suspension Rigid -
Motor TQ 300W mid-drive -
Battery TQ HPR-BAT01, integrated DT battery, 50.4 V Li Ion, 360 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, integrated battery
Suspension Fork
BGM carbon rigid fork, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore XT Linkglide, RD-M8130, Shadow Plus
Shift Levers
Shimano Deore XT Linkglide, SL-M8130, 1x11-speed, rapidfire plus-shifter
Cassette
Shimano Linkglide, CS-LG600-11, 11-50t
Crank
Miranda Classic, 38t
Bottom Bracket
TQ
Chain
Shimano Linkglide, CN-LG500
Pedals
Marwi SP-890 matt Sandblock
Wheels
Front Hub
Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-UR600, centerlock, disc, quick release
Rims
Ryde Rival 26 disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Marathon Efficiency Evo, reflective stripe, 55-622 Tube: Schwalbe AV19, Rear: Schwalbe Marathon Efficiency Evo, reflective stripe, 55-622 Tube: Schwalbe AV19
Brakes
Brakes
Tektro HD-EU 817, hydraulic disc brake
Brake Levers
Tektro HD-EU 817, hydraulic disc brake
Cockpit
Stem
Satori Python, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 20°, rise: 30 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
Acros ZS56, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
TQ HPR50, 300 W, 50.4 V, max. 25 km/h
Battery
TQ HPR-BAT01, integrated DT battery, 50.4 V Li Ion, 360 Wh
Charger
TQ charger, 3A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm | 64cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.651 mm | 1.647 mm | 1.676 mm | 1.706 mm | 1.736 mm |
| Front Center | 647 mm | 658 mm | 669 mm | 680 mm | 690 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 639 mm | 649 mm | 667 mm | 686 mm | 705 mm |
| Reach | 387 mm | 394 mm | 398 mm | 402 mm | 406 mm |
| Top Tube Length | 570 mm | 605 mm | 615 mm | 625 mm | 635 mm |
| Seat Tube Length | 455 mm | 495 mm | 535 mm | 575 mm | 615 mm |
| Head Tube Length | 120 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1107 mm | 1118 mm | 1129 mm | 1140 mm | 1150 mm |
| Bottom Bracket Drop | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm |
| Standover Height | 783 mm | 810 mm | 841 mm | 871 mm | 900 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
