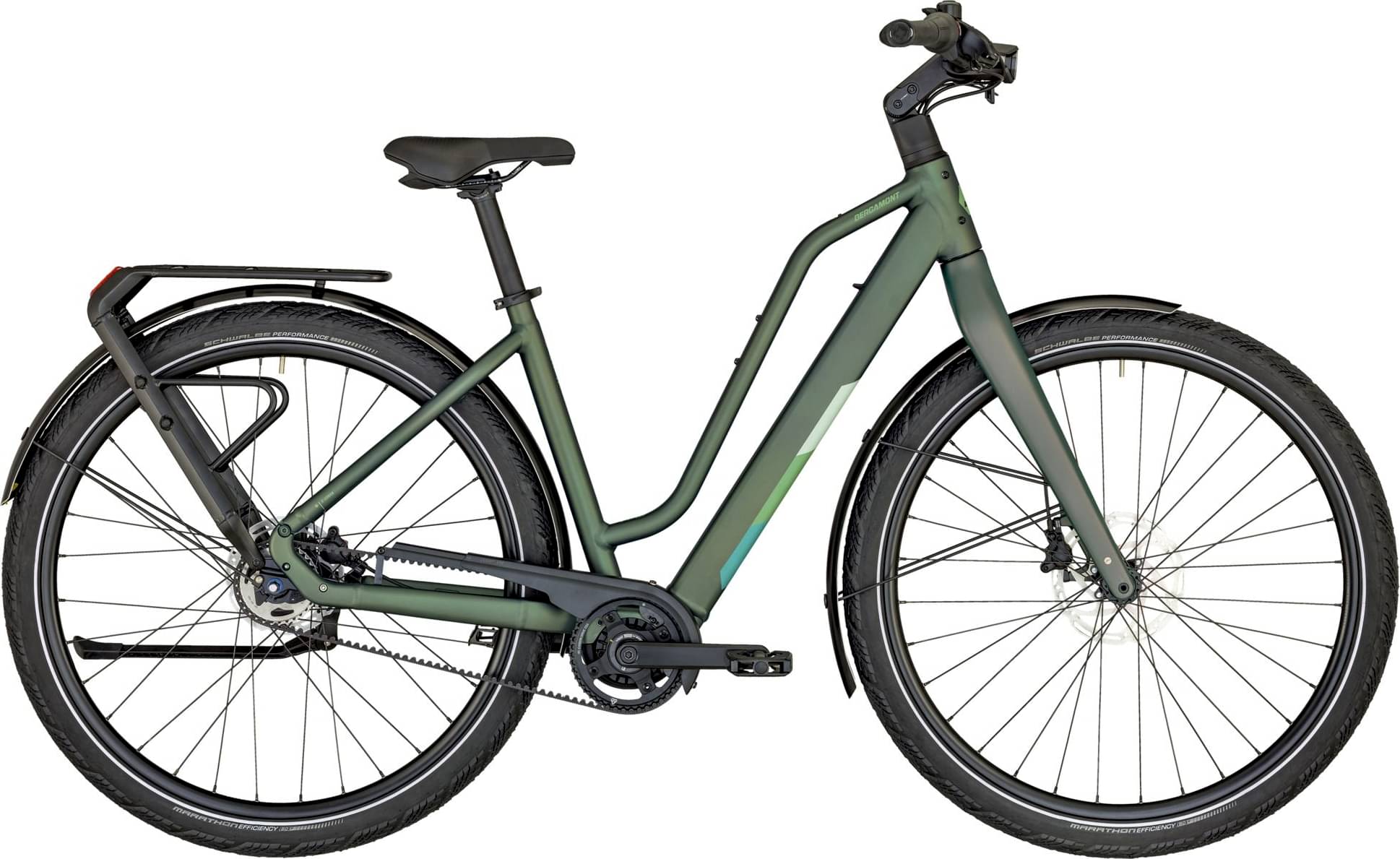

Bergamont E-Vitess Expert Amsterdam 2024
2024 E-bike
Estimate price |
4,652$
Weight | 20.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor TQ 300W mid-drive -
Battery TQ-HPR50 integrated DT battery, 50.4 V Li Ion, 360 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, integrated battery
Suspension Fork
BGM Urban Carbon, 15x110 mm axle
Drivetrain
Shift Levers
Shimano Nexus, SL-C7000, 5-speed, revo-shifter
Cassette
Gates CDX, 32t
Crank
Miranda Classic, 46t, belt
Bottom Bracket
TQ
Chain
Gates CDX Carbon Drive Belt, Center-Track
Pedals
Marwi SP-890, sandblock
Wheels
Front Hub
Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano Nexus, SG-C7000-5, freehub, centerlock, disc
Rims
Ryde Rival 26 disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Marathon Efficiency, reflective stripe, 55-622 Tube: Schwalbe AV19, Rear: Schwalbe Marathon Efficiency, reflective stripe, 55-622 Tube: Schwalbe AV19
Brakes
Brakes
Tektro, hydraulic disc brake
Brake Levers
Tektro, hydraulic disc brake
Cockpit
Stem
Satori Python, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 20°, rise: 30 mm
Grips
BGM Comfort, Ergo, double density, lock-on
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
TQ-HPR50, 300 W, 50.4 V, max. 25 km/h
Battery
TQ-HPR50 integrated DT battery, 50.4 V Li Ion, 360 Wh
Charger
TQ charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.709 mm | 1.651 mm | 1.647 mm | 1.676 mm | 1.706 mm |
| Front Center | 634 mm | 647 mm | 658 mm | 669 mm | 680 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 639 mm | 639 mm | 649 mm | 667 mm | 686 mm |
| Reach | 374 mm | 387 mm | 394 mm | 398 mm | 402 mm |
| Top Tube Length | 545 mm | 570 mm | 605 mm | 615 mm | 625 mm |
| Seat Tube Length | 435 mm | 455 mm | 495 mm | 535 mm | 575 mm |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1094 mm | 1107 mm | 1118 mm | 1129 mm | 1140 mm |
| Bottom Bracket Drop | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm |
| Standover Height | 742 mm | 741 mm | 744 mm | 751 mm | 758 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
