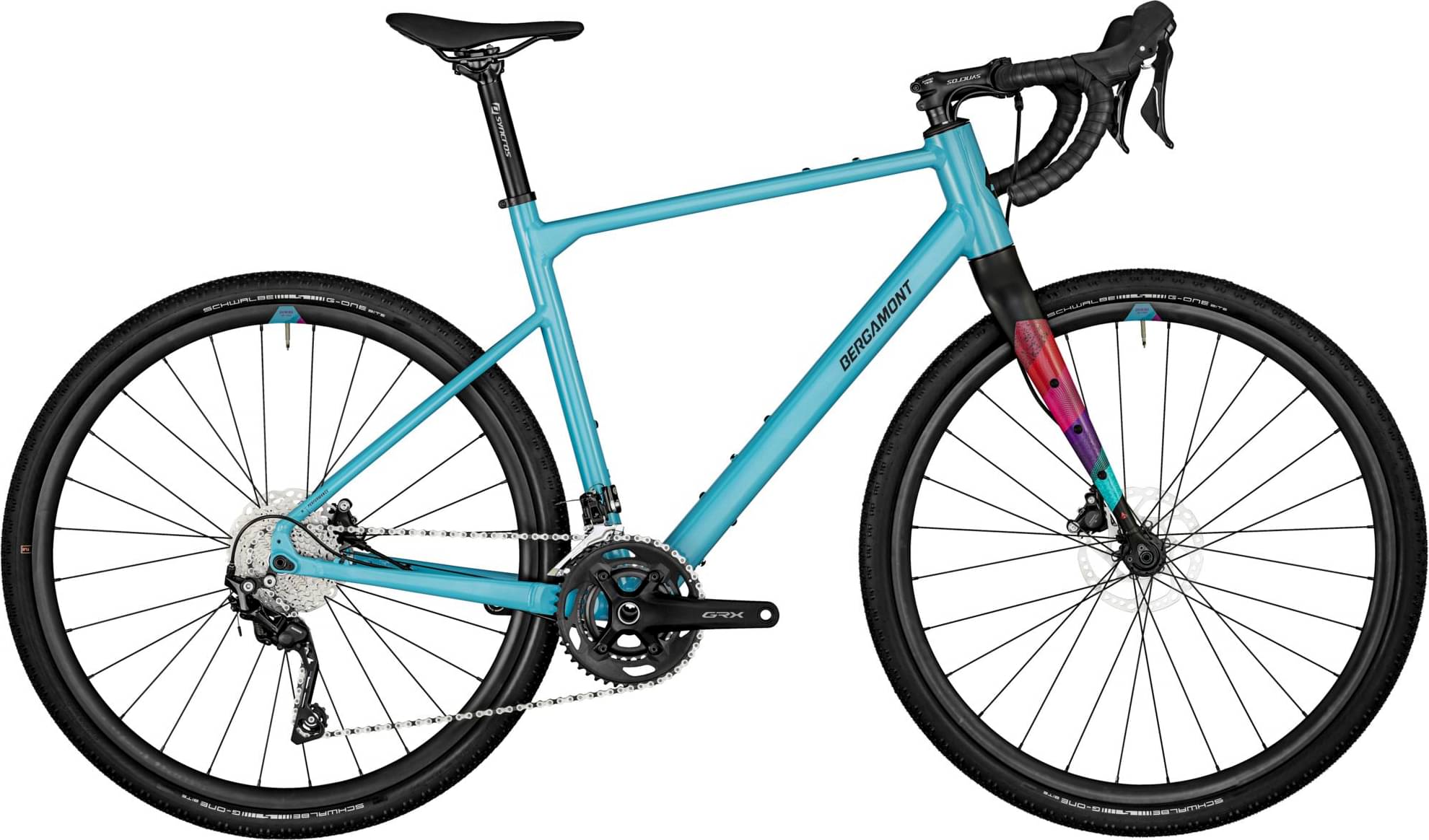

Bergamont Grandurance 6 FMN 2024
2024 Road
Estimate price |
2,093$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 600, GRX 400 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing
Suspension Fork
Grandurance Alloy, 12x100 mm axle, flatmount, triple mounts
Drivetrain
Rear Derailleur
Shimano GRX, RD-RX400, Shadow Plus
Front Derailleur
Shimano GRX, FD-RX400
Shift Levers
Shimano GRX, ST-RX400, 2x10-speed, road STI-shifter
Cassette
Shimano CS-HG50, 11-36t
Crank
Shimano GRX, FC-RX600, 46/30t
Bottom Bracket
Shimano Hollowtech II, BSA
Chain
KMC X10
Pedals
none
Wheels
Front Hub
BGM Allroad, centerlock, disc, 12x100 mm axle
Rear Hub
BGM Allroad, centerlock, disc, 12x142 mm axle
Rims
Shining DB-T260, disc
Spokes
stainless, black
Tires
Front: Schwalbe G-One Bite, folding, Tubeless-Easy, Raceguard, 45-622 Tube: Kenda SV28, Rear: Schwalbe G-One Bite, folding, Tubeless-Easy, Raceguard, 45-622 Tube: Kenda SV28
Brakes
Brakes
Shimano GRX, BR-RX400, hydraulic disc brake
Brake Levers
Shimano GRX, ST-RX400
Cockpit
Stem
Syncros 3.0, +/-10°
Handlebar
Satori X-Race, flare: 16°
Grips
BGM Race Grip-Tape, antislip
Headset
Acros ZS56, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Savona 2.5
Seatpost
Syncros
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.485 mm | 1.495 mm | 1.505 mm | 1.514 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 616 mm | 633 mm | 649 mm | 665 mm | 682 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 560 mm | 579 mm | 598 mm | 617 mm | 636 mm |
| Reach | 380 mm | 390 mm | 400 mm | 410 mm | 420 mm |
| Top Tube Length | 530 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Length | 485 mm | 510 mm | 535 mm | 560 mm | 585 mm |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1041 mm | 1058 mm | 1075 mm | 1091 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 776 mm | 798 mm | 820 mm | 841 mm | 930 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
