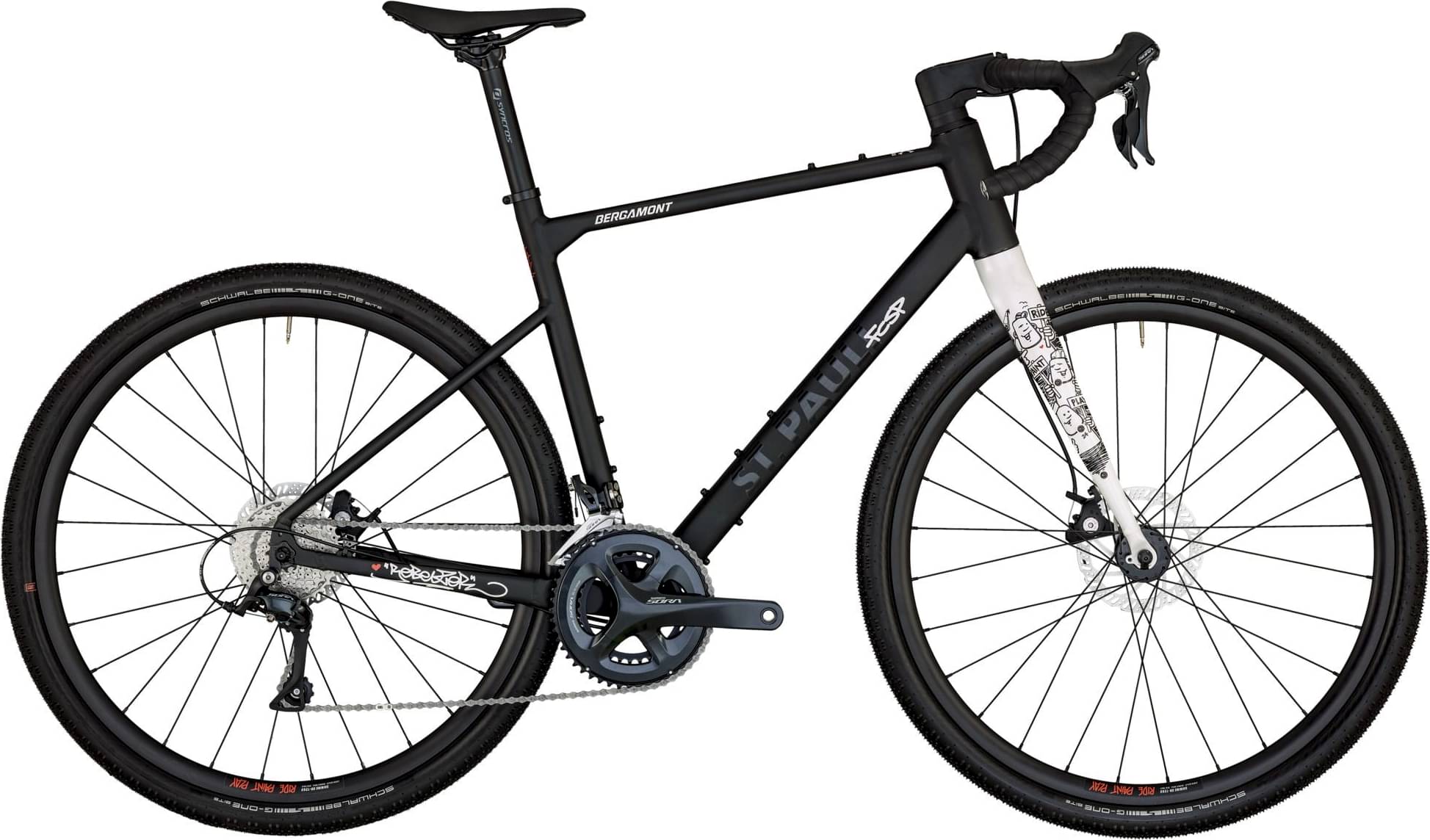

Bergamont Grandurance St. Pauli 2024
2024 Road
Estimate price |
1,511$
Weight | 11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", super lite AL-6061 tubing
Suspension Fork
Grandurance alloy, quick release, fender mount
Drivetrain
Rear Derailleur
Shimano Sora, RD-R3000
Front Derailleur
Shimano Sora, FD-R3000
Shift Levers
Shimano Sora, ST-R3000, 2x9-speed, road STI-shifter
Cassette
Shimano CS-HG201-9, 11-34t
Crank
Shimano Sora, FC-R3000, 50/34t
Bottom Bracket
Shimano Hollowtech II, BSA
Chain
KMC X9
Pedals
none
Wheels
Front Hub
BGM Pro, centerlock, disc, quick release
Rear Hub
BGM Pro, 6-bolt, disc, quick release
Rims
Shining DB-T260, disc
Spokes
stainless, black
Tires
Front: Schwalbe G-One Bite, Raceguard, 45-622 Tube: Kenda SV28, Rear: Schwalbe G-One Bite, Raceguard, 45-622 Tube: Kenda SV28
Brakes
Brakes
Tektro MD-C310, mechanical disc brake
Brake Levers
Shimano Sora, ST-R3000
Cockpit
Stem
Satori Viper, - 7°
Handlebar
Satori X-Race, flare: 16°
Grips
BGM Race Grip-Tape, antislip
Headset
Acros ZS56, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.485 mm | 1.495 mm | 1.505 mm | 1.514 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 616 mm | 633 mm | 649 mm | 665 mm | 682 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 560 mm | 579 mm | 598 mm | 617 mm | 636 mm |
| Reach | 380 mm | 390 mm | 400 mm | 410 mm | 420 mm |
| Top Tube Length | 530 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Length | 485 mm | 510 mm | 535 mm | 560 mm | 585 mm |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1041 mm | 1058 mm | 1075 mm | 1091 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 775 mm | 796 mm | 818 mm | 839 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
