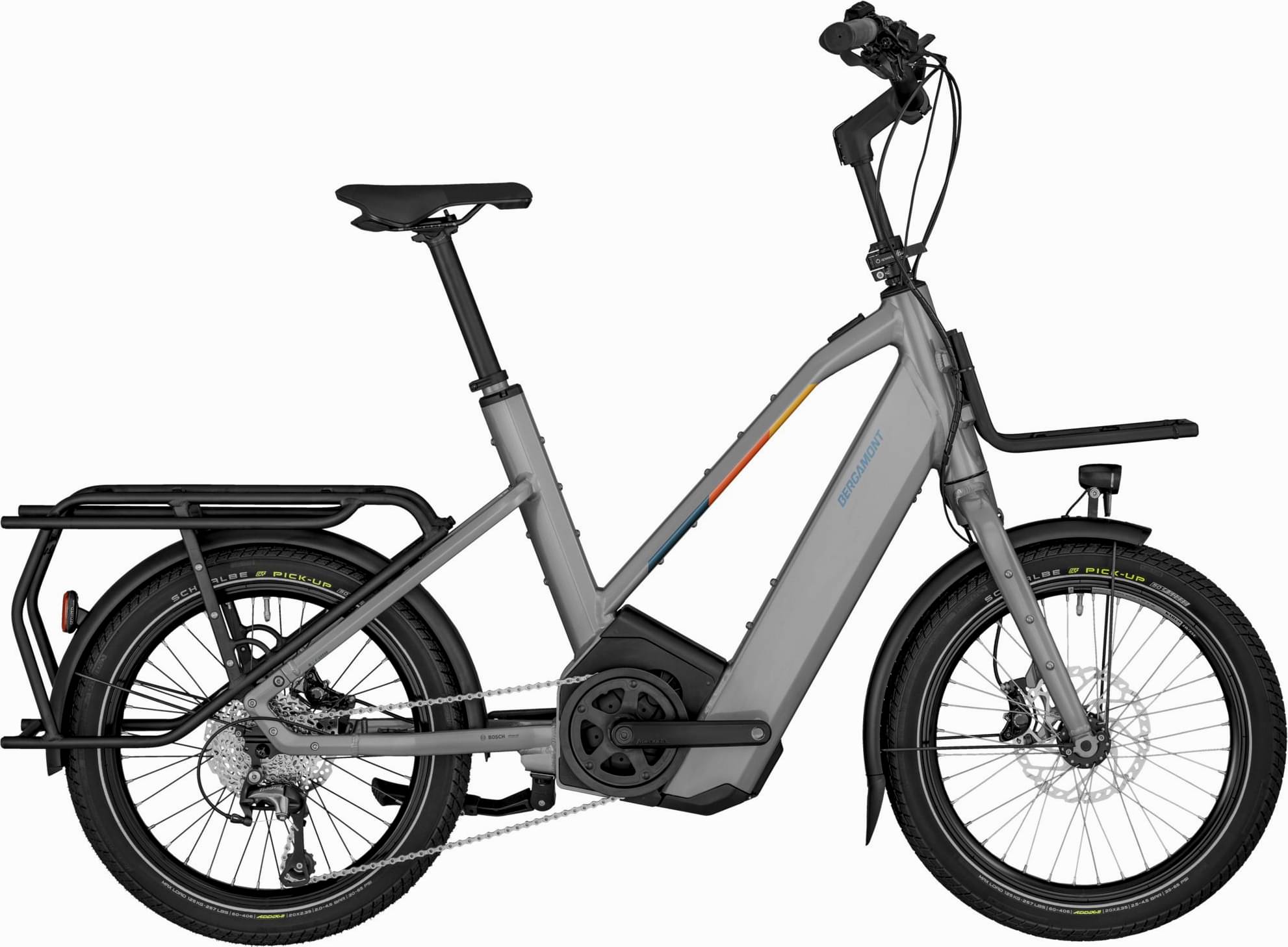

Bergamont Hans-E 2024
2024 E-bike
Estimate price |
3,489$
Weight | 26.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
20", lite AL-6061 tubing, PowerTube battery
Suspension Fork
BGM rigid fork, alloy, 15x100 mm axle
Drivetrain
Rear Derailleur
Shimano Tiagra, RD-4700, long cage
Shift Levers
Shimano Tiagra, SL-4700, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG500, 11-34t
Crank
FSA CK-200, 42t
Bottom Bracket
Bosch
Chain
KMC e10 EPT
Pedals
Marwi SP-153, foldable
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano FH-M3050, centerlock, disc, quick release
Rims
Ryde Andra 40, disc
Spokes
Sapim Leader
Tires
Front: Schwalbe Pick-Up, Super Defense, reflective stripe, 65-406 Tube: Impac AV20, Rear: Schwalbe Pick-Up, Super Defense, reflective stripe, 65-406 Tube: Impac AV20
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Satori Fastback, with speedlifter
Handlebar
BGM Pro, high-riserbar, backsweep: 15°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Seat
Saddle
Syncros Capilano Urban
Seatpost
Satori Trident, 450 mm
Motor & Battery
Motor
Bosch Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 500 Wh
Charger
Bosch Standard Charger, 4A
Fit data
