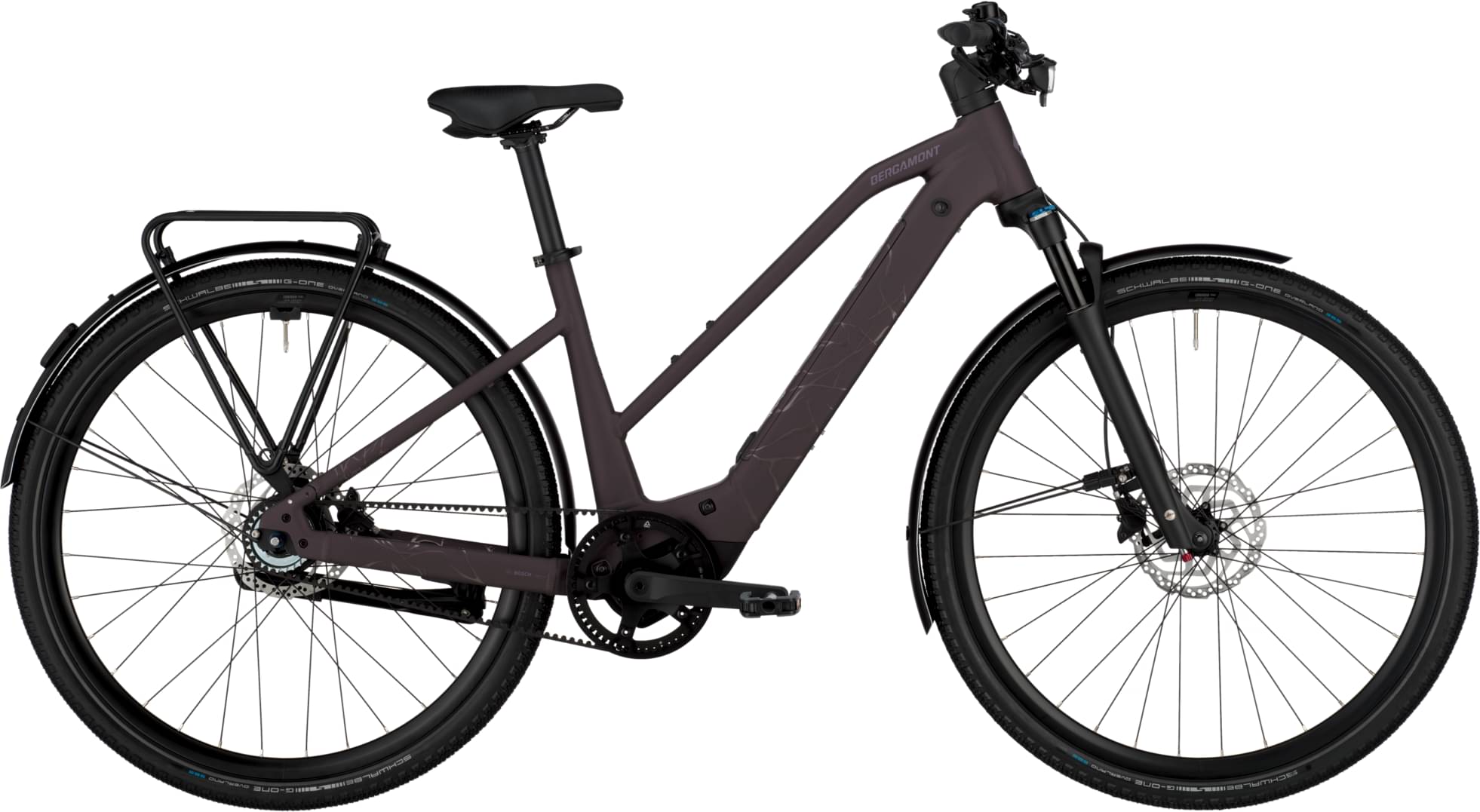

Bergamont Helix 10 Belt Slope 2024
2024 E-bike
Estimate price |
4,357$
Weight | 21.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NRX
-
Groupset Alfine -
Suspension Hardtail -
Motor Bosch 250W 55Nm mid-drive -
Battery Bosch CompactTube, 36 V Li Ion, 400 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, CompactTube battery
Suspension Fork
Suntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle
Drivetrain
Shift Levers
Shimano Alfine, SL-S503, 8-speed, rapidfire plus-shifter
Cassette
Gates CDC, 26t
Crank
FSA CK-220, 170 mm, belt, 52t
Bottom Bracket
Bosch, Isis
Chain
Gates CDC Carbon Drive Belt, Center-Track
Pedals
Marwi SP-827, sandblock
Wheels
Front Hub
Shimano HB-TC500, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano Nexus, SG-C6001-8, freehub, centerlock, disc
Rims
BGM Pro X15, disc, eyelets
Spokes
stainless, black
Tires
Front: Schwalbe G-One Overland 365, Performance, RaceGuard, reflective stripe, 50-622 Tube: Schwalbe SV19B Light, Rear: Schwalbe G-One Overland 365, Performance, RaceGuard, reflective stripe, 50-622 Tube: Schwalbe SV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Syncros Urban Combo, length: 70 mm
Handlebar
Syncros Urban Combo, width: 680 mm
Grips
Syncros Urban, Ergo, double density, lock-on
Headset
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h
Battery
Bosch CompactTube, 36 V Li Ion, 400 Wh
Charger
Bosch Compact Charger, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.432 mm | 1.394 mm | 1.361 mm |
| Front Center | 691 mm | 712 mm | 733 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Stack | 600 mm | 609 mm | 618 mm |
| Reach | 419 mm | 437 mm | 454 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm |
| Seat Tube Length | 400 mm | 440 mm | 490 mm |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1161 mm | 1182 mm | 1203 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 655 mm | 656 mm | 670 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
