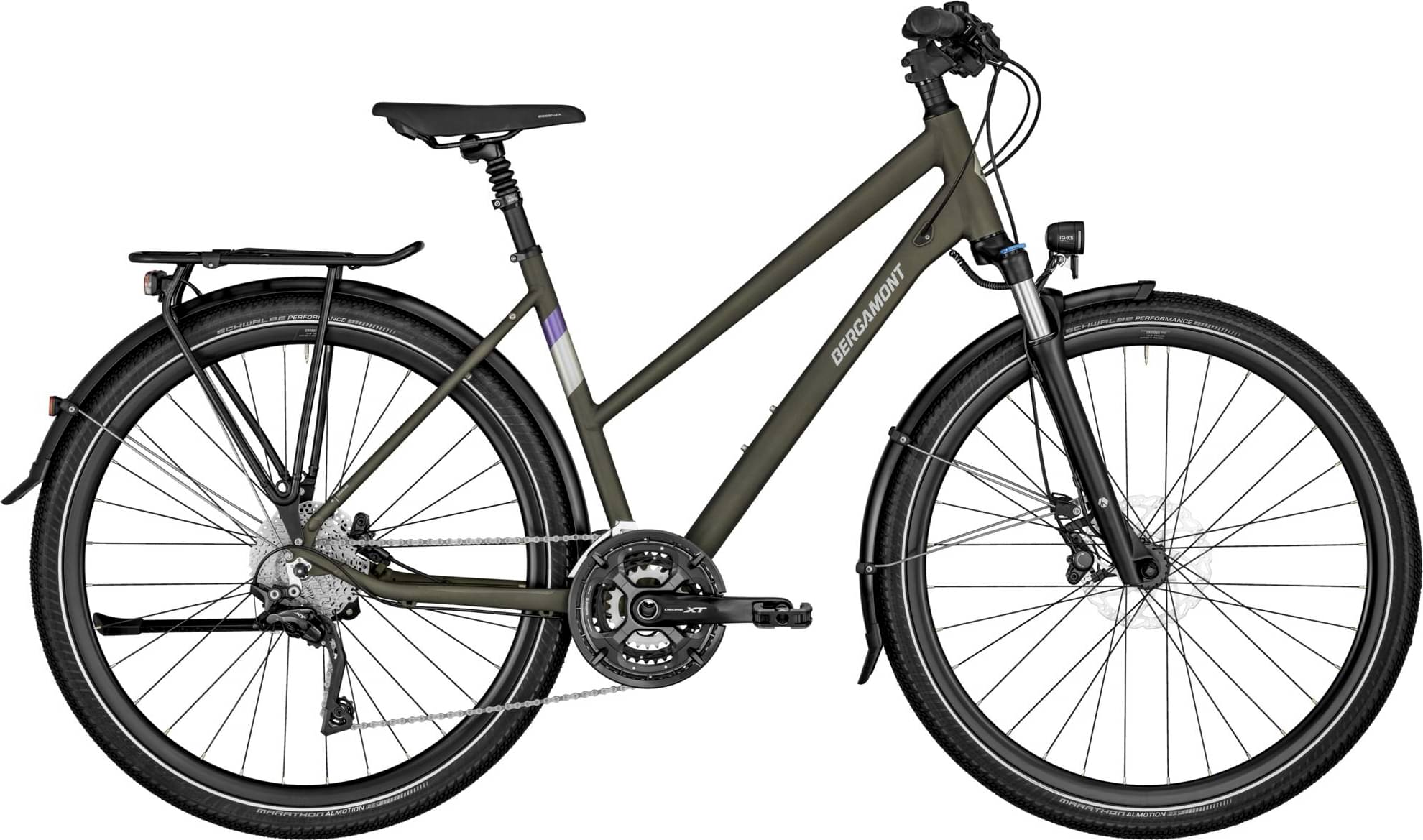

Bergamont Horizon 9 Lady 2024
2024 Urban
Estimate price |
2,093$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NRX D
-
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing
Suspension Fork
Suntour NRX D Air LO, 63 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-T8000, Shadow
Front Derailleur
Shimano Deore XT, FD-T8000
Shift Levers
Shimano Deore XT, SL-T8000, 3x10-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG50, 11-36t
Crank
Shimano Deore XT, FC-T8000, 48/36/26t, with chaincover
Bottom Bracket
Shimano BB-MT800, BSA
Chain
Shimano CN-HG54
Pedals
Trekking alloy
Wheels
Front Hub
Shutter Precision dynamo hub, SP PL-8, centerlock, disc, quick release
Rear Hub
Shimano Deore XT, FH-M8000, centerlock, disc, quick release
Rims
BGM Pro X15, disc, 32h
Spokes
stainless, black
Tires
Front: Schwalbe Marathon Almotion, Raceguard, reflective stripe, 50-622 Tube: Schwalbe SV19B Light, Rear: Schwalbe Marathon Almotion, Raceguard, reflective stripe, 50-622 Tube: Schwalbe SV19B Light
Brakes
Brakes
Shimano Deore, BR-M6000, hydraulic disc brake
Brake Levers
Shimano Deore, BL-T6000, hydraulic disc brake
Cockpit
Stem
BGM Pro, multiposition 10°/25°
Handlebar
BGM Pro, riserbar, backsweep: 15°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
BGM Comp, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
Post Moderne PM-780E, suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.537 mm | 1.59 mm | 1.647 mm | 1.678 mm |
| Front Center | 641 mm | 646 mm | 651 mm | 662 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 607 mm | 625 mm | 644 mm | 663 mm |
| Reach | 395 mm | 393 mm | 391 mm | 395 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 610 mm |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1089 mm | 1094 mm | 1099 mm | 1110 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 687 mm | 695 mm | 703 mm | 711 mm |
| Wheels | 700 | 700 | 700 | 700 |
