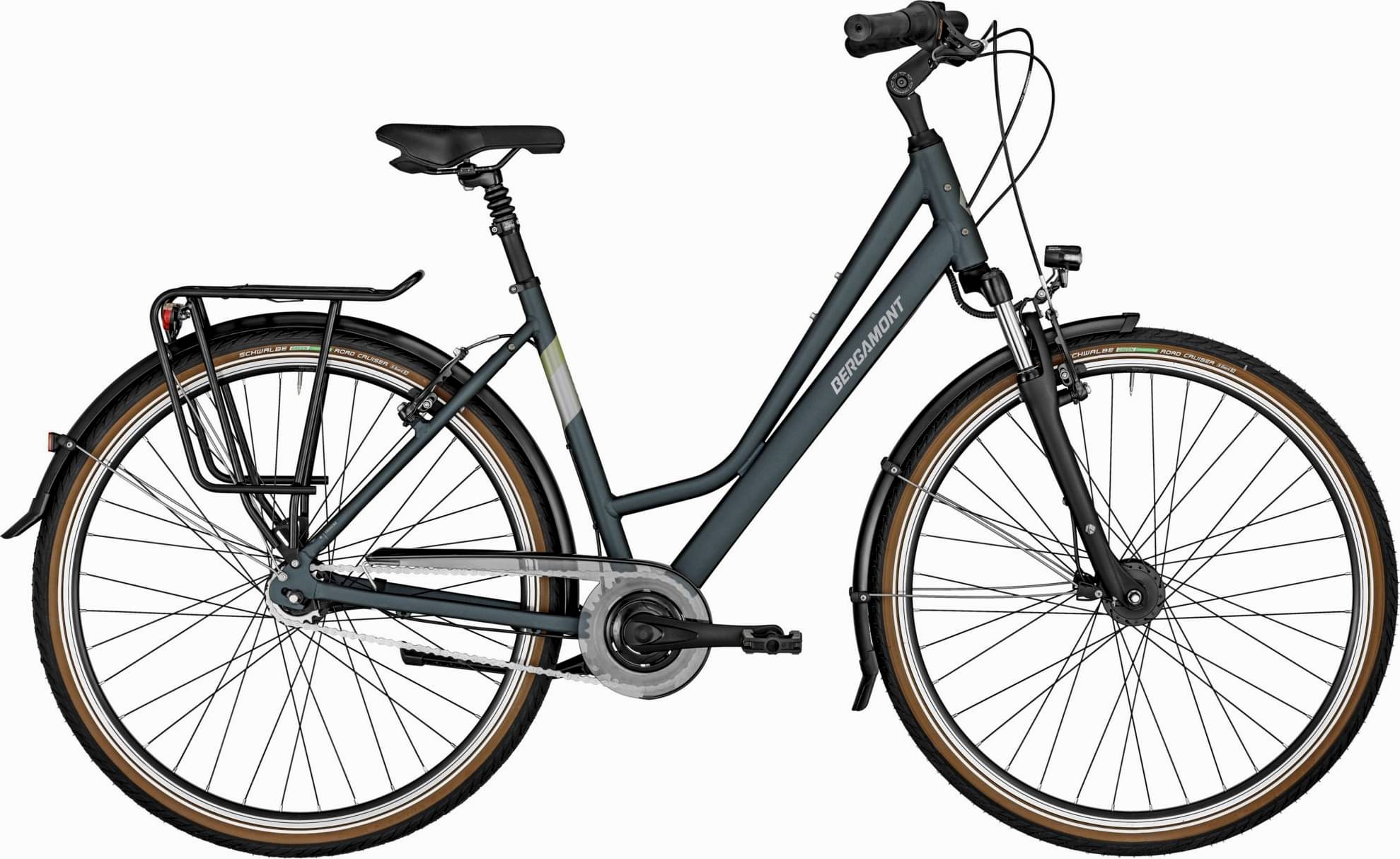

Bergamont Horizon N7 CB Amsterdam petrol 2024
2024 Urban
Estimate price |
916$
Weight | 17.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour M 3010
-
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Coaster
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing
Suspension Fork
Suntour M3010 P, 63 mm
Drivetrain
Shift Levers
Shimano Nexus, SL-C3000, 7-speed, revo-shifter
Cassette
Shimano, 19t
Crank
Alloy City, 38t
Bottom Bracket
Sealed cartridge, BSA
Chain
KMC Z610, antirust
Pedals
Trekking KS
Wheels
Front Hub
Shimano dynamo hub, DH-C3000
Rear Hub
Shimano Nexus, SG-C3001-7, coaster brake
Rims
BGM Comp X2, CNC-Side, 36h
Spokes
steel, black
Tires
Front: Schwalbe Road Cruiser, Kevlarguard, reflective stripe, 47-622 Tube: Schwalbe SV19B Light, Rear: Schwalbe Road Cruiser, Kevlarguard, reflective stripe, 47-622 Tube: Schwalbe SV19B Light
Brakes
Brakes
Tektro V-brake
Brake Levers
Tektro CL-330TS
Cockpit
Stem
BGM Comp, adjustable
Handlebar
BGM Comp, riserbar, backsweep: 33°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
BGM Comp, threaded, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Capilano Urban
Seatpost
Post Moderne PM-780E, suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.607 mm | 1.59 mm | 1.647 mm | 1.688 mm |
| Front Center | 642 mm | 646 mm | 651 mm | 656 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 625 mm | 625 mm | 644 mm | 665 mm |
| Reach | 389 mm | 393 mm | 391 mm | 394 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 610 mm |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Length | 150 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1100 mm | 1104 mm | 1109 mm | 1114 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 496 mm | 496 mm | 489 mm | 478 mm |
| Wheels | 700 | 700 | 700 | 700 |
