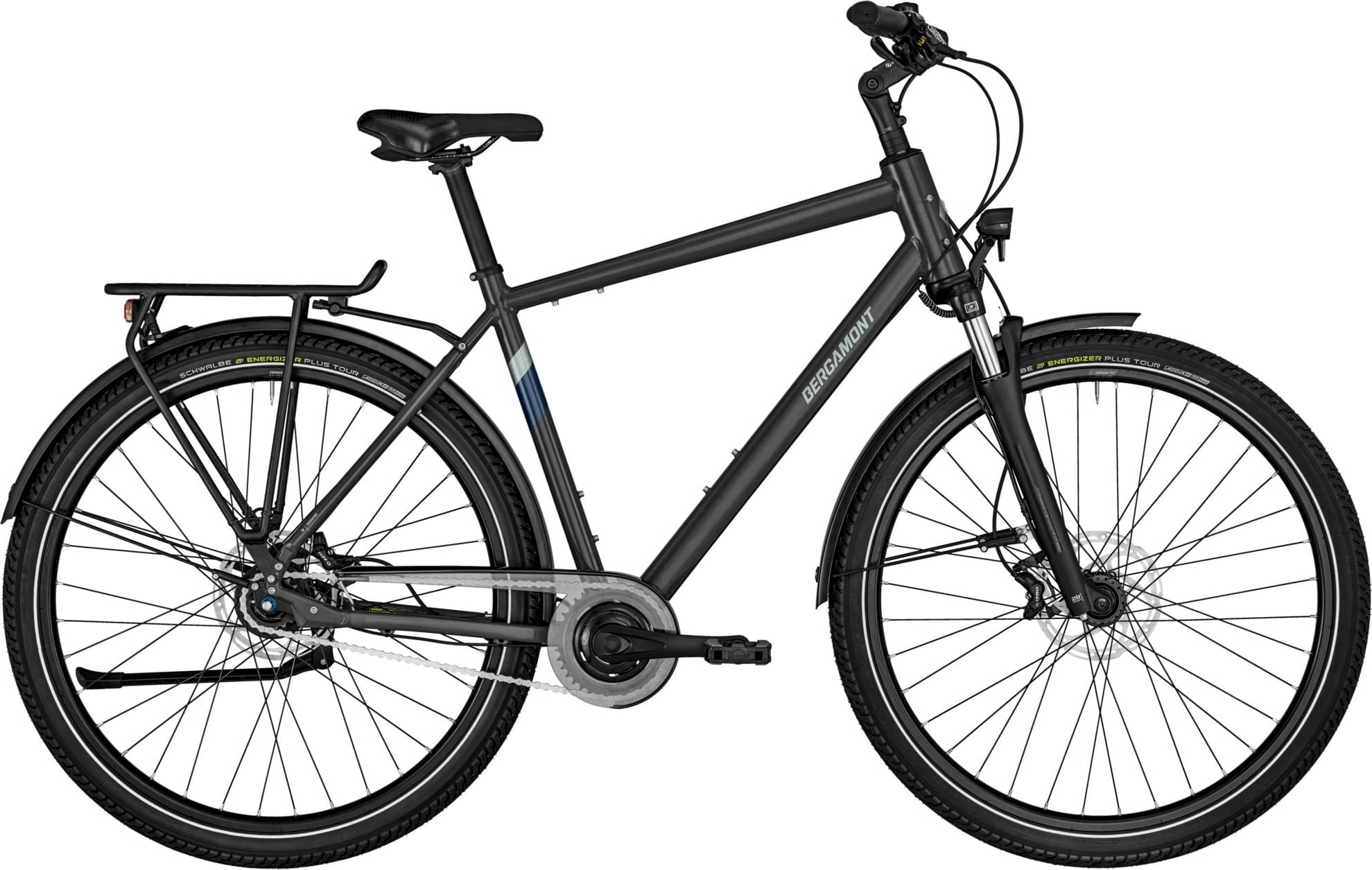

Bergamont Horizon Plus N8 FH Gent 2024
2024 Urban
Estimate price |
1,511$
Weight | 18.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Alfine -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", super strong AL-6061 tubing
Suspension Fork
Suntour Mobie A32 DS, 63 mm, preload adjust, 15x100 mm axle
Drivetrain
Shift Levers
Shimano Alfine, SL-S503, 8-speed, rapidfire plus-shifter
Cassette
Shimano, 19t
Crank
Alloy City, 38t
Bottom Bracket
Sealed cartridge, BSA, for belt-drive crankset
Chain
KMC Z610, antirust
Pedals
Trekking alloy
Wheels
Front Hub
Shimano dynamo hub, DH-UR708, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano Nexus, SG-C6001-8, freehub, centerlock, disc
Rims
Cross X17, disc, eyelets, width: 25 mm
Spokes
stainless, black
Tires
Front: Schwalbe Energizer Plus Tour, Greenguard, reflective stripe, 55-622 Tube: Schwalbe SV19B Light, Rear: Schwalbe Energizer Plus Tour, Greenguard, reflective stripe, 55-622 Tube: Schwalbe SV19B Light
Brakes
Brakes
Tektro HD-M745, hydraulic disc brake, 4-piston
Brake Levers
Tektro HD-M745, hydraulic disc brake
Cockpit
Stem
BGM Pro, multiposition 10°/25°
Handlebar
Syncros, rise 12 mm, backsweep 15°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
BGM Comp, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
BGM Pro
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm | 64cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.543 mm | 1.606 mm | 1.637 mm | 1.665 mm |
| Front Center | 650 | 656 mm | 655 mm | 665 mm | 675 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 611 mm | 628 mm | 649 mm | 668 mm | 686 mm |
| Reach | 402 mm | 407 mm | 404 mm | 408 mm | 412 mm |
| Top Tube Length | 595 mm | 605 mm | 615 mm | 625 mm | 635 mm |
| Seat Tube Length | 455 mm | 495 mm | 535 mm | 575 mm | 615 mm |
| Head Tube Length | 135 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1108 mm | 1114 mm | 1113 mm | 1123 mm | 1133 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 799 mm | 829 mm | 862 mm | 892 mm | 921 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
