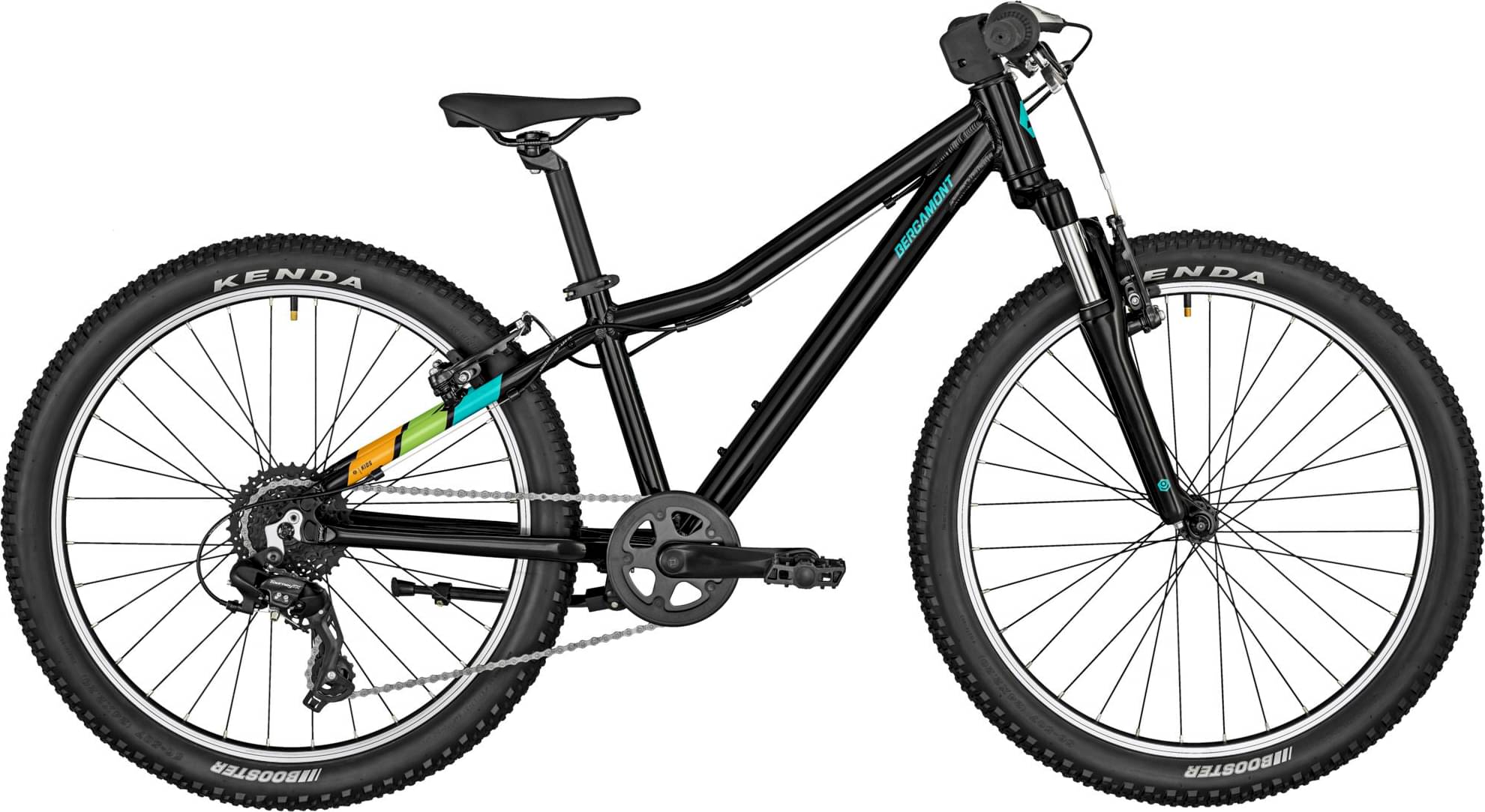

Bergamont Revox 24 2024
2024 Youth
Estimate price |
464$
Weight | 11.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour XCT
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
24", lite AL-6061 tubing
Suspension Fork
Suntour XCT JR, 50 mm, softer spring setup
Drivetrain
Rear Derailleur
Shimano RD-TX800
Shift Levers
Shimano SL-RS45, 1x8-speed, revo-shifter
Cassette
Sunrace CS-M55, 11-34t
Crank
Prowheel, 32t, length: 140 mm
Bottom Bracket
Sealed cartridge, BSA
Chain
KMC Z8
Pedals
Marwi SP-700
Wheels
Front Hub
BGM Comp, quick release
Rear Hub
Shimano, quick release
Rims
Alex C-1000
Spokes
steel, black
Tires
Front: Kenda Booster, 24x2.20" Tube: Kenda AV24, Rear: Kenda Booster, 24x2.20" Tube: Kenda AV24
Brakes
Brakes
Tektro V-brake
Brake Levers
V-Brake lever, alloy, adjustable reach
Cockpit
Stem
BGM Comp, with Syncros Stem Protector
Handlebar
BGM Comp, riserbar, width: 560 mm
Grips
BGM Kids
Headset
BGM FP-H807, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Future Pro
Seatpost
BGM Comp
Fit data
Geometry
