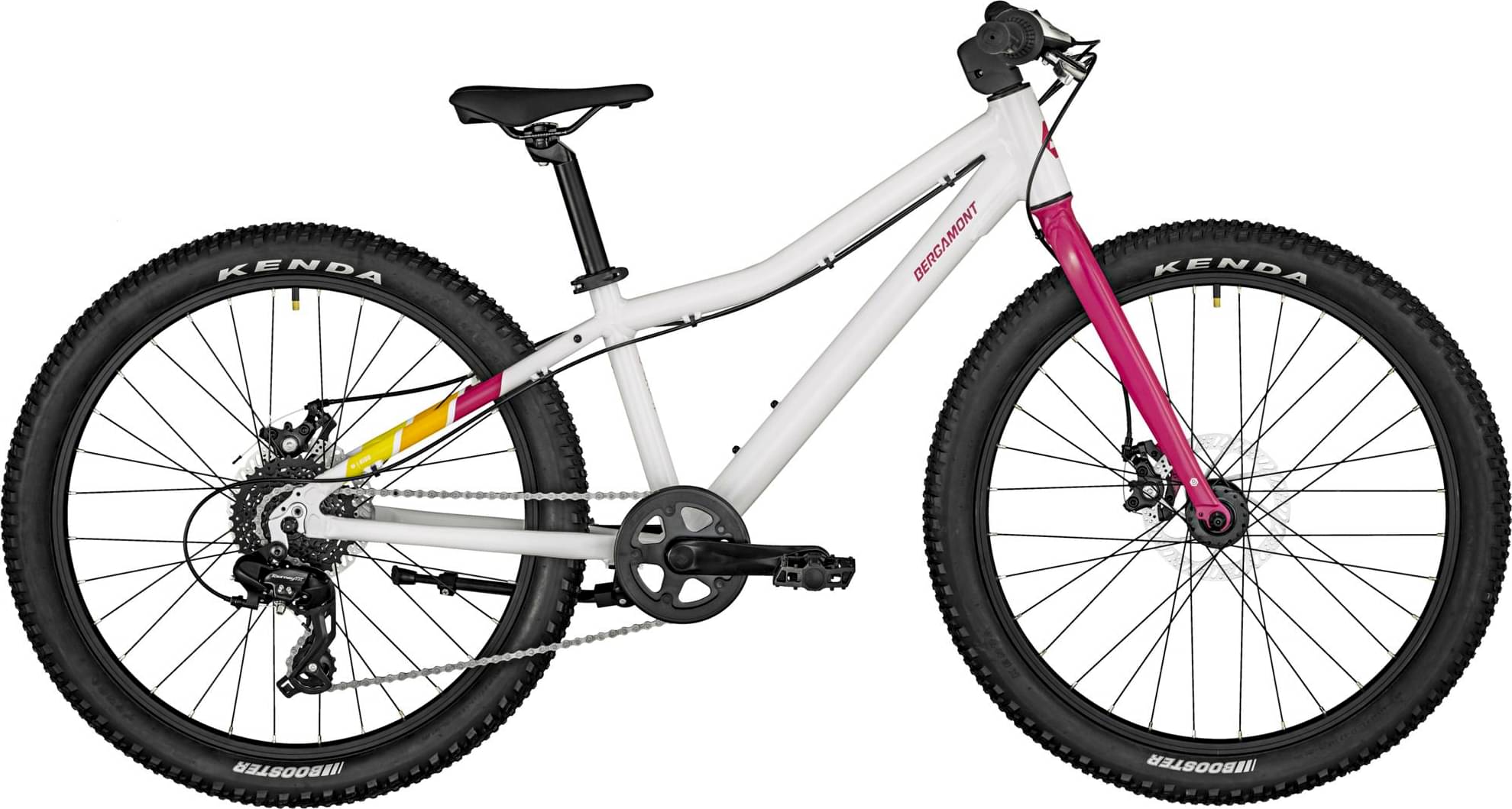

Bergamont Revox 24 Lite 2024
2024 Youth
Estimate price |
522$
Weight | 10.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
24", lite AL-6061 tubing
Suspension Fork
BGM rigid fork, disc, alloy
Drivetrain
Rear Derailleur
Shimano RD-TX800
Shift Levers
Shimano SL-RS45, 1x8-speed, revo-shifter
Cassette
Sunrace CS-M55, 11-34t
Crank
Prowheel, 32t, length: 140 mm
Bottom Bracket
Sealed cartridge, BSA
Chain
KMC Z8
Pedals
Marwi SP-700
Wheels
Front Hub
BGM Comp, 6-bolt, disc, quick release
Rear Hub
BGM Comp, 6-bolt, disc, quick release
Rims
Alex C-1000, disc
Spokes
steel, black
Tires
Front: Kenda Booster, 24x2.40" Tube: Kenda AV24, Rear: Kenda Booster, 24x2.40" Tube: Kenda AV24
Brakes
Brakes
Tektro MD-M280, mechanical disc brake
Brake Levers
Disc-Brake lever, alloy, adjustable reach
Cockpit
Stem
BGM Comp, with Syncros Stem Protector
Handlebar
BGM Comp, riserbar, width: 560 mm
Grips
BGM Kids
Headset
BGM FP-H807, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Future Pro
Seatpost
BGM Comp
Fit data
Geometry
