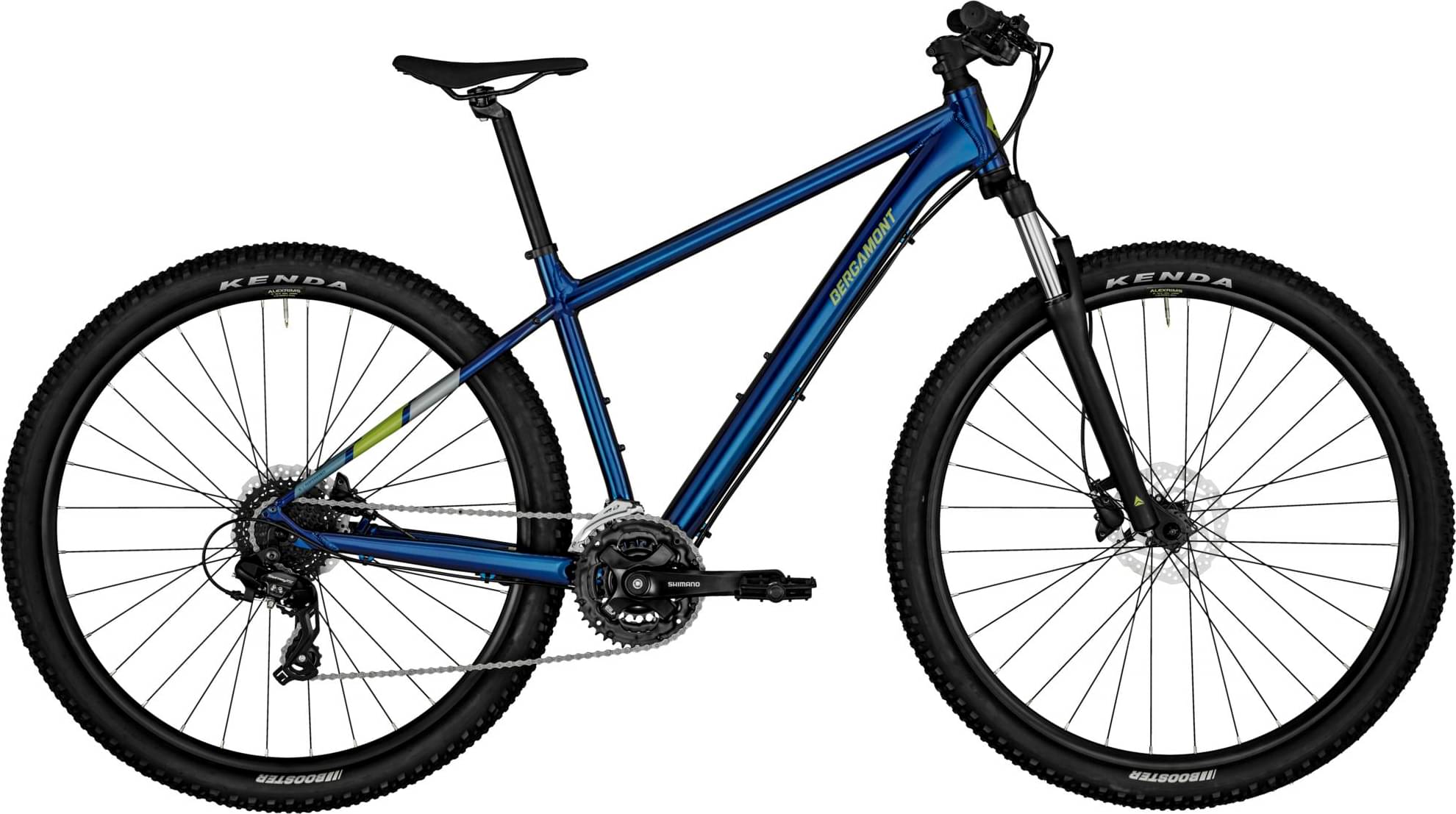

Bergamont Revox 3 blue 2024
2024 Mountain
Estimate price |
581$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), lite AL-6061 tubing
Suspension Fork
Suntour XCE28 DS, 100 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-TX800
Front Derailleur
Shimano FD-TY700
Shift Levers
Shimano SL-M315, 3x8-speed, rapidfire plus-shifter
Cassette
Sunrace CS-M55, 11-34t
Crank
Shimano FC-TY501, 42/34/24t
Bottom Bracket
Sealed cartridge, BSA
Chain
KMC Z8
Pedals
Feimin FP-803
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Alex X20, disc, width: 20 mm
Spokes
steel, black
Tires
Front: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV29, Rear: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV27
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Comp, +/-6°
Handlebar
BGM Comp, riserbar, width: 700 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Tofino 2.5
Seatpost
BGM Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 | XXL9 |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.469 mm | 1.451 mm | 1.477 mm | 1.457 mm | 1.435 mm | 1.418 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 660 mm | 676 mm | 692 mm | 693 mm | 709 mm | 725 mm | 746 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 597 mm | 611 mm | 621 mm | 629 mm | 638 mm | 647 mm | 661 mm |
| Reach | 404 mm | 416 mm | 428 mm | 426 mm | 438 mm | 451 mm | 466 mm |
| Top Tube Length | 580 mm | 595 mm | 610 mm | 610 mm | 625 mm | 640 mm | 660 mm |
| Seat Tube Length | 360 mm | 405 mm | 445 mm | 445 mm | 485 mm | 525 mm | 565 mm |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1089 mm | 1105 mm | 1121 mm | 1142 mm | 1158 mm | 1174 mm | 1195 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 700 | 734 mm | 762 mm | 771 mm | 798 mm | 825 mm | 854 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
