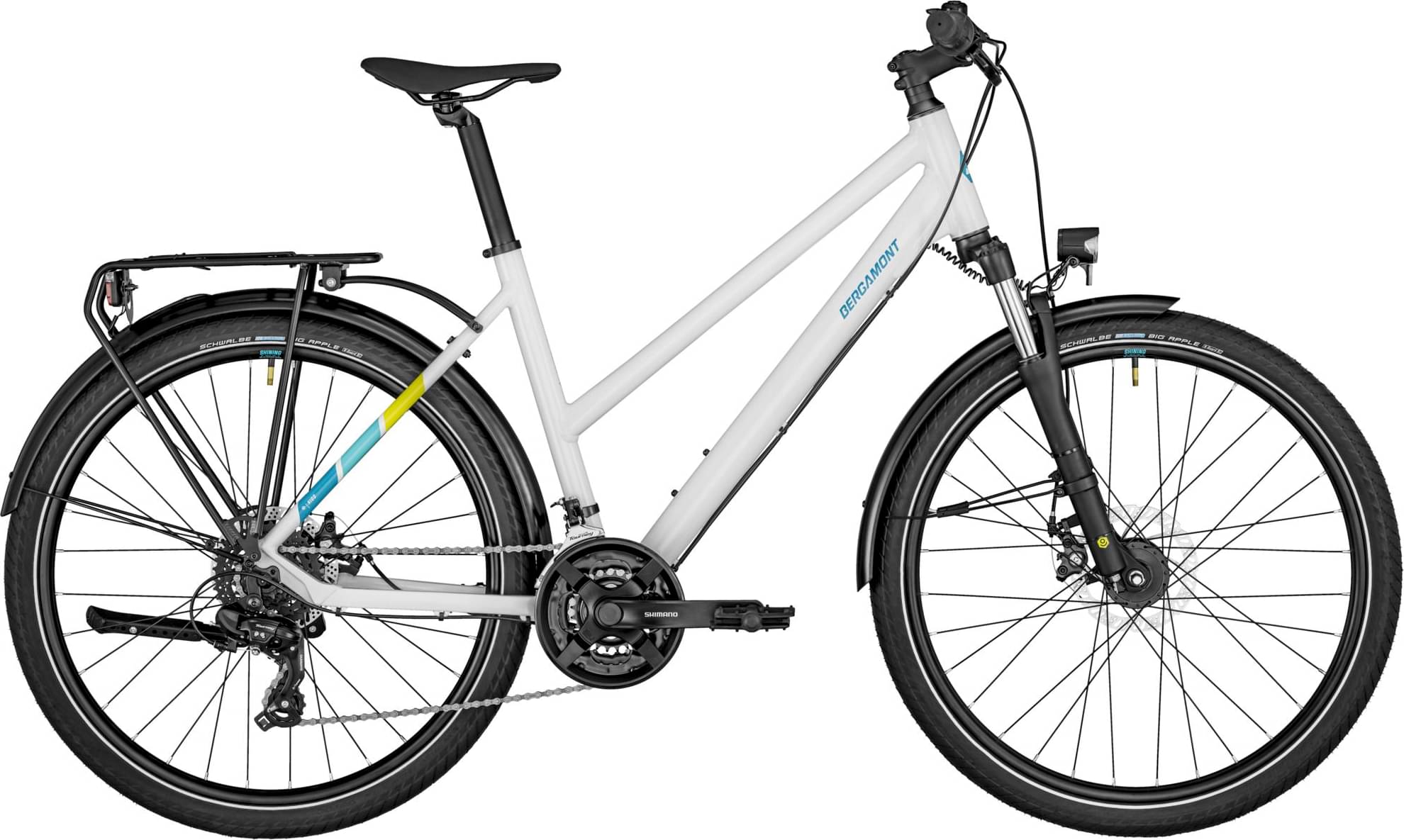

Bergamont Revox ATB 26 Girl 2024
2024 Youth
Estimate price |
802$
Weight | 15.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCE
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", lite AL-6061 tubing
Suspension Fork
Suntour XCE28 DS, 80 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-TY300
Front Derailleur
Shimano FD-TY300
Shift Levers
Shimano SL-RV200, 3x7-speed, revo-shifter
Cassette
Sunrace CS-M40, 11-34t
Crank
Shimano FC-TY301, 42/34/24t
Bottom Bracket
Shimano BB-UN101, BSA
Chain
KMC Z7
Pedals
Feimin FP-803
Wheels
Front Hub
Shimano dynamo hub, DH-3D32, 6-bolt, disc
Rear Hub
BGM Comp, 6-bolt, disc, quick release
Rims
Shining DB-29, disc, width: 19 mm
Spokes
steel, black
Tires
Front: Schwalbe Big Apple, reflective stripe, 50-559 Tube: Kenda AV26, Rear: Schwalbe Big Apple, reflective stripe, 50-559 Tube: Kenda AV26
Brakes
Brakes
Tektro MD-M280, mechanical disc brake
Brake Levers
Disc-Brake lever, alloy, adjustable reach
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, width: 660 mm
Grips
BGM Comp
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Savona 2.5
Seatpost
BGM Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 38cm | 42cm | 47cm | 51cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.649 mm | 1.589 mm | 1.56 mm | 1.536 mm |
| Front Center | 616 mm | 628 mm | 643 mm | 660 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Stack | 602 mm | 604 mm | 613 mm | 622 mm |
| Reach | 365 mm | 380 mm | 393 mm | 405 mm |
| Top Tube Length | 549 mm | 559 mm | 574 mm | 589 mm |
| Seat Tube Length | 375 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Length | 140 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1036 mm | 1049 mm | 1064 mm | 1082 mm |
| Bottom Bracket Drop | 50 mm | 45 mm | 45 mm | 40 mm |
| Standover Height | 664 mm | 664 mm | 664 mm | 669 mm |
| Wheels | 26" | 26" | 26" | 26" |
