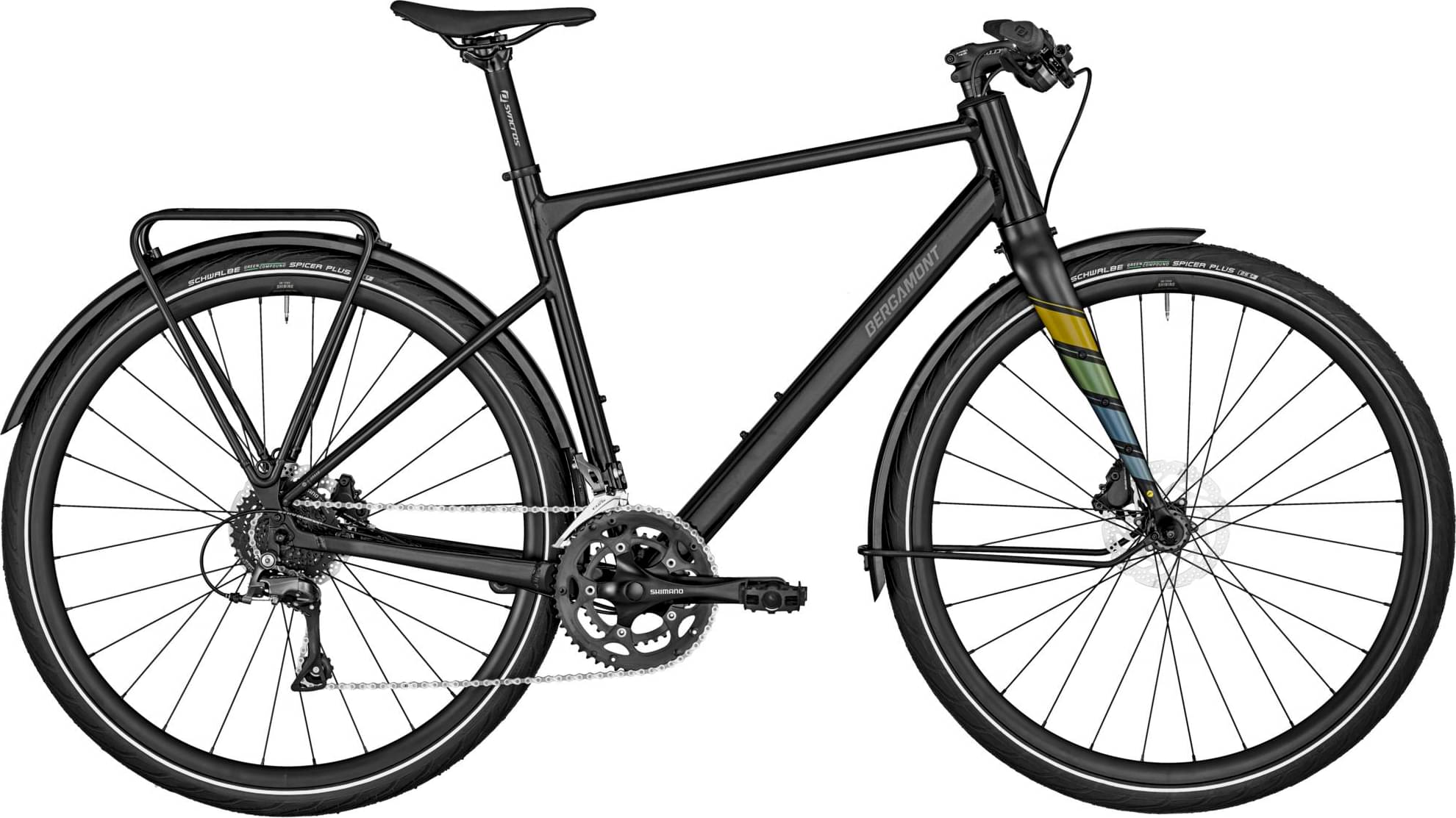

Bergamont Sweep 4 EQ 2024
2024 Urban
Estimate price |
1,162$
Weight | 12.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing
Suspension Fork
Sweep Alloy, quick release, flatmount, triple mounts
Drivetrain
Rear Derailleur
Shimano Claris, RD-R2000, long cage
Front Derailleur
Shimano Claris, FD-R2000
Shift Levers
Shimano Claris, SL-R2000, 2x8-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG31-8, 11-34t
Crank
Shimano FC-RS200, 50/34t
Bottom Bracket
Shimano BB-UN300, BSA
Chain
KMC X8
Pedals
Wellgo LU895
Wheels
Front Hub
BGM Pro, centerlock, disc, quick release
Rear Hub
BGM Pro, centerlock, disc, quick release
Rims
Shining DB-T260, disc
Spokes
stainless, black
Tires
Front: Schwalbe Spicer Plus, Kevlarguard, reflective stripe, 40-622 Tube: Kenda SV28, Rear: Schwalbe Spicer Plus, Kevlarguard, reflective stripe, 40-622 Tube: Kenda SV28
Brakes
Brakes
Shimano BR-UR300, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Syncros 3.0, +/-10°
Handlebar
Syncros 3.0, riserbar, width: 660 mm
Grips
Syncros Urban
Headset
Acros ZS56, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.363 mm | 1.376 mm | 1.388 mm | 1.4 mm | 1.411 mm |
| Front Center | 626 mm | 641 mm | 657 mm | 673 mm | 689 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 559 mm | 578 mm | 597 mm | 616 mm | 635 mm |
| Reach | 410 mm | 420 mm | 430 mm | 440 mm | 450 mm |
| Top Tube Length | 560 mm | 575 mm | 590 mm | 605 mm | 620 mm |
| Seat Tube Length | 485 mm | 510 mm | 535 mm | 560 mm | 585 mm |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1051 mm | 1067 mm | 1083 mm | 1099 mm | 1115 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 772 mm | 792 mm | 815 mm | 837 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
