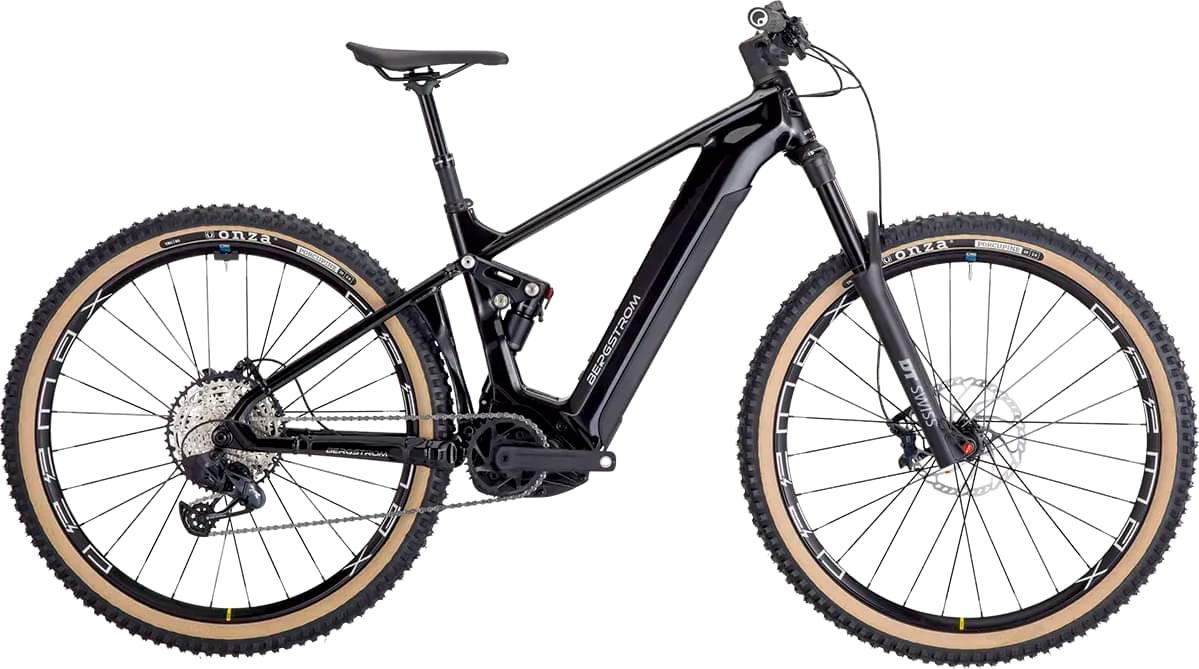

bergstrom ATV 949 125+ Carbon R 625 2024
2024 E-bike
Estimate price |
7,898$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork RockShox 35 Gold RL
-
Groupset XT -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Abus -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox 35 Gold RL suspension fork, 150mm
Rear Shock
Rock Shox Super Deluxe Select+
Drivetrain
Rear Derailleur
Shimano XT, 12-speed
Cassette
Shimano SLX, 12-speed
Crank
FSA
Chain
Shimano Deore
Wheels
Rims
DT Swiss HR H1900 Spline 29 / 30
Tires
Onza Porcupine Skinwall, 29x2.60
Brakes
Brakes
Front: SRAM DB8 Scheibenbremse, Rear: SRAM DB8 Scheibenbremse
Cockpit
Stem
Satori Viper, 45mm
Handlebar
Satori Horizon Bow, 780mm
Seat
Saddle
Ergon SM10
Seatpost
Crank Brothers Highline, lowerable, 100 mm
Motor & Battery
Motor
Bosch G4 Performance CX Race Edition, 25km/h
Battery
Abus
Remote
Bosch LED Remote
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
