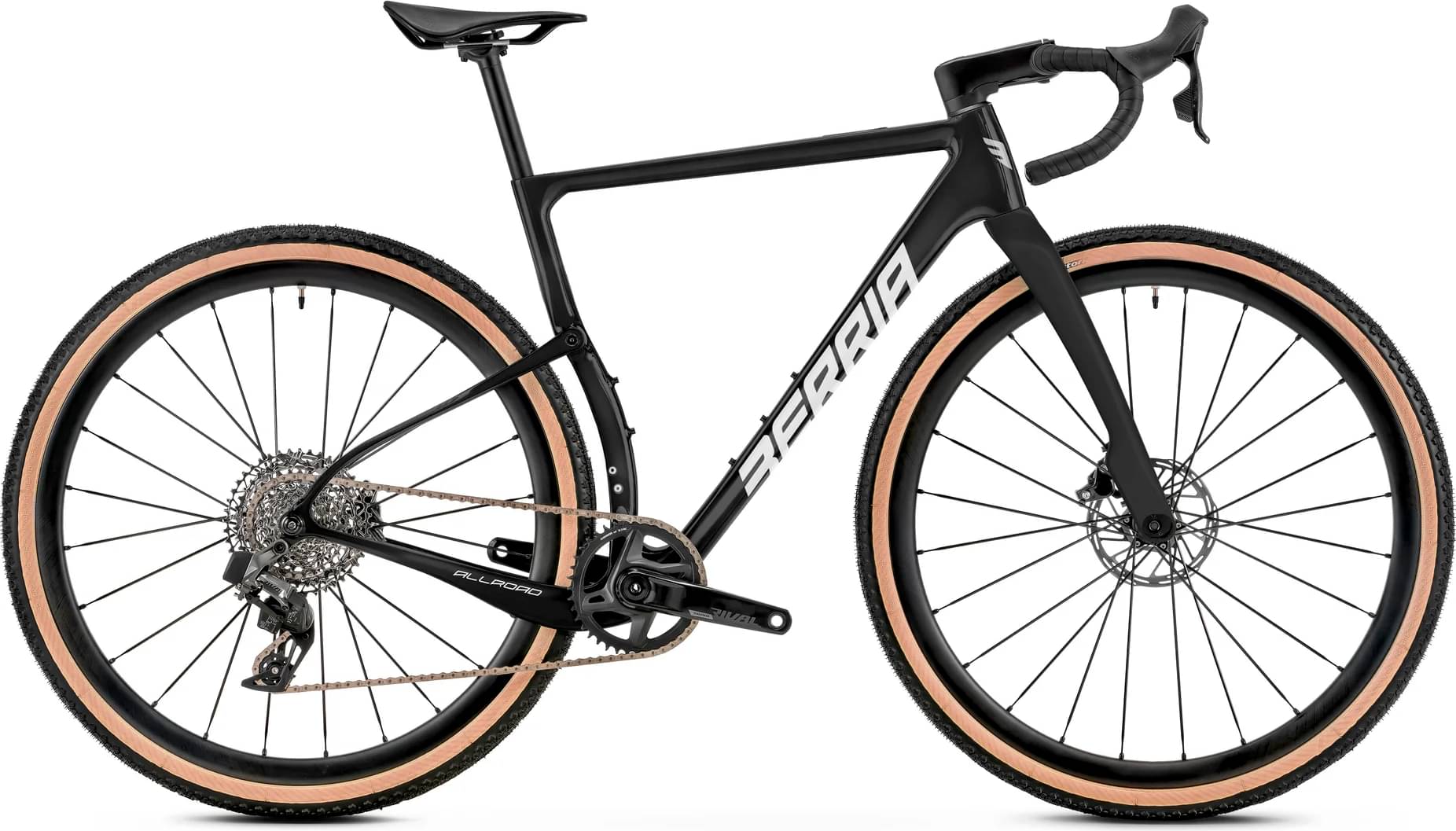

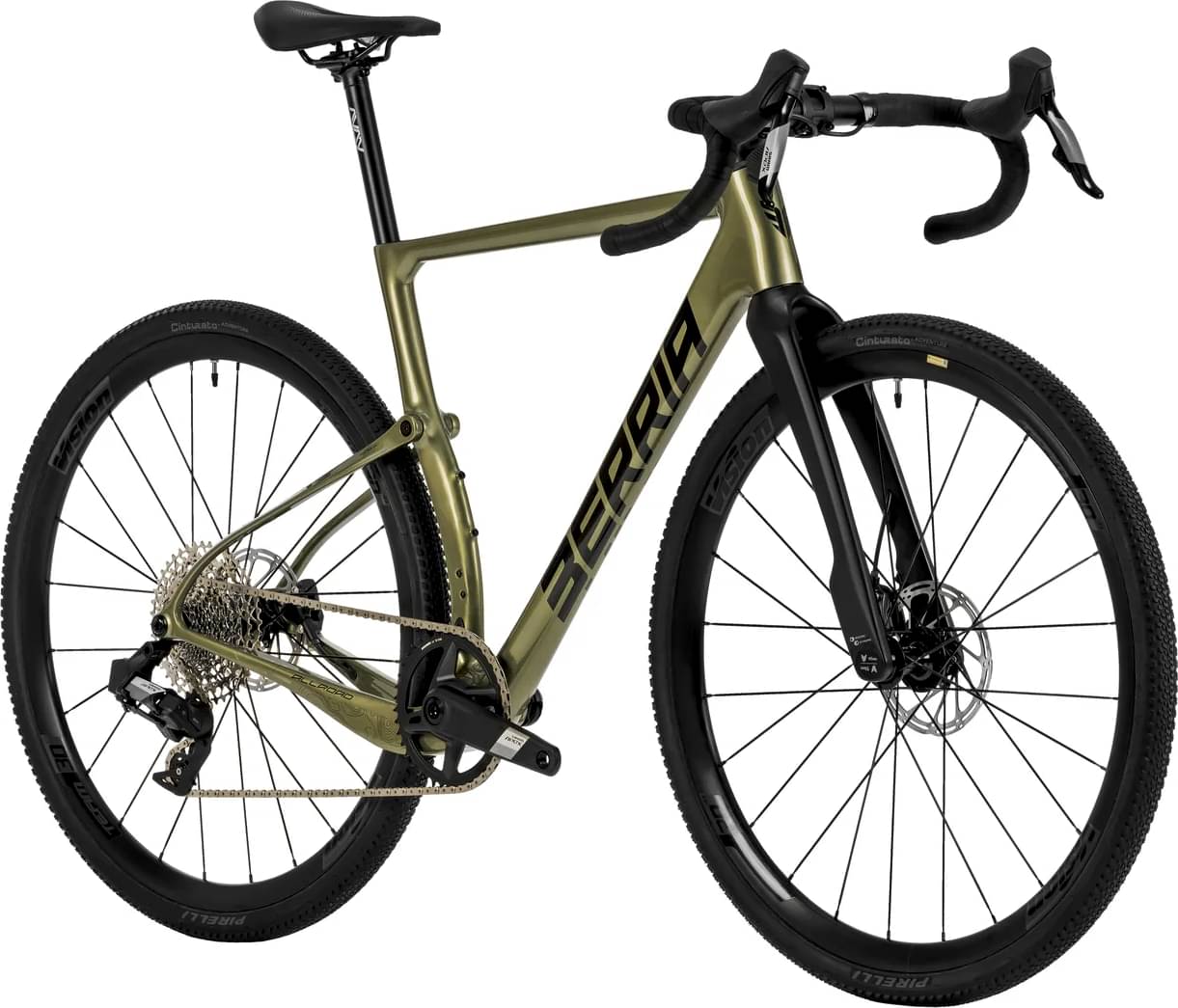

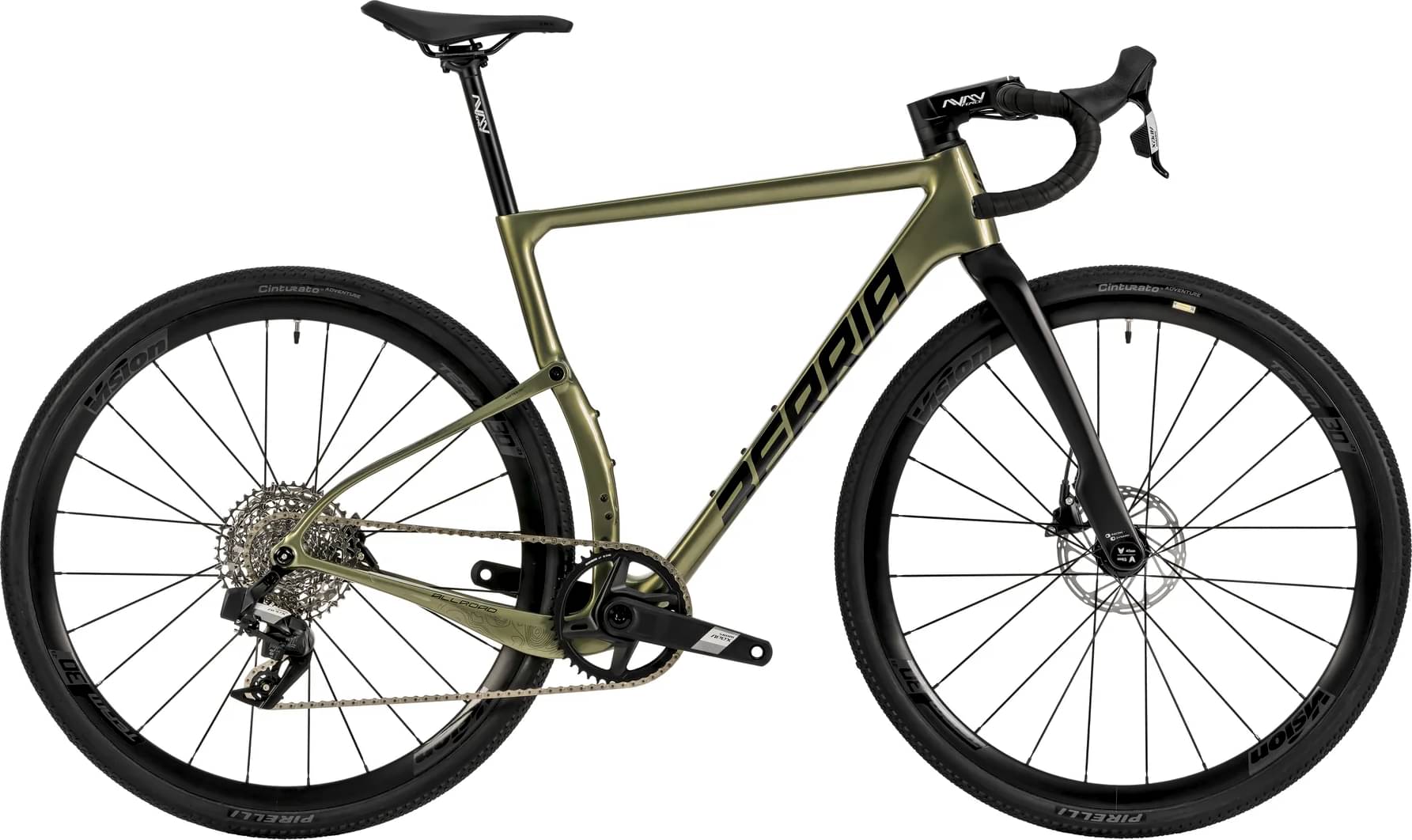

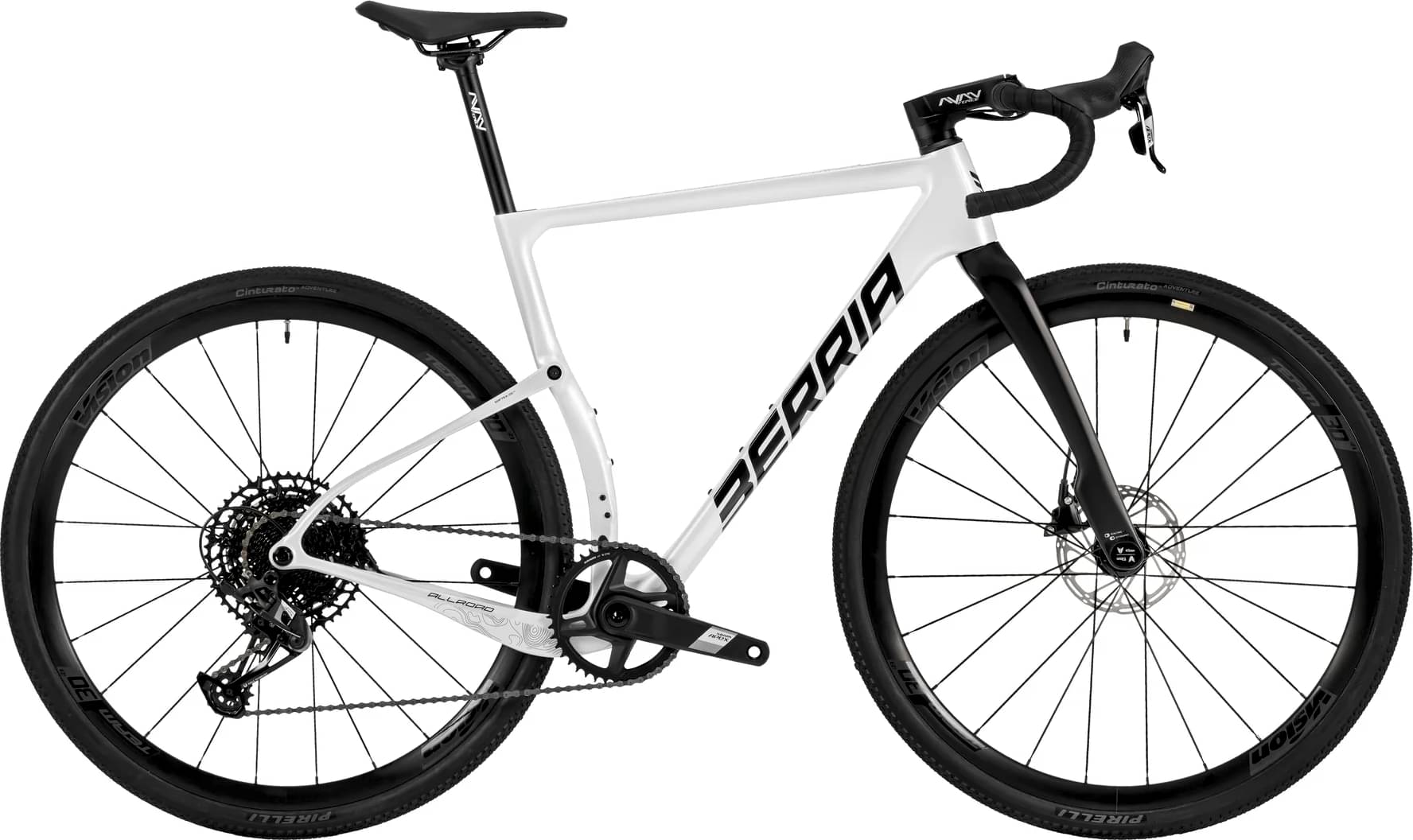

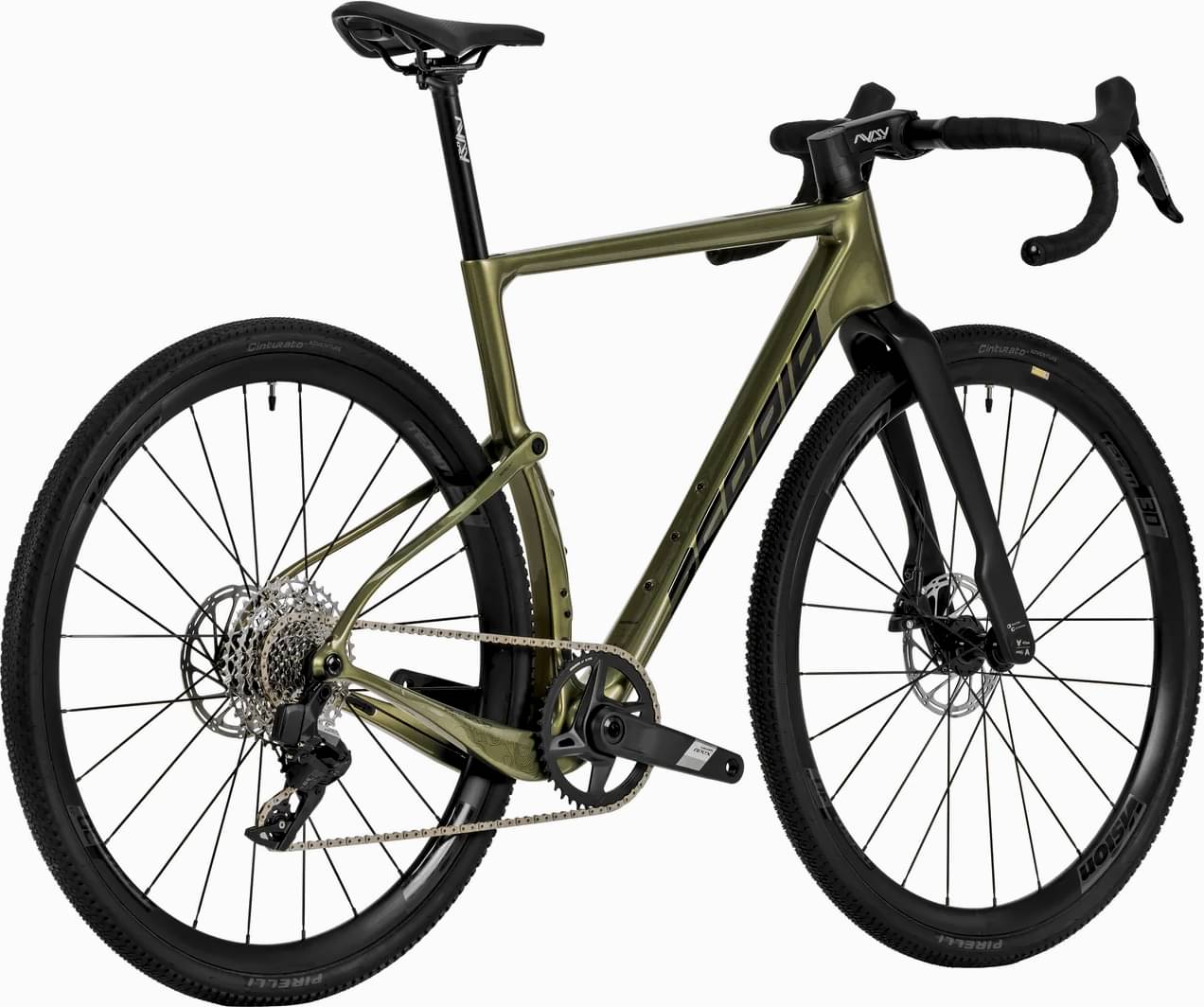

Berria ALLROAD PRO APEX XPLR AXS 2026
2026 Road
Estimate price |
4,012$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Apex XPLR AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Apex Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
164cm - 176cm
MD
174cm - 186cm
LG
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Allroad EVO, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered, Flat Mount Standard max. 160mm disc, 700x45c maximum tyre, Flip-chip adust 45-51mm fork rake, 405mm axle to crown, Thru axle 12x100mm
Drivetrain
Rear Derailleur
SRAM APEX XPLR AXS D1, 12s, Electronic Shift System
Cassette
CS XPLR PG1231, 11-44T
Crank
SRAM APEX D1, DUB WIDE Crankset, 42T, 170-172,5-175mm
Bottom Bracket
BB86 DUB WIDE
Chain
SRAM APEX D1, 118 Links
Wheels
Rims
Vision Team 30, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock
Brakes
Brakes
SRAM APEX AXS D1, Hydraulic Shift-Brake System
Cockpit
Handlebar
Avanforce 3 Gravel, Alloy 6061, Ø31,8, width: 400, 420, 440mm
Seat
Saddle
SRX Open Cut Athletic, Steel rails, length: 260mm, width: 148mm
Seatpost
Avanforce AF3, Aluminum 6061, 0 offset, Ø27,2, length: 350, 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.418 mm | 1.425 mm | 1.442 mm | 1.447 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 593 mm | 607 mm | 620 mm | 630 mm | 642 mm |
| Rake | 44 mm | 44 mm | 46 mm | 45 mm | 45 mm |
| Trail | 82 mm | 78.7 mm | 75.3 mm | 72 mm | 68.7 mm |
| Stack | 535 mm | 550 mm | 567 mm | 587 mm | 605 mm |
| Reach | 374 mm | 388 mm | 398 mm | 407 mm | 418 mm |
| Seat Tube Angle | 75.1 ° | 74.8 ° | 74.5 ° | 74.2 ° | 73.9 ° |
| Seat Tube Length | 460 mm | 484 mm | 508 mm | 532 mm | 556 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 98 mm | 113 mm | 129 mm | 146 mm | 164 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1000 mm | 1015 mm | 1028 mm | 1038 mm | 1050 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm | 191 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 193 cm | cm |
