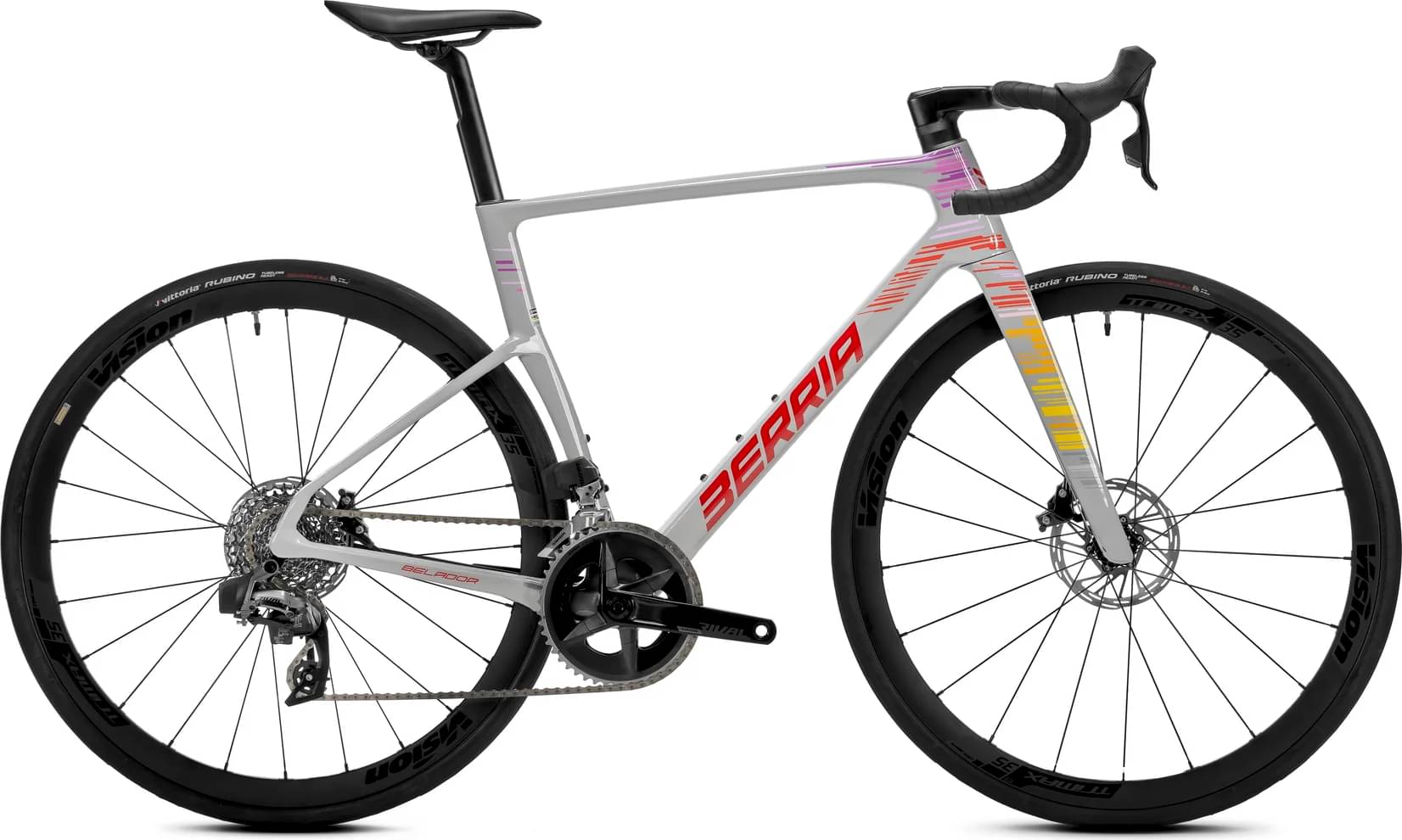

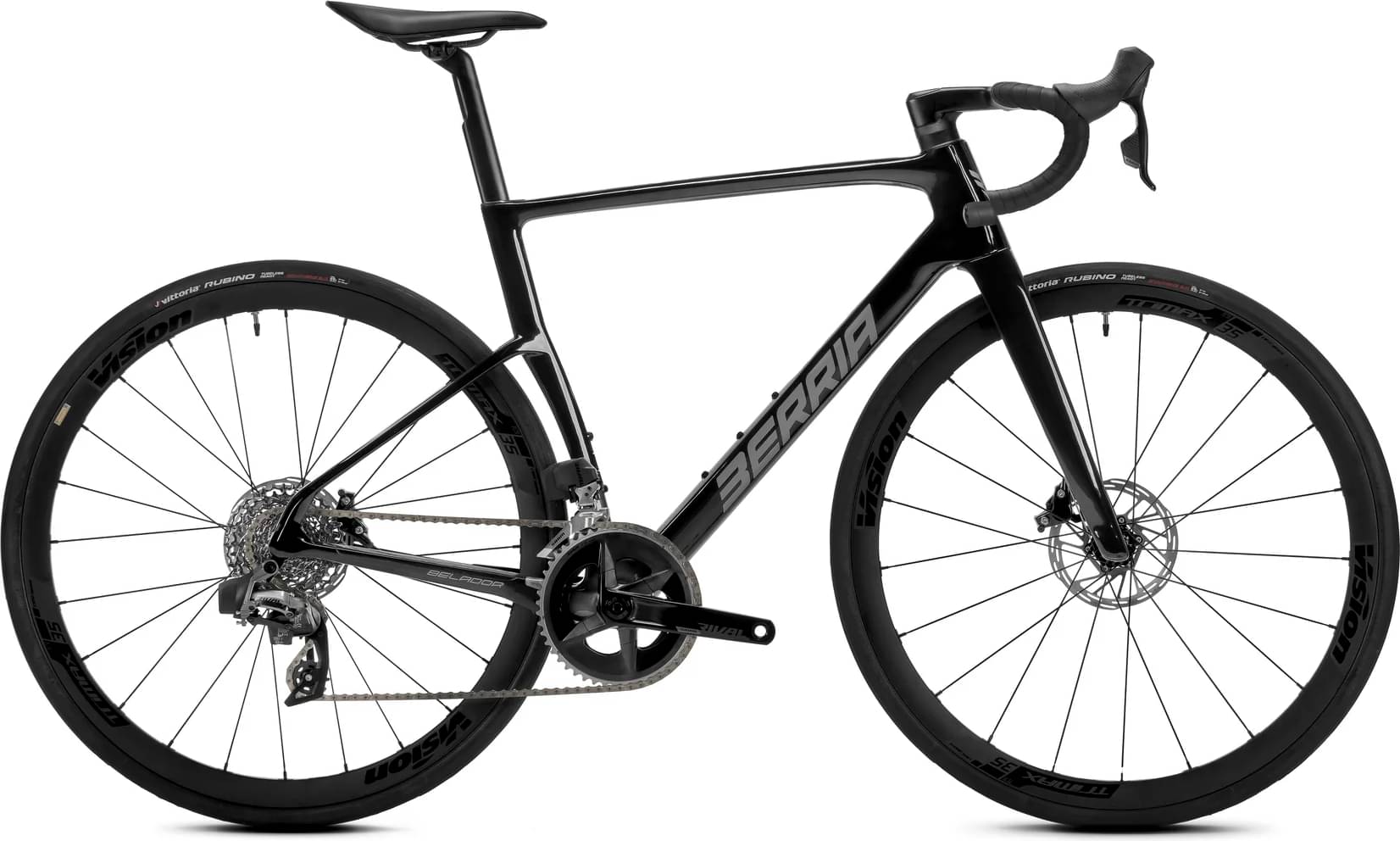

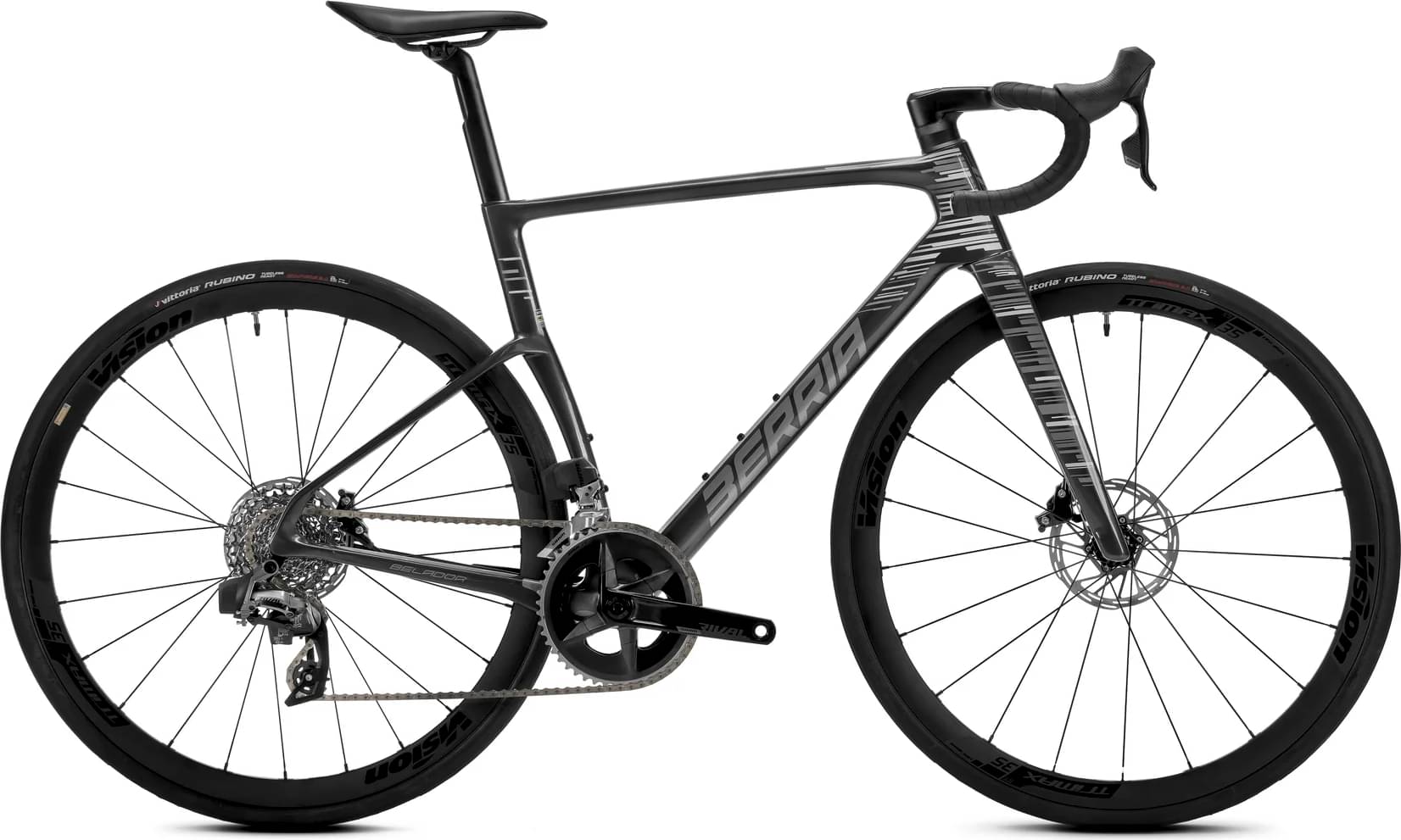

Berria BELADOR PRO RIVAL AXS PWM 2025
2025 Road
Estimate price |
4,652$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM Rival Hydraulic Disc
Sizing
Recommended size guide.
51cm
155cm - 166cm
53cm
164cm - 176cm
55cm
174cm - 186cm
57cm
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Belador 6 DISC, Racing Geometry BGC Aero Shape Efficiency (ASE), Full carbon HM2X, Triple monocoque, T47 Bottom Bracket, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2"- 1-1/2", Flat Mount System brake, 700x34c maximum tyre, Thru axle 12x142mm, weight 970gr
Suspension Fork
Belador Blade 6 full carbon fork, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered head tube compatible, Flat Mount System brake, 700x34c maximum tyre, Thru axle 12x100mm, weight 450g
Drivetrain
Rear Derailleur
SRAM RIVAL eTap AXS Electronic Shift System, weight 366g
Cassette
SRAM RIVAL XG1250, 10-36T, weight 338g
Crank
SRAM RIVAL D1 POWER METER Crankset 48/35T, 170-172,5-175
Bottom Bracket
SRAM DUB T47 Bottom Bracket
Chain
CN RIVAL D1 12S 114LINK
Wheels
Rims
Vision Trimax 35, Aluminum rim, TLR, inner width 19mm, rim height 35mm, Center Lock, weight: 1680gr.
Tires
Vittoria Rubino, IV 28-622 Tubeless Ready, full black, Graphene 2.0
Brakes
Brakes
SRAM RIVAL ETAP AXS D1 Hydraulic Shift-Brake System
Cockpit
Handlebar
Avanforce Airone, Integral Road Carbon Handlebar, Full internal cable system ICS2, sizes 380x90 - 400x100 - 420x110 - 420x120, weight: 320gr
Seat
Saddle
Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width: 140 mm, weight: 240gr
Seatpost
Belador 6 SP, UD Carbon, 0/20 mm offset, ISP technology, weight 90gr
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 53cm | 55cm | 57cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.404 mm | 1.392 mm | 1.389 mm | 1.404 mm | 1.411 mm |
| Bottom Bracket Height | 262 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 577 mm | 588 mm | 599 mm | 612 mm | 624 mm |
| Rake | 43 mm | 42 mm | 41 mm | 42 mm | 41 mm |
| Trail | 83 mm | 73 mm | 68 mm | 65 mm | 62 mm |
| Stack | 518 mm | 533 mm | 550 mm | 570 mm | 590 mm |
| Reach | 369 mm | 383 mm | 396 mm | 406 mm | 418 mm |
| Seat Tube Angle | 74.9 ° | 74.6 ° | 74.3 ° | 74 ° | 73.7 ° |
| Seat Tube Length | 445 mm | 475 mm | 500 mm | 530 mm | 565 mm |
| Head Tube Angle | 70.5 ° | 71.3 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 982 mm | 993 mm | 1006 mm | 1018 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm | 191 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 193 cm | cm |
