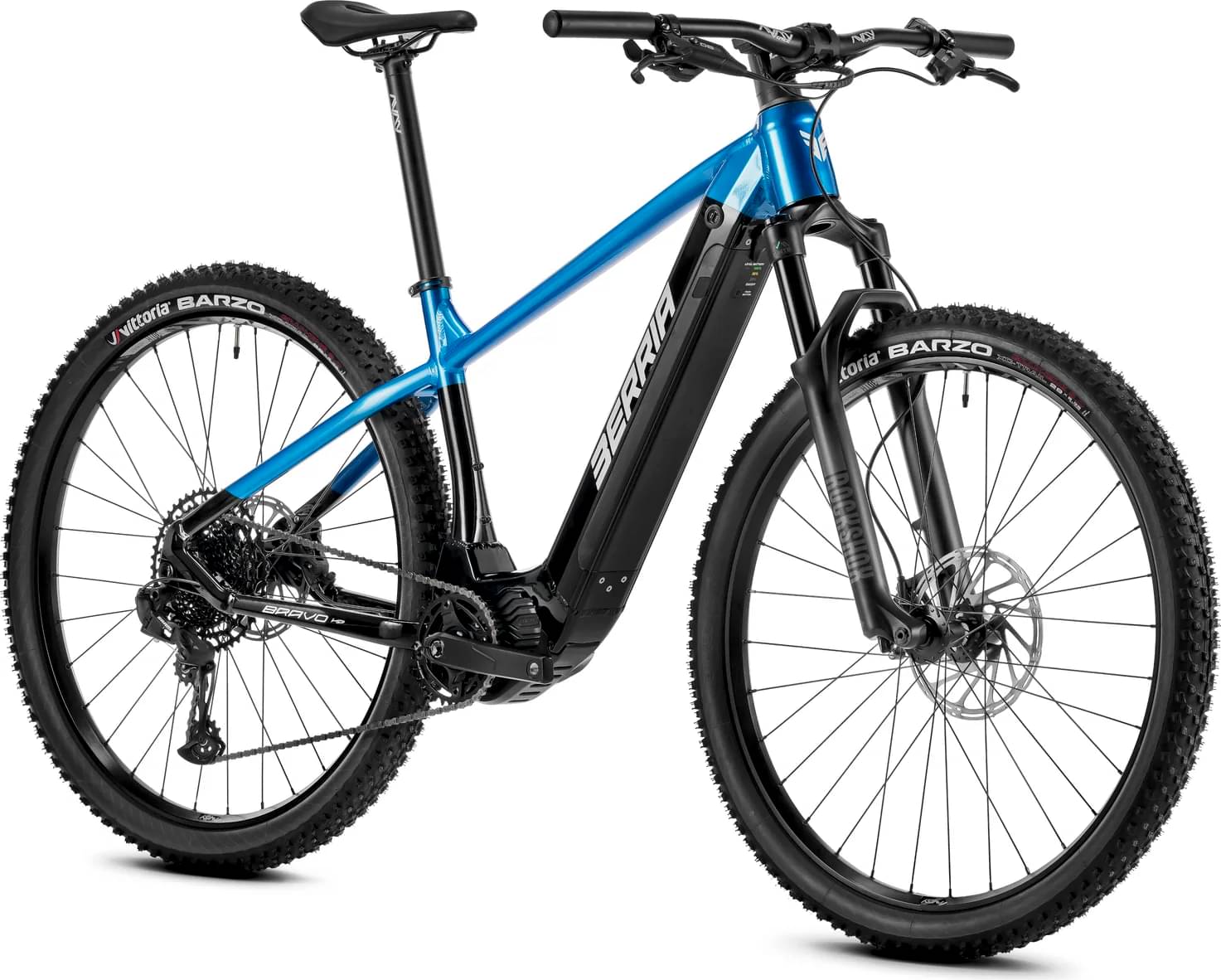

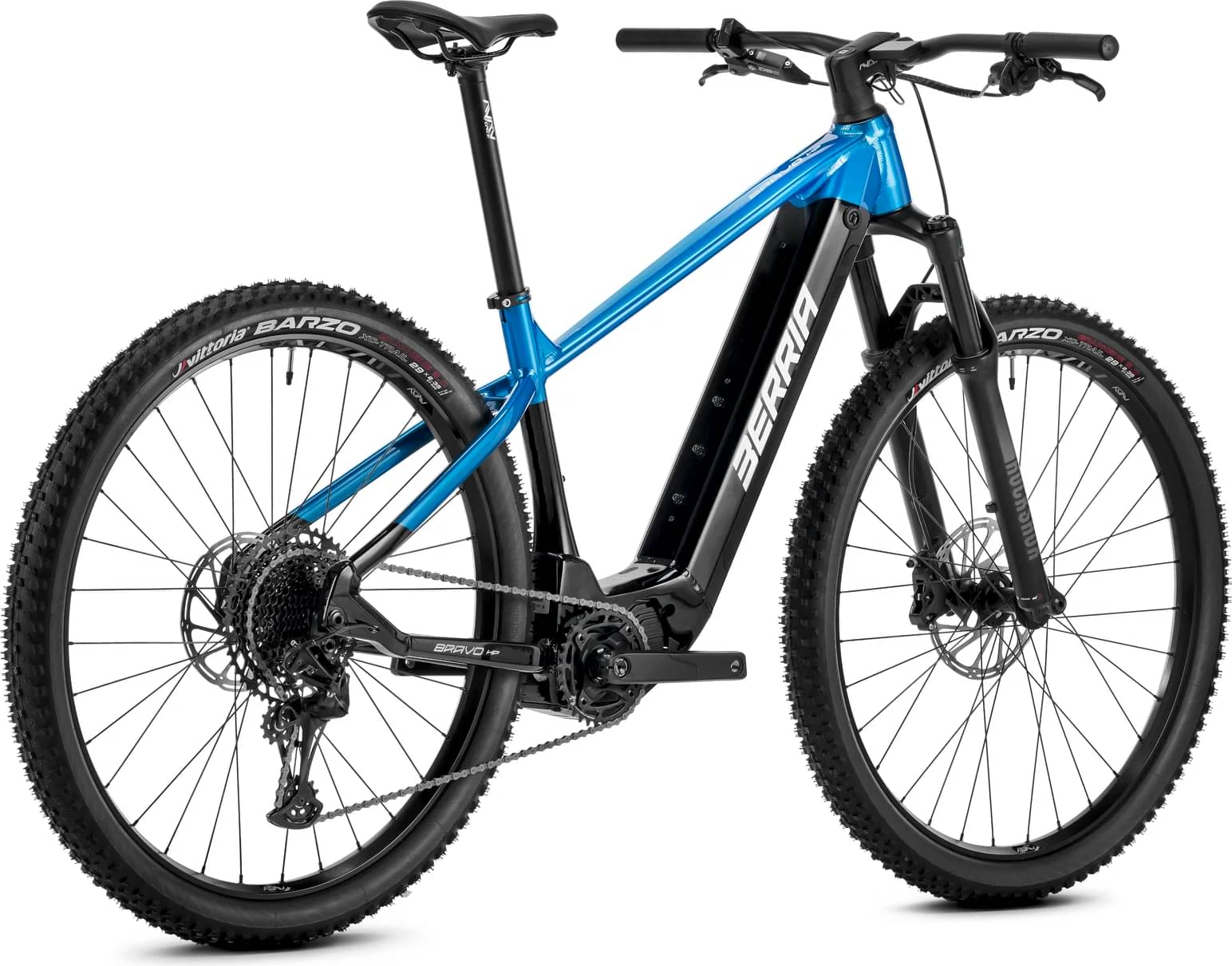

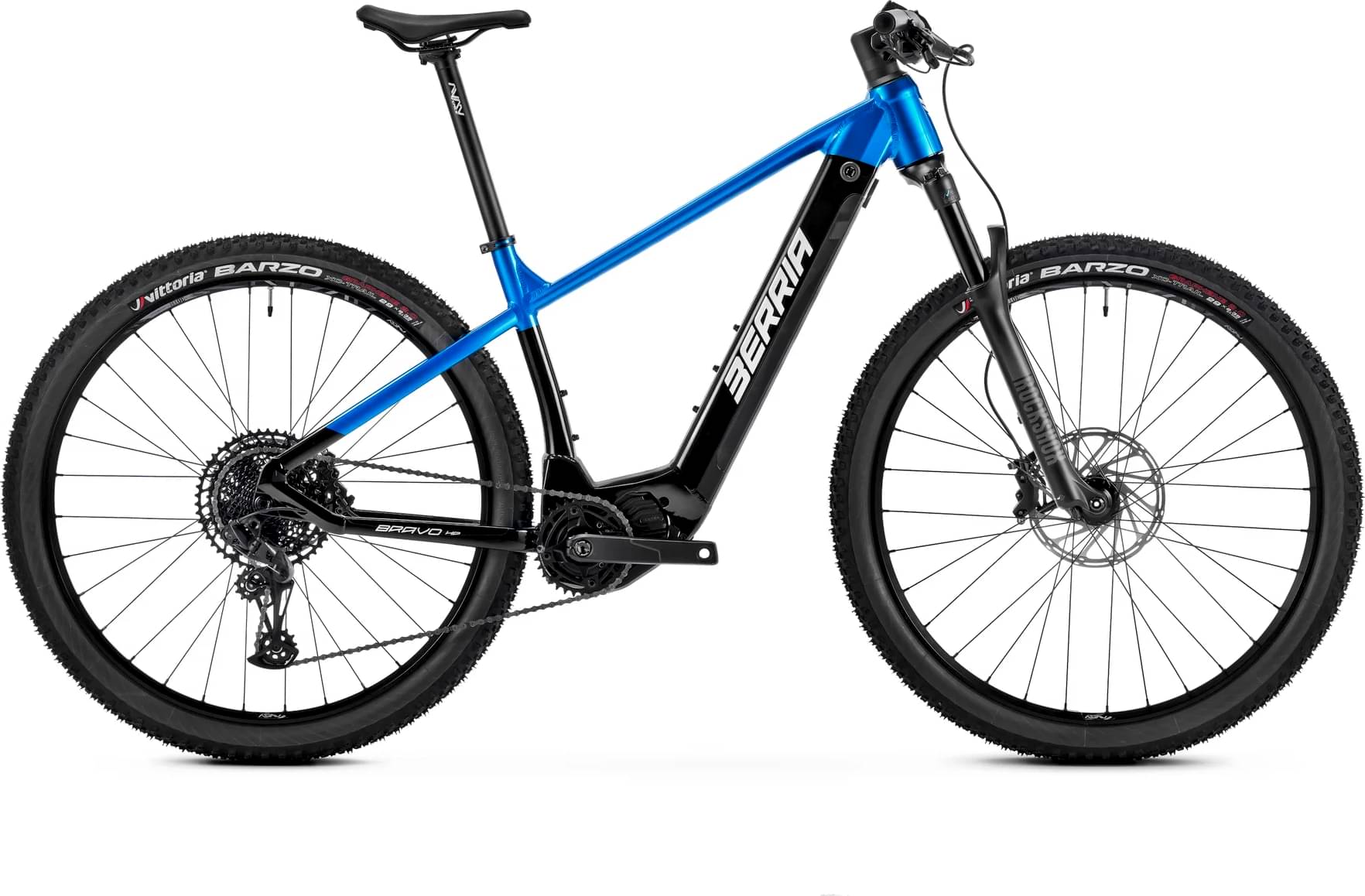

Berria BRAVO HYBRID HP ELITE NX 2025
2025 E-bike
Estimate price |
3,256$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset NX Eagle -
Suspension Hardtail -
Motor Bafang 250W 60Nm mid-drive -
Battery PORTAPOWER 720Wh 36V 20Ah, Cells SAMSUNG INR21700-50E, 3960g -
Drivetrain 1 × 12 -
Brakes SRAM DB8 Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 176cm
MD
174cm - 190cm
LG
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Bravo HPR, 3BS 6061 Hydroformed and aluminum parts with Technology PCP Precision Casting Process, Full internal cable system ICS2, Headset integrated OH2S 1-1/2" - 1-1.8", Post mount 180mm, 29x2.35" maximum tyre, Thru axle Boost 12x148mm, UDH Standard, weight: 2700gr
Suspension Fork
RockShox RECON RL, Damper Motion Control, Remote Lockout 2 Position, 15x110mm Maxle Stealth, Tapered steerer, Rake 51, 32 mm straight wall aluminium, Diffusion Black, 100mm travel
Drivetrain
Rear Derailleur
SRAM NX Eagle, Aluminum cage, 12 Speed
Cassette
SRAM PG 1210 Eagle, 11-50T
Crank
Bafang Aluminum Alloy Cranks, 165-170mm, 34T
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM SX Eagle A1, 118 links
Wheels
Rims
Mavic E-Crossride 29", 15x110, Boost 12x148mm, TLR, HG11 Rear Hub, 6 Bolts, internal width: 30mm, weight: 2225gr
Tires
Vittoria Barzo 29x2,35", Tubeless ready, Graphene 2.0, 120 TPI, weight: 820gr
Brakes
Brakes
SRAM DB8 Black 4 Piston
Cockpit
Handlebar
Avanforce AF2 MTB, Aluminum 6061, Ø31,8mm, width 780mm, Backsweep 6°, Upsweep 5°, Rise 20mm, weight: 330gr
Seat
Saddle
Essax Era, Steel rails, length: 250mm, width: 145mm, weight: 280gr
Seatpost
Avanforce AF2, Aluminum 7075, 0 offset, Ø31,6 x 400mm, weight 205gr
Motor & Battery
Motor
BAFANG M-SERIES 510, 250W - 60Nm, Peak Power and Torque: 500W - 95 Nm, Q factor 177mm, weight: 3370gr
Battery
PORTAPOWER 720Wh 36V 20Ah, Cells SAMSUNG INR21700-50E, 3960g
Charger
Porta Power charger 220-240V 3A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.551 mm | 1.479 mm | 1.401 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm |
| Front Center | 718 mm | 728 mm | 758 mm |
| Rake | 50 mm | 52 mm | 52 mm |
| Trail | 102 mm | 102 mm | 102 mm |
| Stack | 639 mm | 645 mm | 650 |
| Reach | 412 mm | 436 mm | 464 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 445 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 115 mm | 120 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1162 mm | 1172 mm | 1202 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 190 cm | 200 cm |
