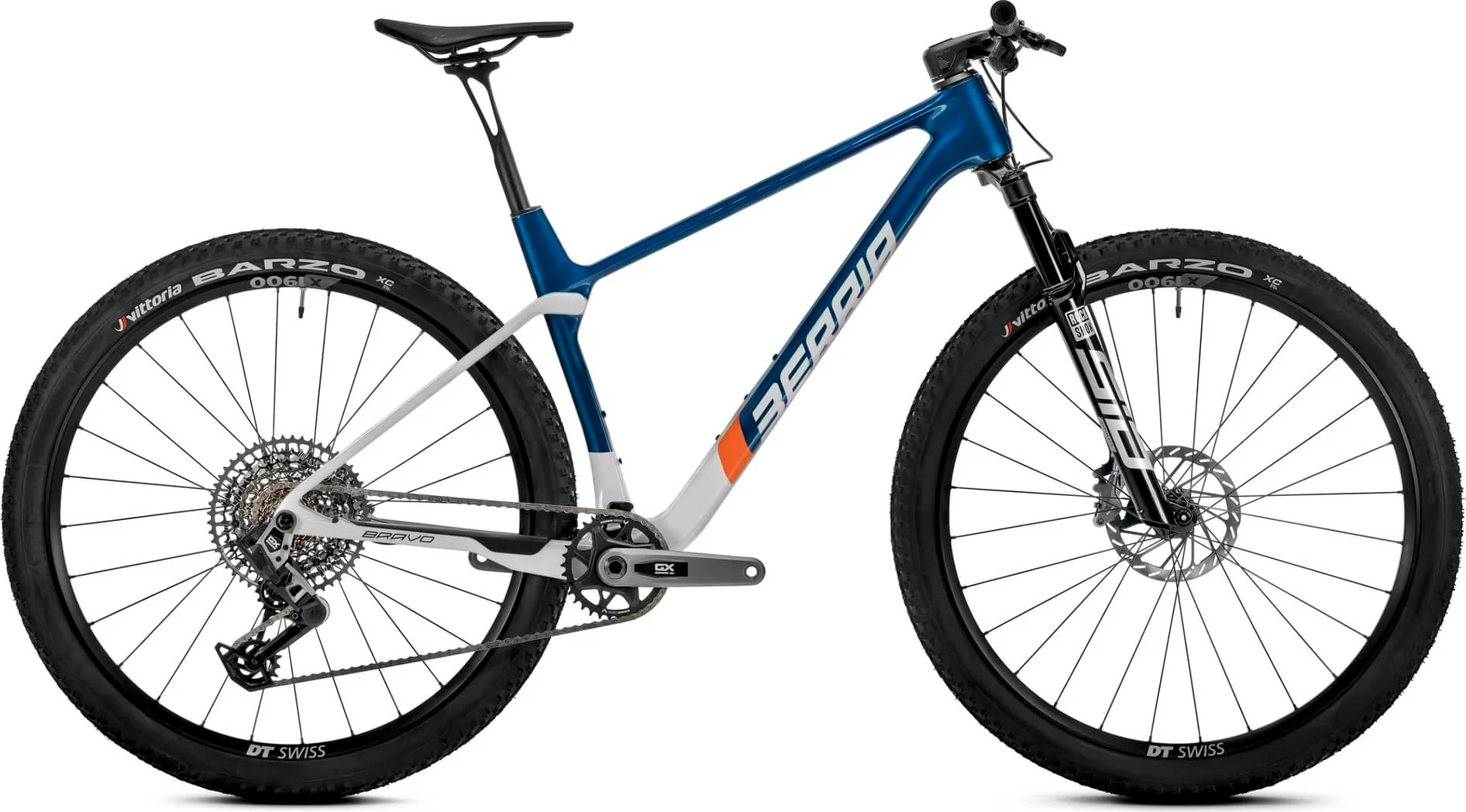

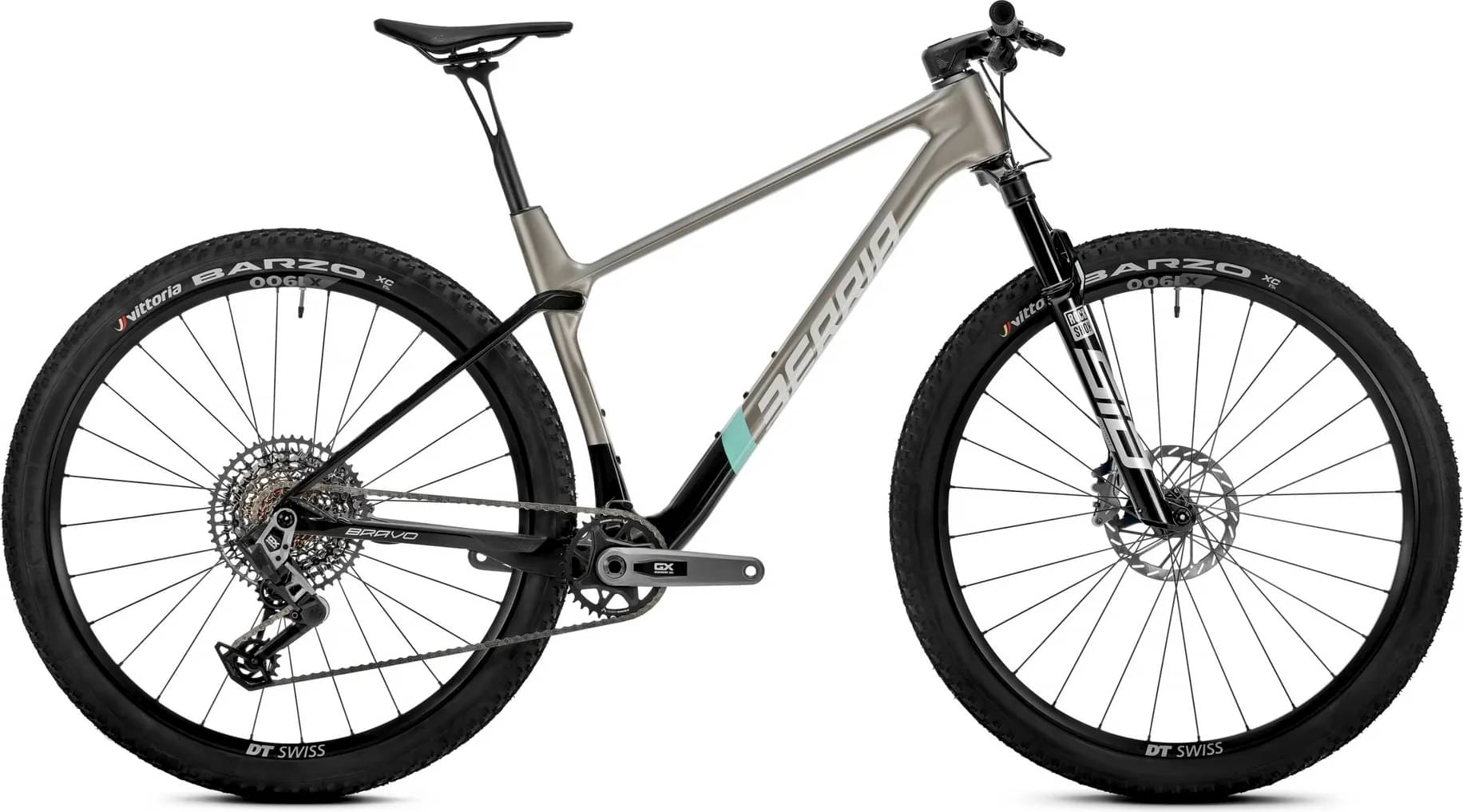

Berria BRAVO PRO S1000 AXS 2026
2026 Mountain
Estimate price |
4,071$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Travel Front 110mm -
Fork RockShox SID
-
Groupset S1000 Eagle Transmission -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes SRAM Level Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 165cm
SM
160cm - 176cm
MD
174cm - 185cm
LG
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox SID BSE, Damper Charger RL, Remote Lockout 3 Position, 15x110 Maxle Stealth, Tapered steerer, Spring Debon Air, Rake 44mm, 35mm tapered wall aluminum, Diffusion Black, 110mm travel
Drivetrain
Cassette
CS XS1275 Eagle, T-TYPE, 10-52T
Crank
SRAM S1000 T-TYPE, 34T, 170-175mm
Bottom Bracket
BB92 DUB PF
Chain
SRAM EAGLE 70 T-TYPE, 120 Links
Wheels
Rims
DT Swiss X1900 Spline 29", 15x110, Boost 12x148mm, TLR, XD Rear Hub, Center Lock, internal width 25mm
Brakes
Brakes
SRAM Level Black, 2 Piston
Cockpit
Handlebar
Avanforce AF3, Aluminum 6061, Ø31,8mm, width: 740mm
Seat
Saddle
SRX Open Cut Athletic, Steel rails, length: 260mm, width: 148mm
Seatpost
Avanforce Tibia, Softex Seat post, UD Carbon, 0 offset, Ø27,2, length: 300, 350, 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.509 mm | 1.419 mm | 1.393 mm | 1.372 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 687 mm | 718 mm | 734 mm | 752 mm |
| Rake | 49 mm | 48 mm | 47 mm | 49 mm |
| Trail | 110 mm | 106 mm | 103 mm | 99 mm |
| Stack | 599 mm | 610 mm | 624 mm | 638 mm |
| Reach | 397 mm | 430 mm | 448 mm | 465 mm |
| Seat Tube Angle | 75.1 ° | 75.1 ° | 74.4 ° | 74.1 ° |
| Seat Tube Length | 380 mm | 431 mm | 470 mm | 521 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67.5 ° | 68 ° |
| Head Tube Length | 85 mm | 95 mm | 107 mm | 120 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1099 mm | 1130 mm | 1147 mm | 1165 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 174 cm | 180 cm |
| Rider Max Height | 165 cm | 176 cm | 185 cm | 198 cm |
