Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon
Sizing
Recommended size guide.
XS
150cm - 165cm
SM
160cm - 176cm
MD
174cm - 185cm
LG
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

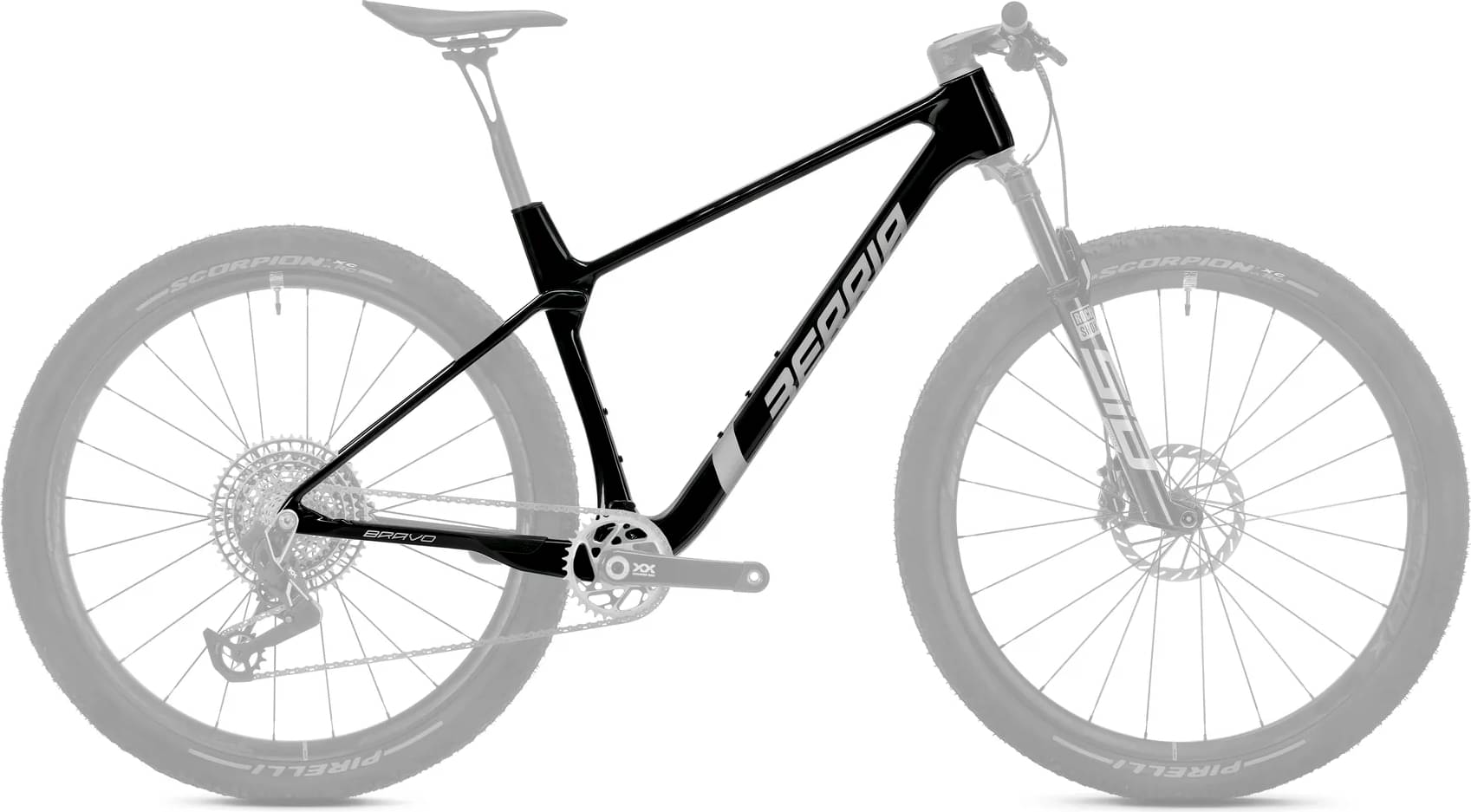

Frame
Frame
Bravo BR 6, XCO WC Racing Geometry BGC, Full carbon HM3X, Triple monocoque, BB92 Bottom bracket, Full internal cable system ICS2, Integrated headset OH2S 1-1/2", Post Mount 160mm, 29x2.40" max. tyre, Ø27,2 Dropper post ready, BOOST Thru axle 12x148mm, UDH standard, weight 798gr (without hardware)
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.509 mm | 1.419 mm | 1.393 mm | 1.372 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 687 mm | 718 mm | 734 mm | 752 mm |
| Rake | 49 mm | 48 mm | 47 mm | 49 mm |
| Trail | 110 mm | 106 mm | 103 mm | 99 mm |
| Stack | 599 mm | 610 mm | 624 mm | 638 mm |
| Reach | 397 mm | 430 mm | 448 mm | 465 mm |
| Seat Tube Angle | 75.1 ° | 75.1 ° | 74.4 ° | 74.1 ° |
| Seat Tube Length | 380 mm | 431 mm | 470 mm | 521 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67.5 ° | 68 ° |
| Head Tube Length | 85 mm | 95 mm | 107 mm | 120 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1099 mm | 1130 mm | 1147 mm | 1165 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 174 cm | 180 cm |
| Rider Max Height | 165 cm | 176 cm | 185 cm | 198 cm |
