Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HM2X carbon gravel frame built with CNT Matrix Nanotech resin and triple monocoque structure / asymmetric chainstays / BB86 bottom bracket / flat mount disc brakes / oversized OHS steering / rack fittings / internal ICS cable routing / 12mm thru axles / box weight 1050 gr.
Suspension Fork
HM2X Carbon Blade Gravel 1 1/8 "-1 1.5" tapered Carbon steerer
Drivetrain
Rear Derailleur
Shimano GRX FD-RX810-F
Shift Levers
Shimano GRX ST-RX600 Disc 22 Speed
Cassette
Shimano CS-HG700 11-34
Crank
Shimano GRX FC-RX600-11 46x30T
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano CN-HG601-11
Wheels
Rims
1950 g
Spokes
28 (front) 28 (rear), J SPokesSpokes 2.0 mm
Tires
Vittoria Terreno Dry 38C / TNT / 120 TPI
Brakes
Brakes
Shimano BR-RX810 Hyd Disc 160 / F and 160 / R SM-RT800 CL rotor
Cockpit
Stem
Zipp Service Course 6061 / -6º / Ø31,8 / 90,100,110,120
Handlebar
Zipp Service Course 6061 / 400,420,440 mm
Seat
Saddle
Fi'zi saddle: k Antares R7 / Wing Flex / K rails: ium / 142mm x 275mm
Seatpost
Zipp Service Course 6061/25 offset / 27.2 x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 594 mm | 595 mm | 600 mm | 611 mm | 626 mm |
| Rake | 50 mm | 45 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 73 mm | 64 mm | 61 mm | 61 mm |
| Stack | 541.6 mm | 562.4 mm | 573 mm | 594.8 mm | 614 mm |
| Reach | 376.1 mm | 380.1 mm | 381 mm | 389.6 mm | 398.7 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1025 mm | 1026 mm | 1030 mm | 1042 mm | 1057 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

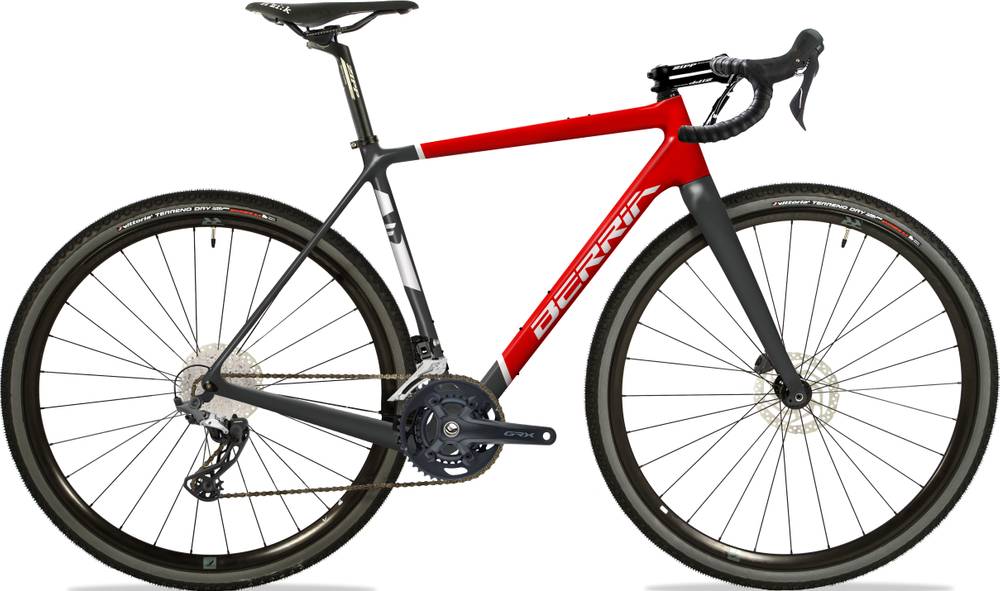

GRAVA GRX is a Berria Grava model. Berria released 2 bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Berria released this model in 2021, its price was 2866$. Comparing the average cost of a Gravel bike to this one, you will see that GRAVA GRX price is 16.41% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
GRAVA GRX components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on GRAVA GRX are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Berria GRAVA GRX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
GRAVA GRX comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
