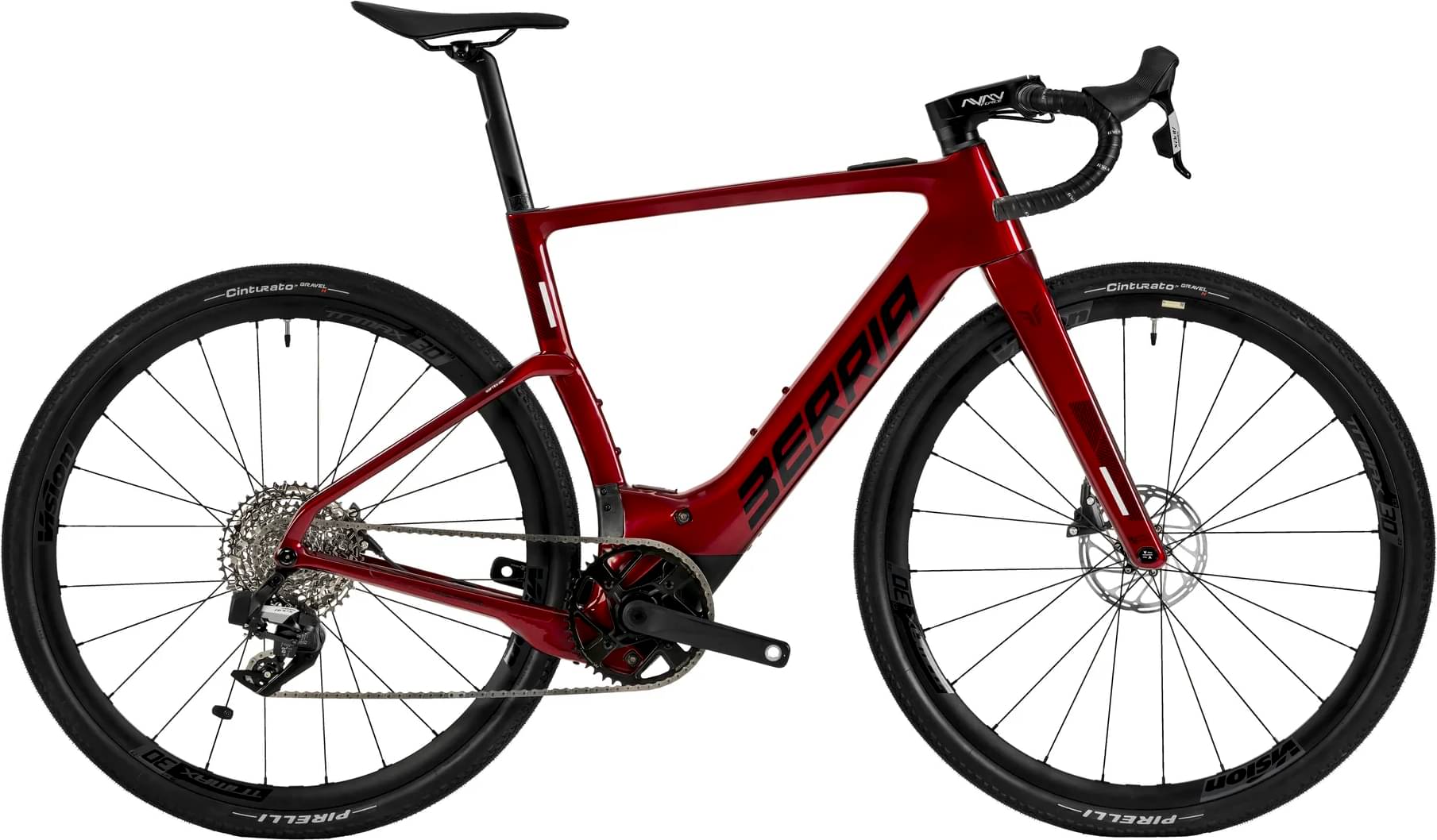

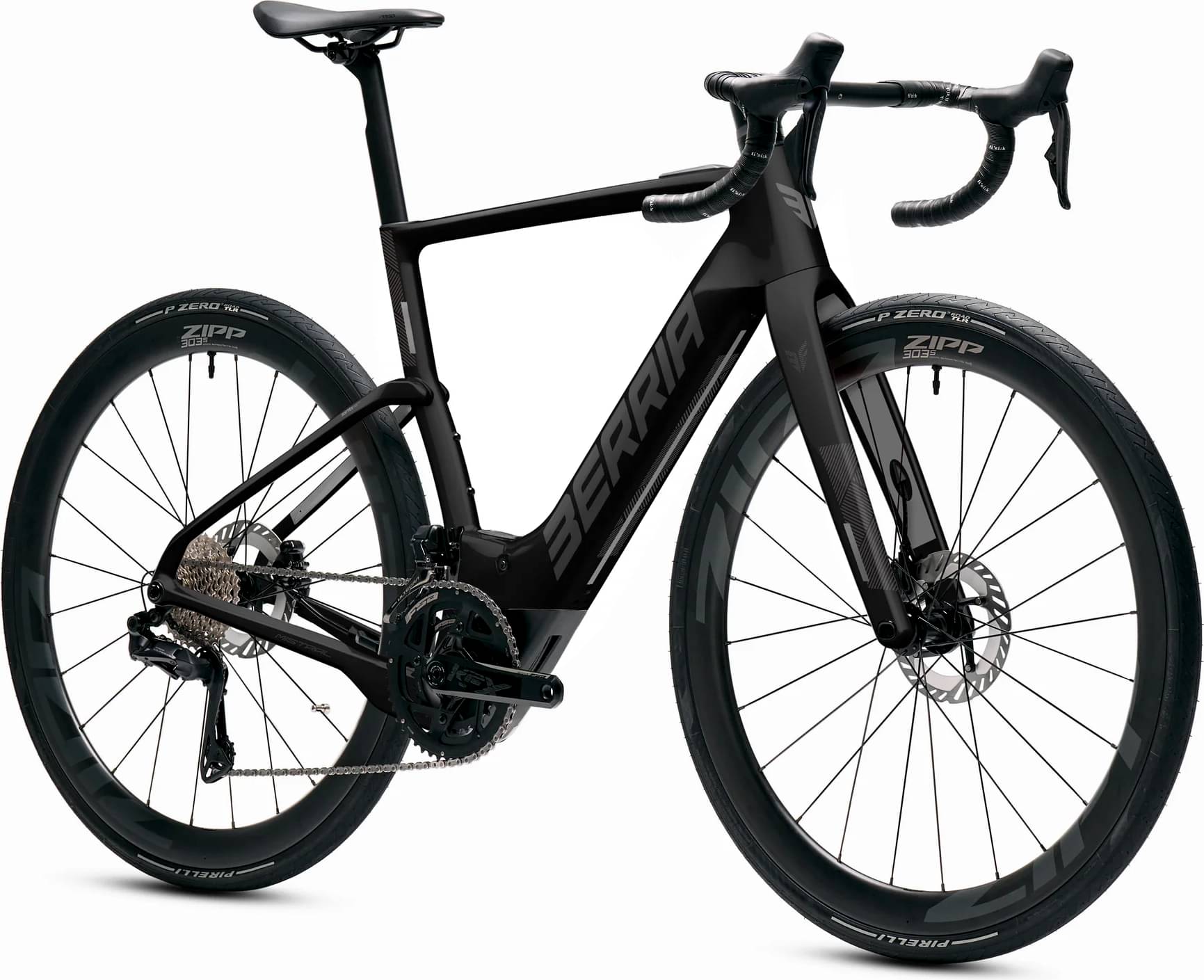

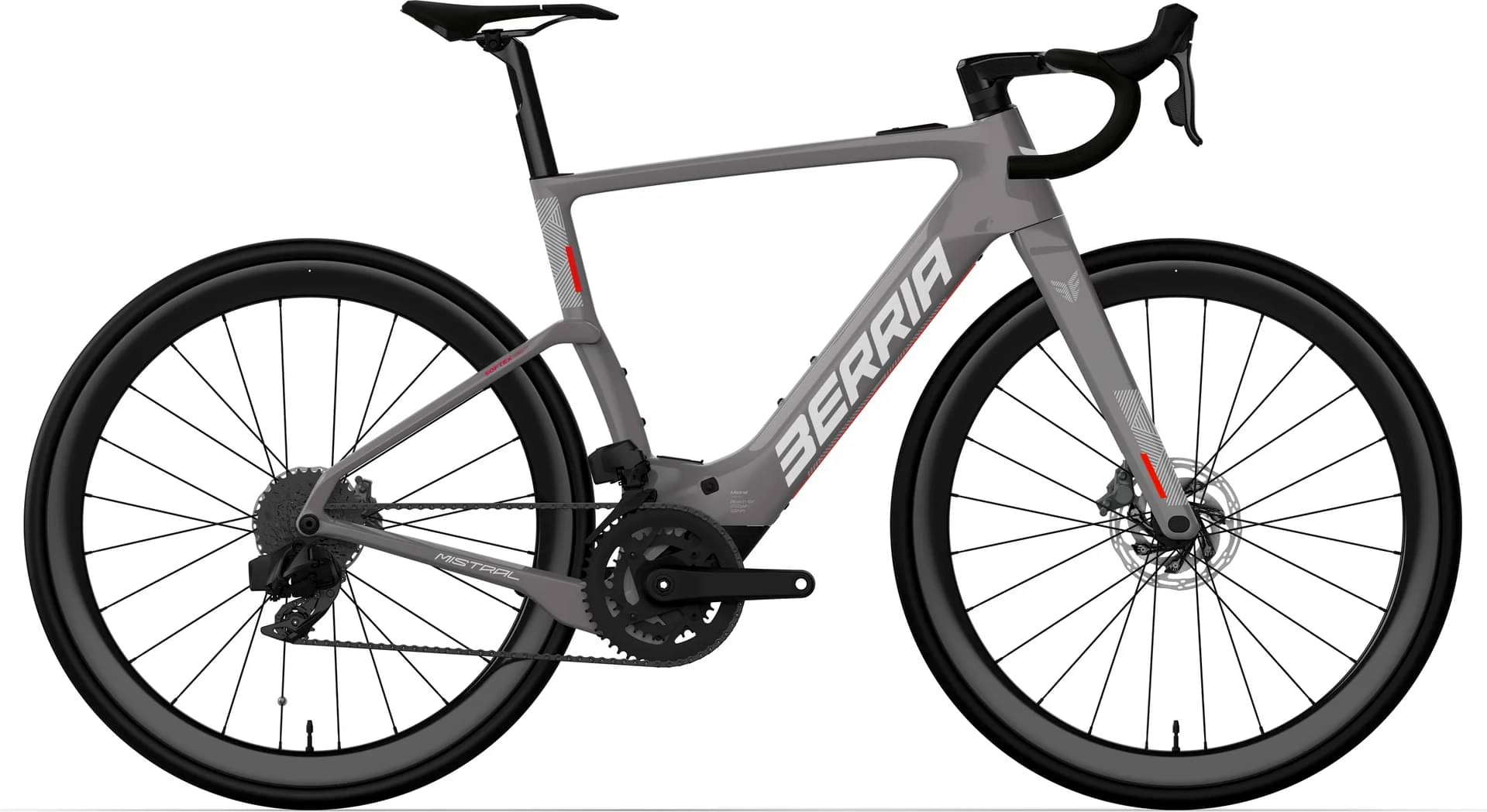

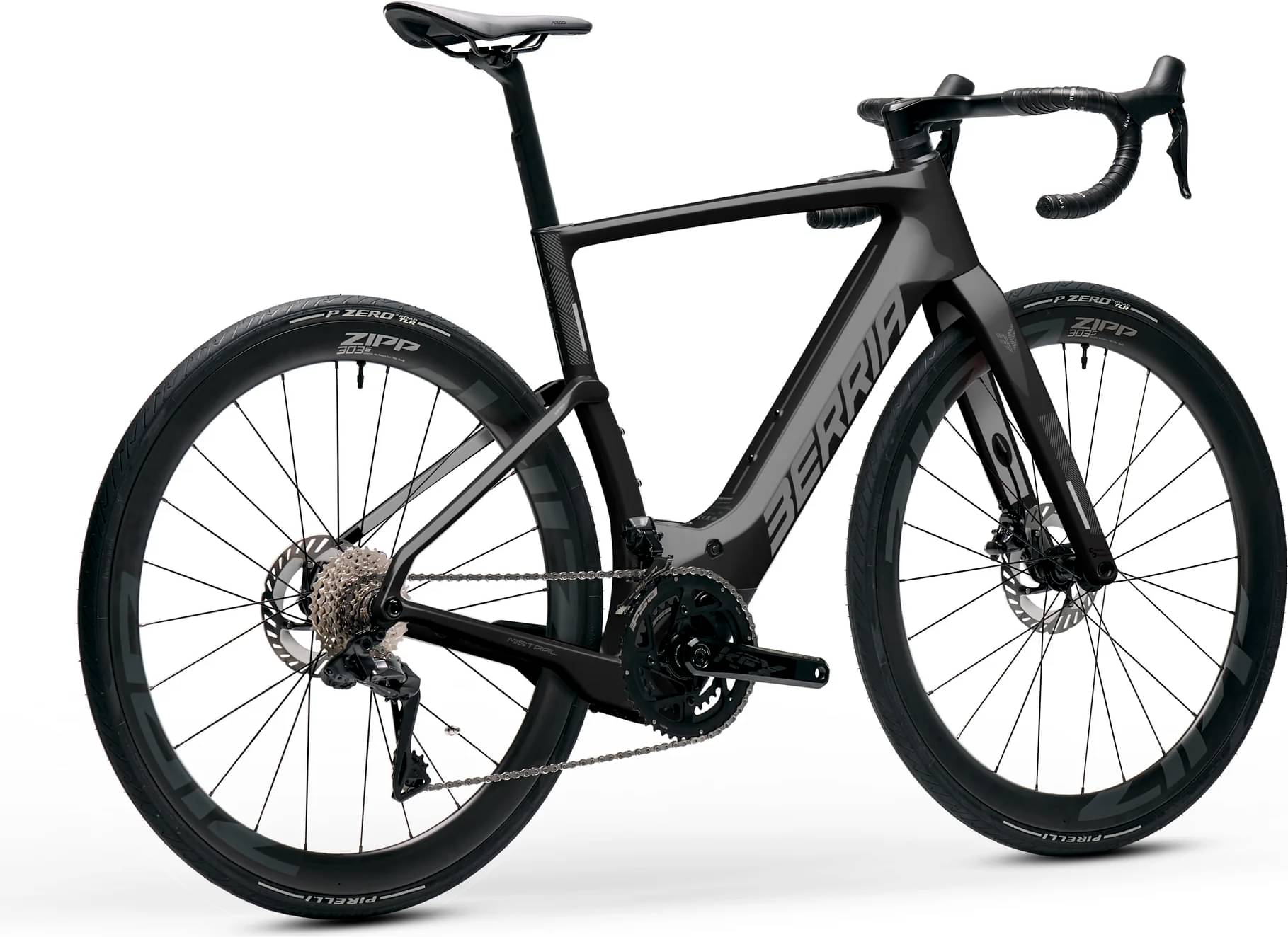

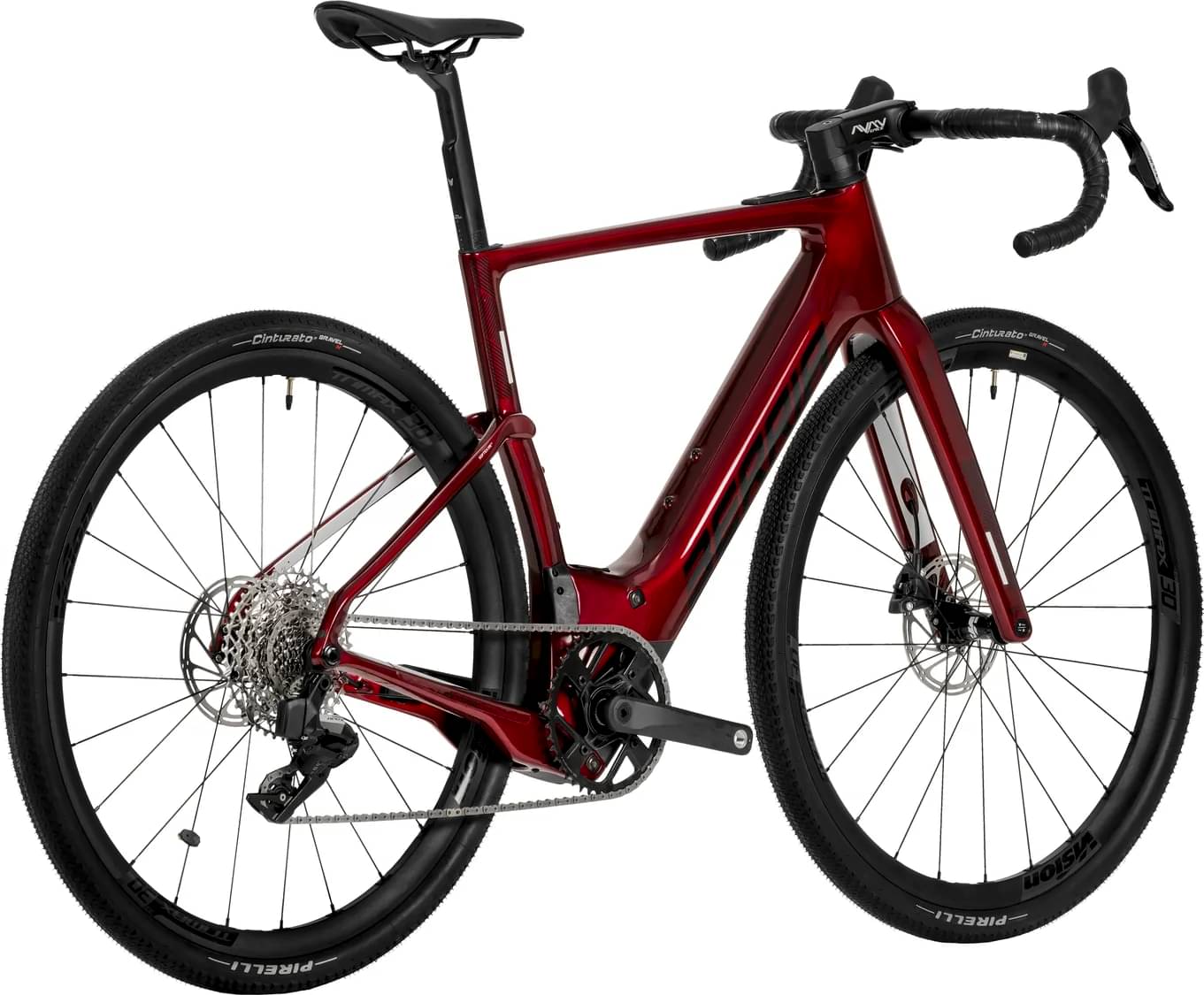

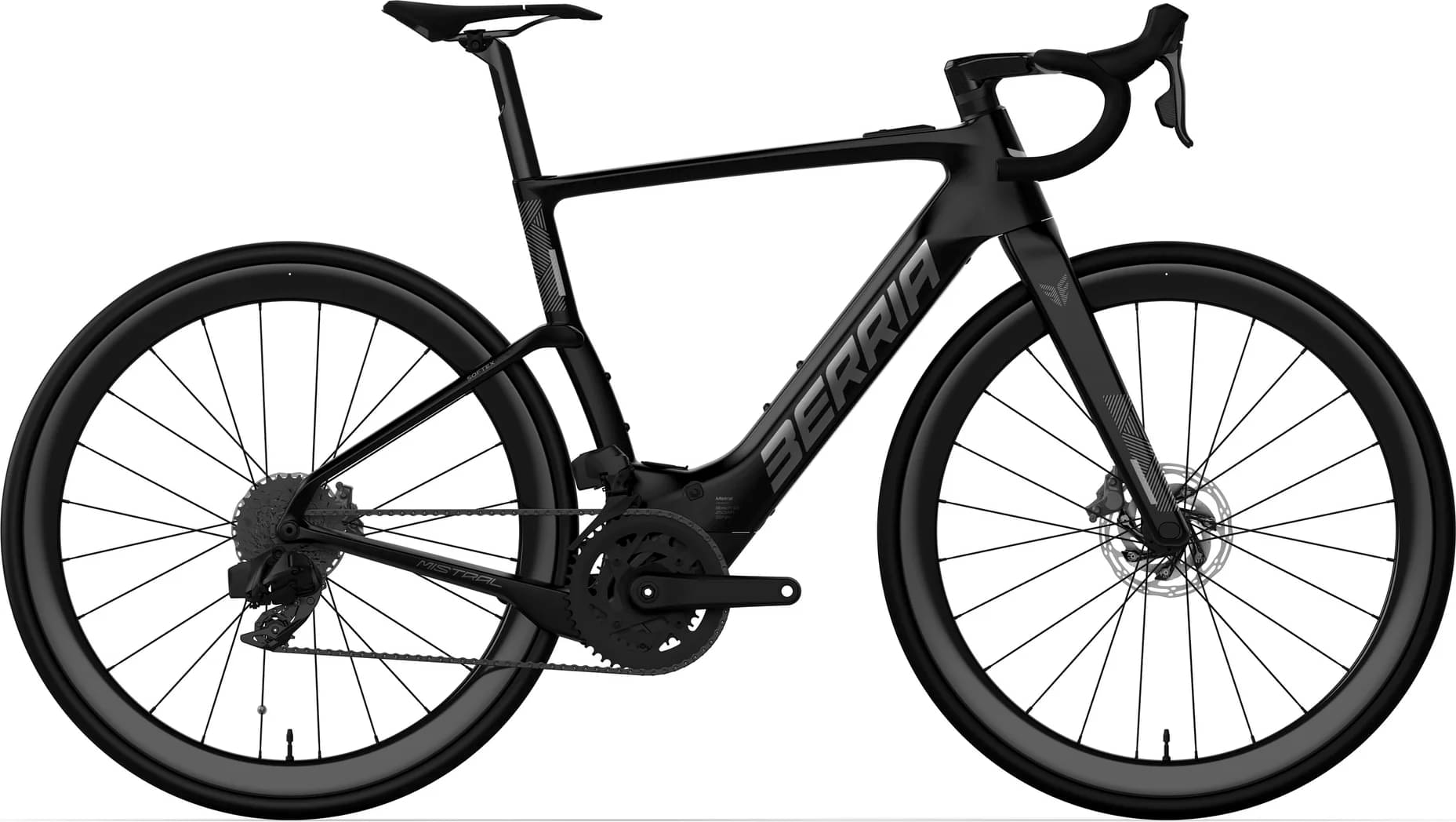

Berria MISTRAL PRO+ APEX XPLR AXS 2026
2026 E-bike
Estimate price |
7,561$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Travel Front 51mm -
Groupset Apex XPLR AXS -
Suspension Hardtail -
Motor Bosch 600W 55Nm mid-drive -
Battery BOSCH Compact Tube 400Wh Vertical Mount Assembly, Integrated and Slidable -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Apex Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
164cm - 176cm
MD
174cm - 186cm
LG
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Allroad EVO 2, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered, Flat Mount Standard max. 160mm disc, 700x50c maximum tyre, Flip-chip adust 45-51mm fork rake, 395mm axle to crown, Thru axle 12x100mm
Drivetrain
Rear Derailleur
SRAM APEX XPLR AXS D1, 12s, Electronic Shift System
Cassette
CS XPLR XG1251, 10-44T
Crank
FSA CK-220/IS/SX Bosch, Alloy Cranks, 170mm
Bottom Bracket
Bosch, press-fit
Chain
SRAM APEX D1, 118 Links
Wheels
Rims
Vision Trimax 30 AGX, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock
Brakes
Brakes
SRAM APEX AXS D1, Hydraulic Shift-Brake System
Cockpit
Handlebar
Avanforce 3 Gravel, Alloy 6061, Ø31,8, width: 400, 420, 440mm
Seat
Saddle
Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width: 140 mm
Seatpost
Belador 6 SP, UD Carbon, Offset: 0, 20mm offset, ISP technology
Motor & Battery
Motor
BOSCH Performance Line SX Smart System, 600W, 55Nm
Battery
BOSCH Compact Tube 400Wh Vertical Mount Assembly, Integrated and Slidable
Charger
Bosch Charger 230V 4A, EU/UK/US Plug Supplied
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.418 mm | 1.42 mm | 1.442 mm | 1.447 mm |
| Front Center | 614 mm | 624 mm | 632 mm | 644 mm | 656 mm |
| Rake | 64 mm | 59 mm | 57 mm | 58 mm | 58 mm |
| Trail | 77 mm | 72 mm | 69 mm | 66 mm | 62 mm |
| Stack | 535 mm | 550 mm | 565 mm | 587 mm | 605 mm |
| Reach | 374 mm | 388 mm | 398 mm | 407 mm | 418 mm |
| Seat Tube Angle | 75.1 ° | 74.8 ° | 74.5 ° | 74.2 ° | 73.9 ° |
| Seat Tube Length | 460 mm | 484 mm | 508 mm | 532 mm | 556 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 108 mm | 123 mm | 140 mm | 156 mm | 174 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1028 mm | 1038 mm | 1046 mm | 1059 mm | 1071 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm | 191 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 193 cm | cm |
