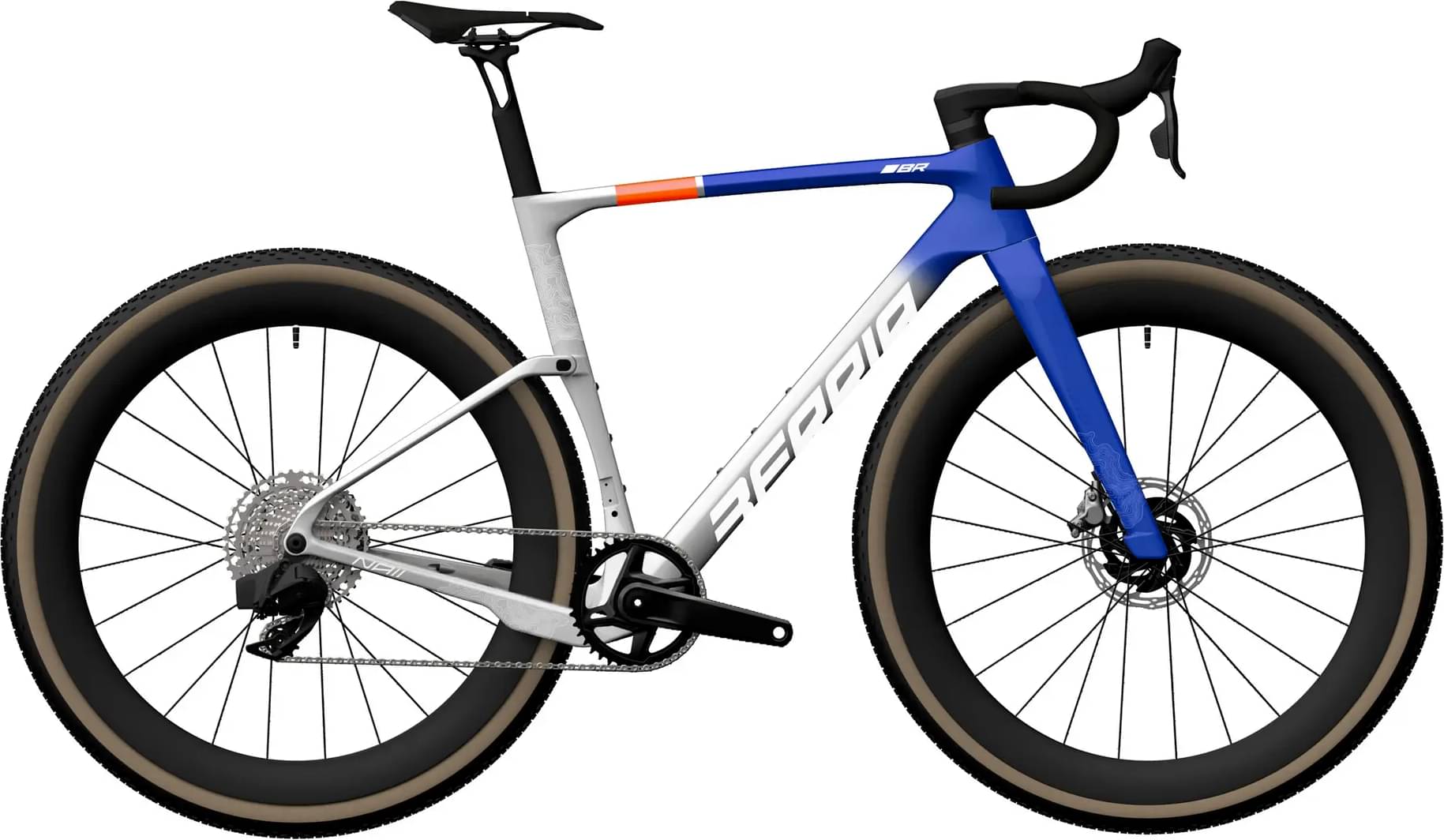

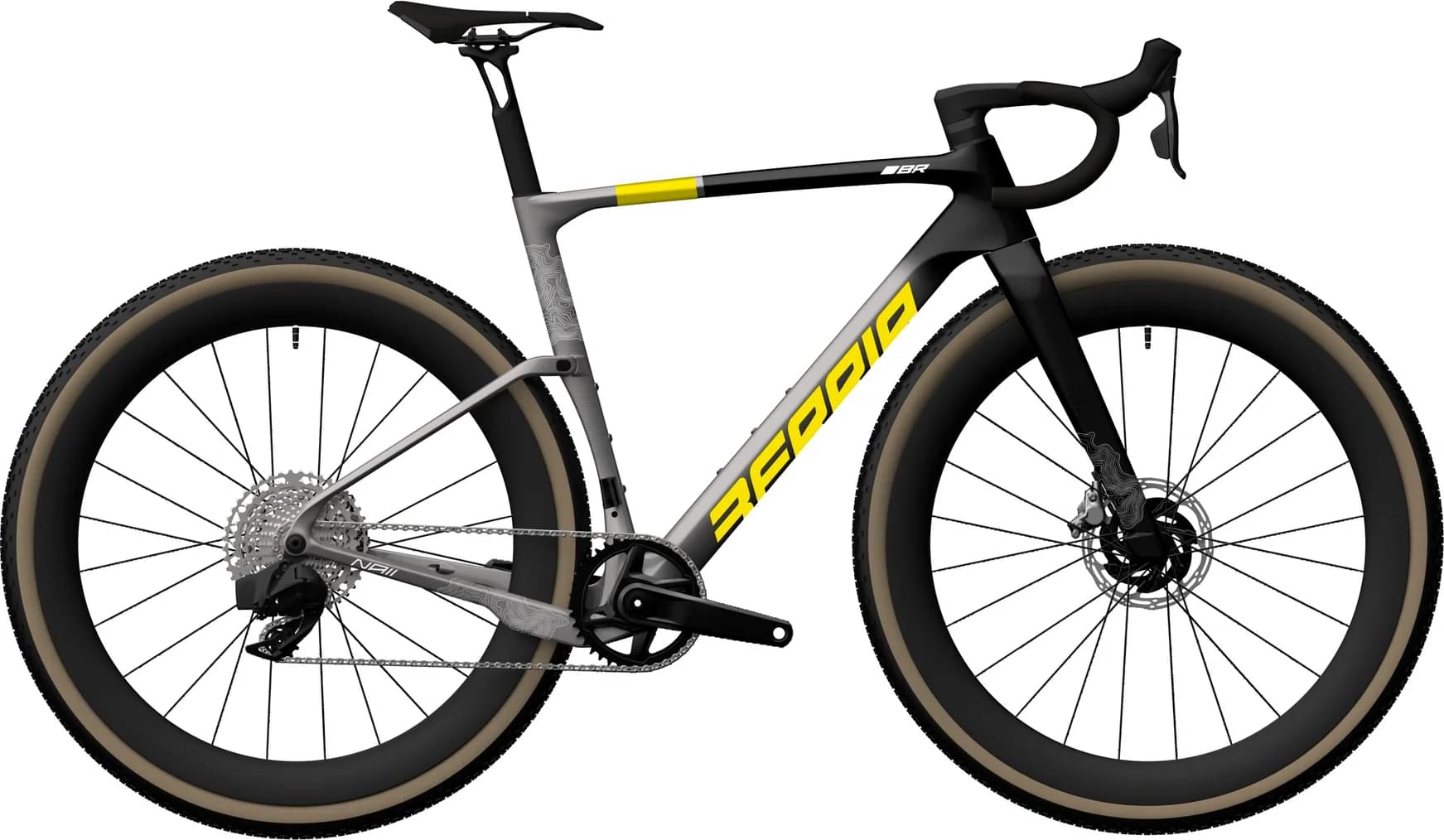

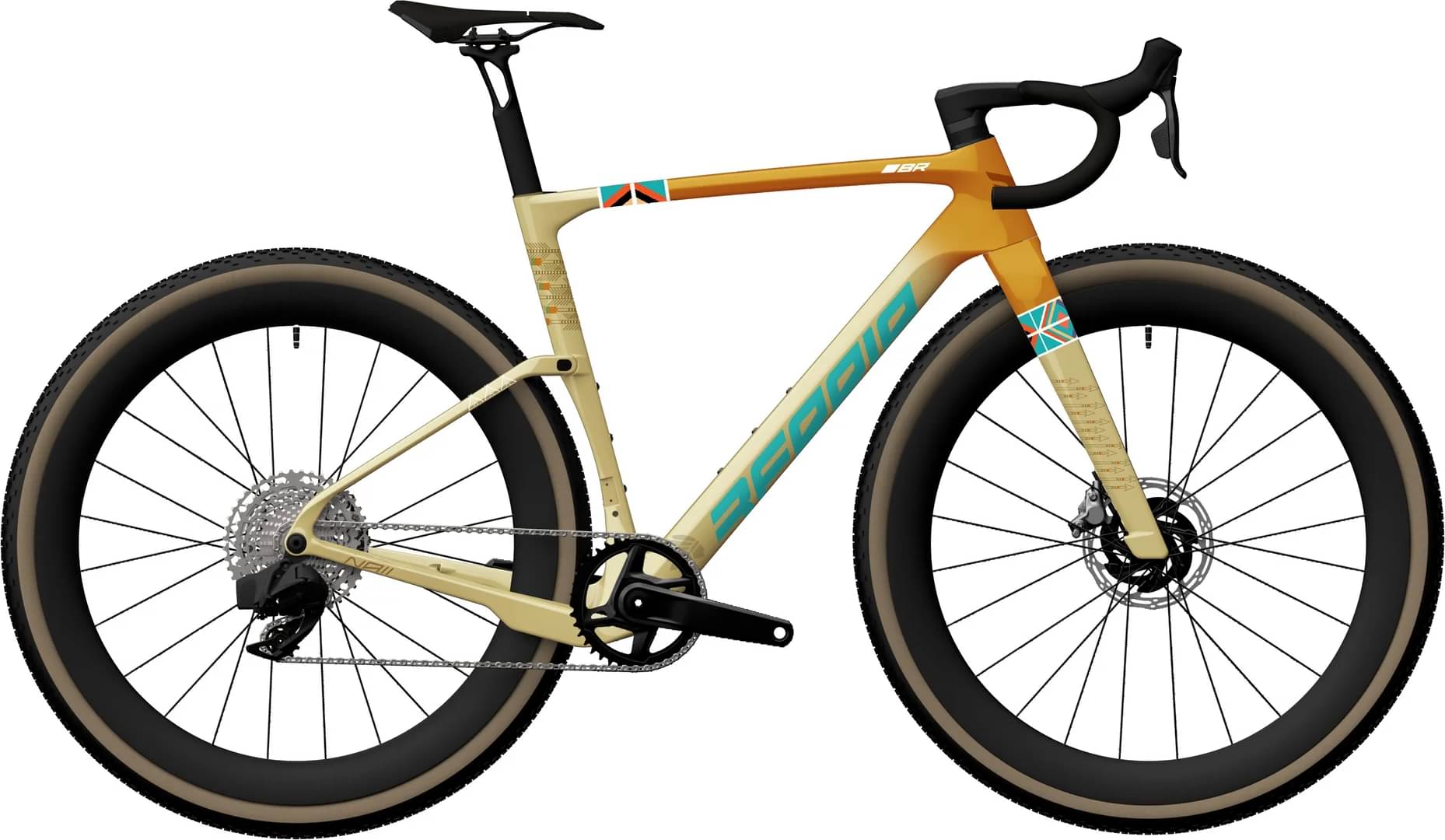

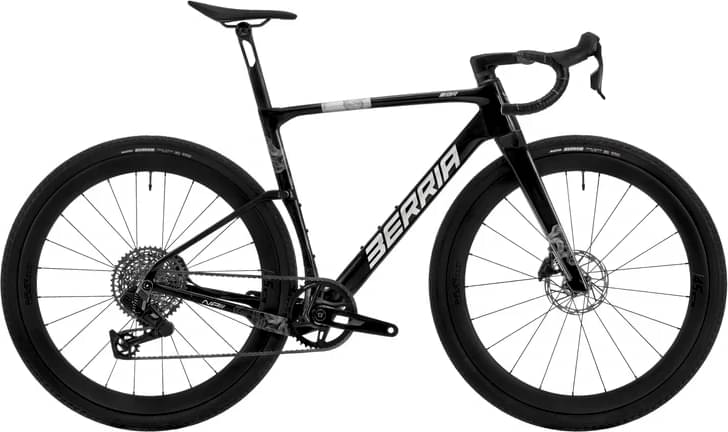

Berria NAII BR RIVAL XPLR AXS PWM 2026
2026 Road
Estimate price |
5,816$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes SRAM Rival Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
170cm - 180cm
LG
180cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Naii Fork, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered, Flat Mount Standard max. 160mm disc, 700x50c maximum tyre, 48mm fork rake, 395mm axle to crown, Thru axle 12x100mm
Drivetrain
Cassette
CS XPLR XG1351, 10-46T
Crank
SRAM RIVAL XPLR AXS E1, PWM Crankset, 42T, 170-172,5-175mm
Bottom Bracket
BBT47-SRAM WIDE
Chain
SRAM RIVAL E1, 118 Links
Wheels
Rims
Vision SC45i, Carbon rim, TLR, internal width 23mm, rim height 45mm, Center Lock
Brakes
Brakes
SRAM RIVAL AXS E1, Hydraulic Shift-Brake System
Cockpit
Handlebar
Avanforce Airone GR, lntegrated Gravel Carbon Handlebar, Full internal cable system ICS2, sizes: 405x80 - 425x90, 425x100, 425x110, 445x120
Seat
Saddle
Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width: 140 mm
Seatpost
Avanforce Naii Tibia, Softex Seat post, UD Carbon, 0 offset, length: 300, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.363 mm | 1.364 mm | 1.374 mm | 1.387 mm | 1.403 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 590 mm | 605 mm | 617 mm | 633 mm | 645 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 71.8 mm | 71.8 mm | 68.5 mm | 68.5 mm | 65.2 mm |
| Stack | 524.6 mm | 538.8 mm | 556.5 mm | 575.5 mm | 596.4 mm |
| Reach | 385 mm | 395 mm | 405 mm | 415 mm | 425 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 485 mm | 510 mm | 535 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 95 mm | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 998 mm | 1013 mm | 1026 mm | 1042 mm | 1054 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
