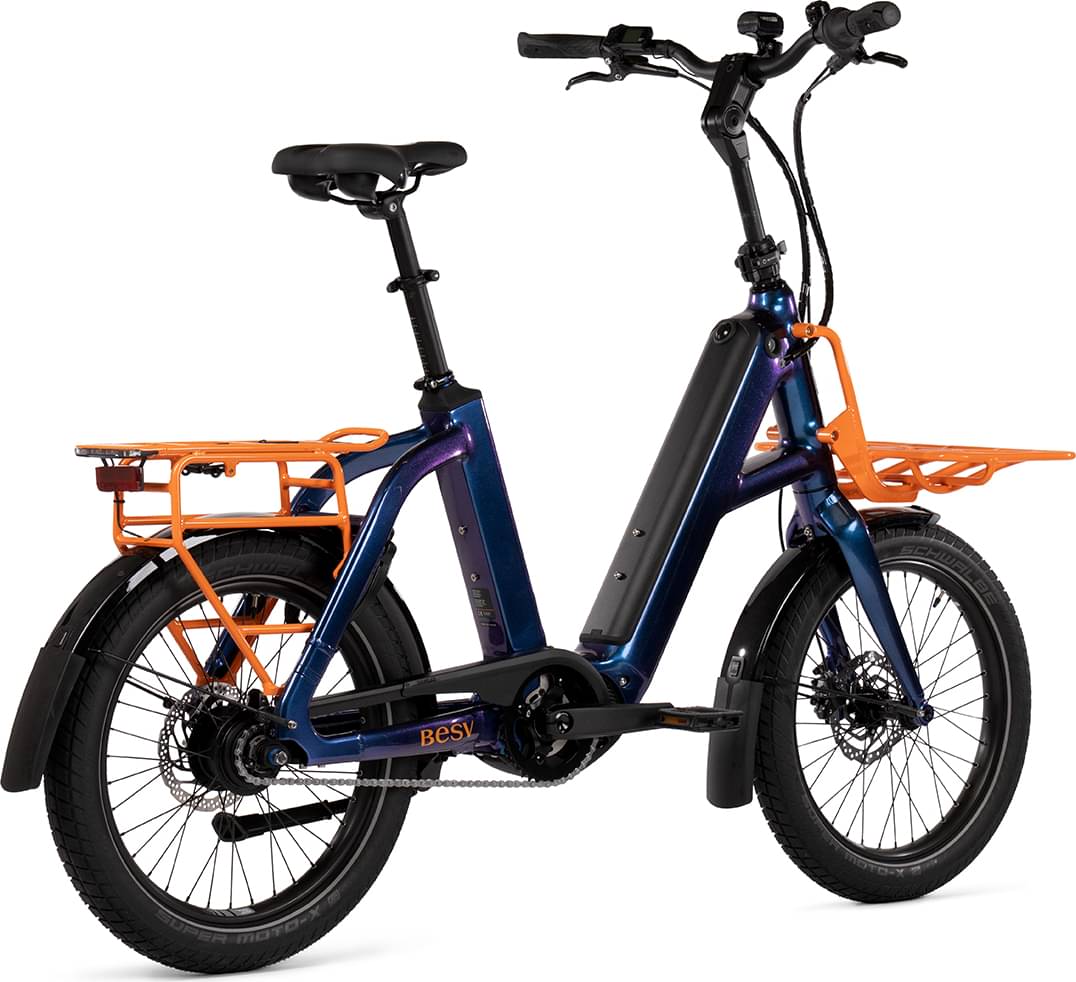

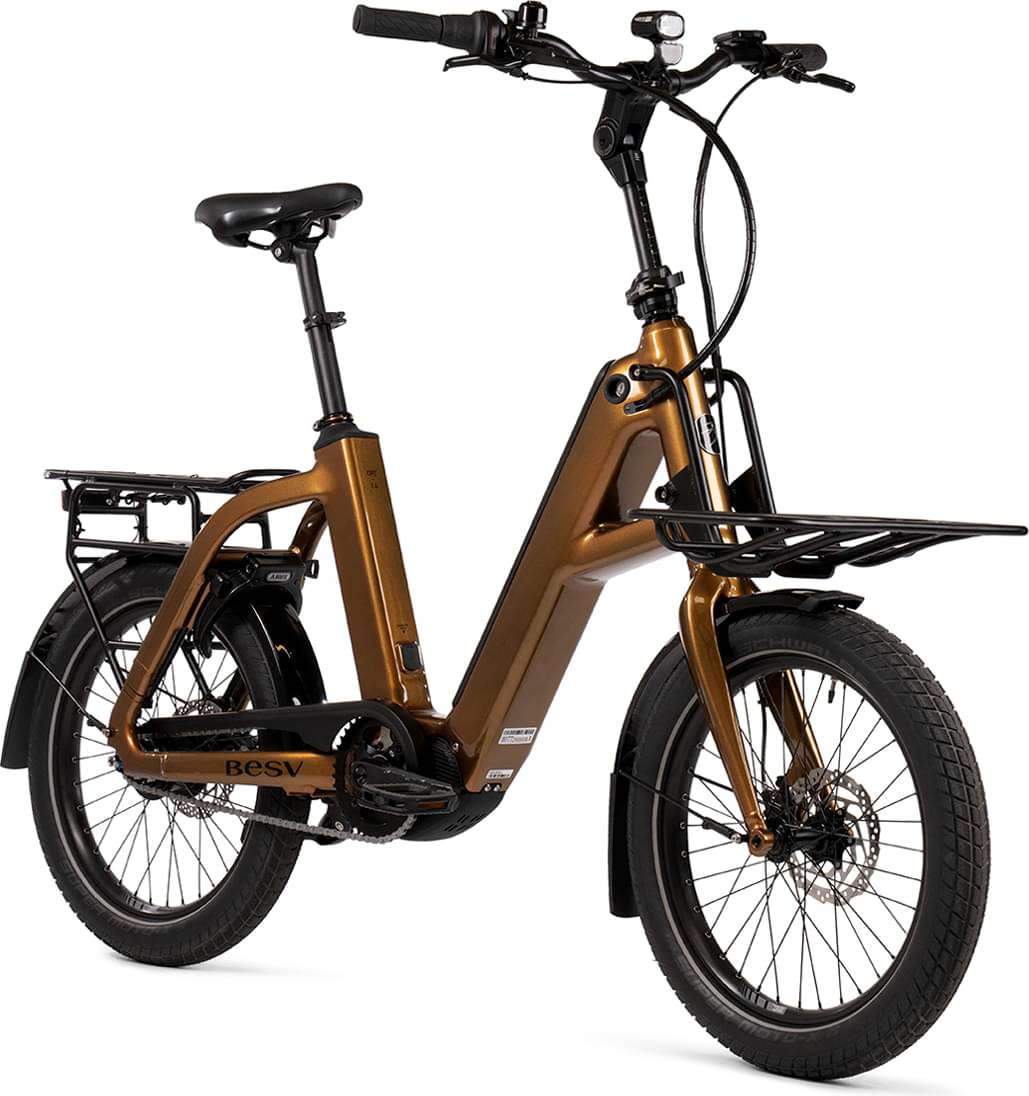

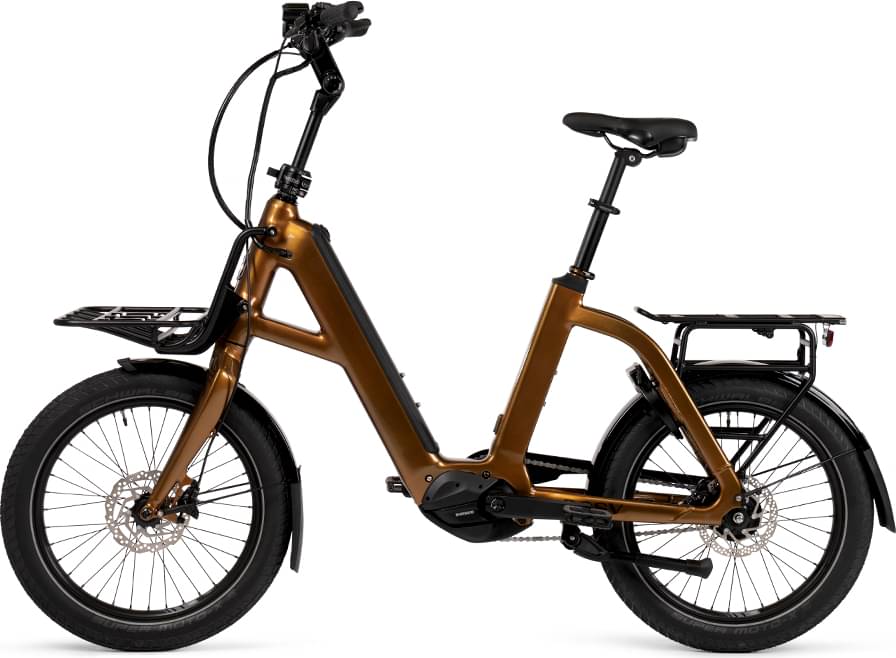

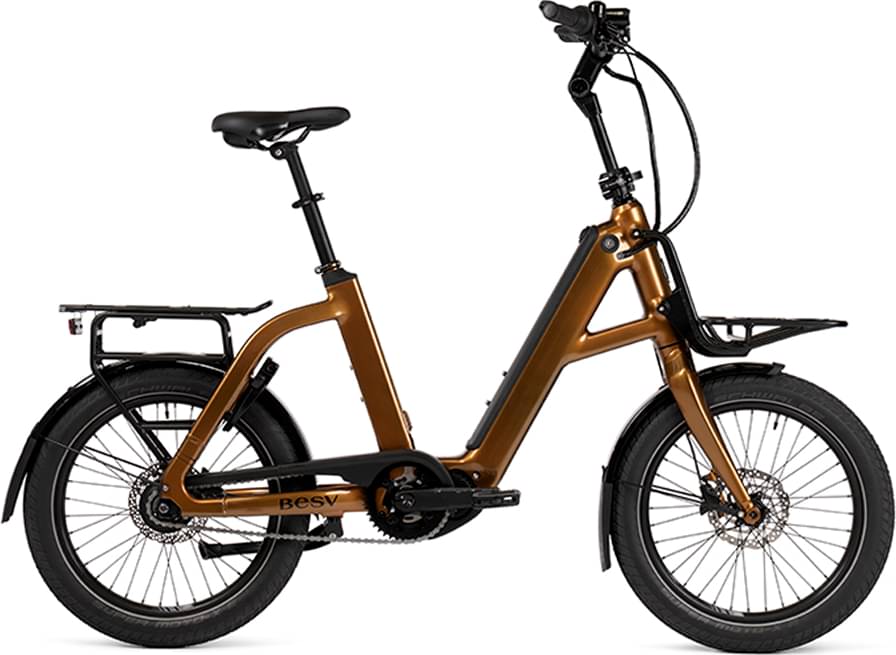

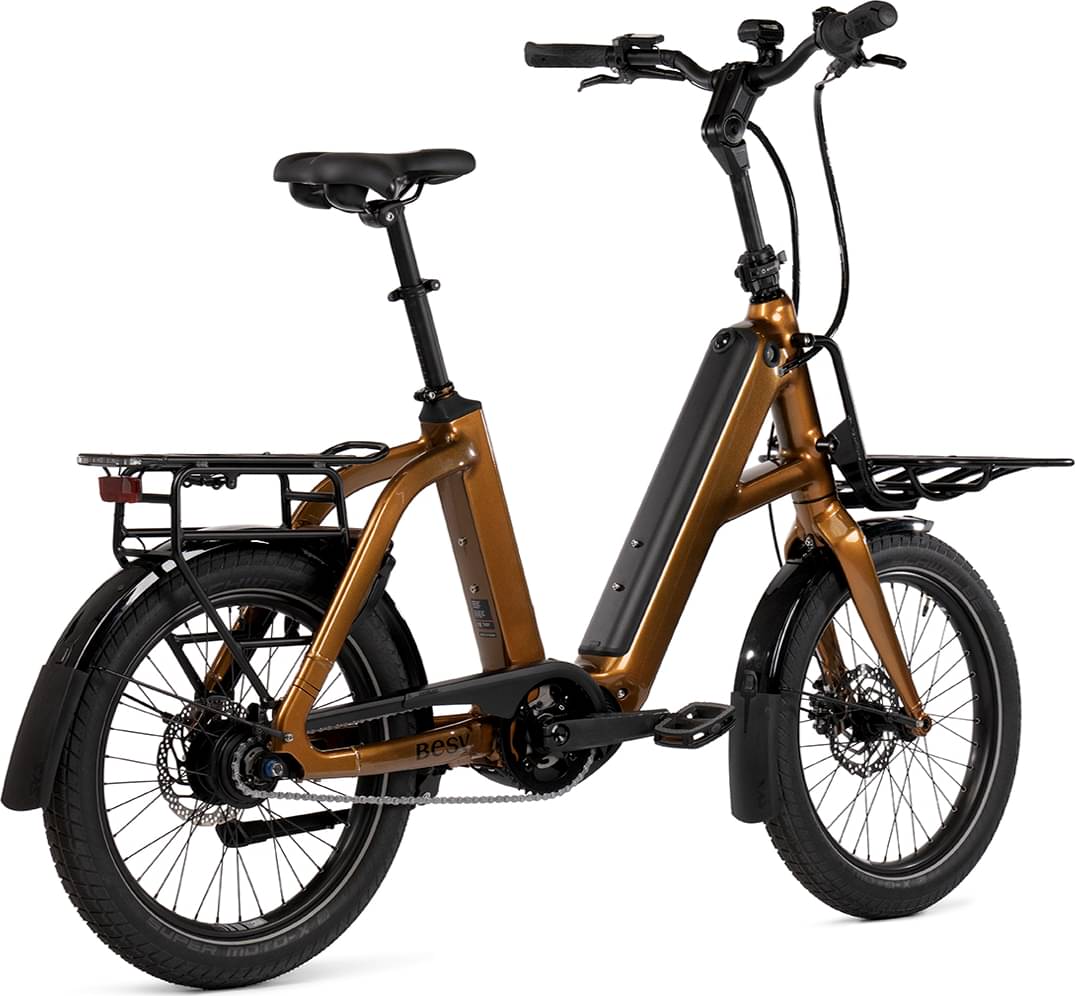

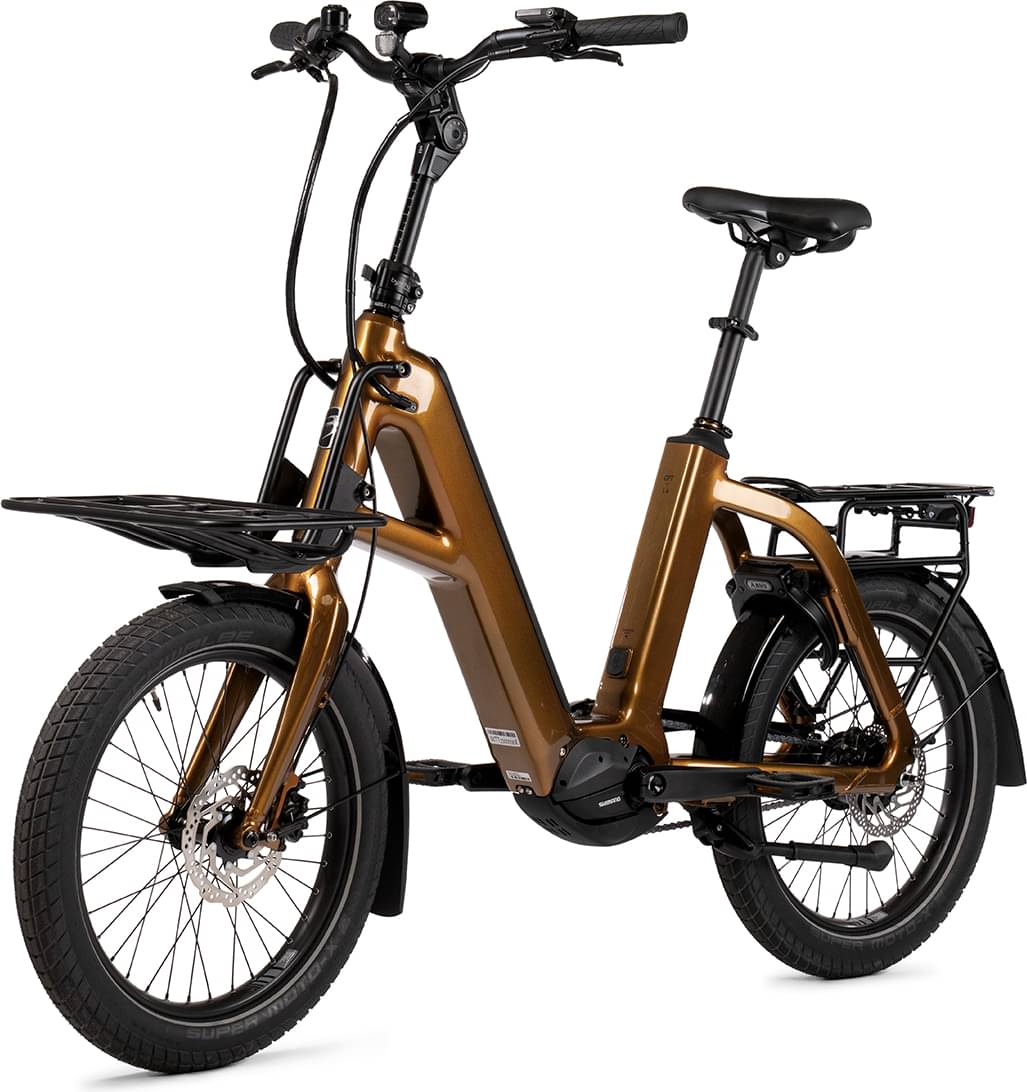

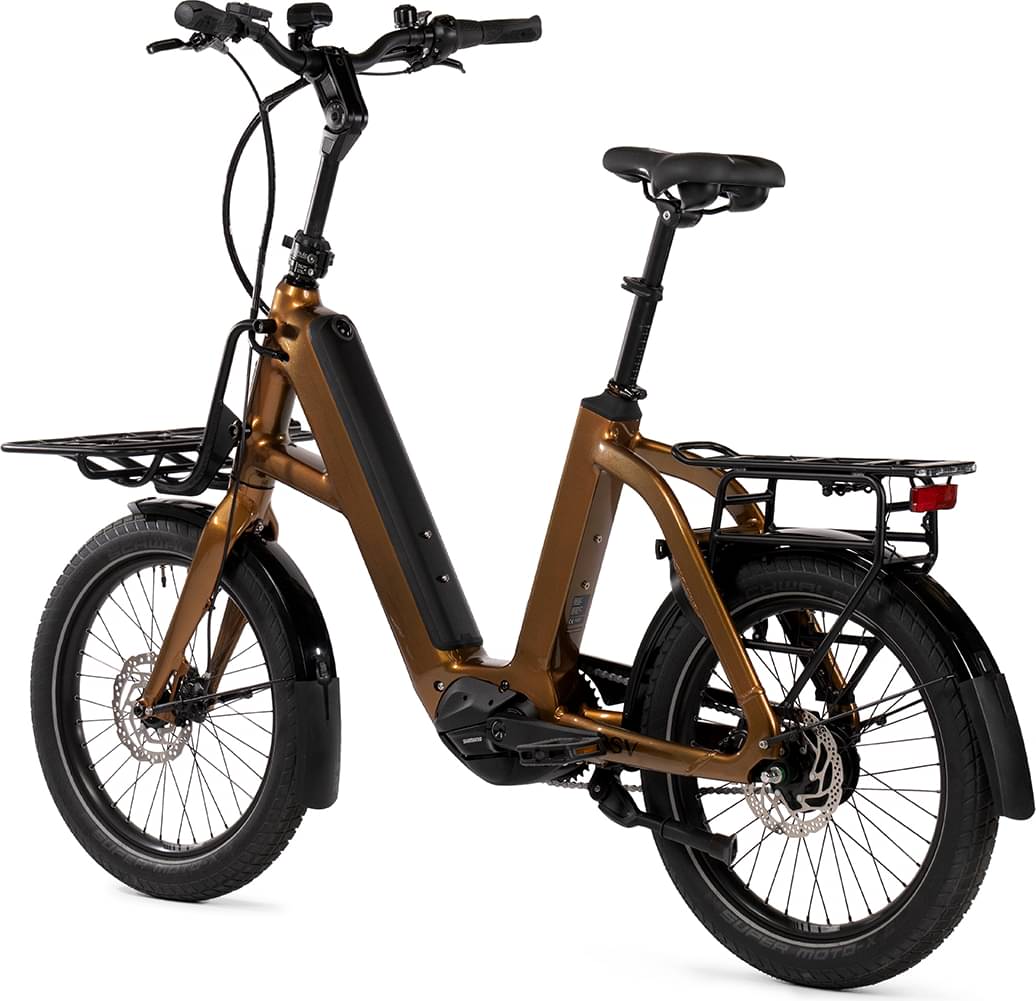

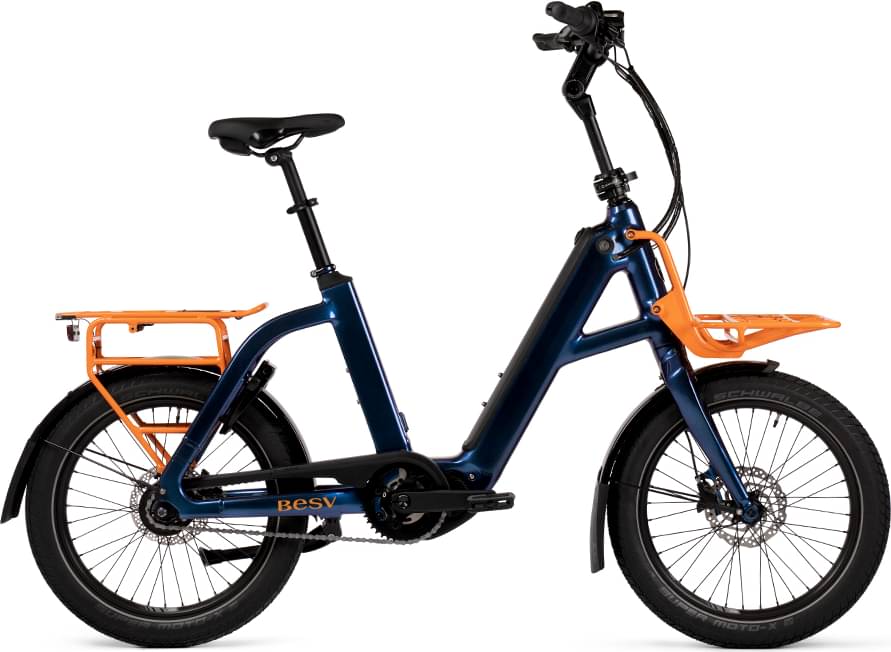

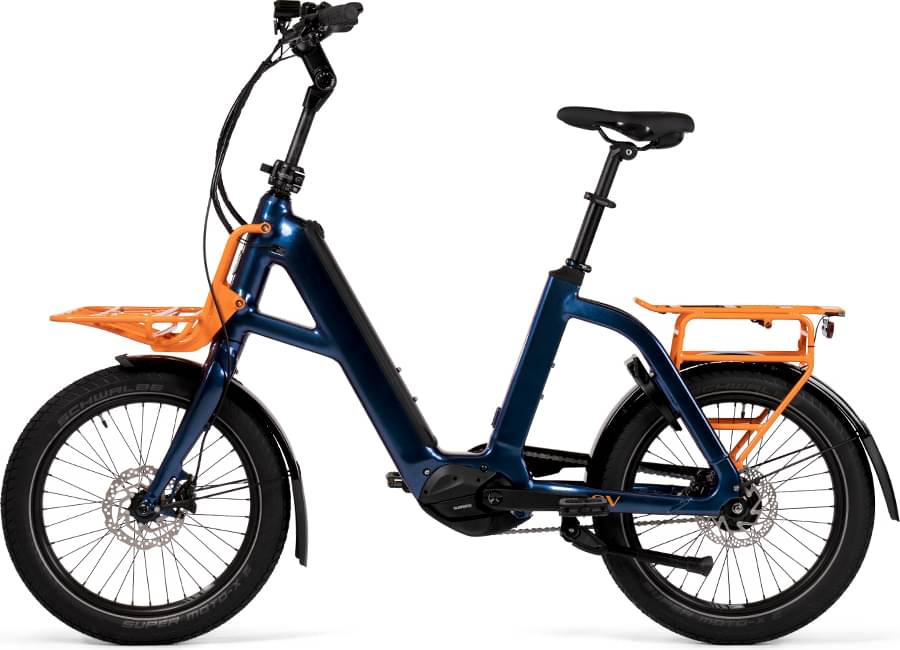

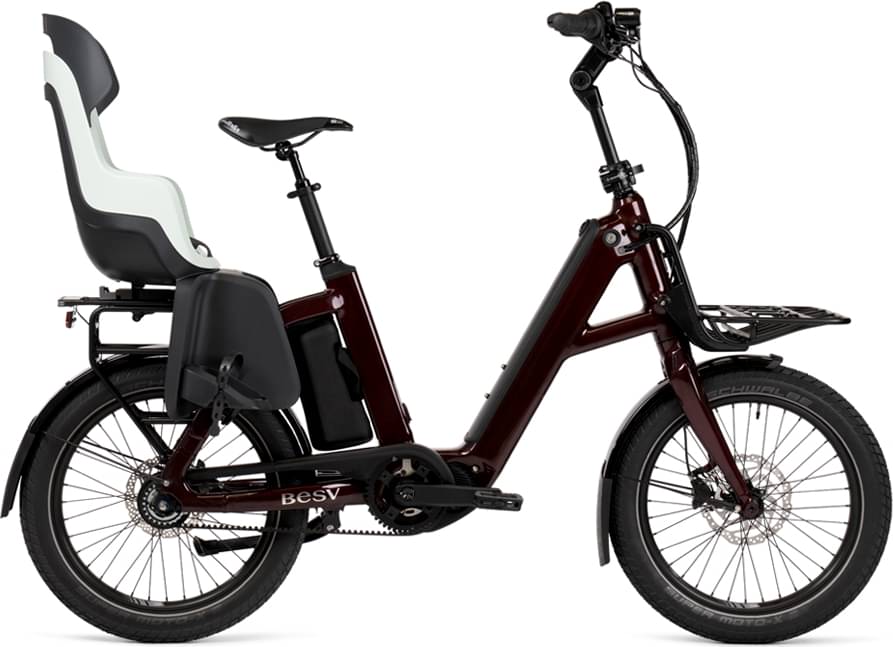

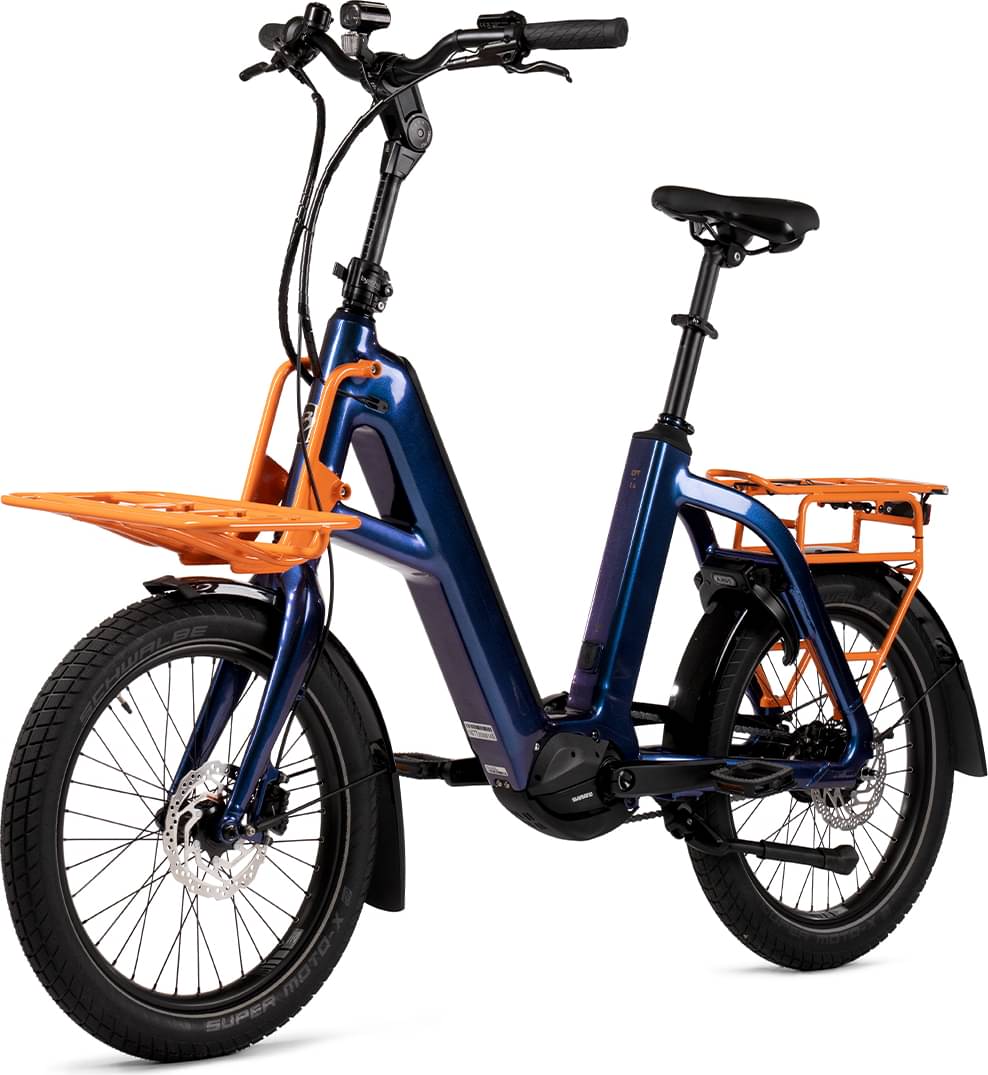

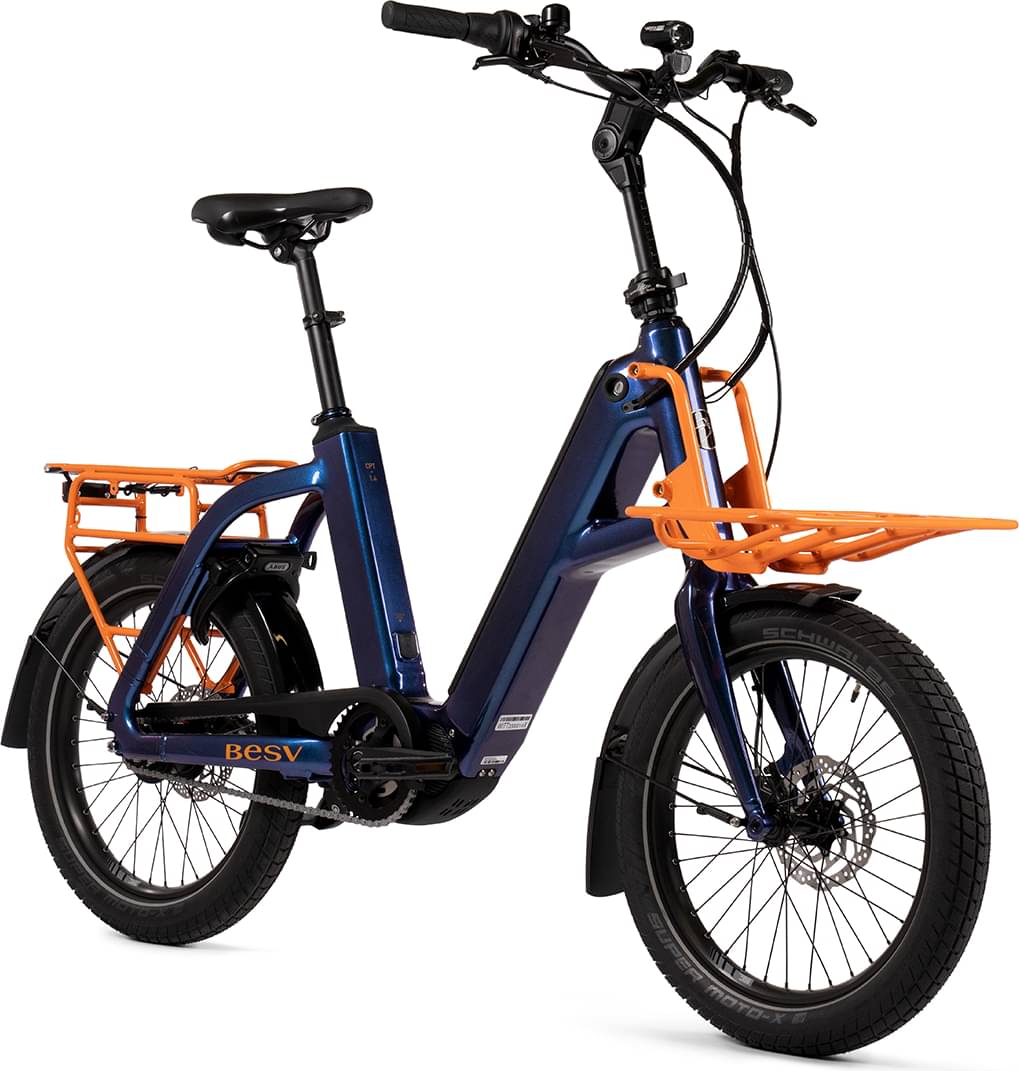

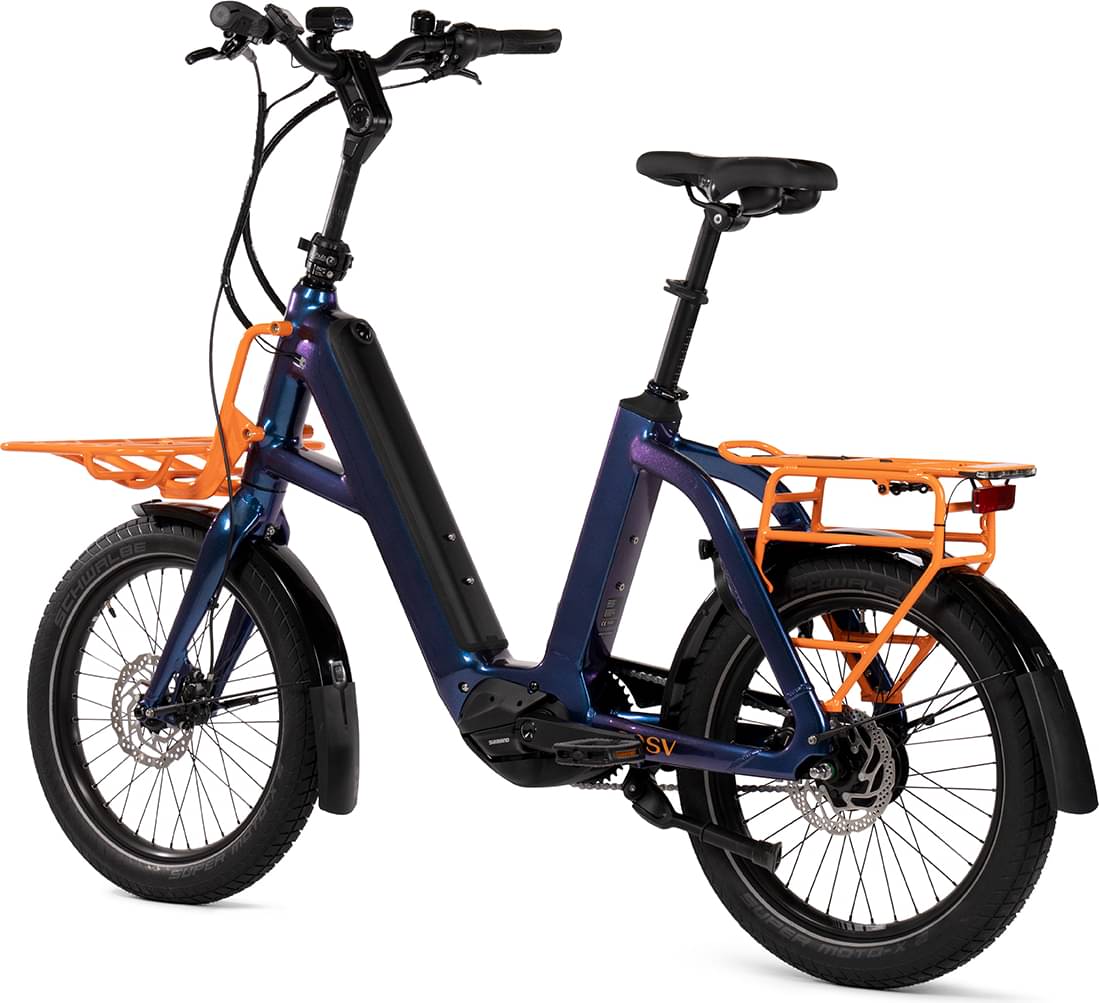

besv CPT 1.4 2024
2024 E-bike
Estimate price |
4,187$
Weight | 28.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery 531Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
155cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BESV Compact smooth welded alloy frame, SHIMANO E-BIKE SYSTEMS and internal battery compatible
Suspension Fork
Compact alloy fork, 1.1/4"-1.5" steerer
Drivetrain
Shift Levers
SHIMANO Nexus 8
Cassette
SHIMANO Inner Gear sprocket, 16T
Crank
Samox for SHIMANO E-BIKE SYSTEMS, 38T KMC chainring
Chain
KMC Z1 EPT
Chain Guide
Chainguard
Pedals
Wellgo pedals with reflectors
Wheels
Rims
SHIMANO HB-TC500-15, Nexus-8, 700c multichamber alloy rims 36H
Tires
20 x 2.8
Brakes
Brakes
SHIMANO MT200, 2-piston hydraulic disc, 160mm rotors
Brake Levers
SHIMANO MT200, 3 finger lever
Cockpit
Stem
Speedlifter Twist Pro 2 SDS, adjustable 0-90°
Handlebar
Alloy City-Trekking rise bar
Grips
Comfortable gel grips with padding
Headset
First 1.5"
Seat
Saddle
Selle Royal Rio Moderate Woman
Seatpost
Seatpost with anti-sideplay, 31.6mm diameter, 12mm offset
Motor & Battery
Motor
SHIMANO EP500, 250W, 60Nm, 25km/h
Battery
531Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.363 mm |
| Front Center | 661 mm |
| Rake | 58 mm |
| Stack | 562 mm |
| Reach | 412.3 mm |
| Top Tube Length | 605.8 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 468 mm |
| Head Tube Angle | 71 ° |
| Head Tube Length | 280 mm |
| Chainstay Length | 455 mm |
| Wheelbase | 1114 mm |
| Bottom Bracket Drop | 20 mm |
| Standover Height | 372 mm |
| Wheels | 20" |
| Rider Min Height | 155 cm |
| Rider Max Height | 190 cm |
