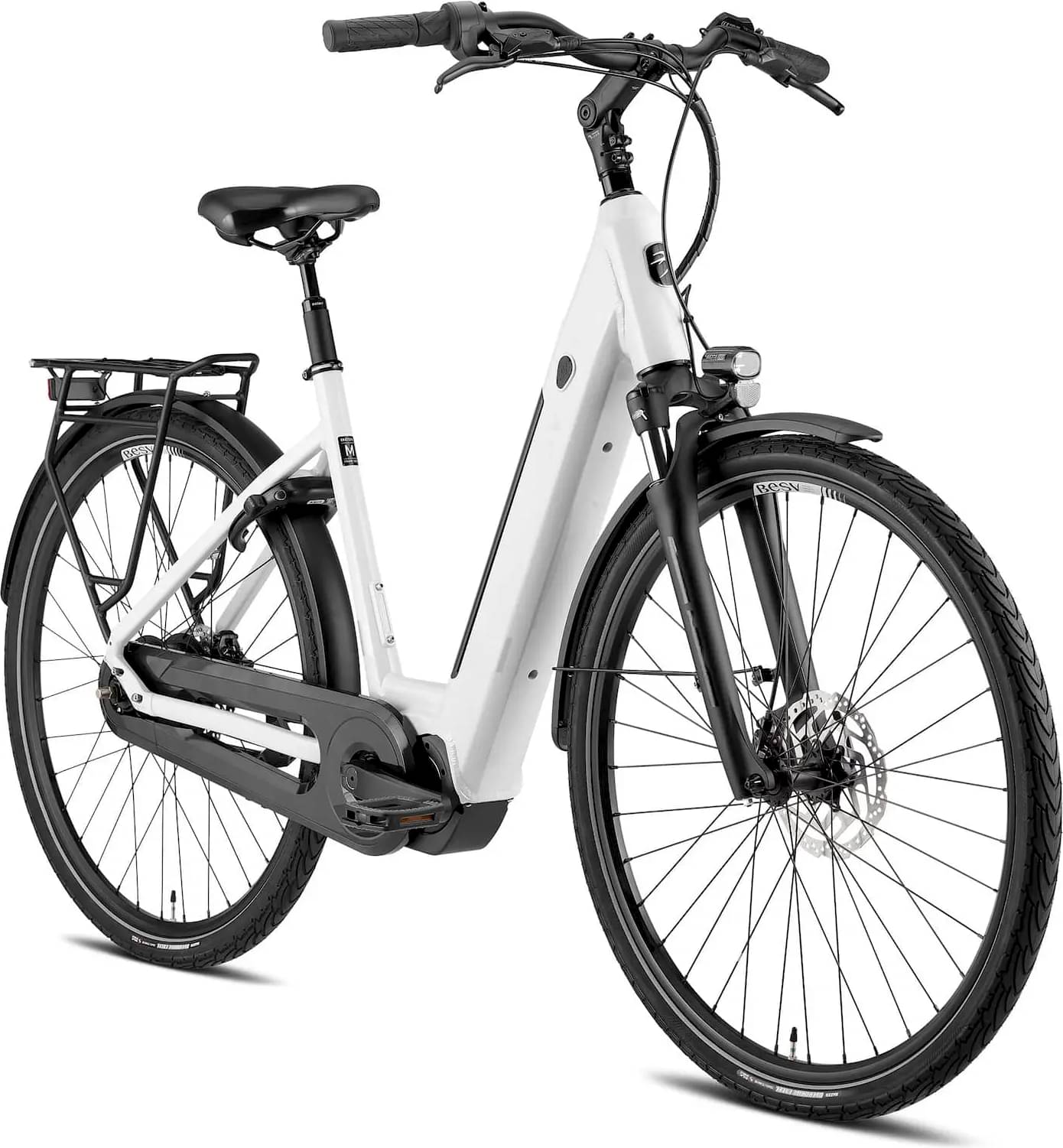

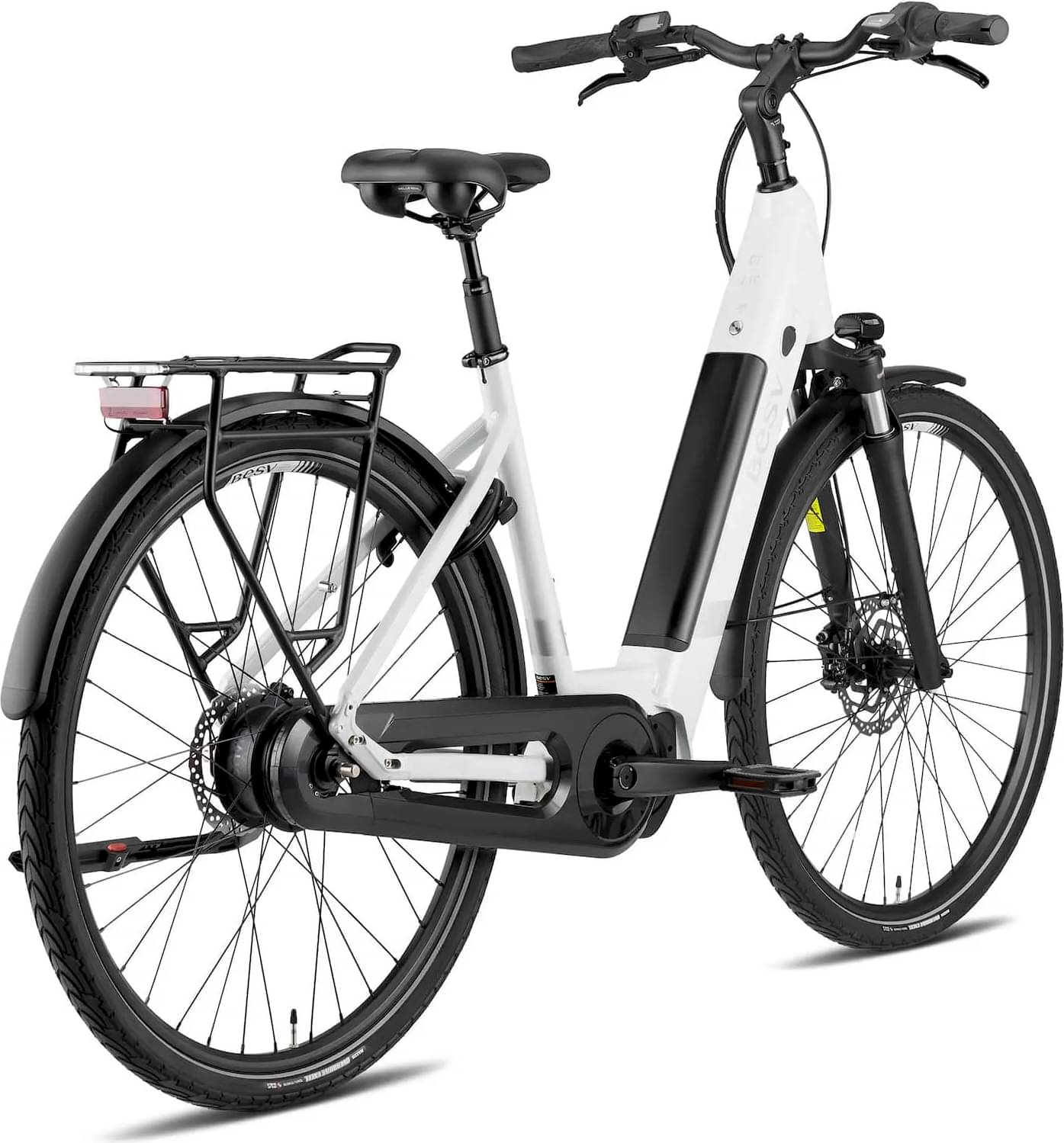

besv CT 2.2 LS 2024
2024 E-bike
Estimate price |
3,489$
Weight | 29.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery 505WH -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 175cm
MD
170cm - 185cm
LG
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BESV CT 2-Series alloy frame, Shimano Steps and internal battery compatible
Suspension Fork
SR Suntour Nex-E25, Lockout, Coil damping, tapered alloy steerer, travel 50mm, QR-axle
Drivetrain
Shift Levers
Enviolo manual
Cassette
KMC for Enviolo, 18T
Crank
Samox for Shimano Steps, 38T chainring
Bottom Bracket
Shimano, integrated in motor
Chain
KMC E101 EPT WIDE
Pedals
Wellgo pedals with reflectors
Wheels
Rims
Formula CL-1420 front hub, Enviolo City 310% gear ratio rear hub, 700c multichamber alloy rims 36H
Tires
47x622
Brakes
Brakes
Shimano MT200, 2-piston hydraulic disc, with 180mm front and 160mm rear rotors
Brake Levers
Shimano MT201, 3 finger lever
Cockpit
Stem
3D Forged alloy City-Trekking stem, adjustable 0-90 degree, 31.8mm clamp
Handlebar
Alloy City-Trekking rise bar, 6066 alloy, 40mm rise, sweep: 20 degree up, 31.8mm clamp
Grips
Comfortable gel grips with padding
Headset
First, D346S, 1.5" headset, angular contact bearings
Seat
Saddle
Selle Royal Rio Moderate
Seatpost
Suspension seatpost with anty-sideplay, 40mm travel, 31.6mm diameter, 12mm offset
Motor & Battery
Motor
Shimano E6110 center-motor, 250W rated power, 60Nm of torque, 25km/h maximum assist
Battery
505WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.698 mm | 1.698 mm | 1.624 mm |
| Front Center | 667 mm | 667 mm | 680 mm |
| Rake | 44 mm | 44 mm | 45 mm |
| Trail | 87 mm | 87 mm | 82 mm |
| Stack | 659 mm | 659 mm | 661 mm |
| Reach | 388 mm | 388 mm | 407 mm |
| Top Tube Length | 590 mm | 590 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° |
| Head Tube Length | 190 mm | 190 mm | 190 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1144 mm | 1144 mm | 1158 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 408 mm | 408 mm | 408 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm |
