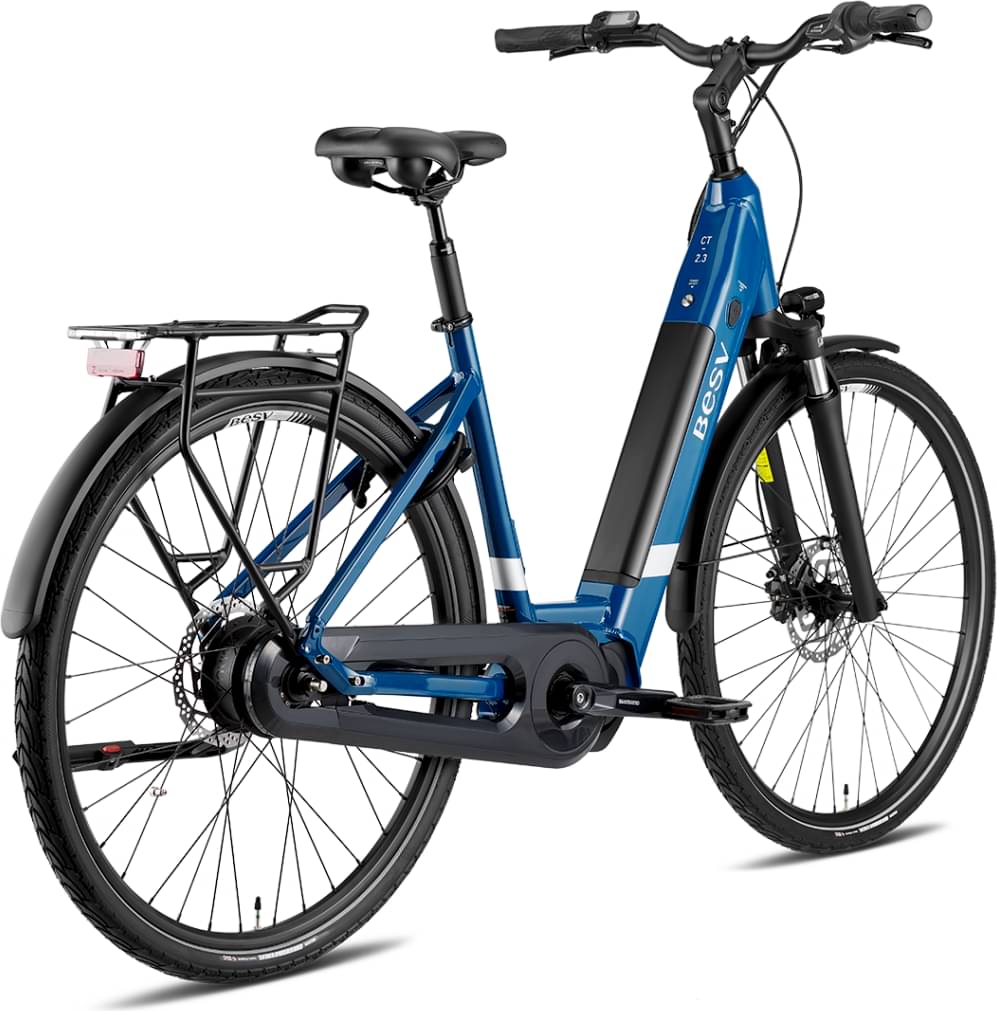

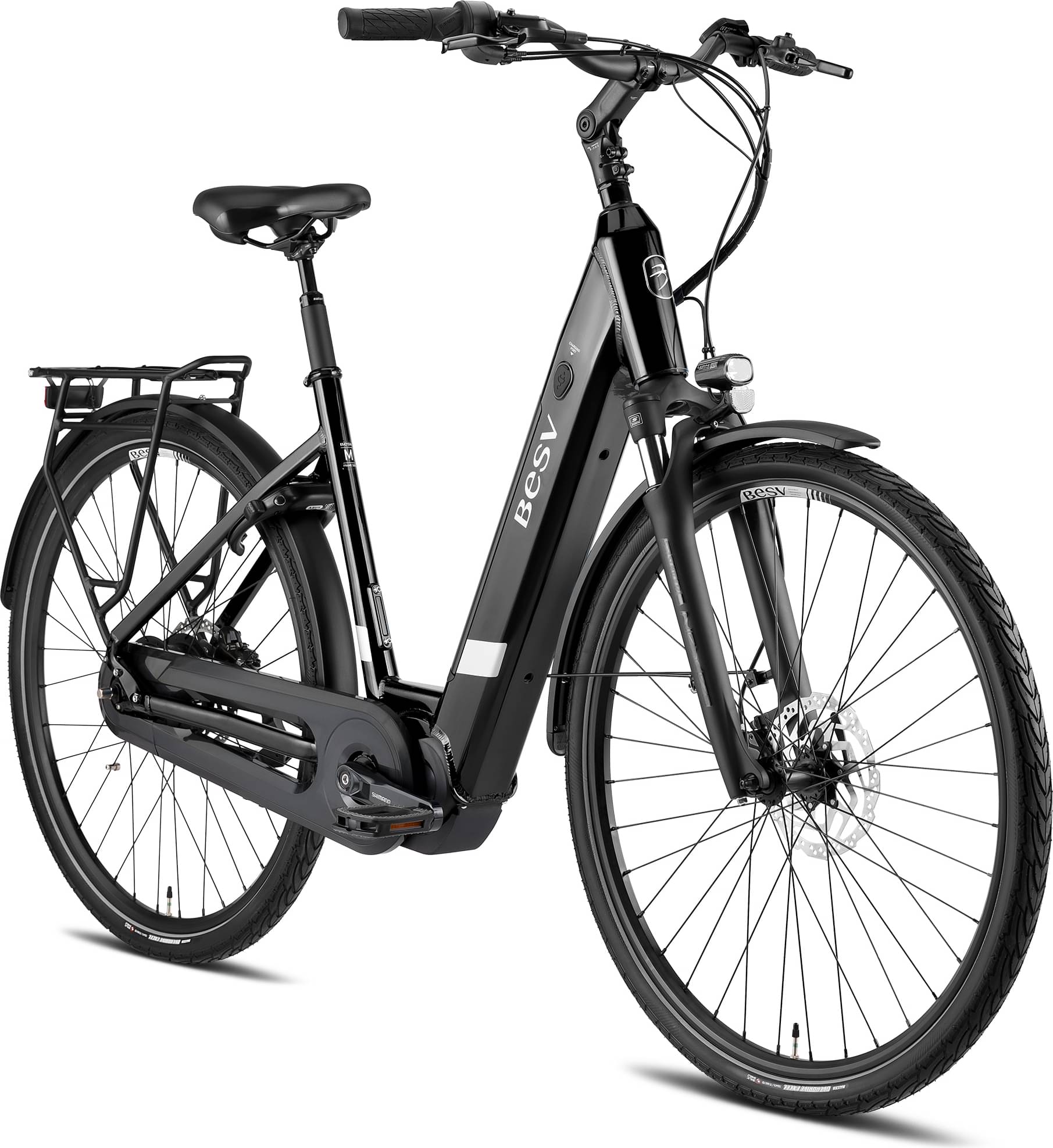

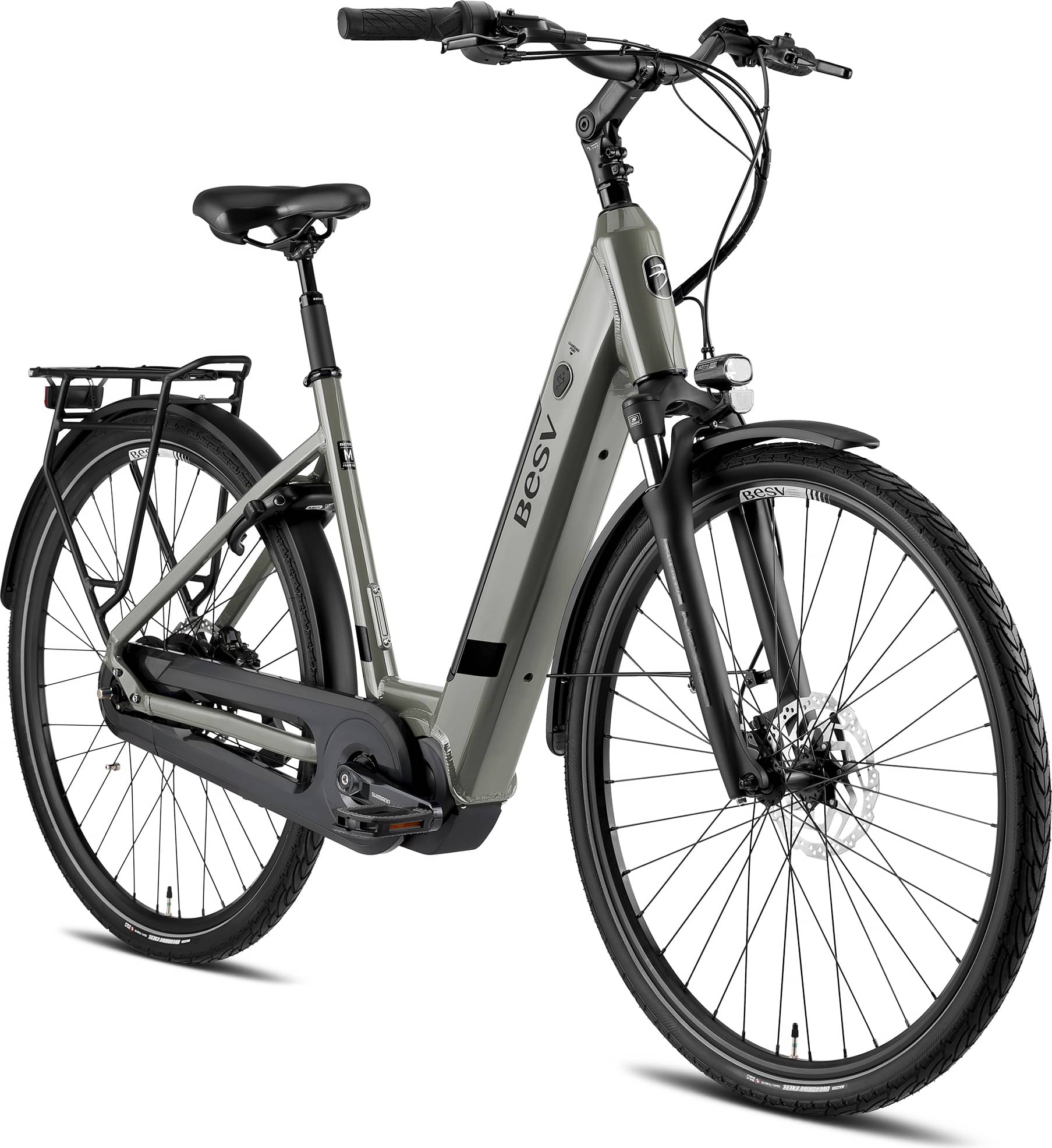

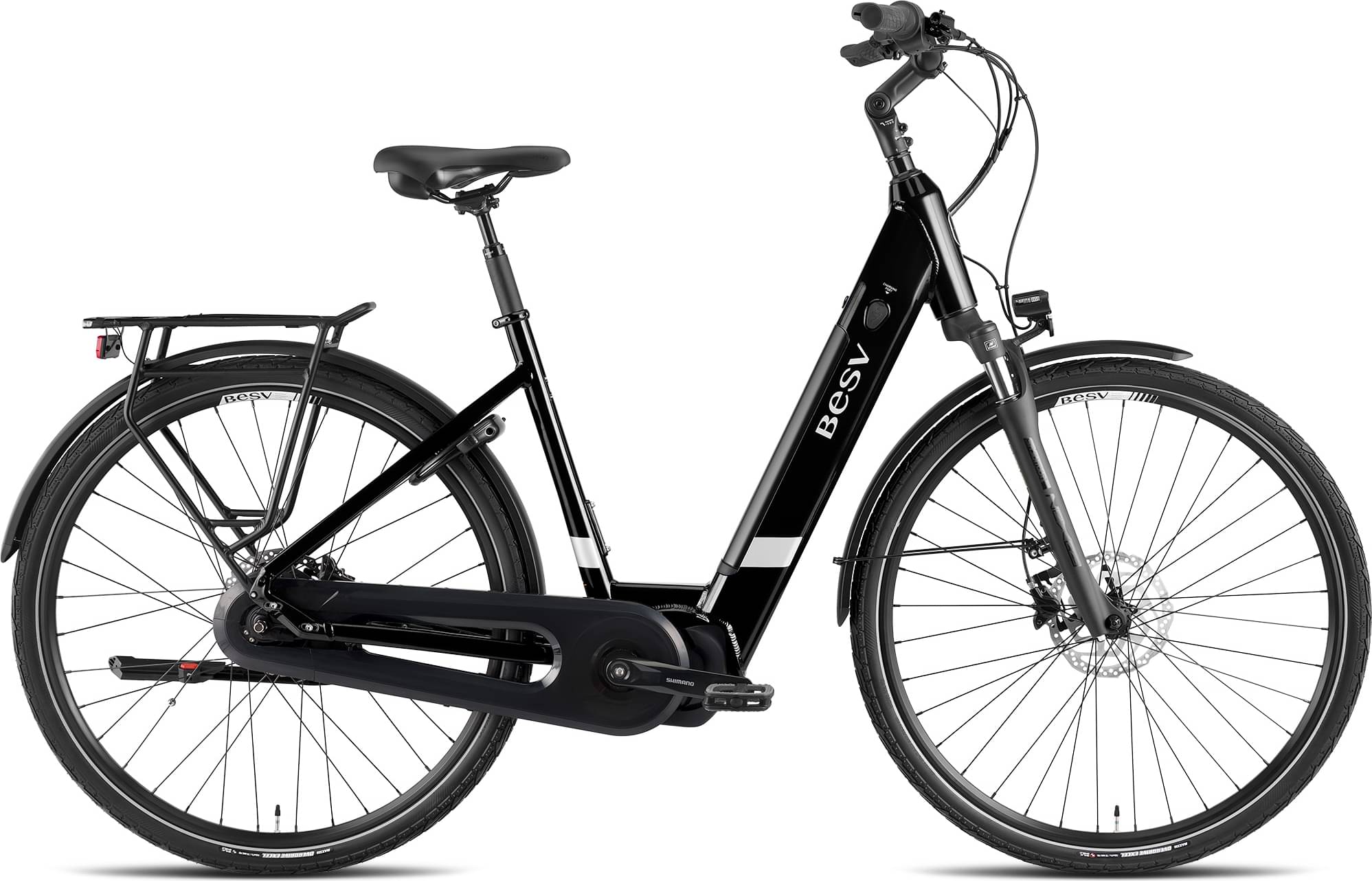

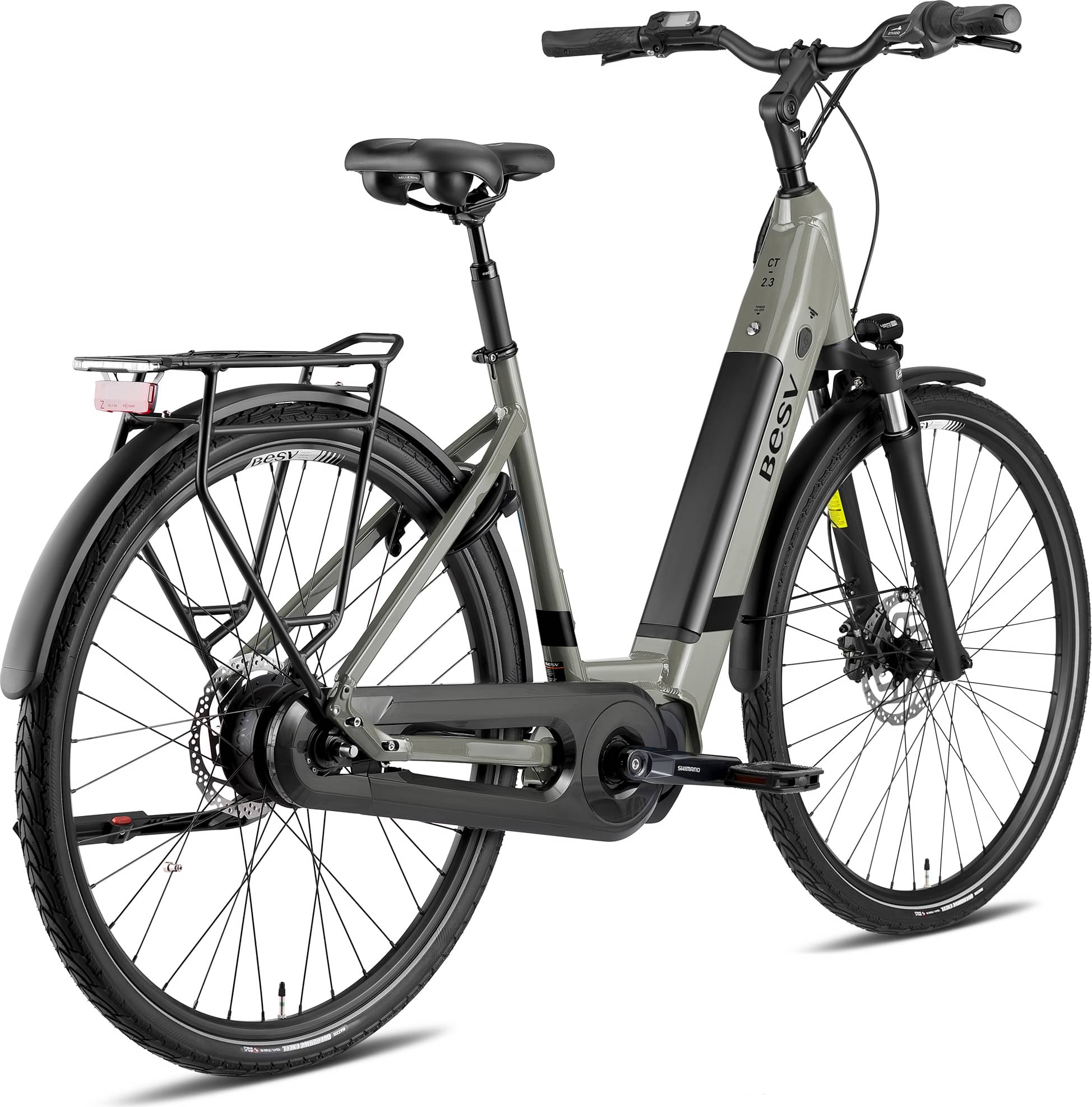

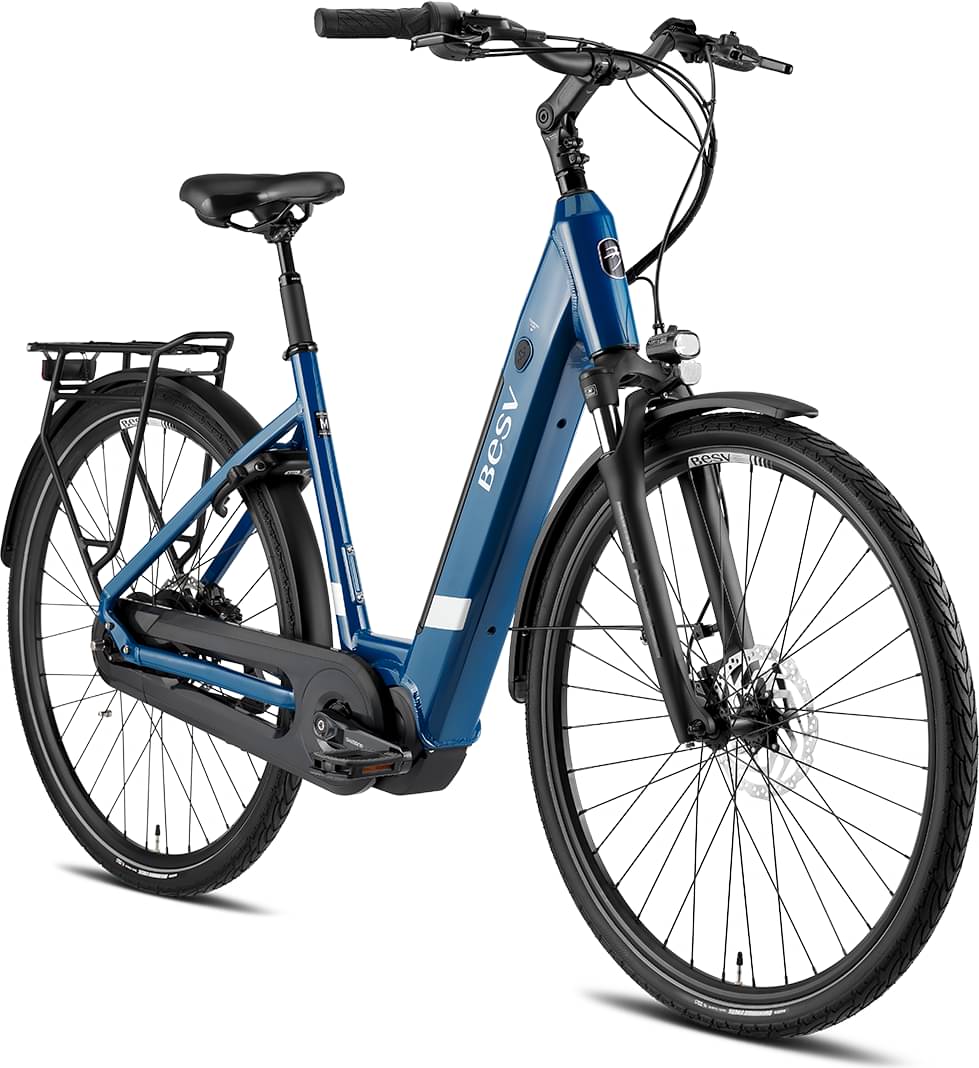

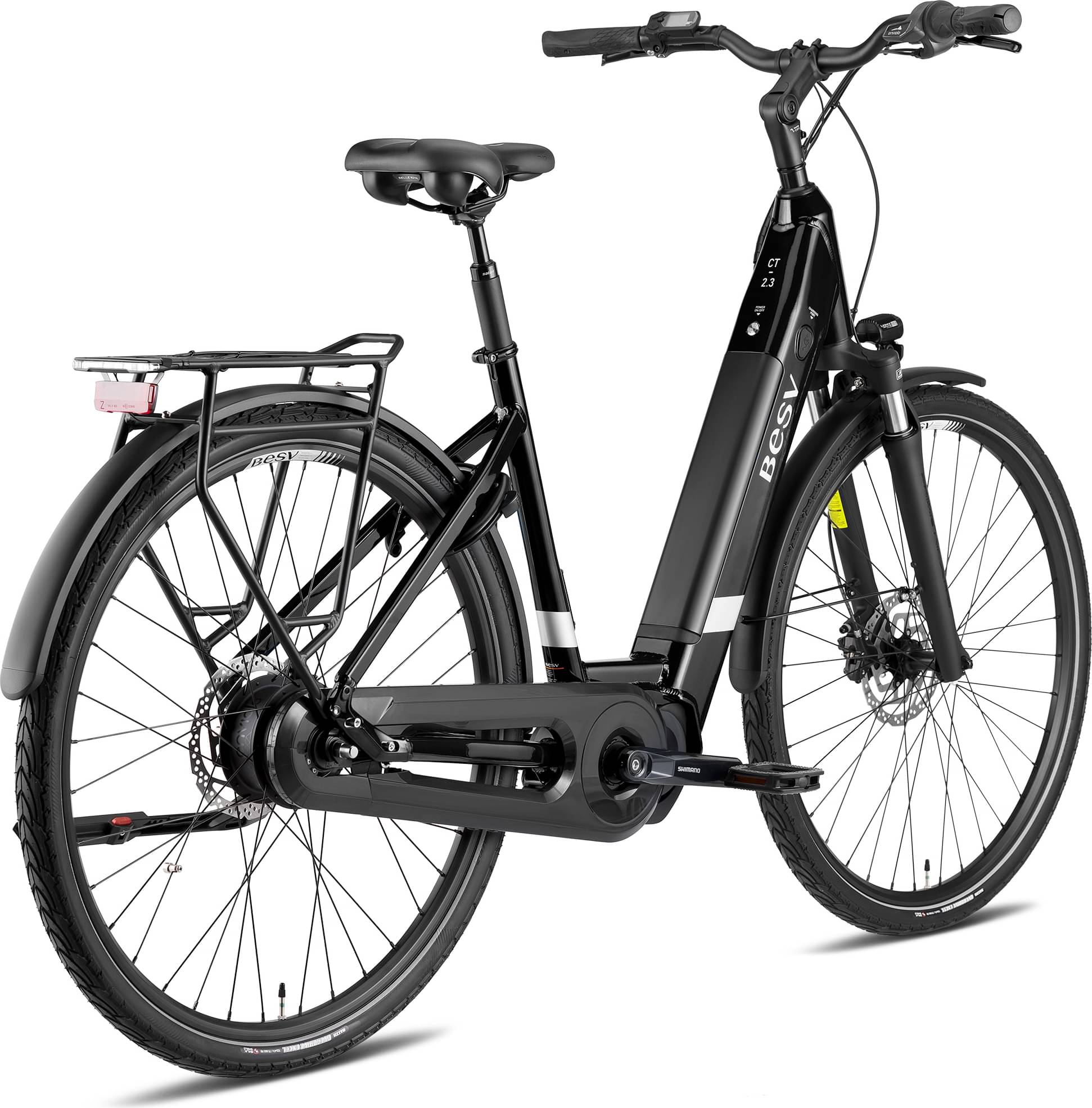

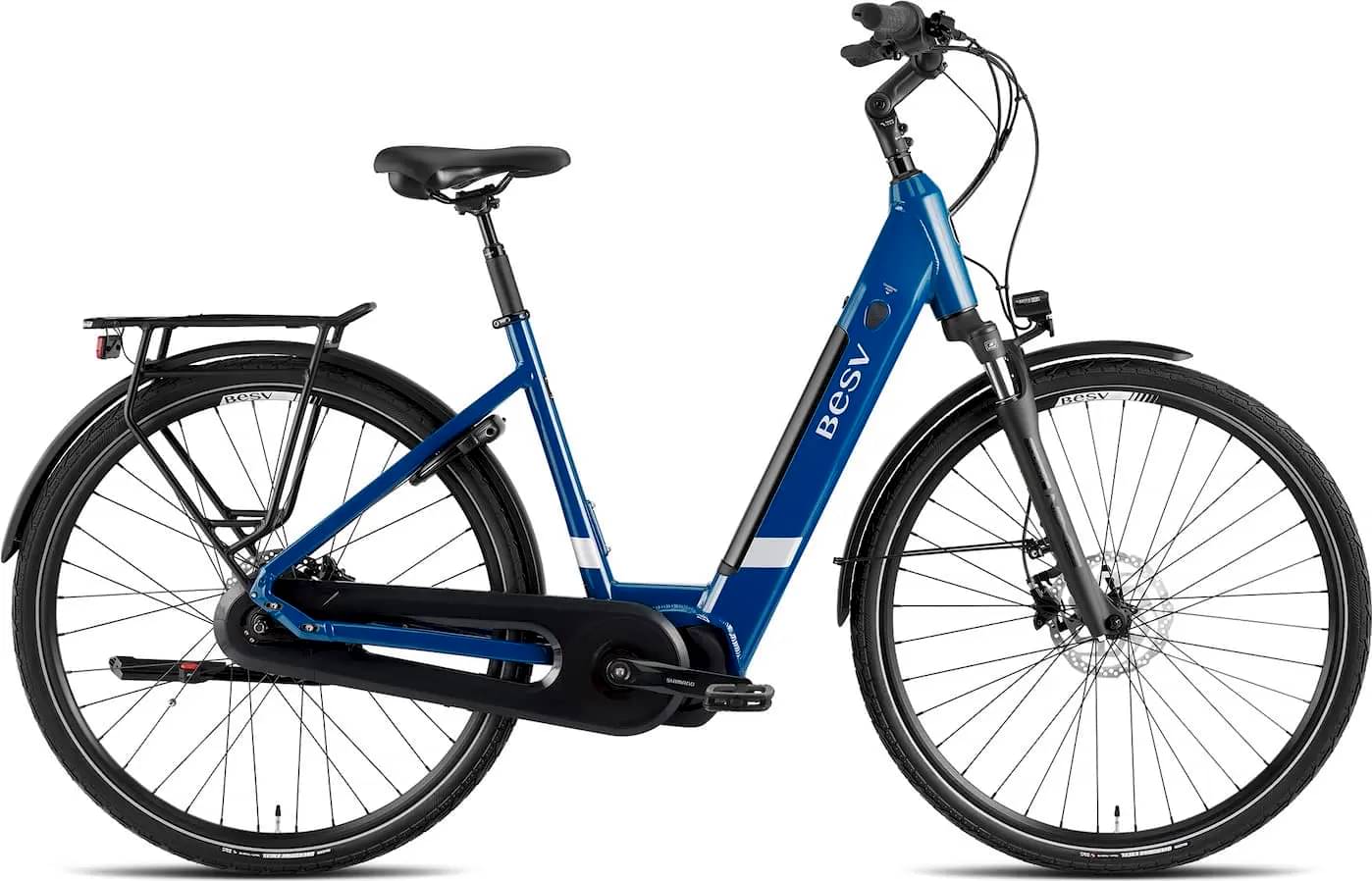

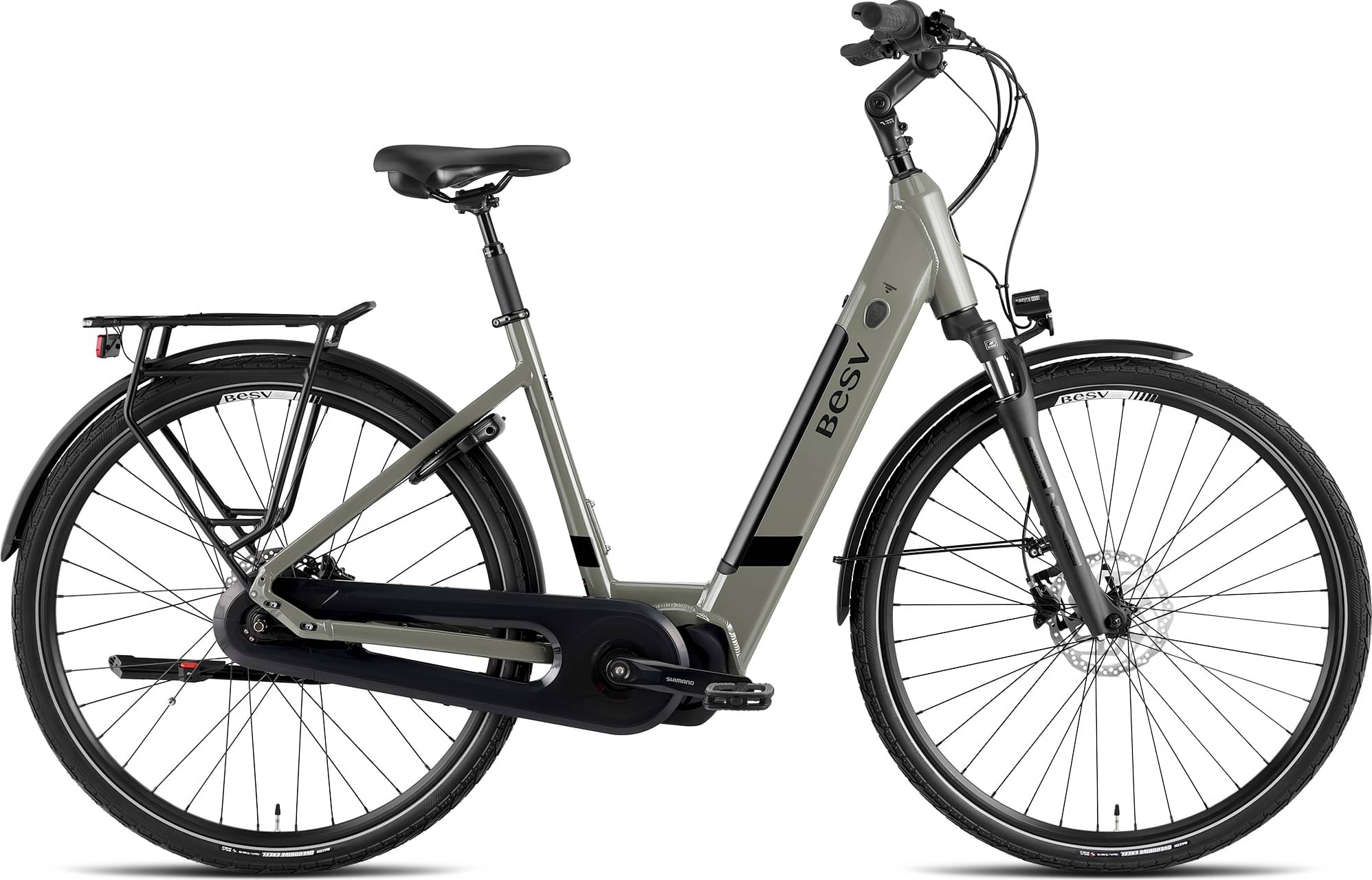

besv CT 2.3 LS 2024
2024 E-bike
Estimate price |
3,140$
Weight | 29.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery 504WH -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 175cm
MD
160cm - 175cm
LG
160cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BESV CT 2-Series alloy frame, Shimano Steps and internal battery compatible
Suspension Fork
SR Suntour Nex-E25, Lockout, Coil damping, tapered alloy steerer, travel 50mm, QR-axle
Drivetrain
Cassette
KMC for Enviolo, 18T
Crank
Shimano FC-E5010 for Shimano E5000, 38T Shimano CR-E50 chainring
Bottom Bracket
Shimano, integrated in motor
Chain
KMC Z1 EPT NARROW
Wheels
Rims
Formula CL-1420 front hub, new Enviolo rear hub, 700c multichamber alloy rims 36H
Tires
47x622
Brakes
Brakes
Shimano MT200, 2-piston hydraulic disc, with 180mm front and rear rotors
Motor & Battery
Motor
Shimano E5000 center-motor, 250W rated power, 40Nm of torque, 25km/h maximum assist
Battery
504WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.698 mm | 1.698 mm | 1.698 mm |
| Front Center | 667 mm | 667 mm | 667 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 659 mm | 659 mm | 659 mm |
| Reach | 388 mm | 388 mm | 388 mm |
| Top Tube Length | 590 mm | 590 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 450 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 190 mm | 190 mm | 190 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1144 mm | 1144 mm | 1144 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 408 mm | 408 mm | 408 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 160 cm | 160 cm |
| Rider Max Height | 175 cm | 175 cm | 175 cm |
