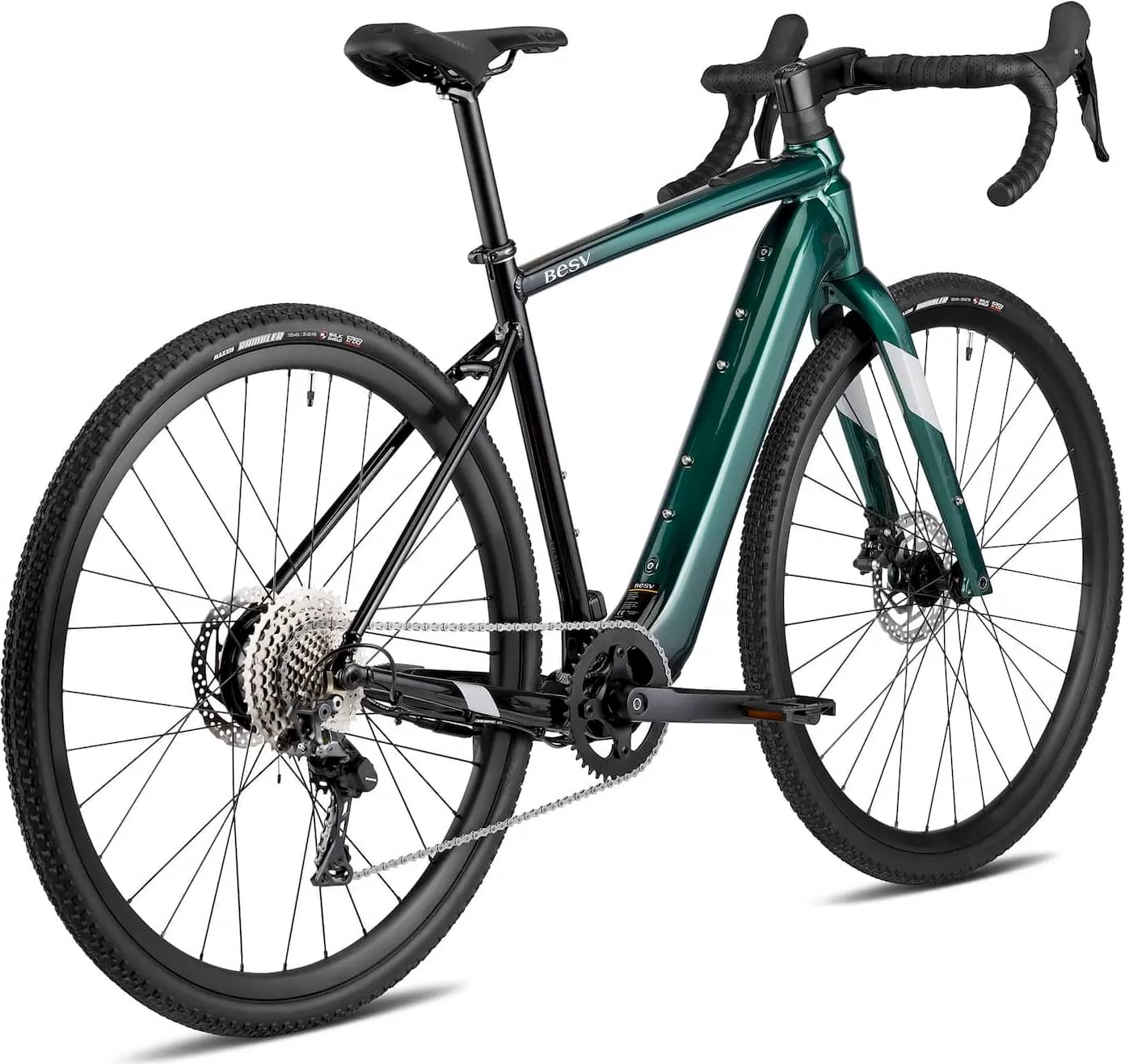

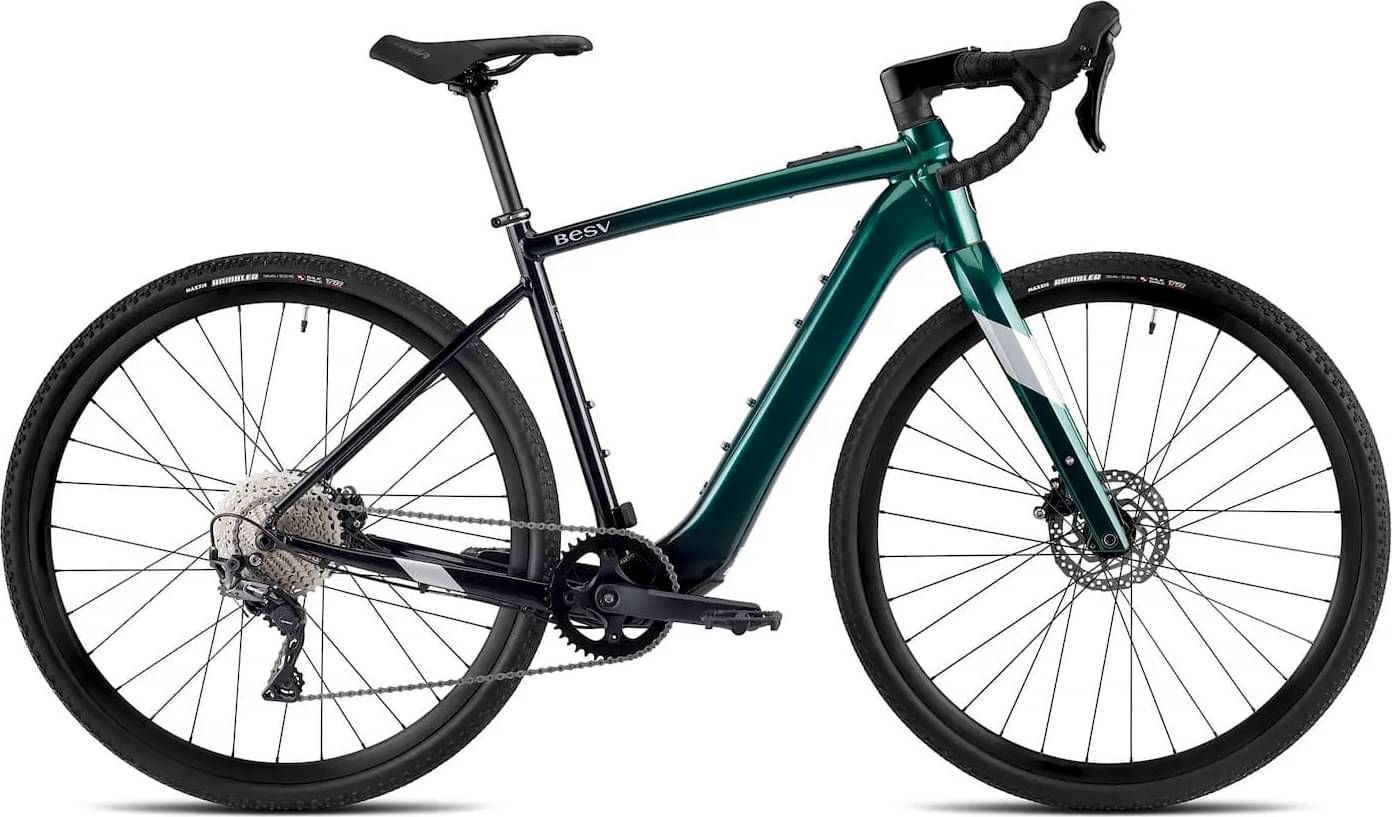

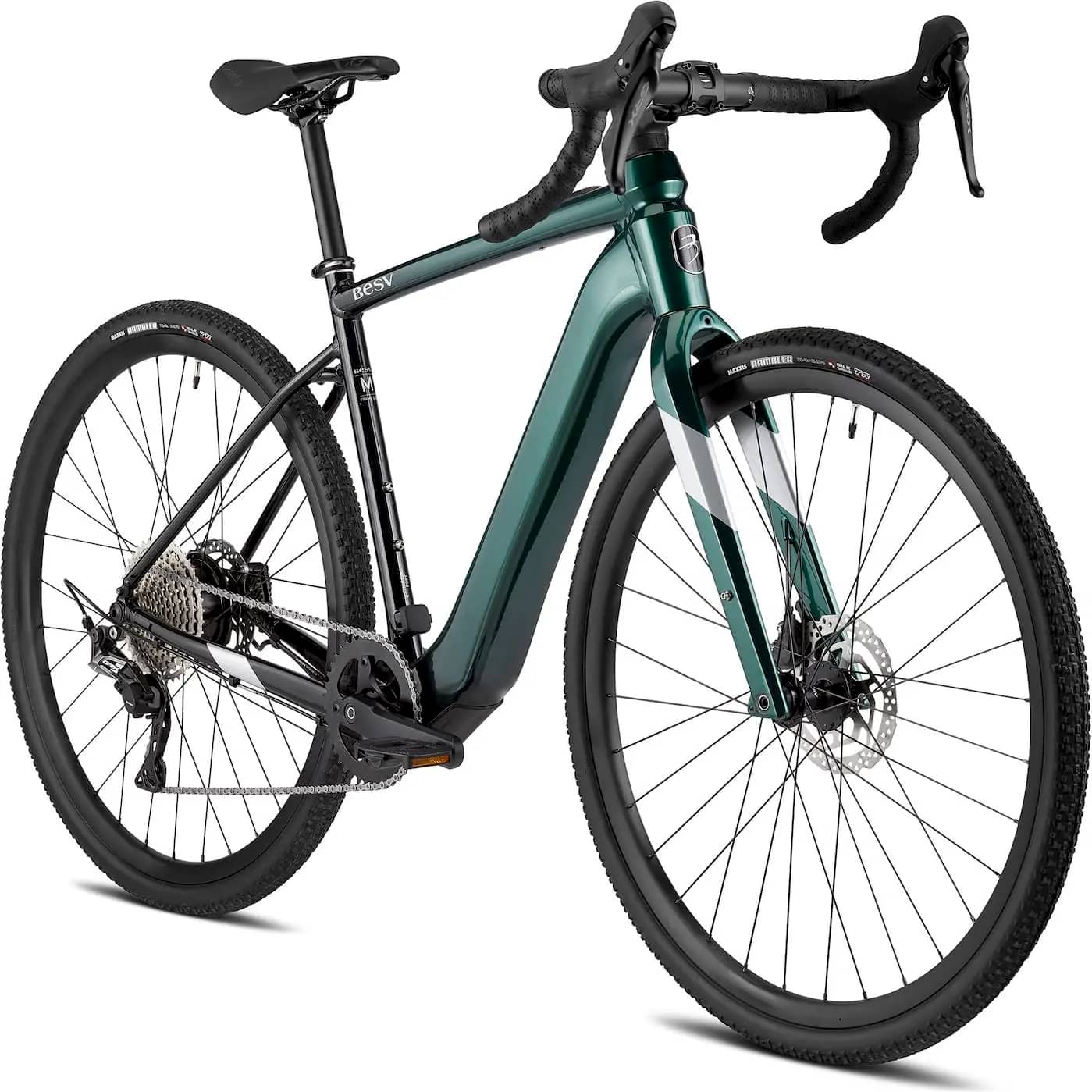

besv JGR 1.1 2024
2024 E-bike
Estimate price |
4,071$
Weight | 16.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Motor Bafang 250W 40Nm hub-drive -
Battery 360Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 176cm
LG
173cm - 186cm
XL
183cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BESV alloy frame with built in 360W Darfon battery, for Bafang rear hub motor
Suspension Fork
BESV full carbon gravel fork, 1.1/8"-1.5" carbon steerer
Drivetrain
Rear Derailleur
Shimano GRX RD-RX812, 11 speed
Shift Levers
included with brakeset
Cassette
Shimano Deore CS-M5100, 11 speed, 11-42T
Crank
Samox EC38-F13-ISIS, 40T chainring
Bottom Bracket
with cadence and torque sensor
Chain
KMC e11Turbo, with Quick-Link
Pedals
Wellgo, alloy body, ball bearings, with pins
Wheels
Rims
Formula RX-512 front hub, Bafang rear hub, Formula XRD-522 multichamber alloy rims 32H
Tires
700x40c
Brakes
Brakes
Shimano GRX RX400, 2-piston hydraulic disc, with 180mm front and 160mm rear rotors
Brake Levers
Shimano GRX RX600, dual control lever
Cockpit
Stem
3D Forged alloy stem, 31.8mm clamp, for internal cable routing
Handlebar
3D Forged drop bar, 6066 alloy, sweep: 5 degree back, 31.8mm clamp
Grips
Comfortable grips with anti-slippery microfiber
Headset
Acros, AIX-525, 1.5" headset, angular contact bearings, integrated cable routing
Seat
Saddle
Selle Italia X3 eBike
Seatpost
Promax SP-726, 27.2mm diameter
Motor & Battery
Motor
Bafang rear hub motor, 250W rated power, 40Nm of torque, 25km/h maximum assist
Battery
360Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.505 mm | 1.508 mm | 1.506 mm | 1.507 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 616 mm | 627 mm | 639 mm | 650 |
| Rake | 50 mm | 50 mm | 51 mm | 50 mm |
| Trail | 77 mm | 74 mm | 69 mm | 67 mm |
| Stack | 563 mm | 579 mm | 595 mm | 612 mm |
| Reach | 374 mm | 384 mm | 395 mm | 406 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 455 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1037 mm | 1048 mm | 1060 mm | 1071 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 748 mm | 767 mm | 785 mm | 804 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 173 cm | 183 cm |
| Rider Max Height | 165 cm | 176 cm | 186 cm | 195 cm |
