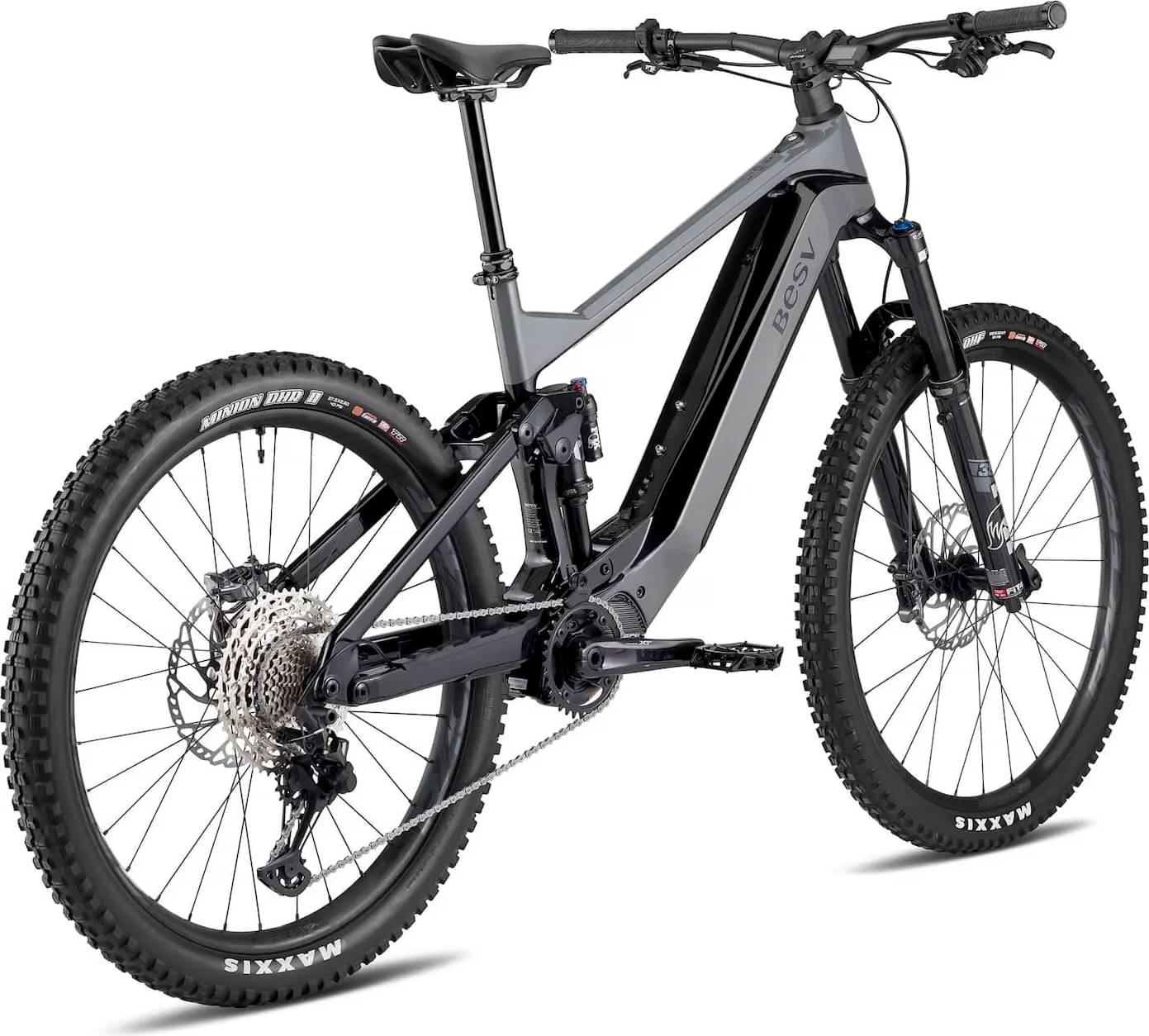

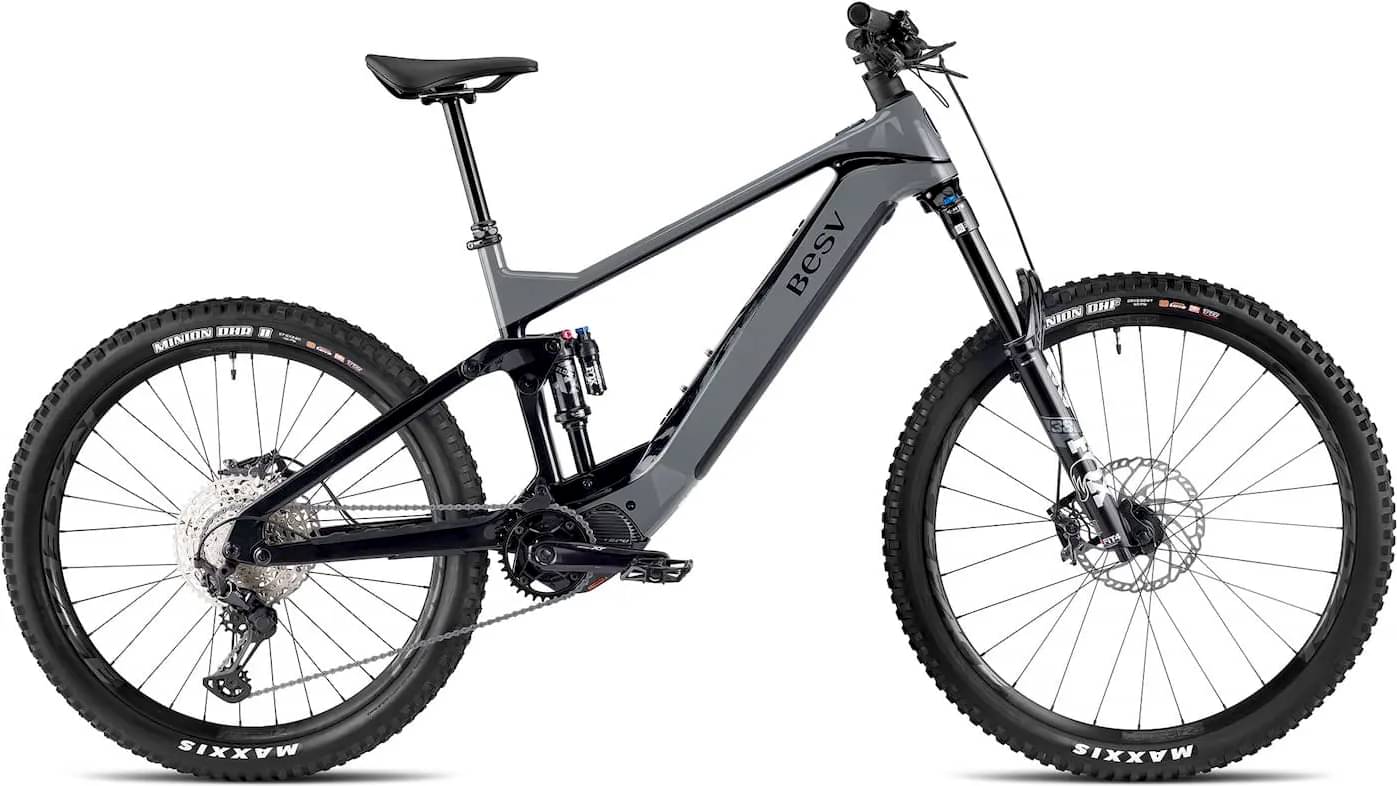

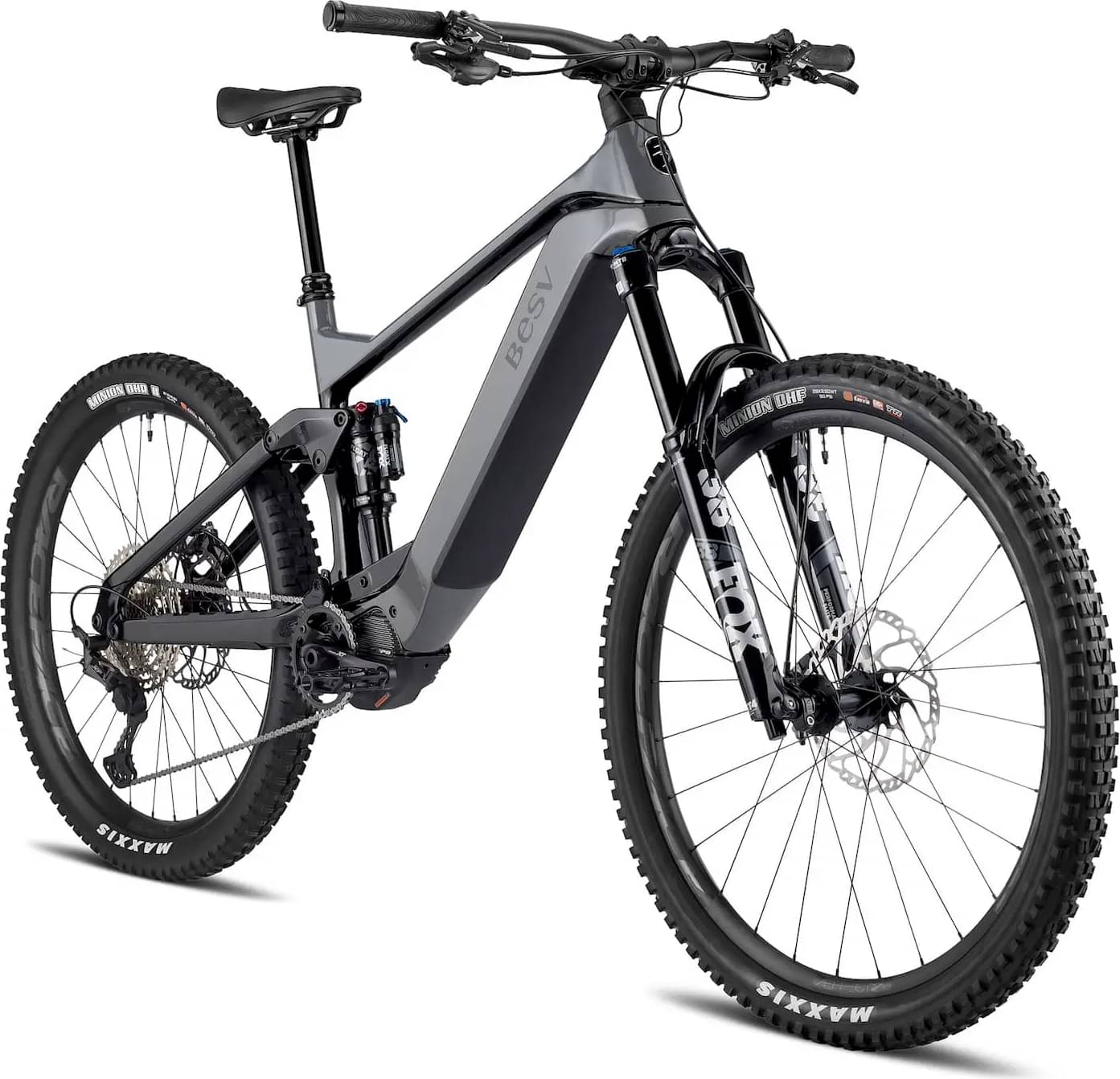

besv TCE 1.1 2024
2024 E-bike
Estimate price |
9,306$
Weight | 23.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 38
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery 720WH -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 177cm
MD
174cm - 187cm
LG
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full-suspension BESV TCE Series frame, carbon front and rear triangle, Shimano Steps and internal battery compatible
Suspension Fork
Fox 38 Ebike Performance Elite Float, 38mm stanchions, Air damping, 1.1/8"-1.5" tapered alloy steerer, travel 160mm
Rear Shock
Fox Performance Elite Float X, 205x60, air spring, 150mm rear wheel travel
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100, 12 speed
Shift Levers
Shimano Deore XT SL-M8100, 12 speed
Cassette
Shimano SLX CS-M7100, 12 speed, 10-51T
Crank
Shimano FC-EM8150 for Shimano EP801, Shimano CRE80 34T chainring
Bottom Bracket
Shimano, integrated in motor
Chain
KMC e12Turbo, with Quick-Link
Pedals
Wellgo, alloy body, ball bearings
Wheels
Rims
Race Face Aeffect-R, eMTB wheelset, front: 29"/ rear: 27.5+, Boost hubs spacing, Race Face multichamber alloy rims 32H
Tires
29"x2.5"
Brakes
Brakes
Shimano Deore XT M8120, 4-piston hydraulic disc, with 203mm front and rear rotors
Brake Levers
Shimano Deore XT M8100, 2 finger lever
Cockpit
Stem
E-MTB 3D Forged alloy stem, 35mm clamp, for internal cable routing
Handlebar
E-MTB reis bar, 6066 alloy, 15mm rise, sweep: 7 degree back, 35mm clamp
Grips
Race Face Half-Nelson
Headset
Acros, AZX-581, 1.5" headset, angular contact bearings, integrated cable routing
Seat
Saddle
Selle Italia Model-X Superflow eBike
Seatpost
Fox Transfer Performance Elite dropper post with remote lever, travel: 175mm, 30.9mm diameter, 0mm offset
Motor & Battery
Motor
Shimano EP801 center-motor, 250W rated power, 85Nm of torque, 25km/h maximum assist
Battery
720WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.367 mm | 1.301 mm | 1.267 mm |
| Front Center | 795 mm | 829 mm | 854 mm |
| Rake | 45 mm | 44 mm | 45 mm |
| Trail | 133 mm | 134 mm | 133 mm |
| Stack | 622 mm | 631 mm | 640 mm |
| Reach | 455 mm | 485 mm | 505 mm |
| Top Tube Length | 593 mm | 625 mm | 648 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 415 mm | 430 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1239 mm | 1273 mm | 1298 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 799 mm | 803 mm | 821 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 174 cm | 184 cm |
| Rider Max Height | 177 cm | 187 cm | 196 cm |
