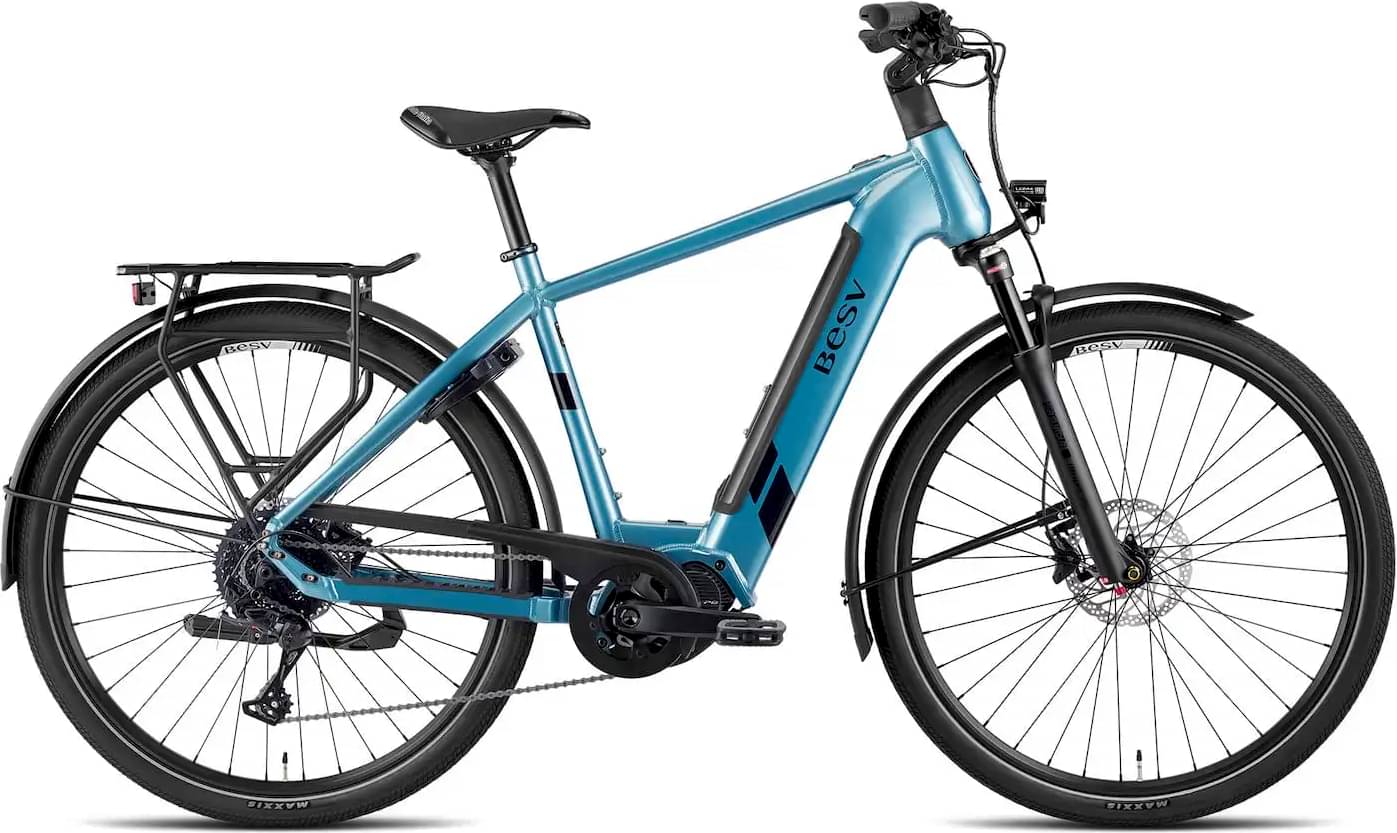

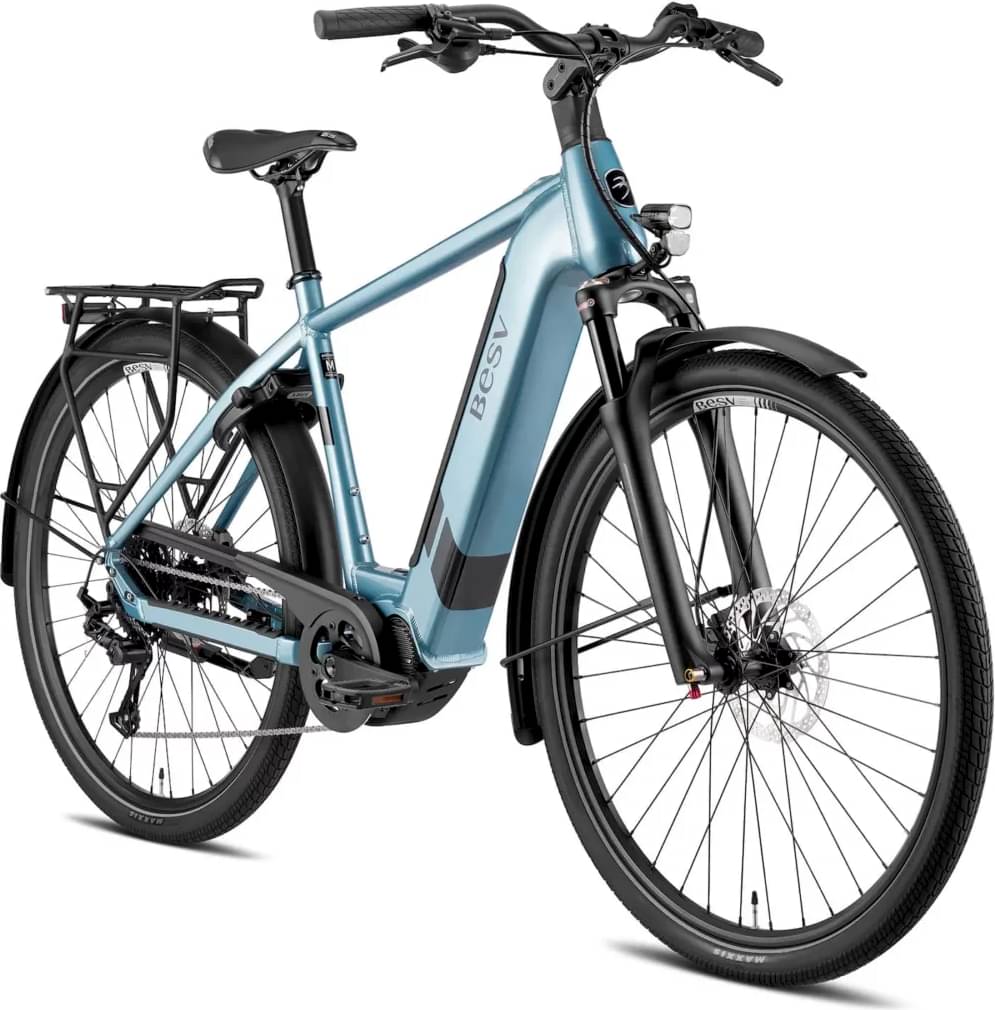

besv TR 1.2 2024
2024 E-bike
Estimate price |
4,420$
Weight | 27.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset microSHIFT XLE, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery 630WH -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 185cm
LG
183cm - 195cm
XL
190cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BESV TR 1.Series alloy frame, Shimano Steps and internal battery compatible
Suspension Fork
SR Suntour Mobie25, Lockout, Air damping, tapered alloy steerer, travel 75mm, Thru-axle
Drivetrain
Rear Derailleur
Microshift XLE 11, 11 speed
Shift Levers
Microshift XLE 11, 11 speed
Cassette
Microshift XLE 11, 11 speed, 11-42T
Crank
Samox for Shimano Steps, 38T chainring
Bottom Bracket
Shimano, integrated in motor
Chain
KMC e11Turbo, with Quick-Link
Pedals
Wellgo pedals with reflectors
Wheels
Rims
Shimano HB-MT400 front hub, Formula CL-3248 rear hub, 700c multichamber alloy rims 36H
Tires
700x50c
Brakes
Brakes
Shimano MT410, 2-piston hydraulic disc, with 180mm front and rear rotors
Brake Levers
Shimano MT402, 3 finger lever
Cockpit
Stem
3D Forged alloy Trekking stem, adjustable 0-90 degree, 31.8mm clamp
Handlebar
Alloy City-Trekking rise bar, 6066 alloy, 40mm rise, sweep: 20 degree up, 31.8mm clamp
Grips
Comfortable gel grips with padding
Headset
Acros, AZX-585, 1.5" headset, angular contact bearings, integrated cable routing
Seat
Saddle
Selle Italia S5 Superflow
Seatpost
Promax SP-726, 31.6mm diameter
Motor & Battery
Motor
Shimano EP600 center-motor, 250W rated power, 85Nm of torque, 25km/h maximum assist
Battery
630WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.611 mm | 1.623 mm | 1.581 mm | 1.554 mm |
| Front Center | 677 mm | 683 mm | 700 | 716 mm |
| Rake | 44 mm | 44 mm | 45 mm | 44 mm |
| Trail | 90 mm | 90 mm | 89 mm | 90 mm |
| Stack | 642 mm | 651 mm | 656 mm | 665 mm |
| Reach | 398.5 mm | 401 mm | 415 mm | 428 mm |
| Top Tube Length | 595 mm | 600 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 145 mm | 155 mm | 160 mm | 170 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1158 mm | 1164 mm | 1181 mm | 1197 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 836 mm | 865 mm | 882 mm | 903 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 183 cm | 190 cm |
| Rider Max Height | 176 cm | 185 cm | 195 cm | 205 cm |
