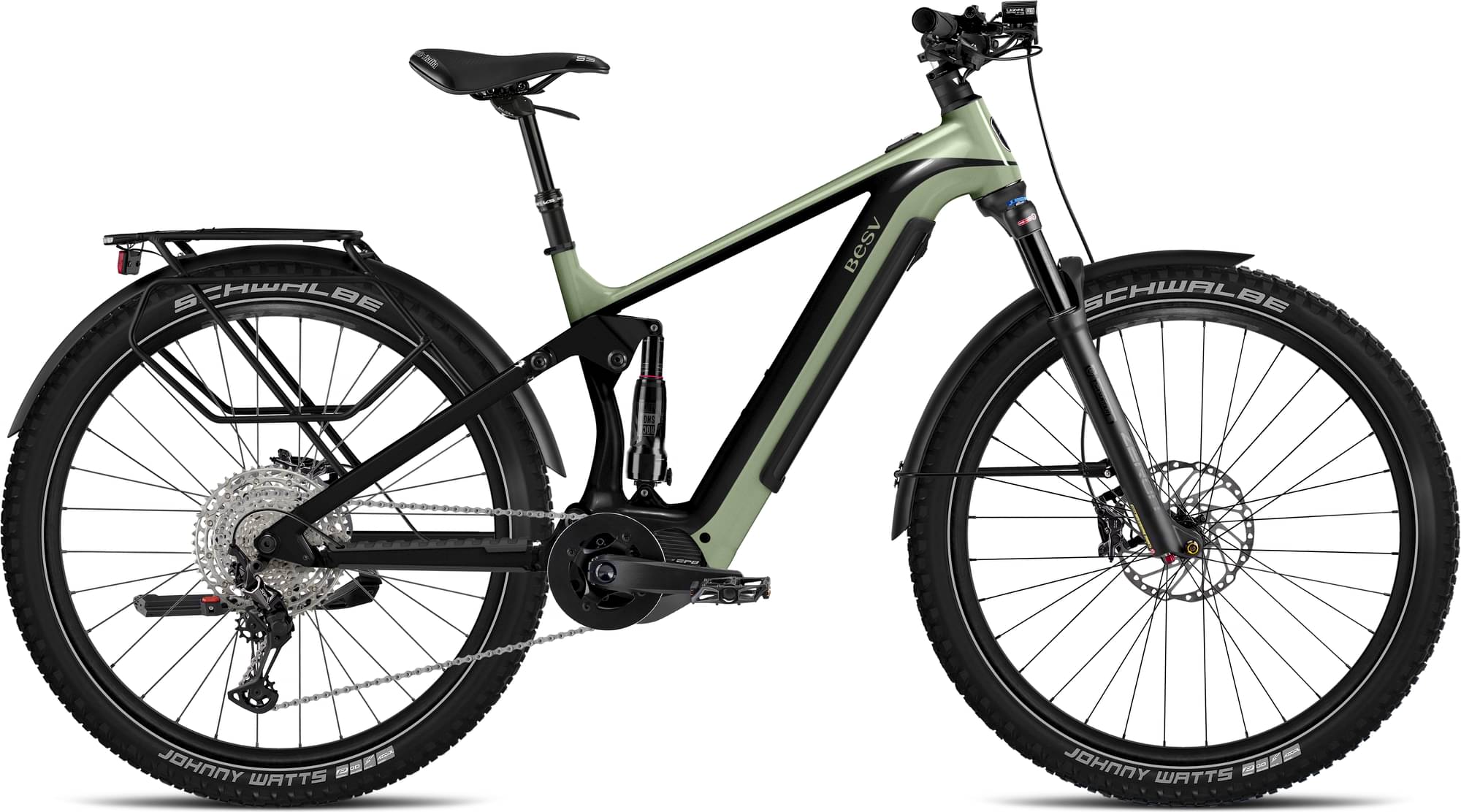

besv TRS 130 Urban 1.1 2024
2024 E-bike
Estimate price |
6,048$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork Suntour Zeron
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery 708WH -
Drivetrain 1 × 12 -
Brakes Rim
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
173cm - 187cm
XL
185cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full-suspension BESV TRS Series smooth welded alloy frame, Shimano Steps and internal battery compatible
Suspension Fork
SR Suntour Zeron35, 35mm stanchions, Lockout, Air damping, 1 1/8"-1.8" tapered alloy steerer, travel 130mm
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100, 12 speed
Shift Levers
Shimano Deore SL-M6100, 12 speed
Cassette
Shimano Deore CS-M6100, 12 speed, 10-51T
Crank
Samox for Shimano Steps, 34T chainring
Bottom Bracket
Shimano, integrated in motor
Chain
KMC e12Turbo, with Quick-Link
Pedals
Wellgo, alloy body, ball bearings
Wheels
Rims
Shimano HB-MT400 front hub and FH-TC500-MS-B rear hub, Boost hubs spacing, WTB STi27 29" multichamber alloy rims 32H
Tires
29 x 2.35
Brakes
Brakes
Rim
Cockpit
Stem
E-MTB 3D Forged alloy stem, 35mm clamp, for internal cable routing
Handlebar
E-MTB rizer bar, 6066 alloy, 15mm rise, sweep: 7° back, 35mm clamp
Grips
E-MTB gel grips with padding and BESV clamp
Headset
Acros, AZX-581, 1.8" headset, angular contact bearings, integrated cable routing
Seat
Saddle
Selle Italia S5 Superflow
Seatpost
Kind Shock e10, 30.9mm diameter
Motor & Battery
Motor
Shimano EP600 (85Nm)
Battery
708WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.549 mm | 1.46 mm | 1.396 mm | 1.366 mm |
| Front Center | 729 mm | 742 mm | 762 mm | 772 mm |
| Rake | 55 mm | 44 mm | 44 mm | 44 mm |
| Trail | 88 mm | 100 mm | 100 mm | 100 mm |
| Stack | 635 mm | 635 mm | 635 mm | 635 mm |
| Reach | 410 mm | 435 mm | 455 mm | 465 mm |
| Top Tube Length | 574 mm | 587 mm | 607 mm | 617 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 400 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1193 mm | 1206 mm | 1226 mm | 1236 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 741 mm | 724 mm | 723 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 164 cm | 173 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 190 cm |
