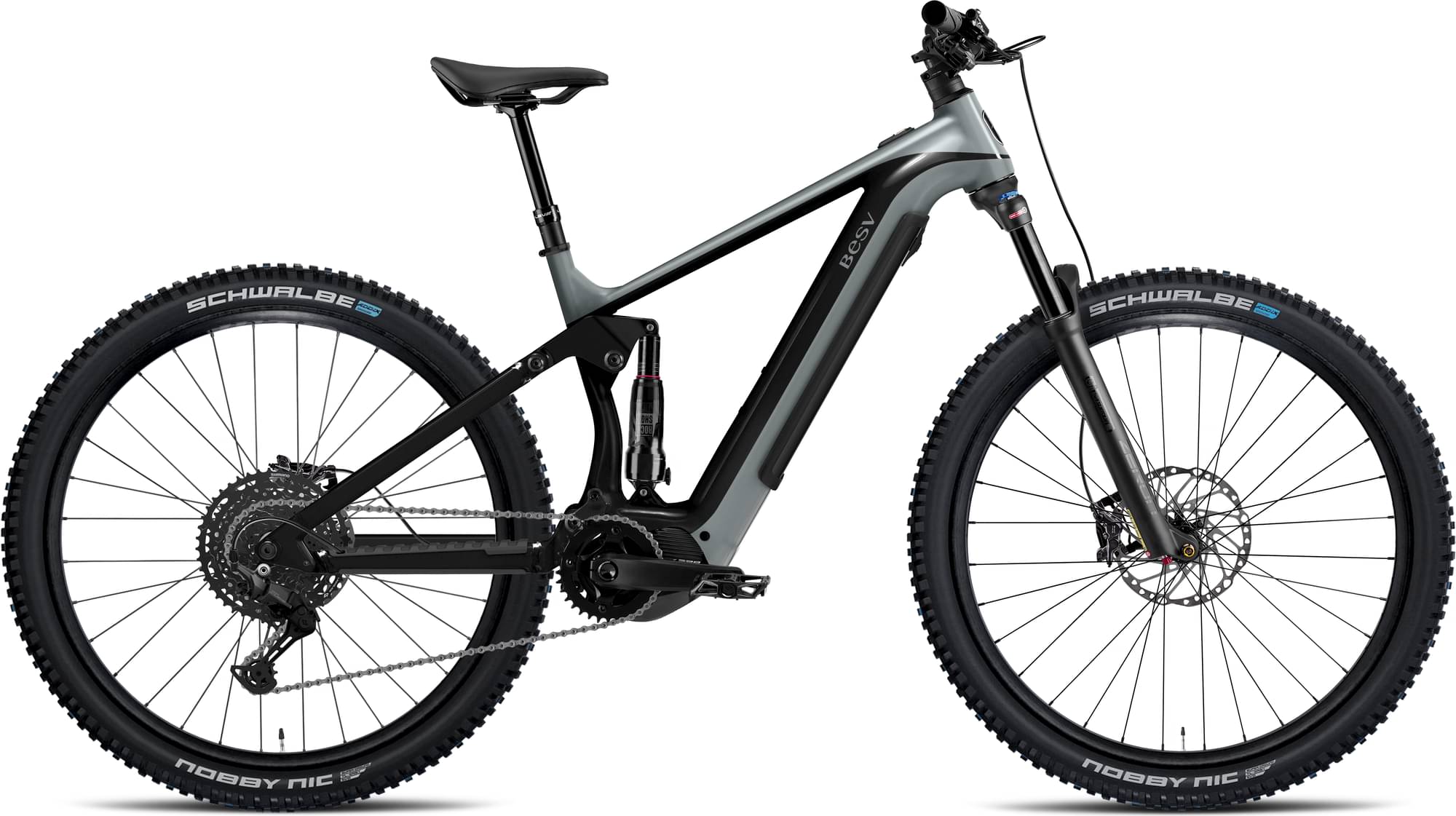

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Fork Suntour Zeron
-
Groupset CUES, Shimano -
Suspension Hardtail -
Motor Shimano 85Nm mid-drive -
Battery 708WH -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
173cm - 187cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full-suspension BESV TRS Series smooth welded alloy frame, Shimano Steps and internal battery compatible
Suspension Fork
SR Suntour Zeron36, 36mm stanchions, Air damping, 1 1/8"-1.8" tapered alloy steerer, travel 160mm
Drivetrain
Rear Derailleur
Shimano CUESRD-U6000,11speed
Shift Levers
Shimano CUES SL-U6000, 11 speed
Cassette
Shimano CUES CS-LG400, 11 speed, 11-50T
Crank
Samox for Shimano Steps crank arms, KMC 34T chainring
Bottom Bracket
Shimano, integrated in motor
Chain
Shimano CN-LG500, with Quick-Link
Pedals
Wellgo, alloy body, ball bearings
Wheels
Rims
Shimano HB-MT400 front hub and FH-TC500-HM-B rear hub, Boost hubs spacing, WTB STi30 29" multichamber alloy rims 32H
Tires
29 x 2.6
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
E-MTB 3D Forged alloy stem, 35mm clamp, for internal cable routing
Handlebar
E-MTB rizer bar, 6066 alloy, 15mm rise, sweep: 7° back, 35mm clamp
Grips
E-MTB gel grips with padding and BESV clamp
Headset
Acros, AZX-581, 1.8" headset, angular contact bearings, integrated cable routing
Seat
Saddle
Selle Italia Model-X Superflow Comfort+
Seatpost
Kind Shock e20i dropper post with remote lever, 30.9mm diameter, 0mm offset
Motor & Battery
Motor
Shimano EP801 (85Nm)
Battery
708WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.517 mm | 1.416 mm | 1.366 mm | 1.318 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 754 mm | 784 mm | 806 mm | 829 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 126 mm | 126 mm | 127 mm | 126 mm |
| Stack | 637 mm | 637 mm | 642 mm | 646 mm |
| Reach | 420 mm | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 561 mm | 591 mm | 612 mm | 633 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1218 mm | 1248 mm | 1270 mm | 1293 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 733 mm | 731 mm | 736 mm | 739 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 164 cm | 173 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 195 cm |
