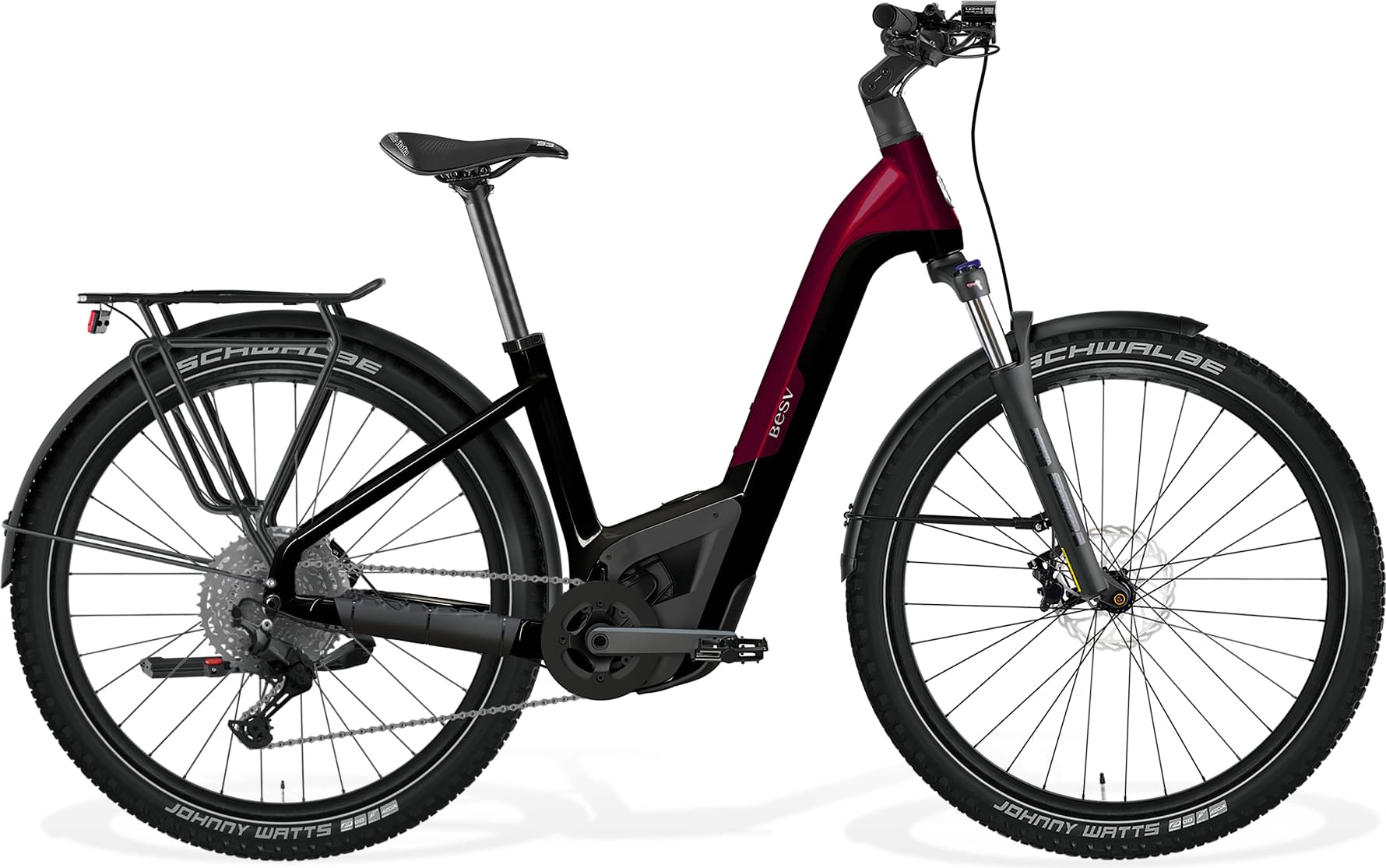

besv TRX-B SUV 1.2 LS 2024
2024 E-bike
Estimate price |
5,234$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery 625WH -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 176cm
MD
174cm - 188cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BESV TRX-B Series alloy frame, Bosch eBike system compatible
Suspension Fork
SR Suntour XCM34, 34mm stanchions, Lockout, Coil damping, 1.1/8"-1.5" tapered alloy steerer, travel: 120mm
Drivetrain
Rear Derailleur
SHIMANO CUES RD-U6000, 11 speed
Shift Levers
SHIMANO CUES SL-U6000, 11 speed
Cassette
SHIMANO CUES CS-LG400, 11 speed, 11-50T
Crank
Samox for Bosch, 34T chainring
Bottom Bracket
Bosch, press-fit
Chain
SHIMANO CN-LG500, with Quick-Link
Pedals
Wellgo, alloy body, ball bearings
Wheels
Rims
SHIMANO TC500-15-B, MT400-B, Boost hubs spacing, WTB STi27 29" multichamber alloy rims 32H
Tires
29 x 2.35
Brakes
Brakes
SHIMANO MT420/MT410, 4/2-piston hydraulic disc, 2 finger lever, 203mm and 180mm rotor
Cockpit
Stem
Alloy City-Trekking stem, SP-Connect mount, adjustable 0-90°
Handlebar
E-MTB rizer bar
Grips
E-MTB gel grips with padding and BESV clamp
Headset
Acros, integrated cable routing
Seat
Saddle
Selle Italia Max S5 Superflow
Seatpost
Promax SP-726
Motor & Battery
Motor
Bosch Performance CX, 250W, 85Nm, 25km/h
Battery
625WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.701 mm | 1.672 mm | 1.635 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 713 mm | 720 mm | 739 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 106 mm | 106 mm | 106 mm |
| Stack | 694 mm | 694 mm | 703 mm |
| Reach | 408 mm | 415 mm | 430 mm |
| Top Tube Length | 607 mm | 614 mm | 632 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 425 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1158 mm | 1165 mm | 1184 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 507 mm | 504 mm | 502 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 188 cm | 197 cm |
