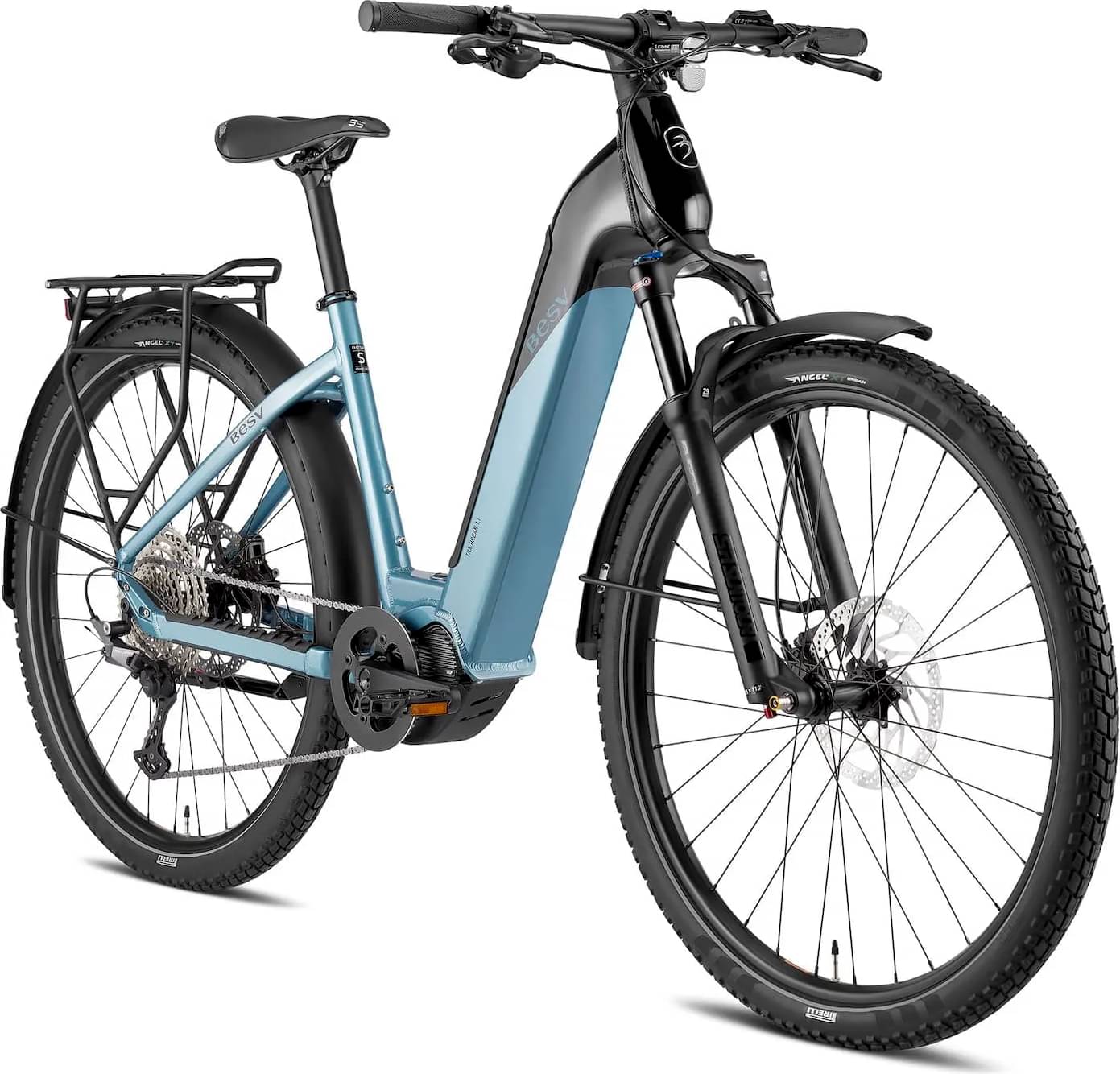

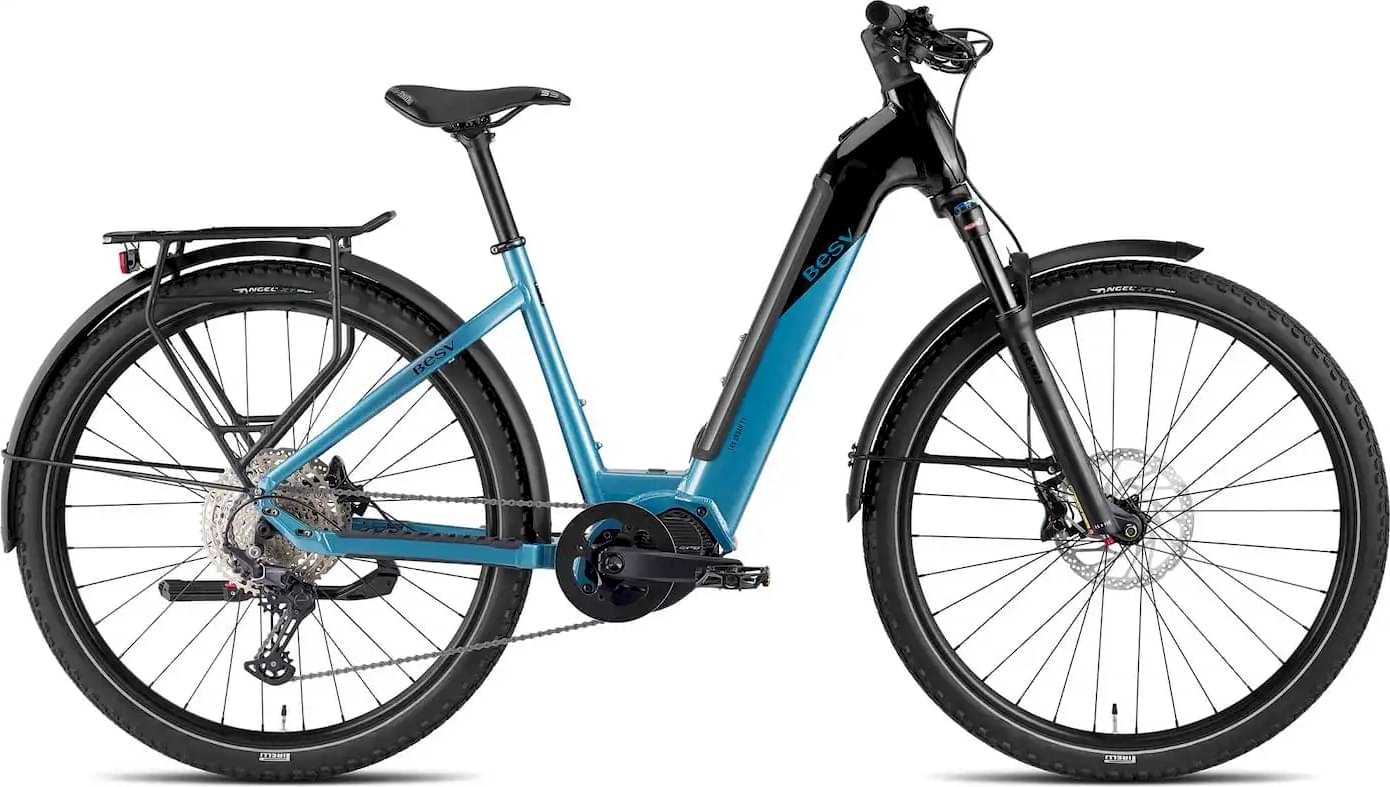

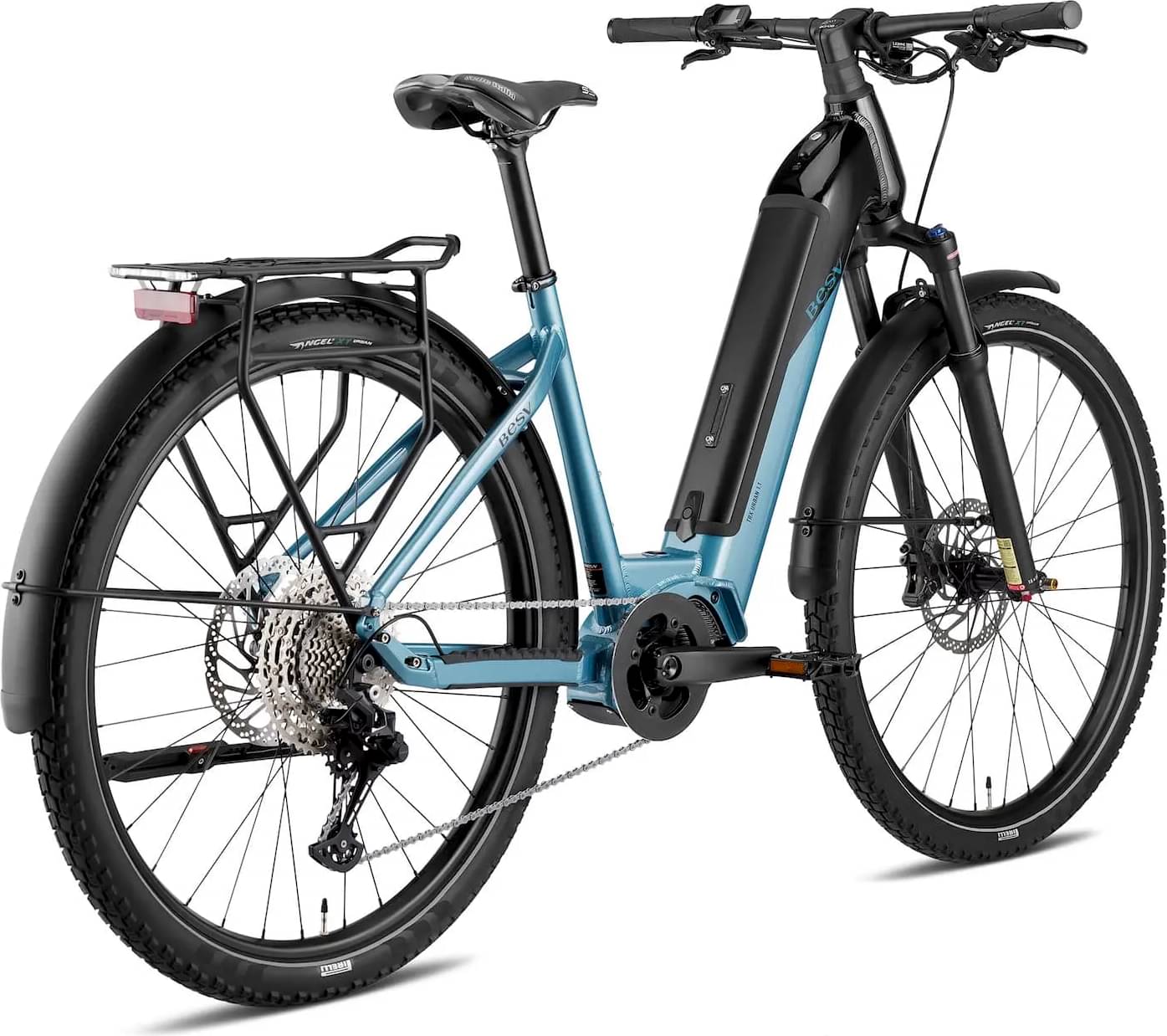

besv TRX Urban 1.1 LS 2024
2024 E-bike
Estimate price |
4,652$
Weight | 27.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 166cm
SM
163cm - 176cm
MD
174cm - 189cm
LG
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hard-tail BESV TRX Series alloy frame, Shimano Steps and internal battery compatible
Suspension Fork
SR Suntour XCR34, 34mm stanchions, Lockout, Air damping, 1.1/8"-1.5" tapered alloy steerer, travel man: 120mm, lady: 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100, 12 speed
Shift Levers
Shimano Deore SL-M6100, 12 speed
Cassette
Shimano Deore CS-M6100, 12 speed, 10-51T
Crank
Samox for Shimano Steps, 38T chainring with ring guard
Bottom Bracket
Shimano, integrated in motor
Chain
KMC e12Turbo, with Quick-Link
Pedals
Wellgo, alloy body, ball bearings
Wheels
Rims
Formula CL-811 front hub, Formula CL-3248M, Boost hubs spacing, WTB STi27 29" multichamber alloy rims 32H
Tires
57x622
Brakes
Brakes
Shimano MT420/MT410, 4/2-piston hydraulic disc, with 203mm front and rear rotors
Brake Levers
Shimano MT4100, 2 finger lever
Cockpit
Stem
3D Forged alloy City-Trekking stem, SP-Connect mount, 31.8mm clamp, integrated cable routing
Handlebar
E-MTB reis bar, 6066 alloy, 4mm rise, sweep: 7 degree back, 31.8mm clamp
Grips
E-MTB gel grips with padding and BESV clamp
Headset
Acros, AZX-581, 1.5" headset, angular contact bearings, integrated cable routing
Seat
Saddle
Selle Italia S5 Superflow / Max S5 Superflow
Seatpost
Promax SP-726, 31.6mm diameter
Motor & Battery
Motor
Shimano EP600 center-motor, 250W rated power, 85Nm of torque, 25km/h maximum assist
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.611 mm | 1.59 mm | 1.542 mm | 1.537 mm |
| Front Center | 677 mm | 693 mm | 709 mm | 721 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 90 mm | 90 mm | 91 mm | 90 mm |
| Stack | 642 mm | 652 mm | 656 mm | 665 mm |
| Reach | 398.5 mm | 410 mm | 425.5 mm | 432.8 mm |
| Top Tube Length | 595 mm | 610 mm | 620 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 520 mm | 560 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 145 mm | 155 mm | 160 mm | 170 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1158 mm | 1174 mm | 1190 mm | 1202 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 542 mm | 542 mm | 534 mm | 534 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 163 cm | 174 cm | 186 cm |
| Rider Max Height | 166 cm | 176 cm | 189 cm | 198 cm |
