Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

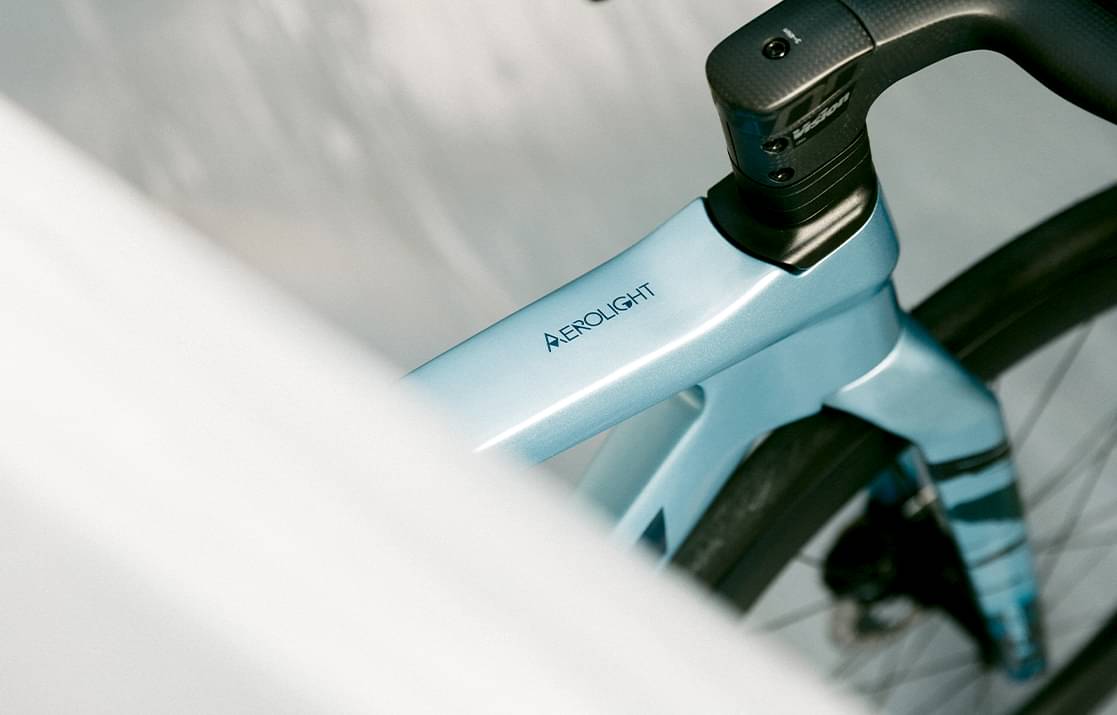

Frame
Frame
Aerolight Disc ACR Carbon Monocoque

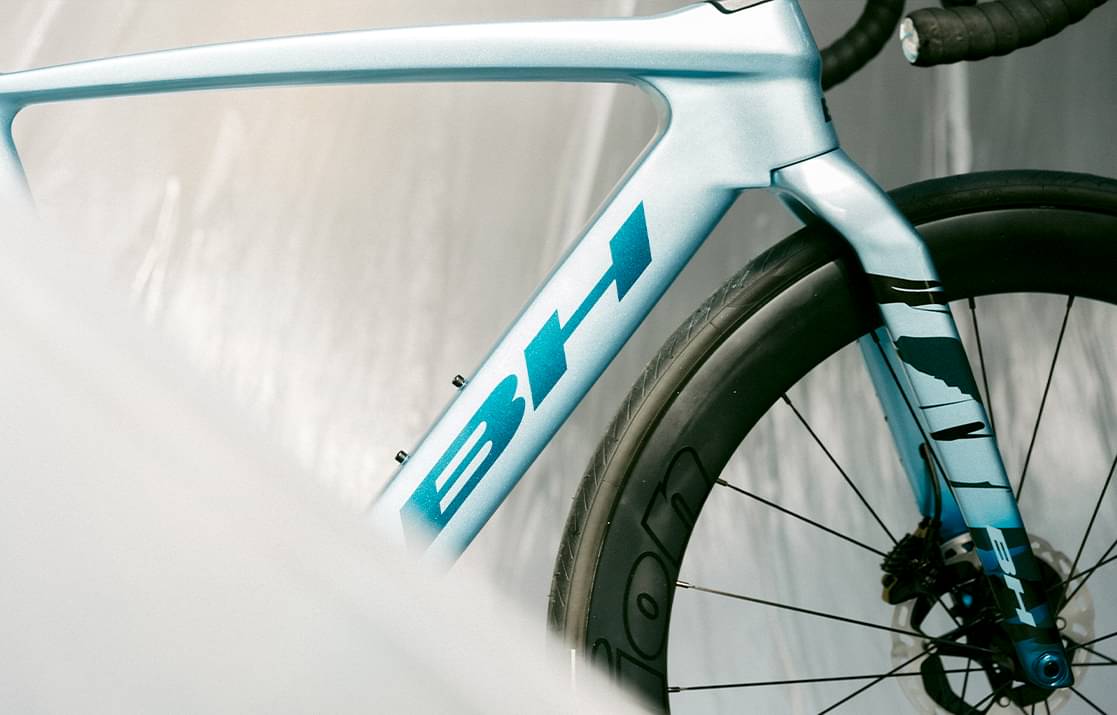

Suspension Fork
Aerolight, Integrated Tapered Full Carbon 1.5"
Drivetrain
Rear Derailleur
Shimano 105 DI2 7150 12sp
Front Derailleur
Shimano 105 DI2 7150
Shift Levers
Shimano 105 DI2 Hydra
Cassette
Shimano 105 11/34
Crank
Shimano 105 FCR7100 52/36, X, Crank set, Shimano 105 FCR7100 52/36, XS 170mm, SM 170mm, MD 172,5mm, LA 175mm, XL 175mm
Chain
Shimano 105
Wheels
Rims
Vision Team35
Tires
Hutchinson Nitro 700x 28

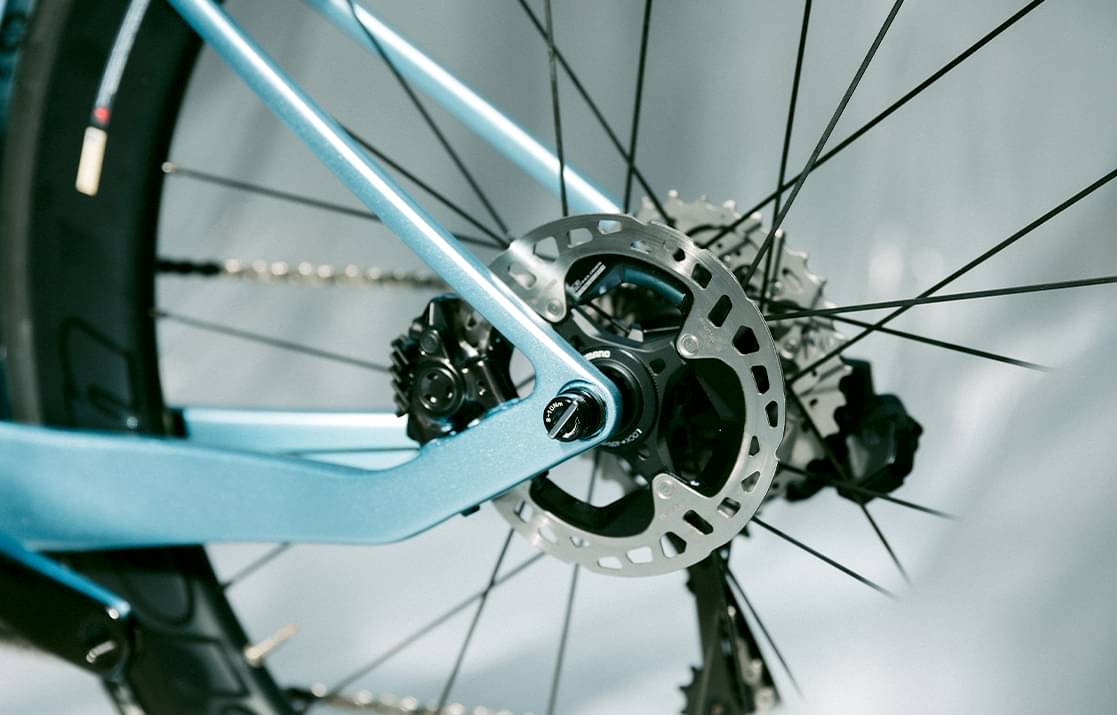

Brakes
Brakes
Front: Shimano 105 Hydraulic, Rear: Shimano 105 Hydraulic
Cockpit
Stem
EVO Monocoque ACR, X, Stem, EVO Monocoque ACR, XS 90mm, SM 100mm, MD 100mm, LA 110mm, XL 110mm
Handlebar
EVO Monocoque ACR, X, Handlebar, EVO Monocoque ACR, XS 400mm, SM 420mm, MD 420mm, LA 440mm, XL 440mm
Headset
FSA ACR
Seat
Saddle
Prologo Dimension

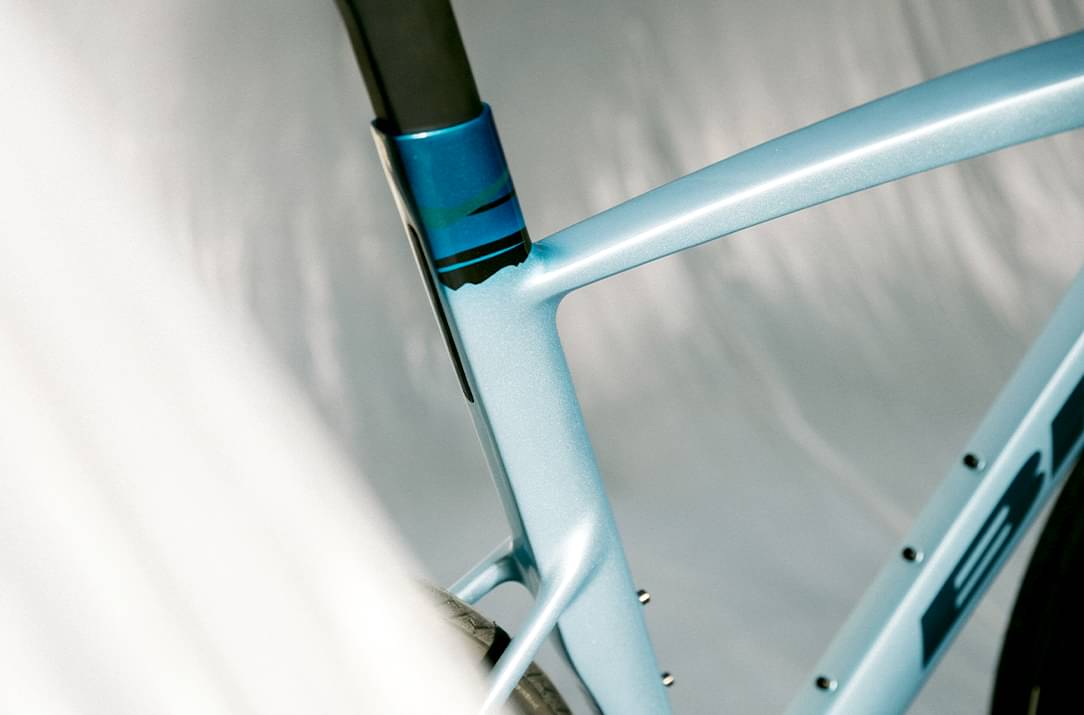

Seatpost
BH Aerolight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Top Tube Length | 510 mm | 525 mm | 542 mm | 559 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 555 mm | 570 mm | 587 mm | 605 mm | 627 mm |
| Head Tube Angle | 71.25 ° | 72.25 ° | 72.75 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 150 mm | 175 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
