Bike details
Overview
Key information split into simple groups.

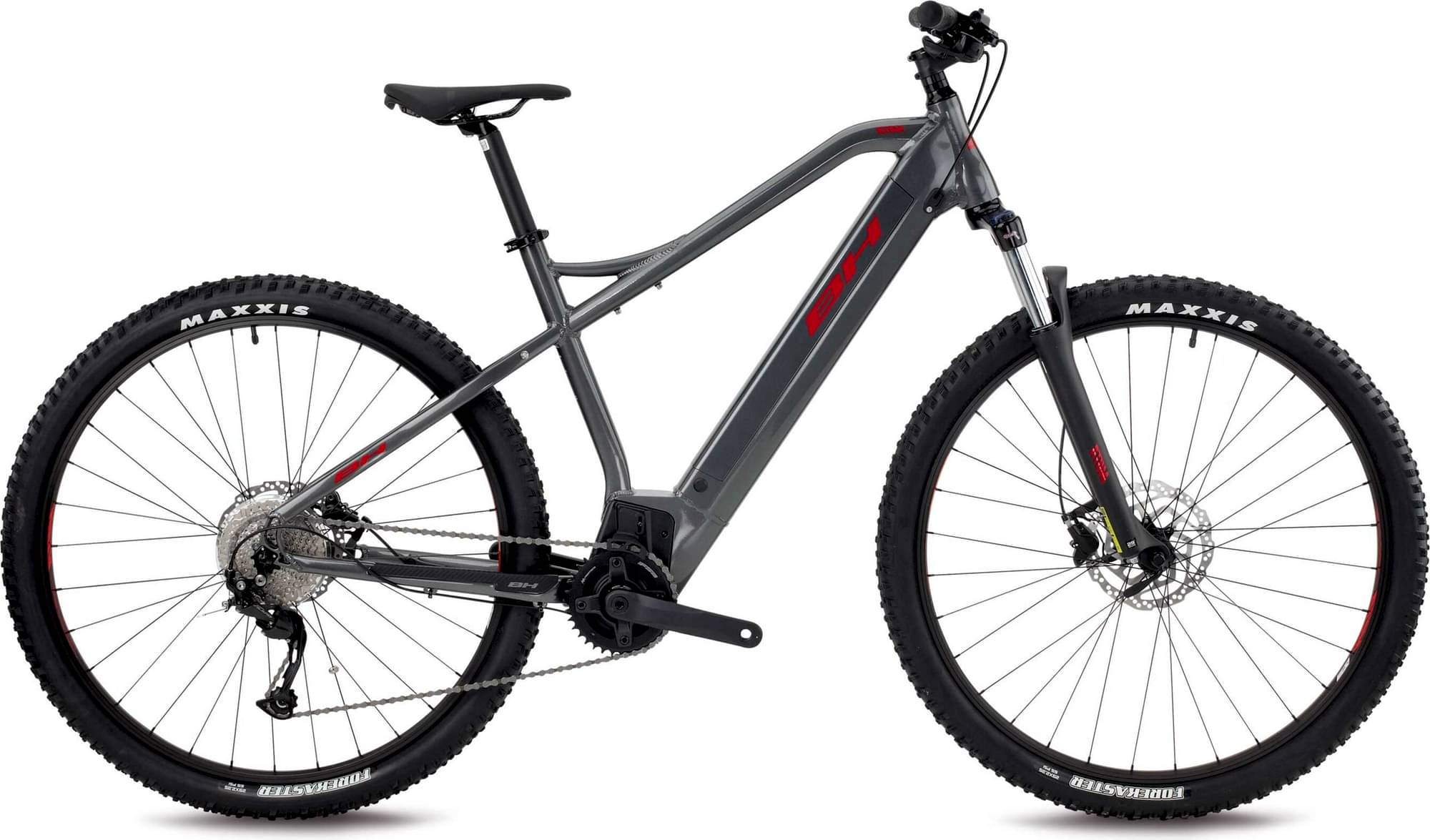

Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -

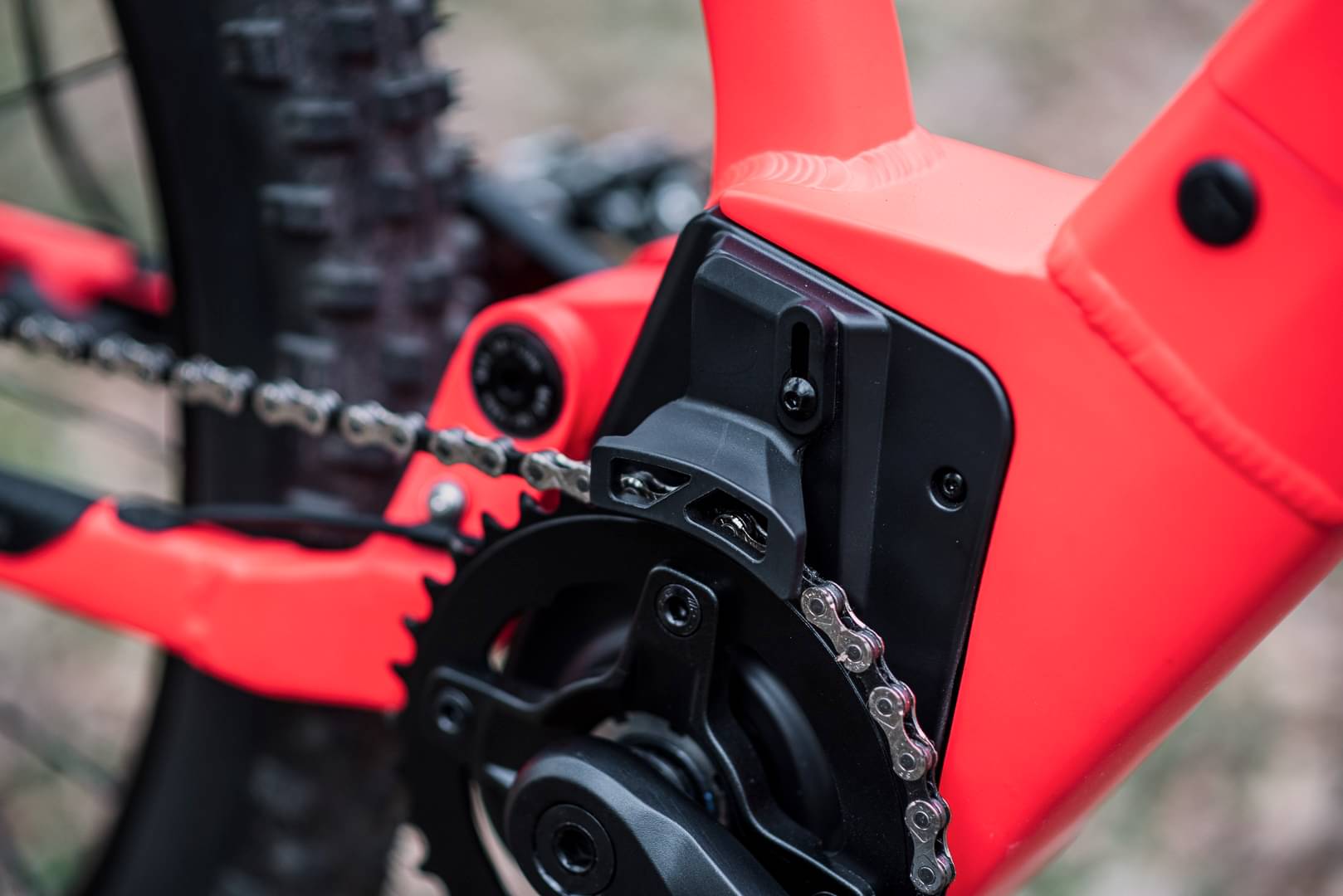

Motor mid-drive -
Battery 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Alloy 29" Internal Cable Routing
Suspension Fork
SR Suntour XCM HLO 100mm
Drivetrain
Rear Derailleur
Shimano Alivio 9sp
Front Derailleur
-
Shift Levers
Shimano Alivio
Cassette
Shimano CSHG201 9sp (11-36T)
Crank
FSA 36T-170mm
Bottom Bracket
-
Chain
Shimano HG53
Pedals
-
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Maxxis Forekaster TPI60 29"X2,35"
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm
Cockpit

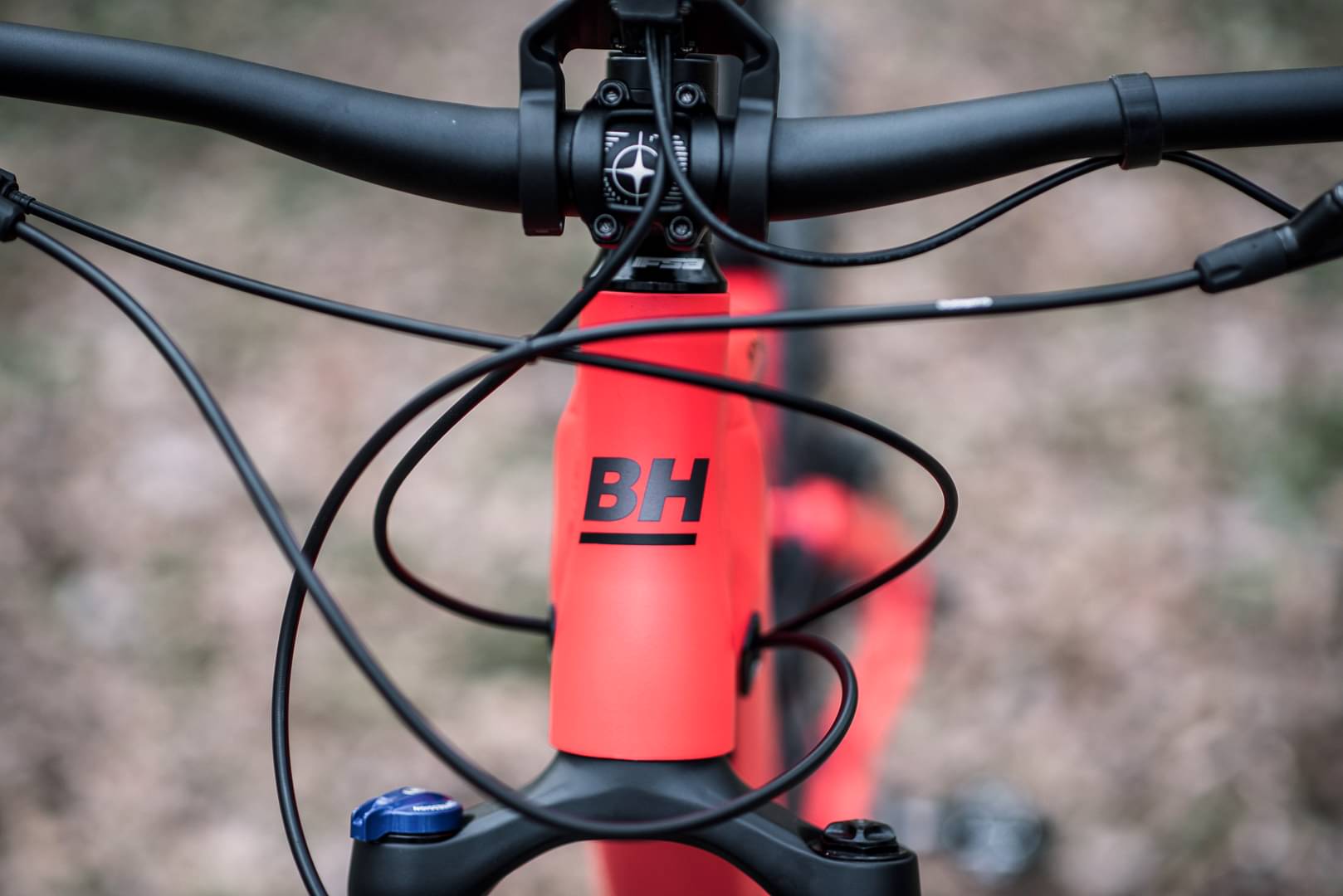

Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 780mm
Grips
BH Perform w/ ringlock
Headset
Tapered
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Alloy 31,6
Motor & Battery
Motor
TS System
Battery
500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Top Tube Length | 594 mm | 604 mm | 623 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm | 145 mm | 160 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 680 mm | 696 mm | 710 mm | 733 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
