Bike details
Overview
Key information split into simple groups.

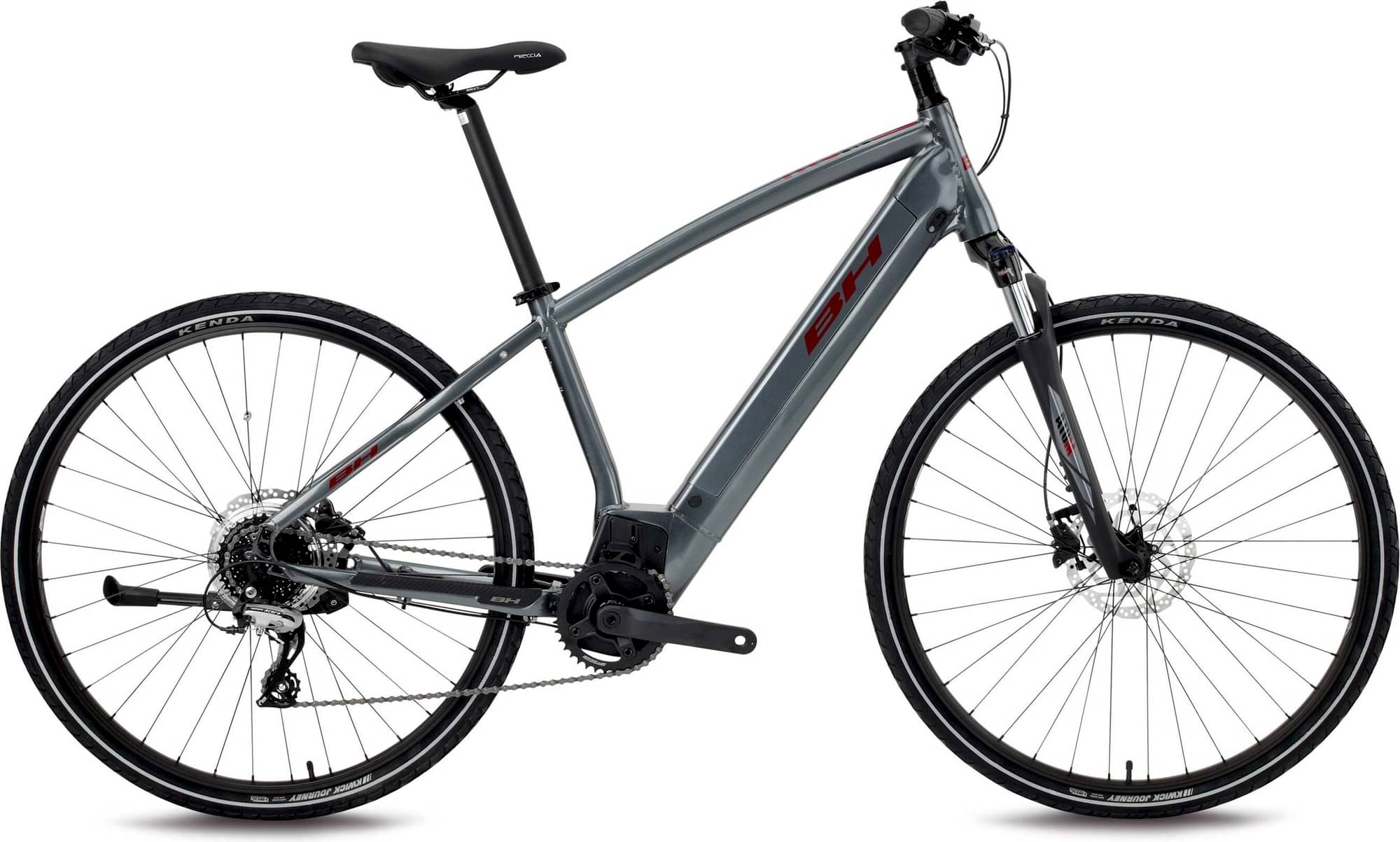

Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera -
Suspension Hardtail -
Motor mid-drive -
Battery 500Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sport Alloy 28" Internal Cable Routing

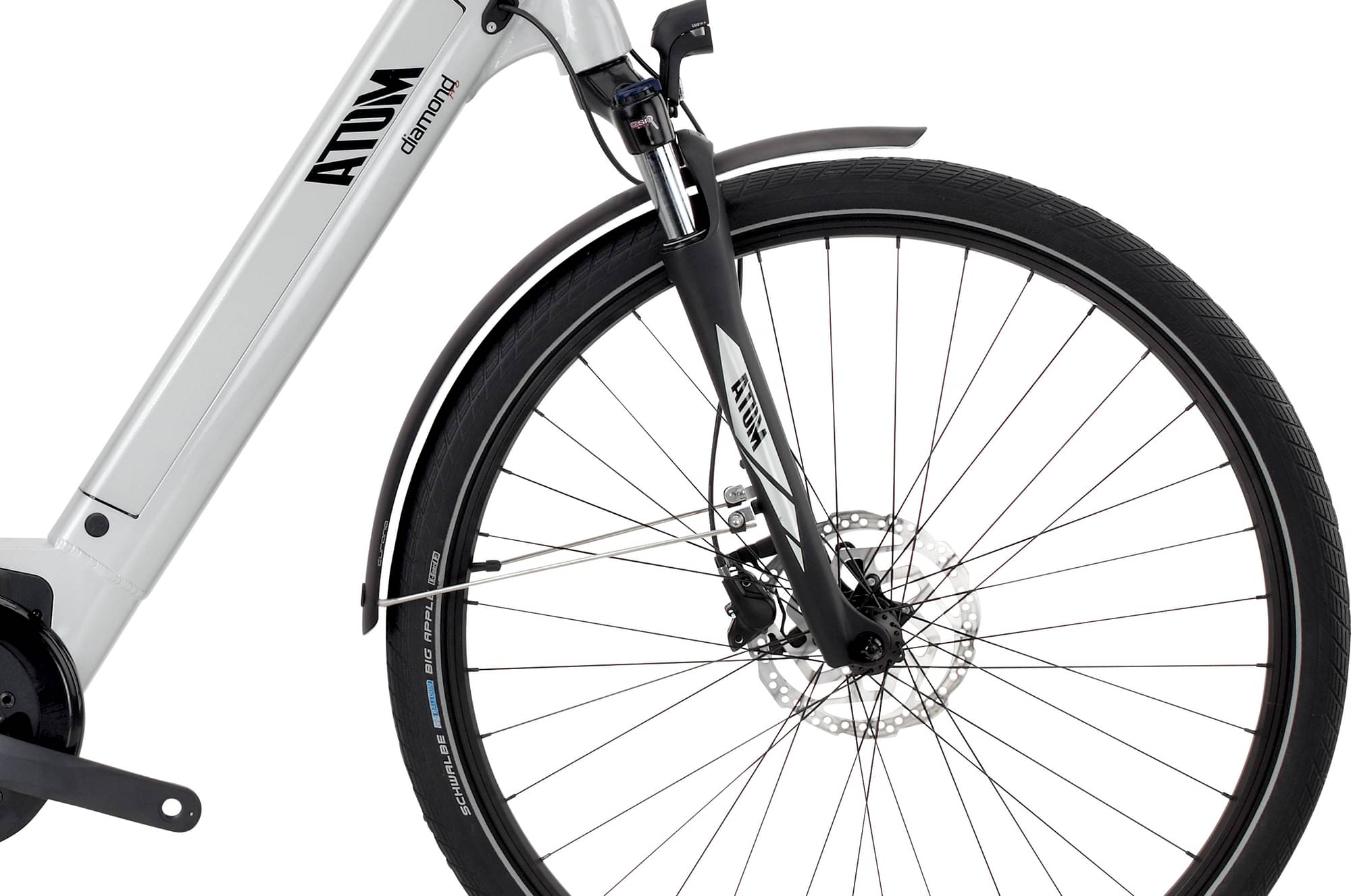

Suspension Fork
SR Suntour NEX HLO 63mm

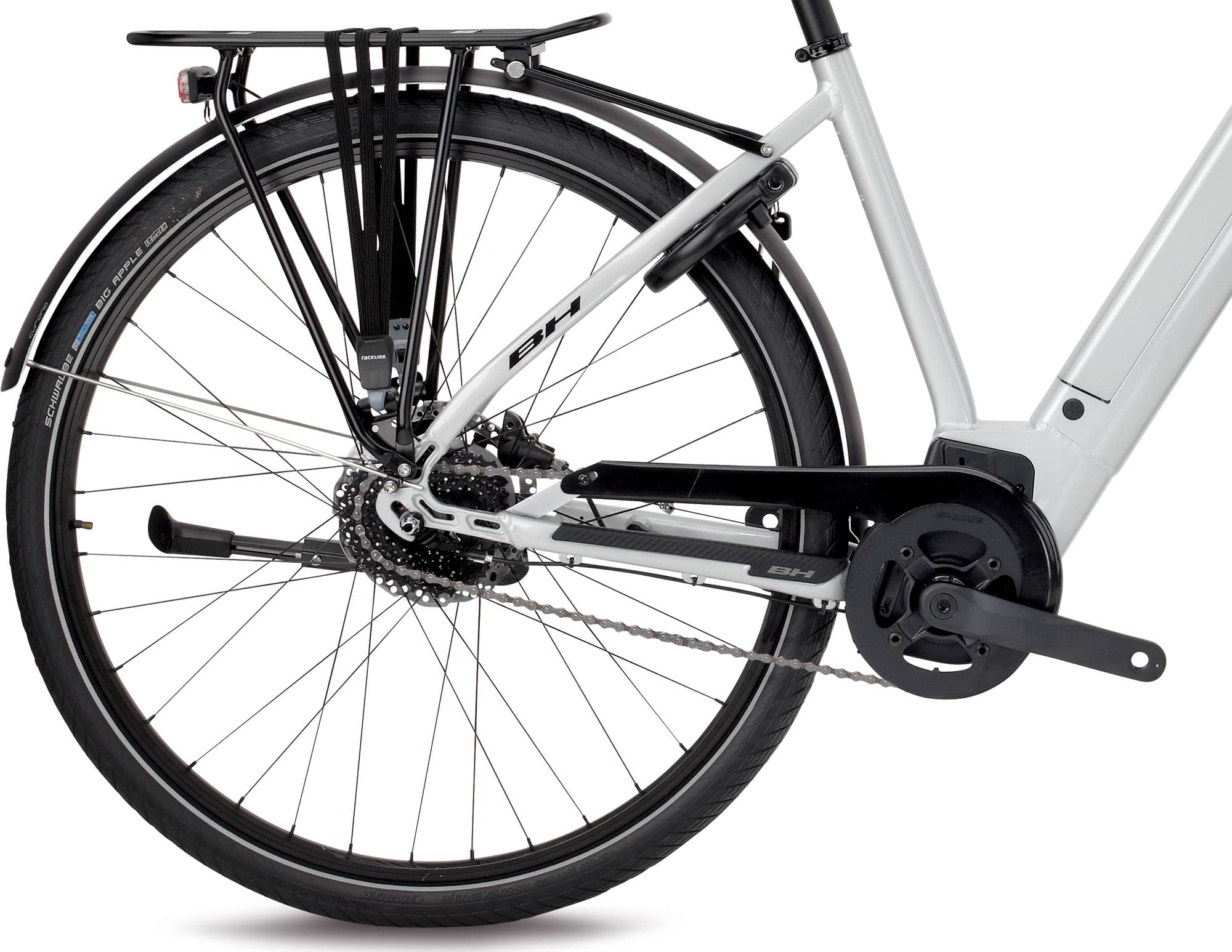

Drivetrain
Rear Derailleur
Shimano Acera 8sp
Front Derailleur
-
Shift Levers
Shimano Acera
Cassette
Shimano HG200 8sp (11-32T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG40
Pedals
Antislip
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Kenda K1129 700x45C
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 720mm
Grips
BH Ergonomic
Headset
Tapered with adaptor
Seat
Saddle
Selle Royal Freccia gel
Seatpost
Alloy 31,6

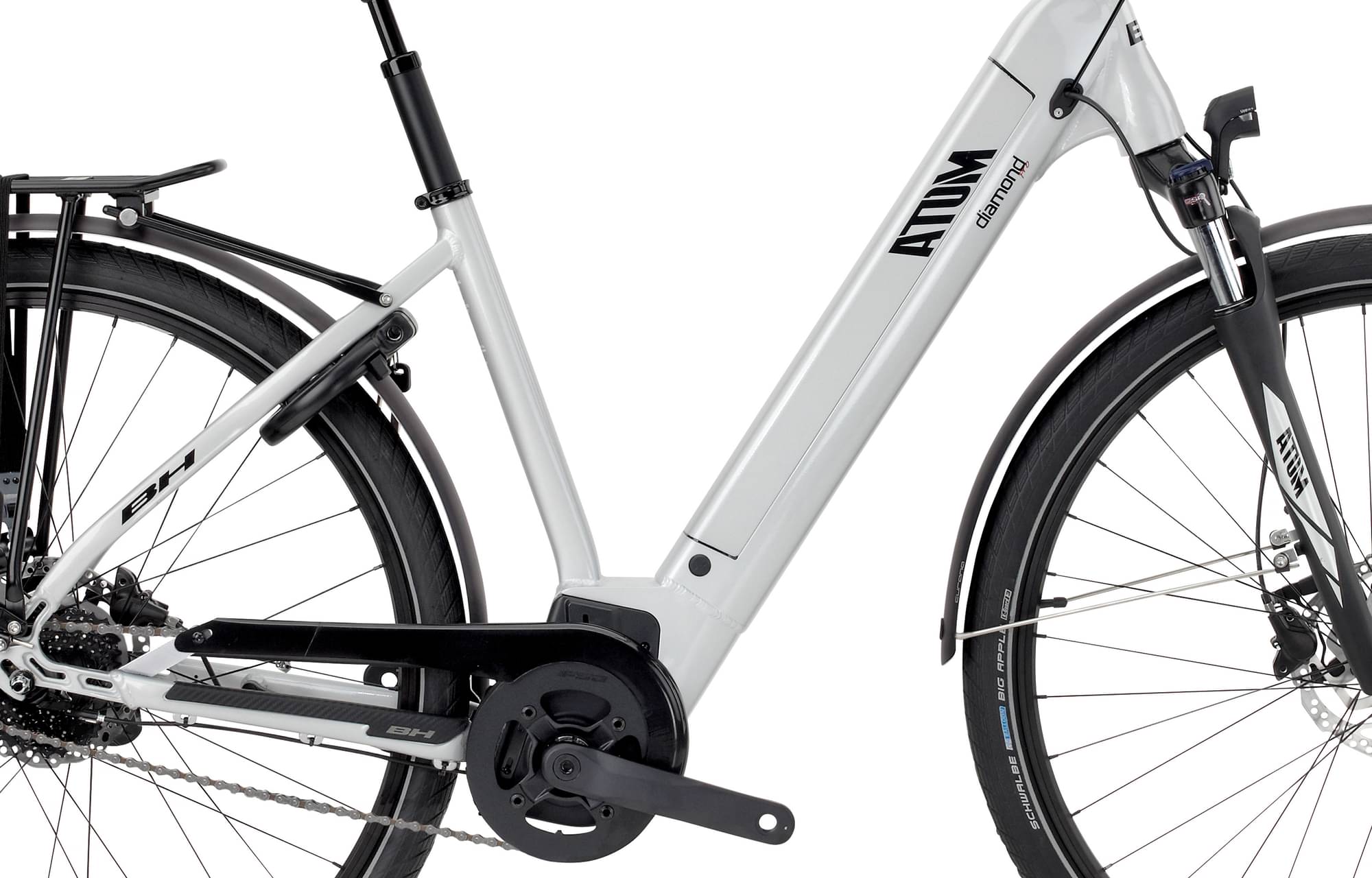

Motor & Battery
Motor
TS System
Battery
500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm |
| Top Tube Length | 601 mm | 629 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 145 mm | 160 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 695 mm | 717 mm | 738 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
