Bike details
Overview
Key information split into simple groups.

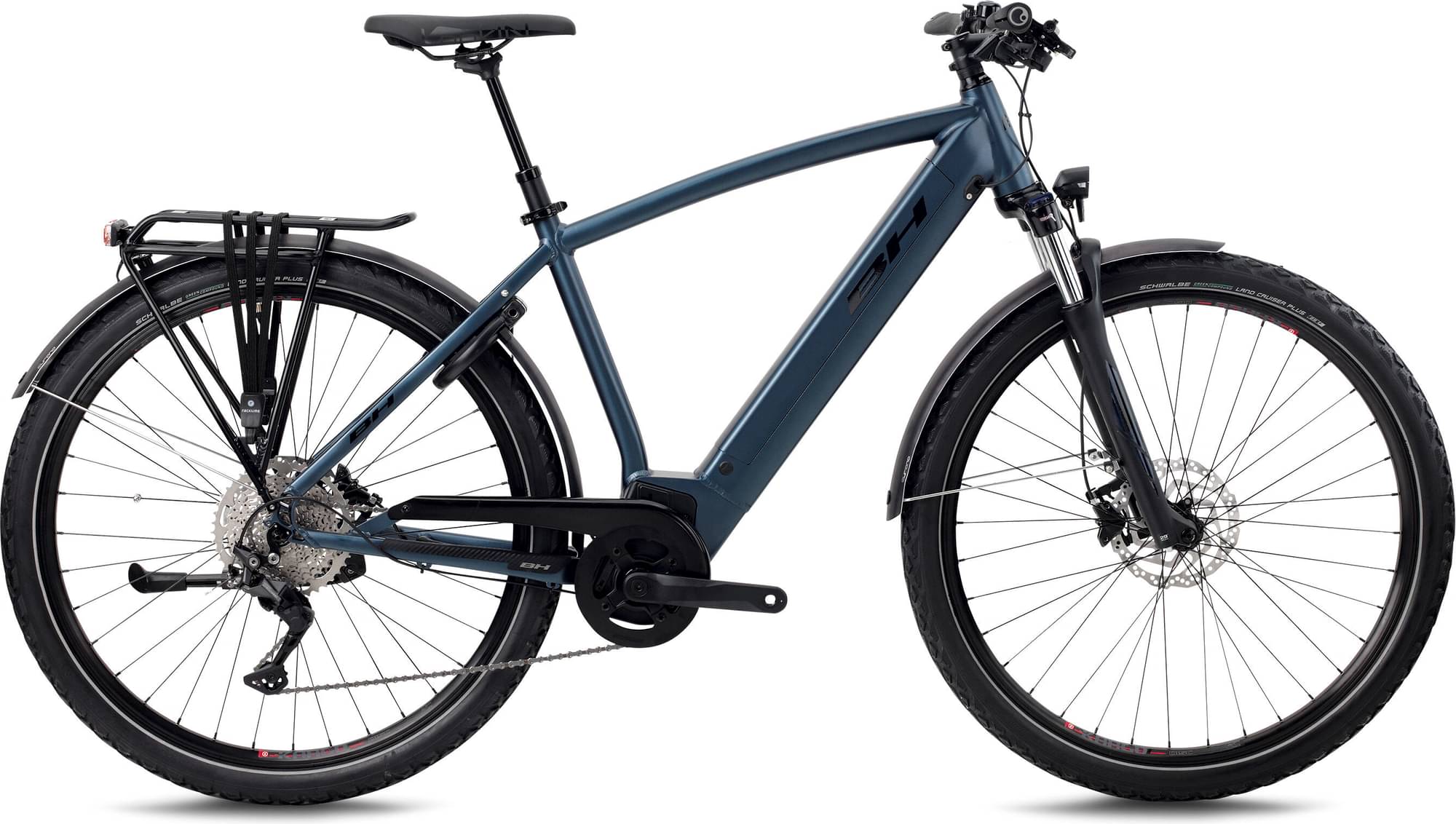

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sport Alloy 28" internal cable routing
Suspension Fork
SR Suntour Mobie 32 NLO 100mm
Drivetrain
Rear Derailleur
Shimano Deore 10sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM4100 10sp (11-46T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG54
Pedals
Alloy
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 Kargo 25
Spokes
Stainless Steel
Tires
Schwalbe Land Cruise 55-622
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 720mm
Grips
Ergon GP10
Headset
Tapered
Seat
Saddle
Selle Royal Look In Atletic
Seatpost
Alloy suspension 31,6
Motor & Battery
Motor
TS System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm |
| Top Tube Length | 609 mm | 614 mm | 626 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 150 mm | 150 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 690 mm | 700 | 710 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
