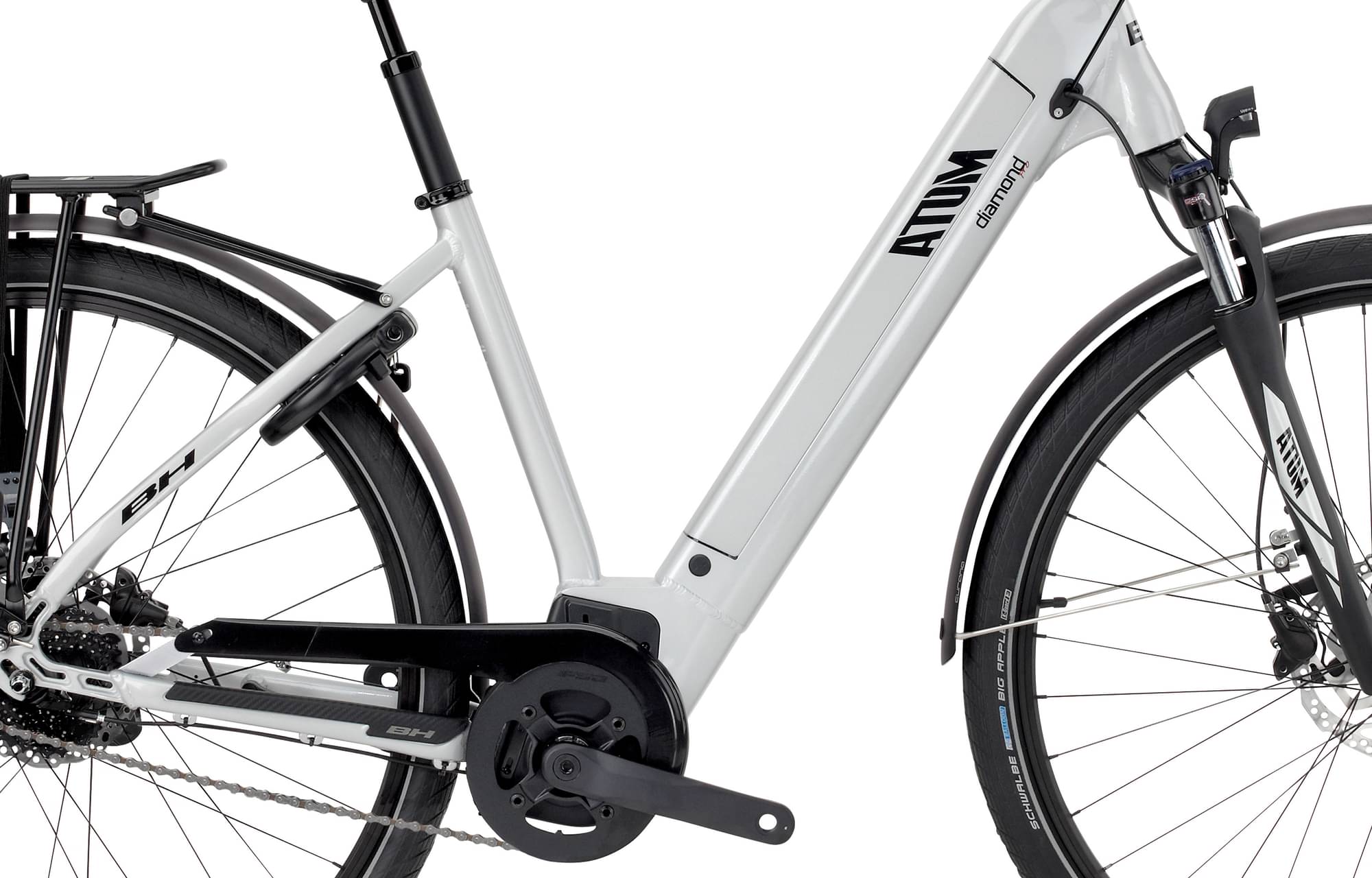

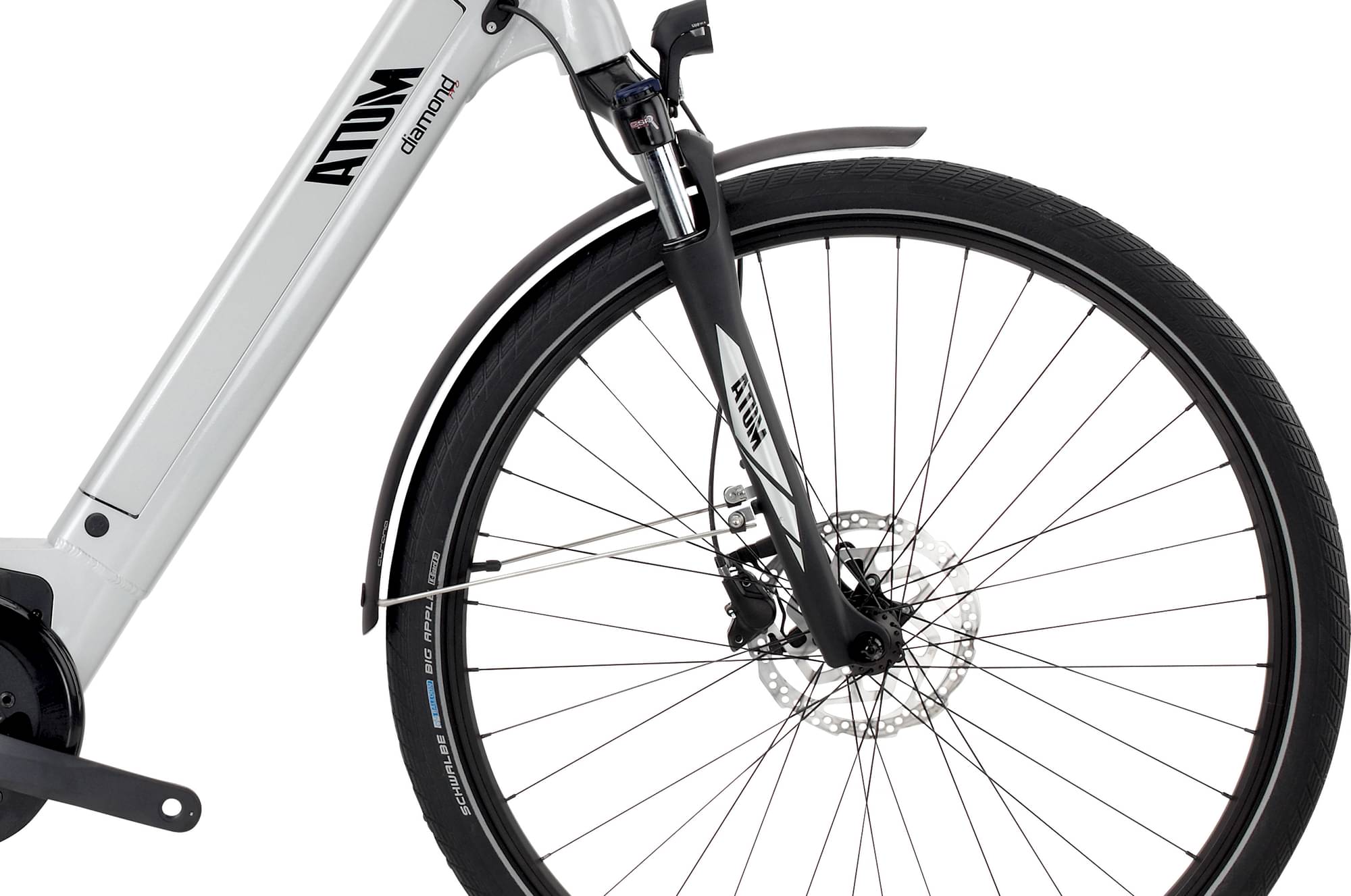

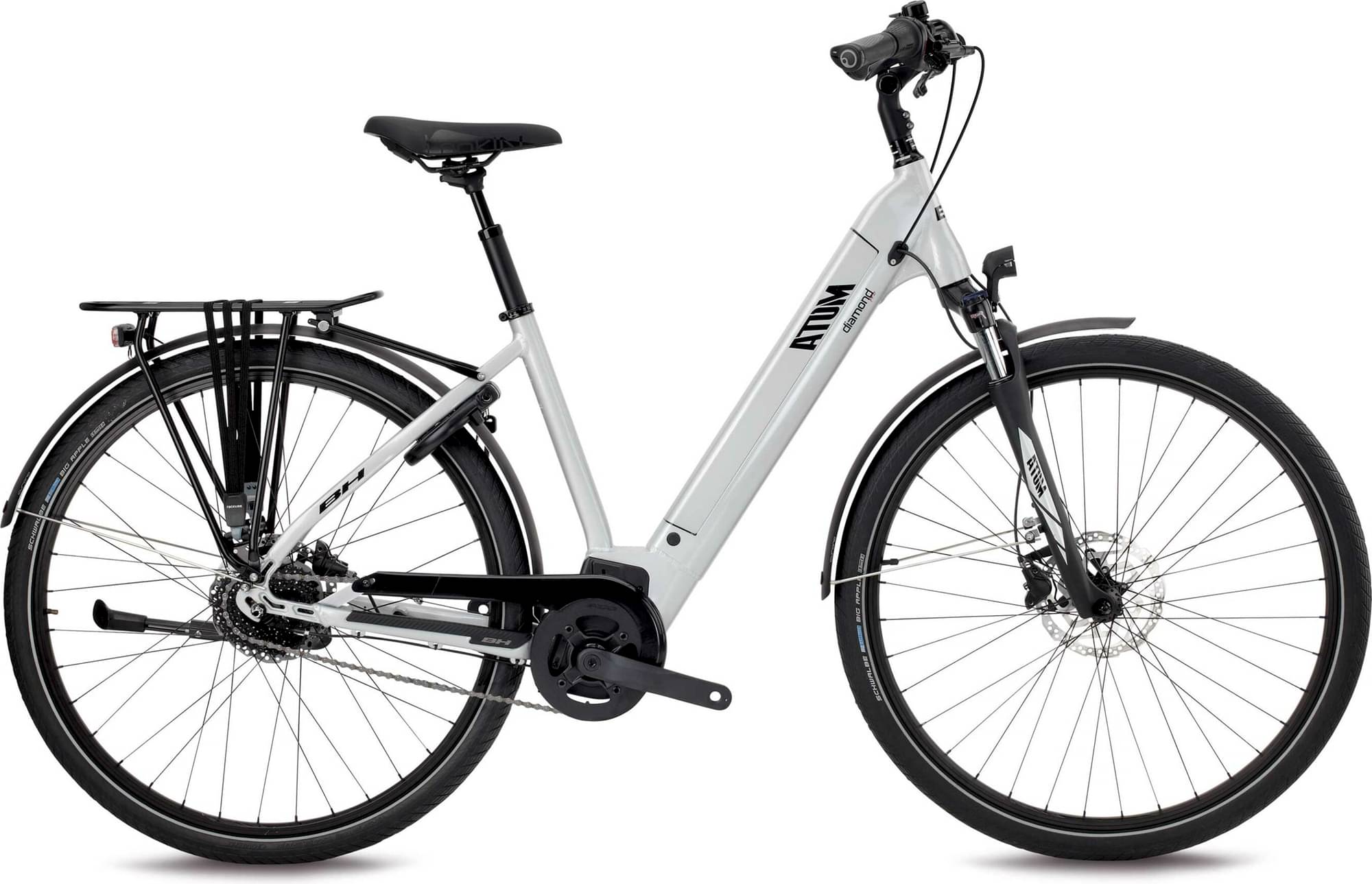

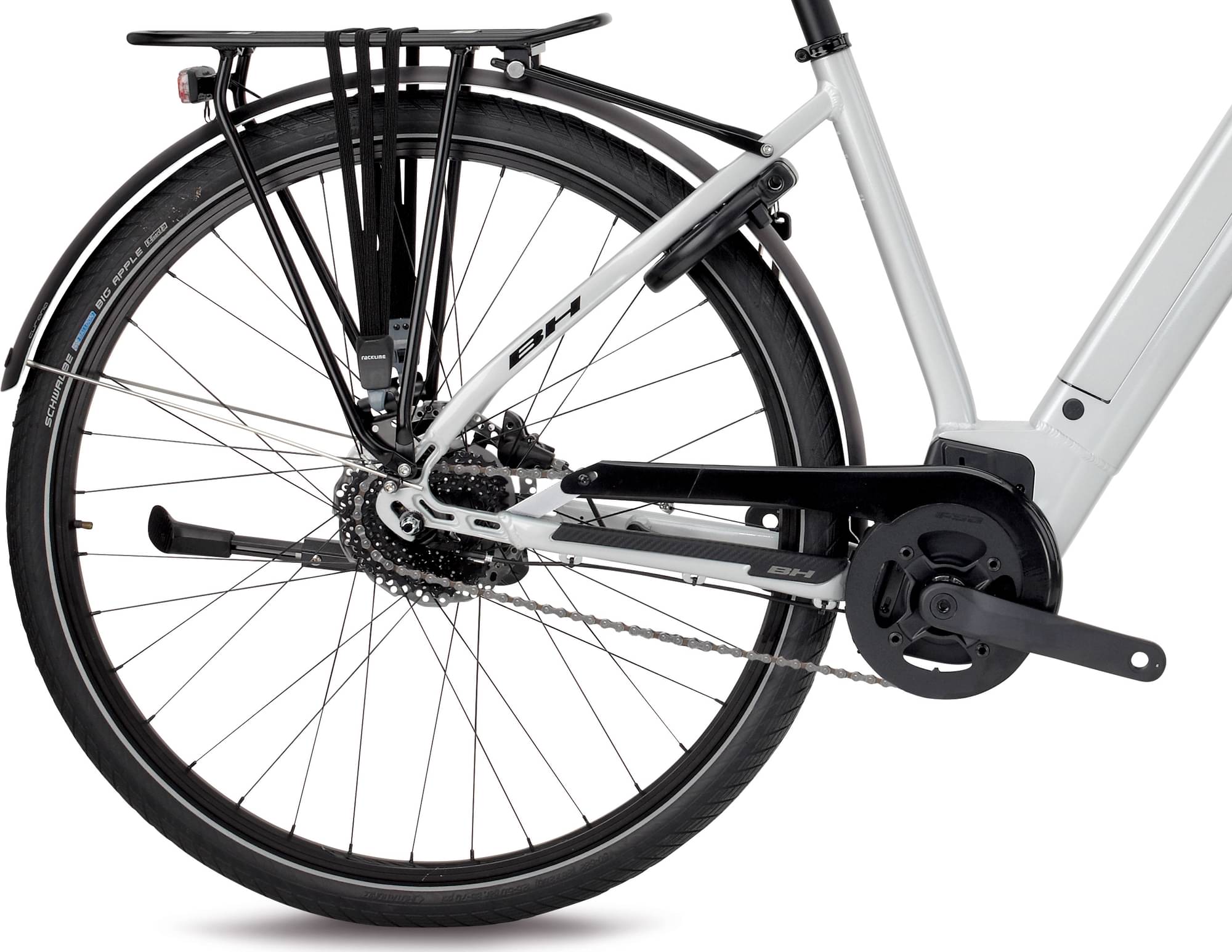

BH ATOM DIAMOND WAVE PRO 2024
2024 E-bike
Estimate price |
4,415$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
City Wave Alloy 28" Internal Cable Routing
Suspension Fork
SR Suntour NEX HLO 63mm
Drivetrain
Shift Levers
Shimano Nexus
Cassette
Shimano Nexus 8sp (18T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
KMC Z8
Pedals
Antislip
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Schwalbe Big Apple 50-622
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm
Cockpit
Stem
BH Auto Adjustable
Handlebar
BH City Alloy 640mm
Grips
Ergon GP10
Headset
Tapered with adaptor
Seat
Saddle
Selle Royal Look In Basic Confort
Seatpost
Alloy suspension 31,6
Motor & Battery
Motor
TS System
Battery
720Wh
Fit data
Geometry
