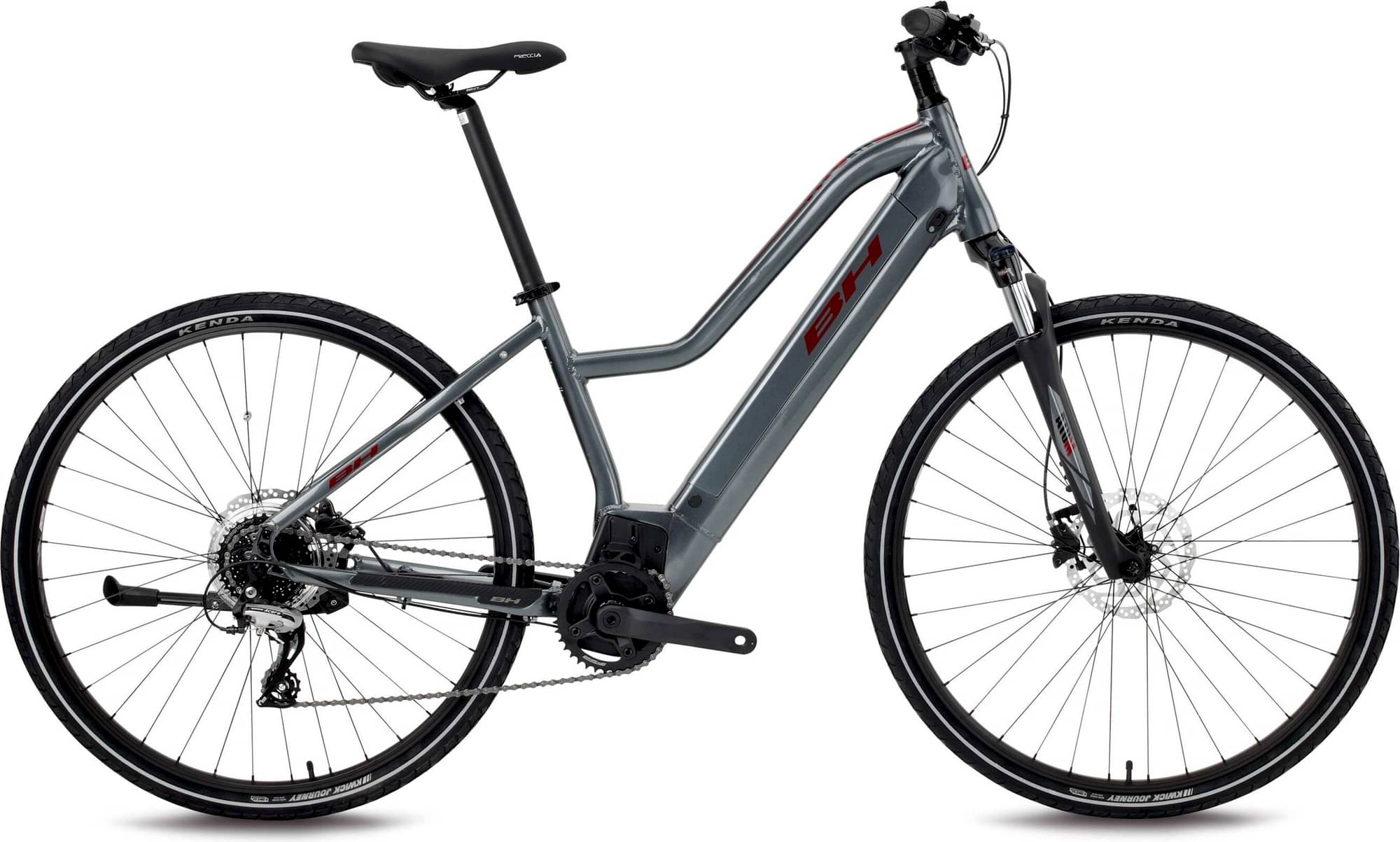

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera -
Suspension Hardtail -
Motor mid-drive -
Battery 500Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components

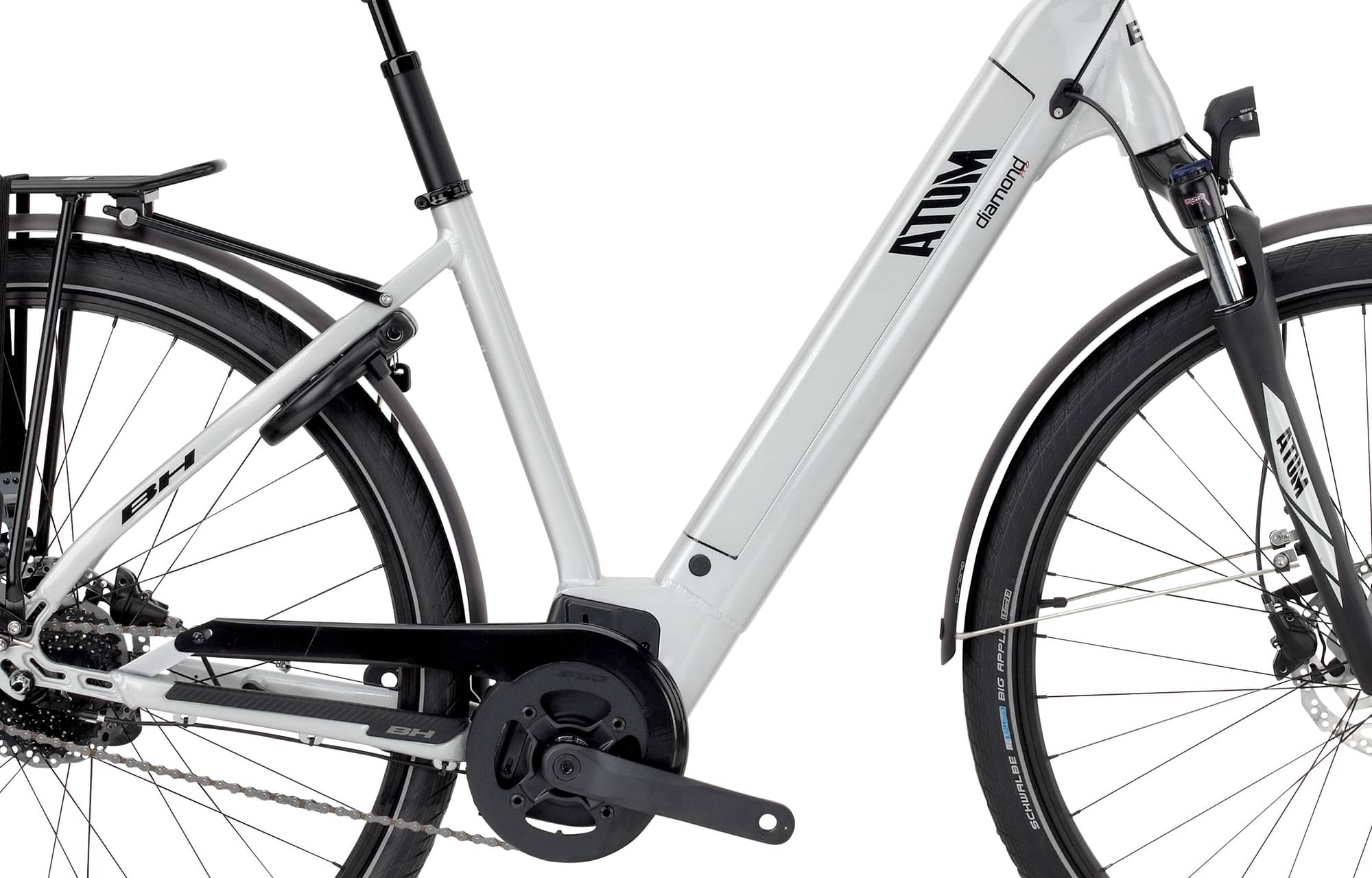

Frame
Frame
Sport Hybrid Alloy 28" Internal Cable Routing

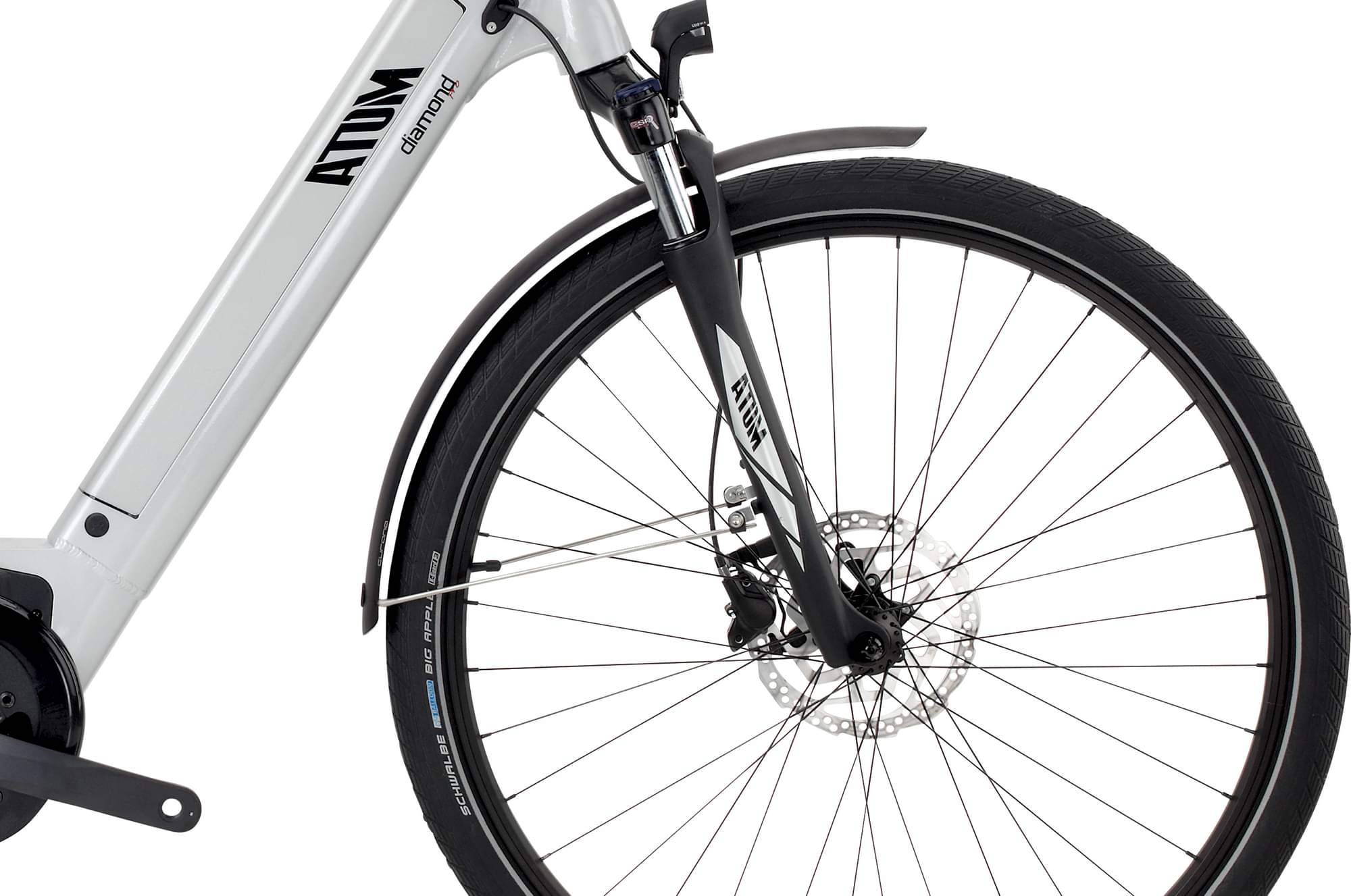

Suspension Fork
SR Suntour NEX HLO 63mm
Drivetrain
Rear Derailleur
Shimano Acera 8sp
Front Derailleur
-
Shift Levers
Shimano Acera
Cassette
Shimano HG200 8sp (11-32T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG40
Pedals
Antislip

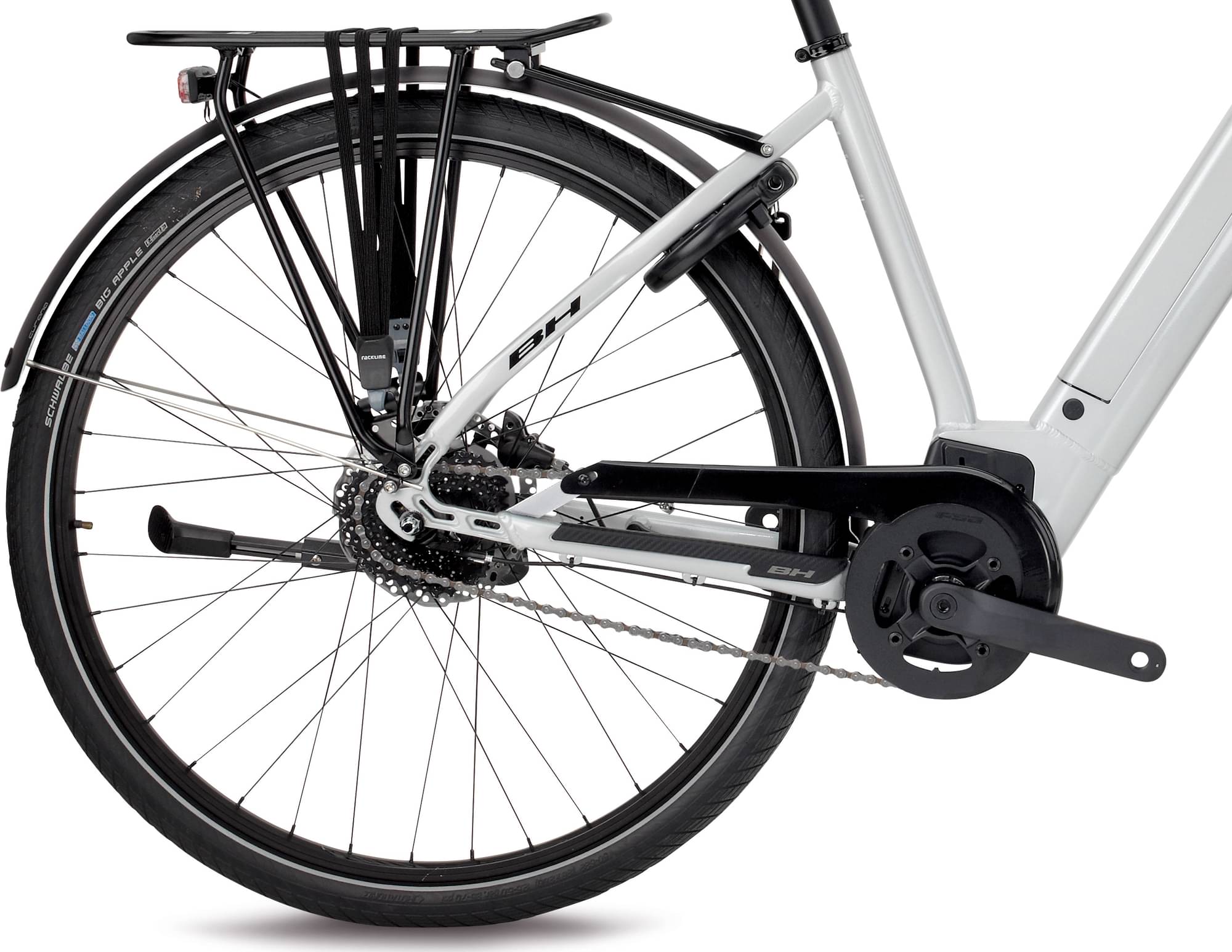

Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Kenda K1129 700x45C
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 720mm
Grips
BH Ergonomic
Headset
Tapered with adaptor
Seat
Saddle
Selle Royal Freccia gel
Seatpost
Alloy 31,6
Motor & Battery
Motor
TS System
Battery
500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm |
| Top Tube Length | 591 mm | 616 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 666 mm | 691 mm | 717 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
