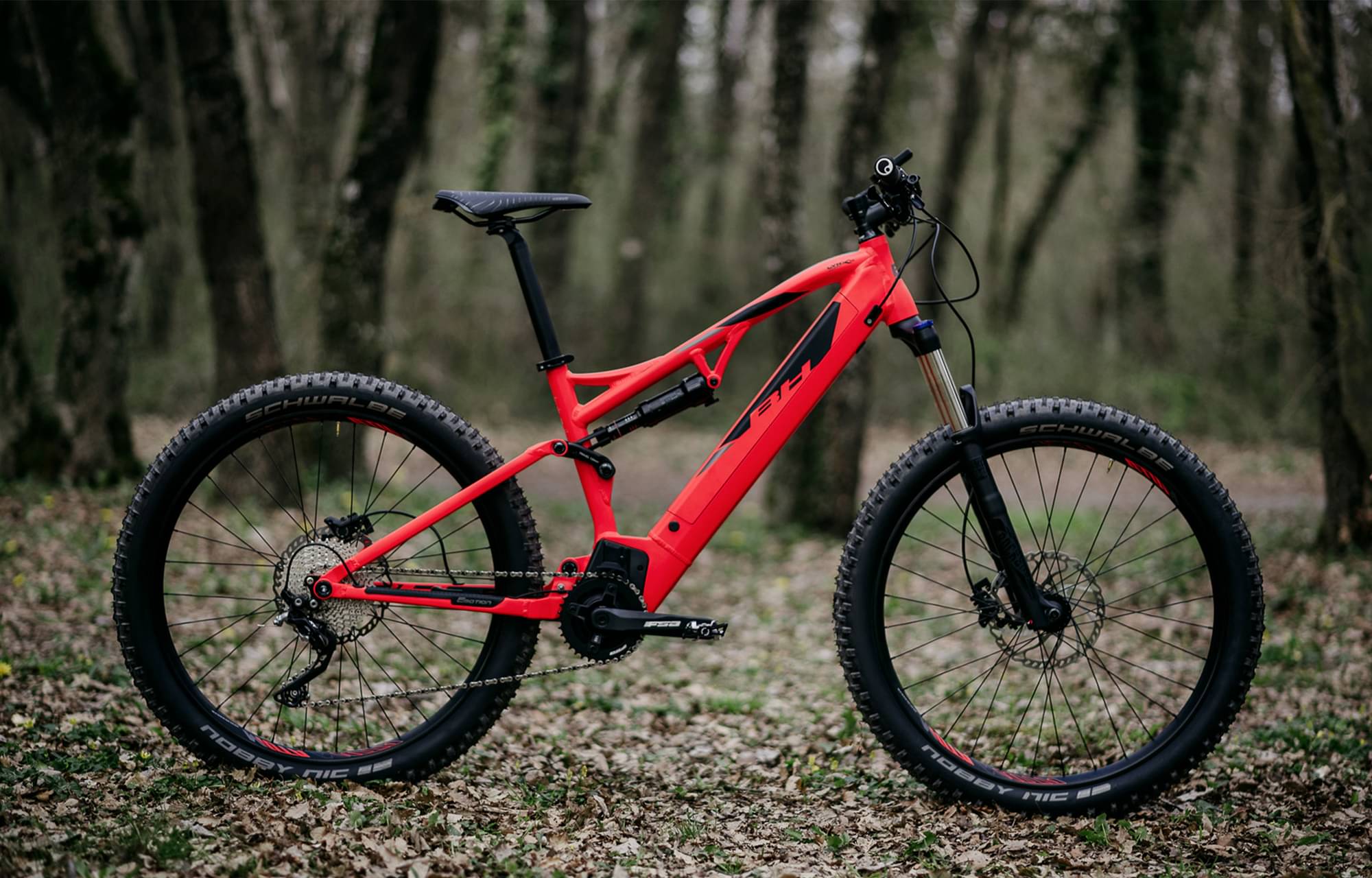

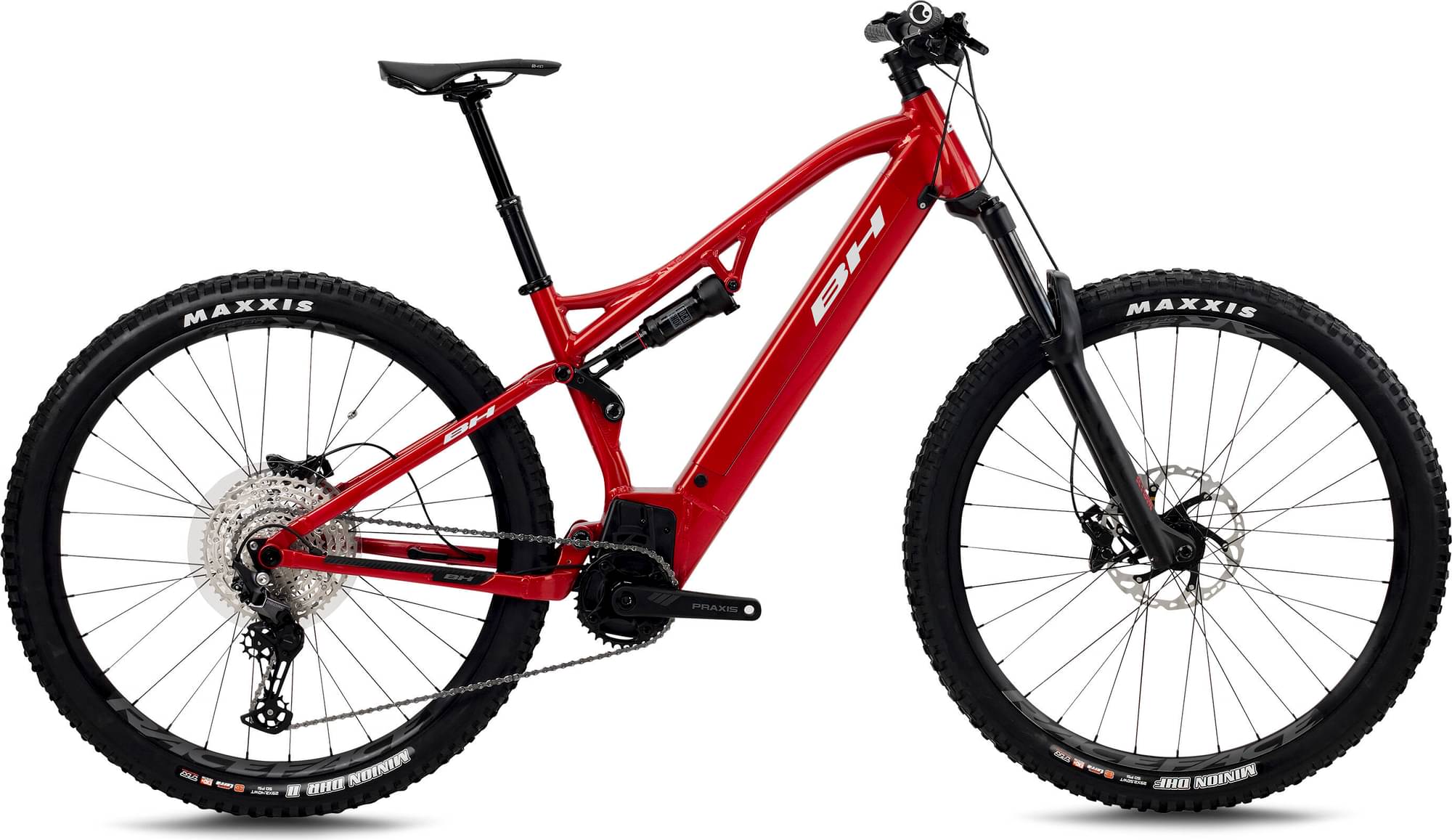

BH ATOM LYNX PRO 8.2 2024
2024 E-bike
Estimate price |
4,890$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140 mm Full Suspension Alloy 29" internal cable routing
Suspension Fork
Rock Shox Recon RL 150mm 15QR

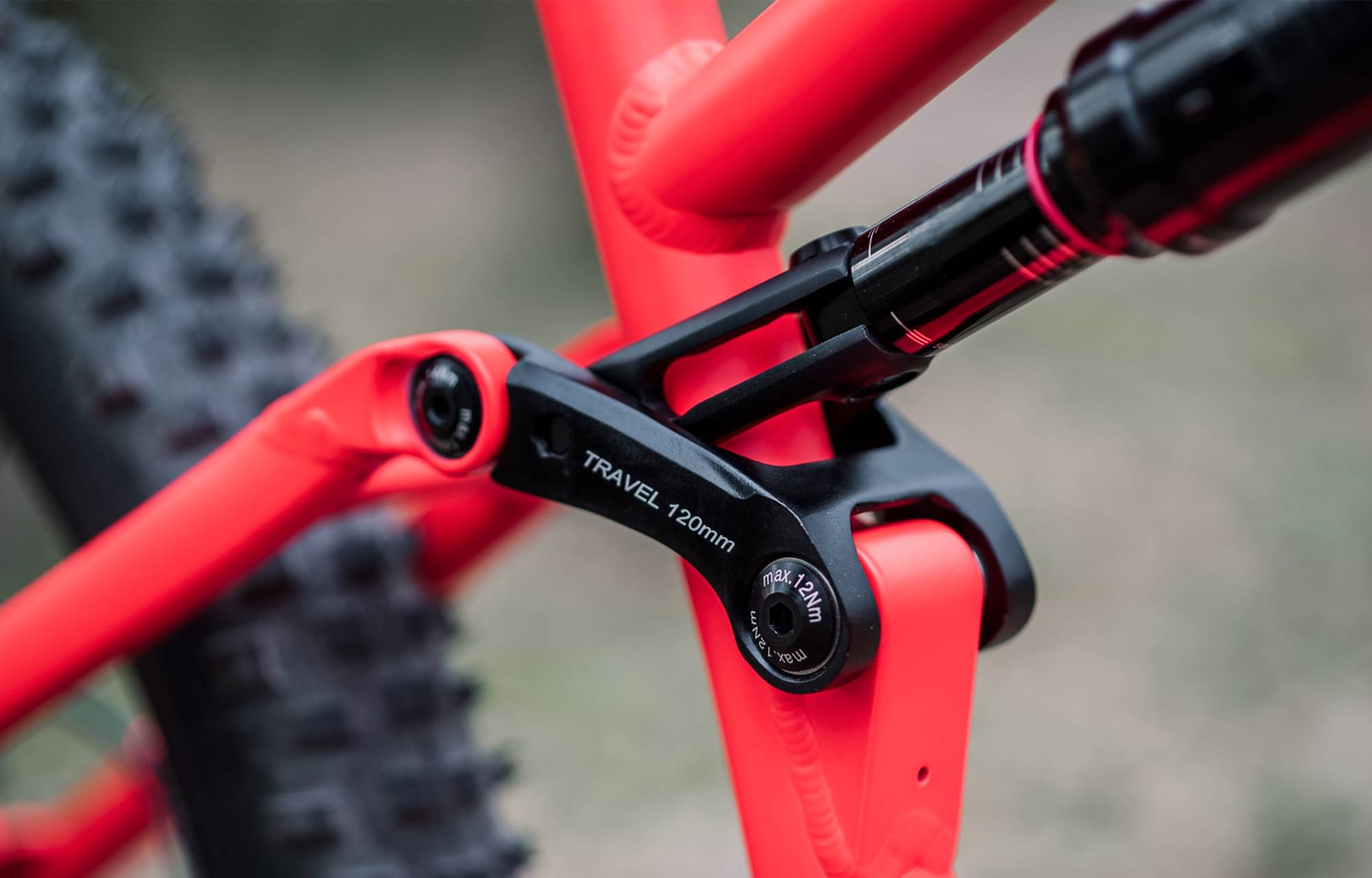

Rear Shock
Rock Shox Deluxe Debonair
Drivetrain
Rear Derailleur
Shimano Deore 12sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
Praxis 34T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 Trucky 30
Spokes
Stainless Steel
Tires
Maxxis Minion TP120 EXO TR 29"X2,5/2,4
Brakes
Brakes
Front: Shimano MT420 4 Piston 203mm, Rear: Shimano MT420 4 Piston 203mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 780mm
Grips
Ergon GE10
Headset
Acros AIX-322 OD46
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Kind Shock RAGEI
Motor & Battery

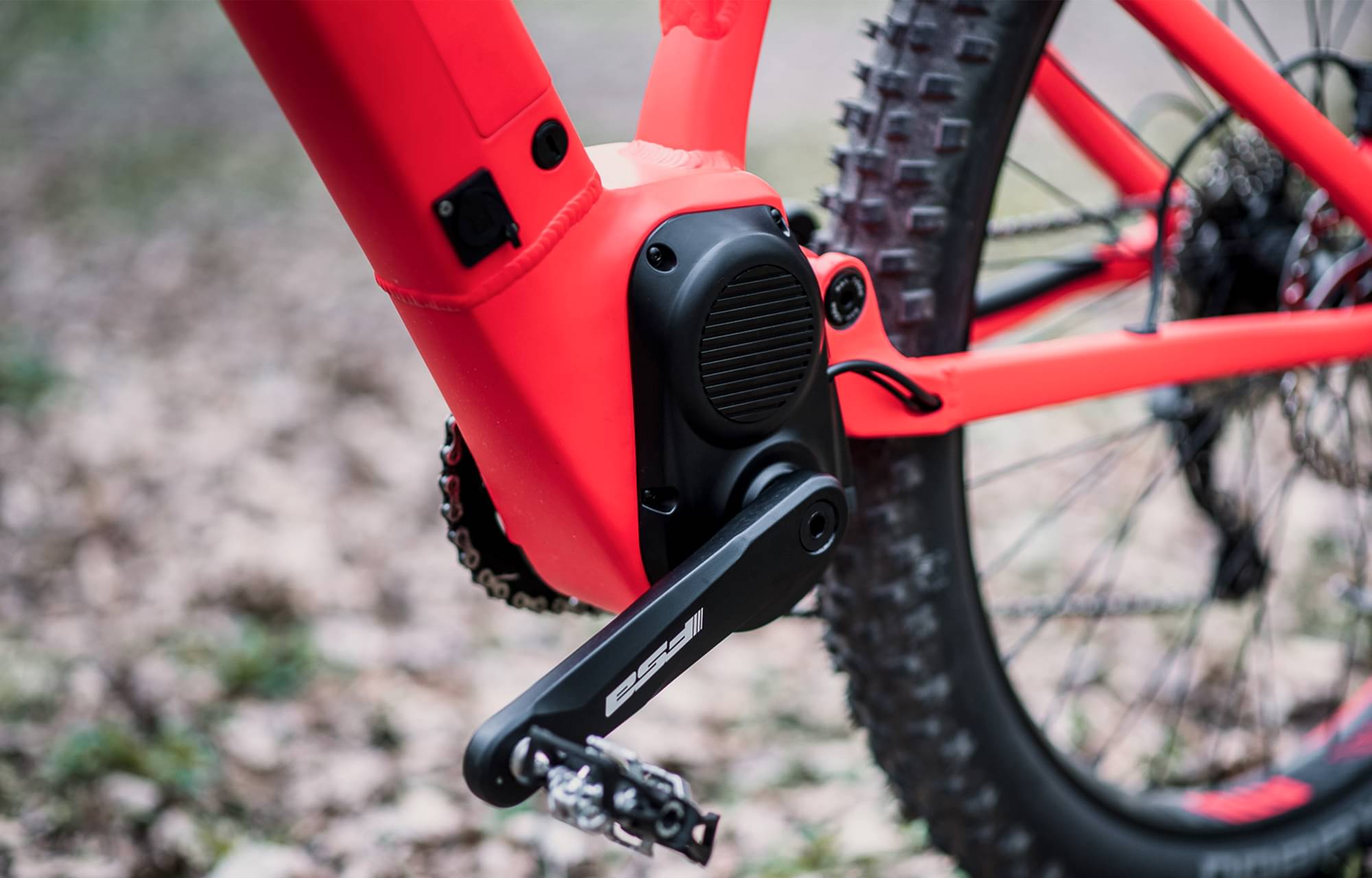

Motor
TS System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Front Center | 265 mm | 287 mm | 309 mm |
| Top Tube Length | 587 mm | 608 mm | 630 mm |
| Seat Tube Angle | 74.7 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 145 mm | 150 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm |
| Wheelbase | 727 mm | 749 mm | 771 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
