Bike details
Overview
Key information split into simple groups.

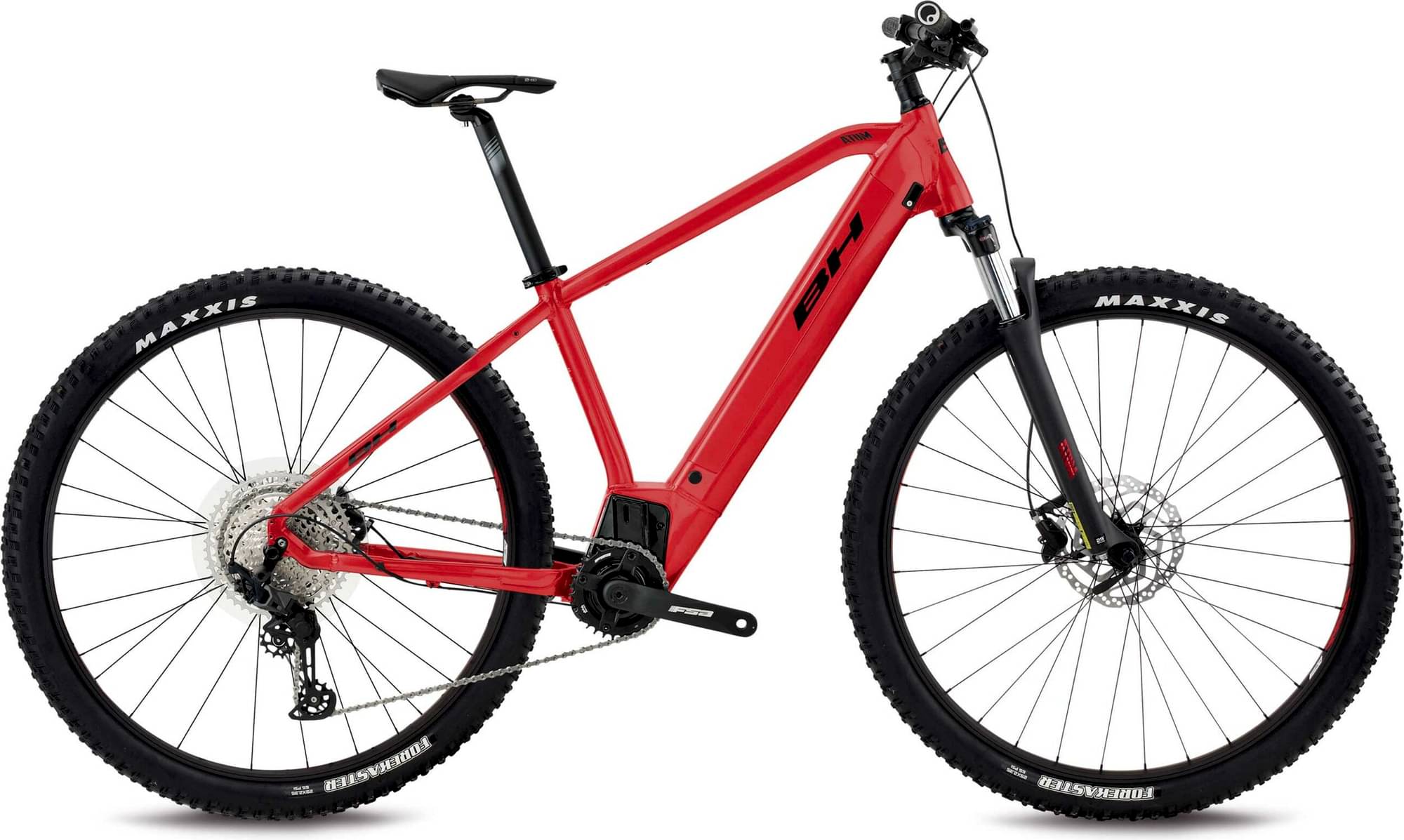

Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour X1
-
Groupset Deore -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Alloy 29" Internal Cable Routing
Suspension Fork
SR Suntour X1 LO 100mm

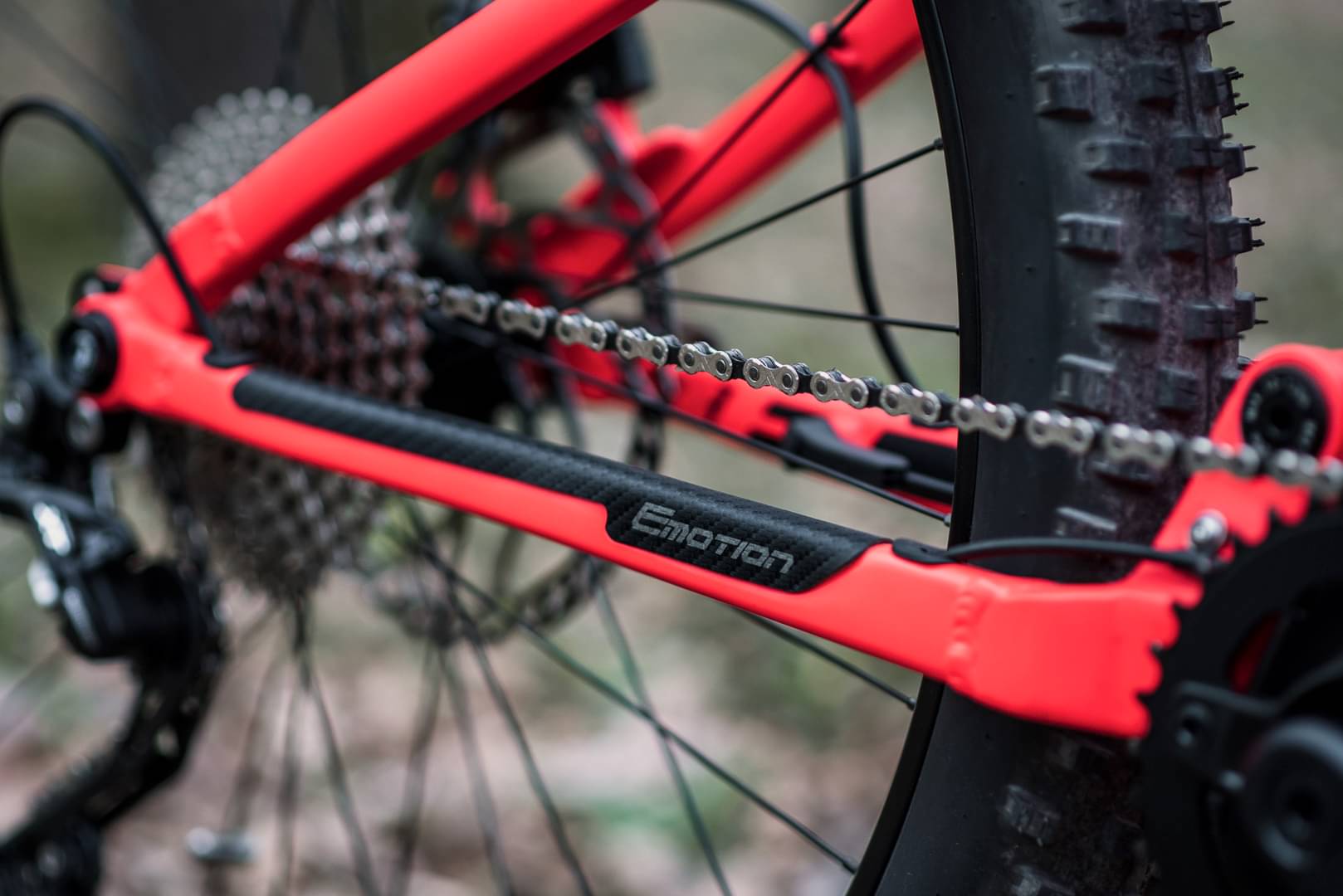

Drivetrain
Rear Derailleur
Shimano Deore 10sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM4100 10sp (11-46T)
Crank
FSA 34T-170mm
Bottom Bracket
-
Chain
Shimano HG54
Pedals
-
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Maxxis Forekaster TPI60 29"X2,35"
Brakes
Brakes
Front: Shimano MT201 180mm, Rear: Shimano MT201 180mm

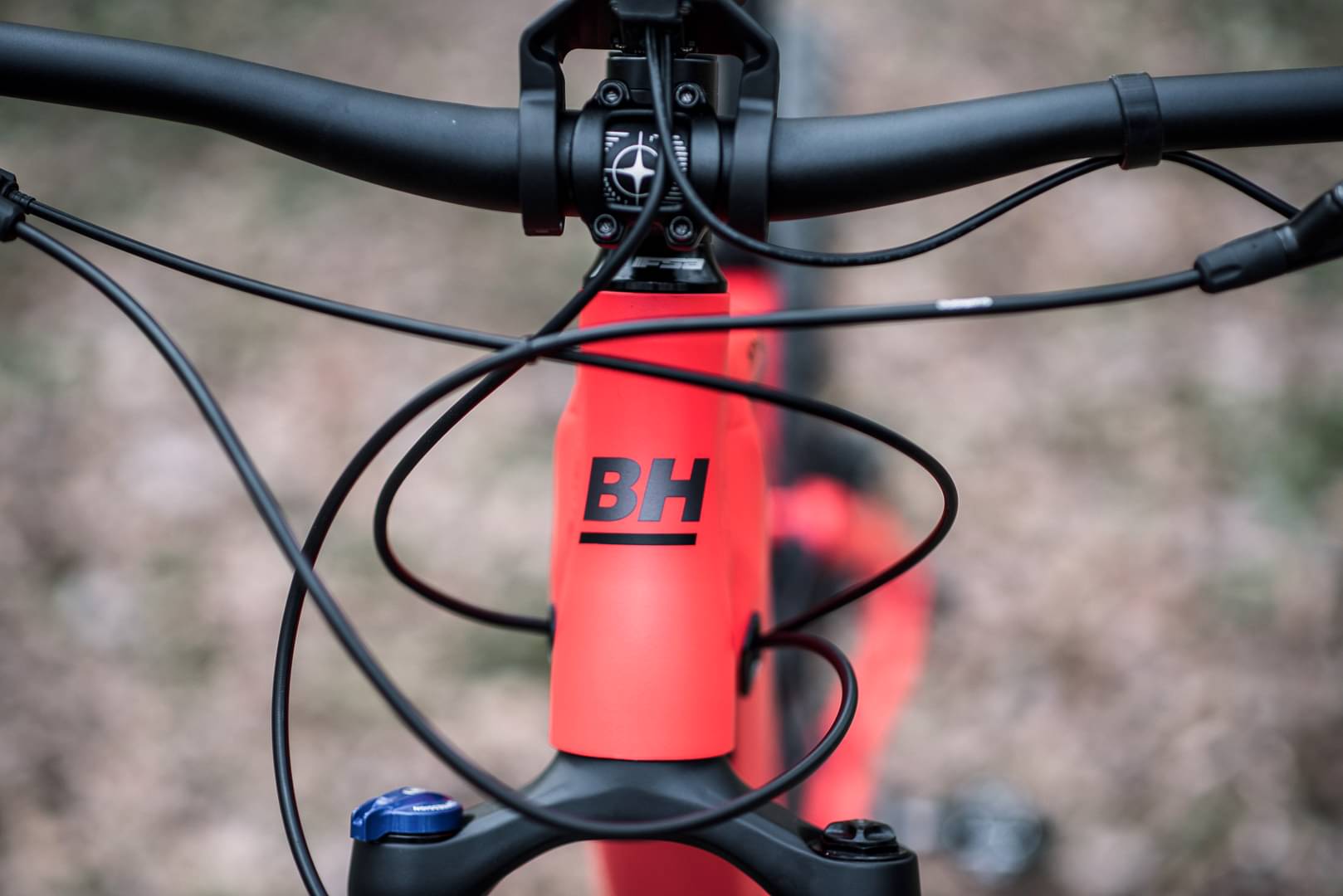

Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 780mm
Grips
Ergon GE10
Headset
Tapered with adaptor
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Alloy 31,6
Motor & Battery

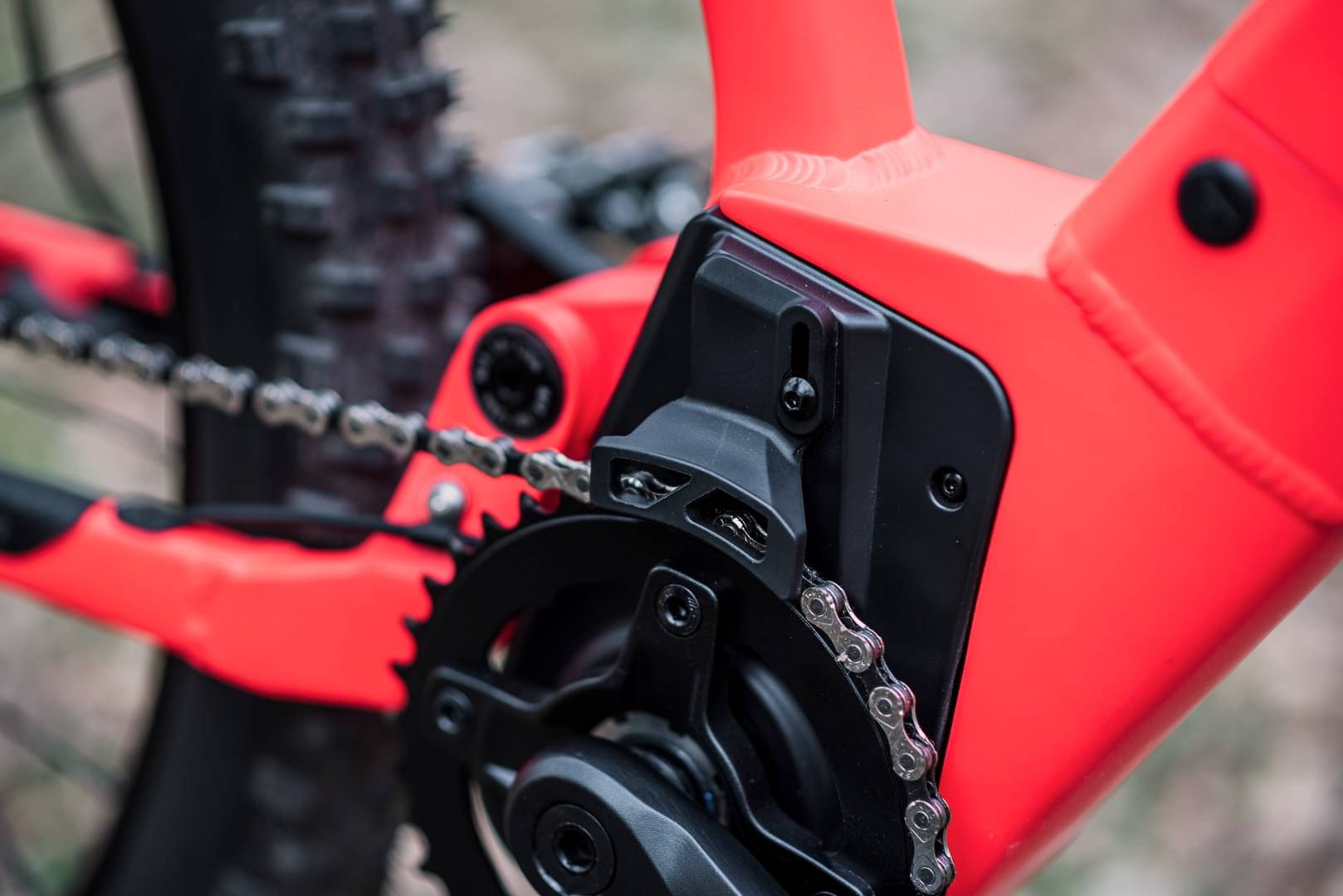

Motor
TS System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Top Tube Length | 604 mm | 623 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 145 mm | 160 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 696 mm | 710 mm | 733 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
