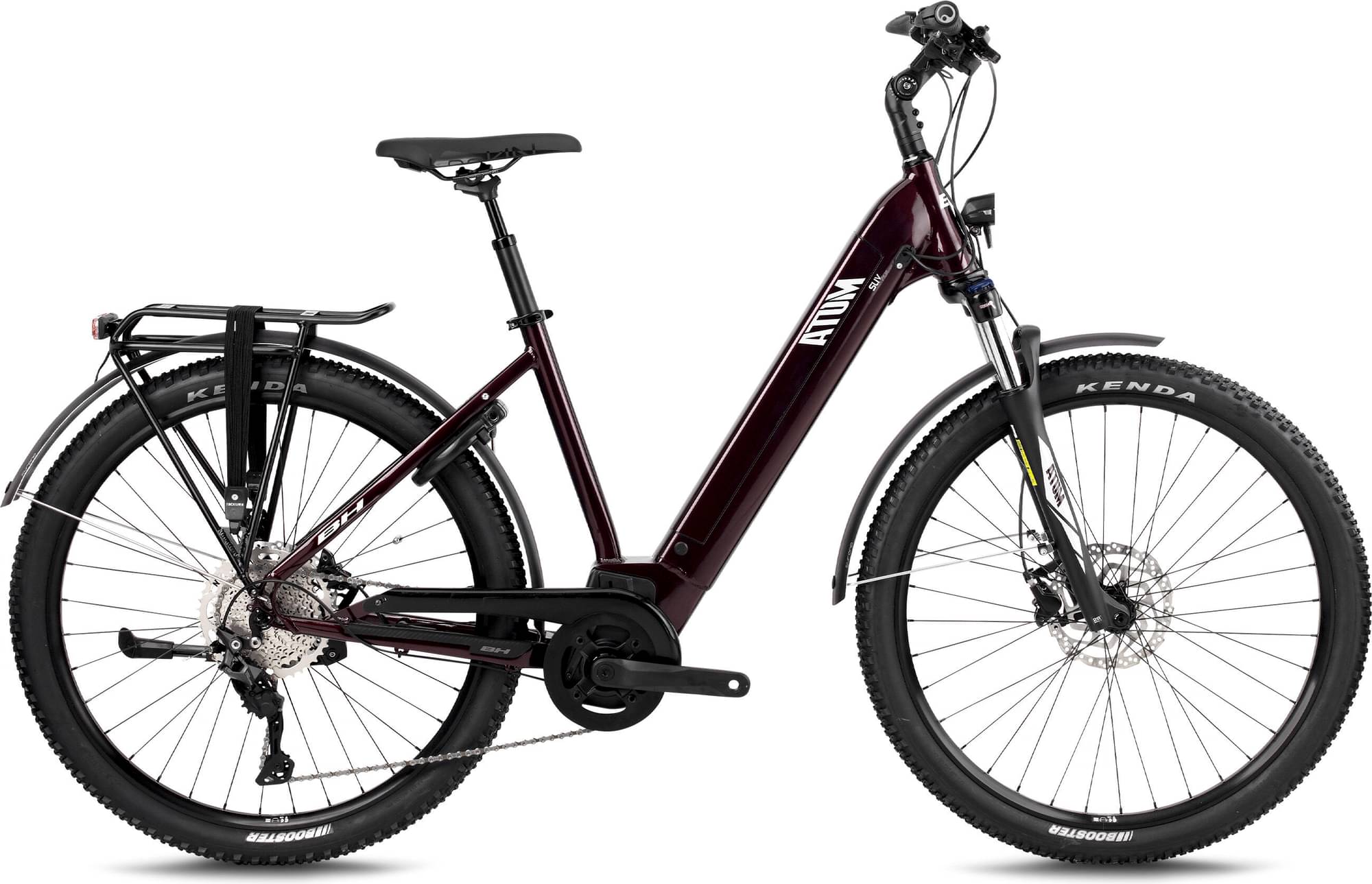

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
City Wave Alloy 27,5" internal cable routing
Suspension Fork
SR Suntour Mobie 32 NLO 100mm
Drivetrain
Rear Derailleur
Shimano Deore 10sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM4100 10sp (11-46T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG54
Pedals
Alloy
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 Trucky 30
Spokes
Stainless Steel
Tires
Kenda Booster 27,5X2,4
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm
Cockpit
Stem
BH Adjustable
Handlebar
BH MTB Alloy Riser 720mm
Grips
Ergon GP10
Headset
Tapered
Seat
Saddle
Selle Royal Look Confort
Seatpost
Alloy suspension 31,6
Motor & Battery
Motor
TS System
Battery
720Wh
Fit data
Geometry
