Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Deore -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sport Alloy 28" internal cable routing

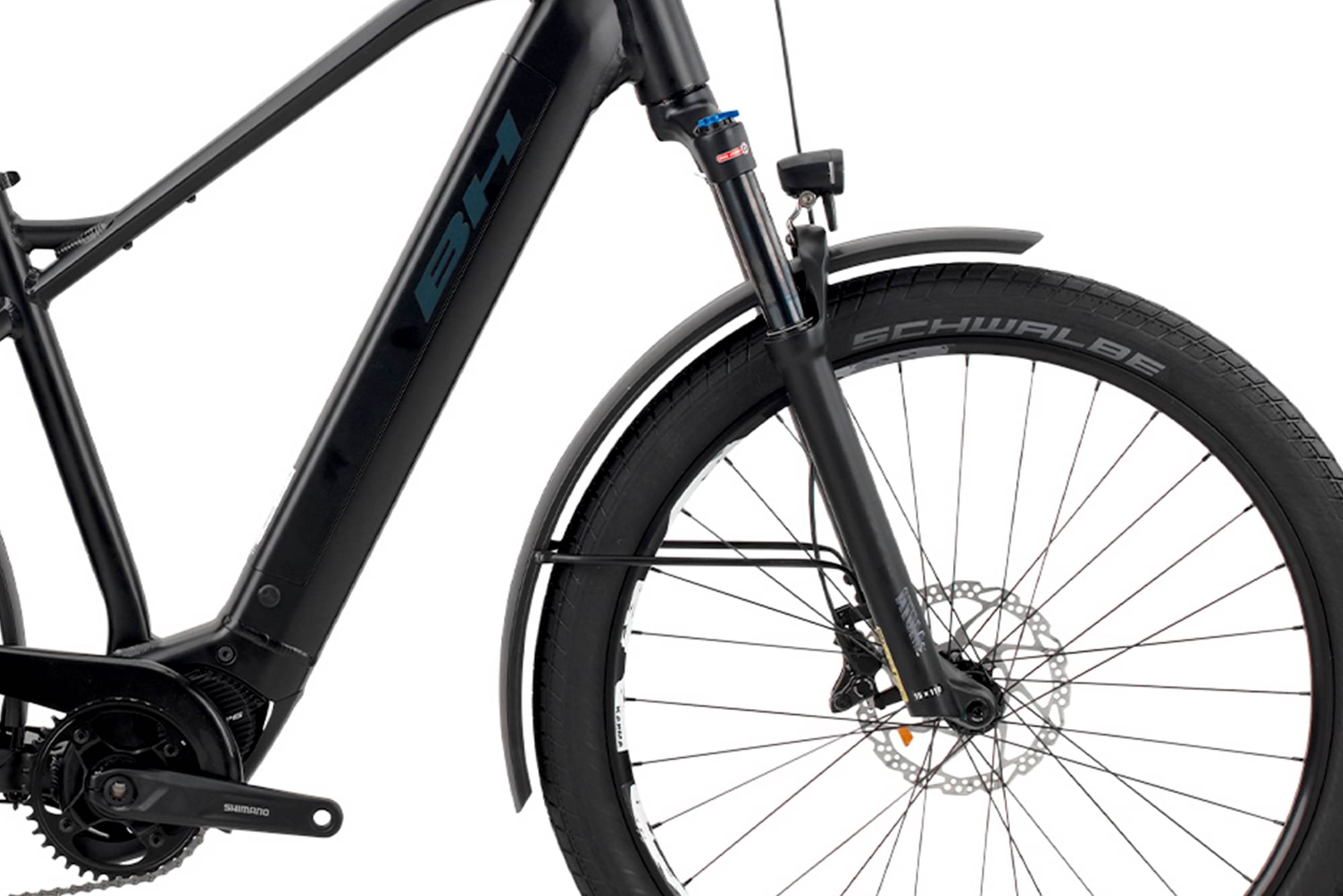

Suspension Fork
SR Suntour XCR34 LO 120mm 15QR
Drivetrain

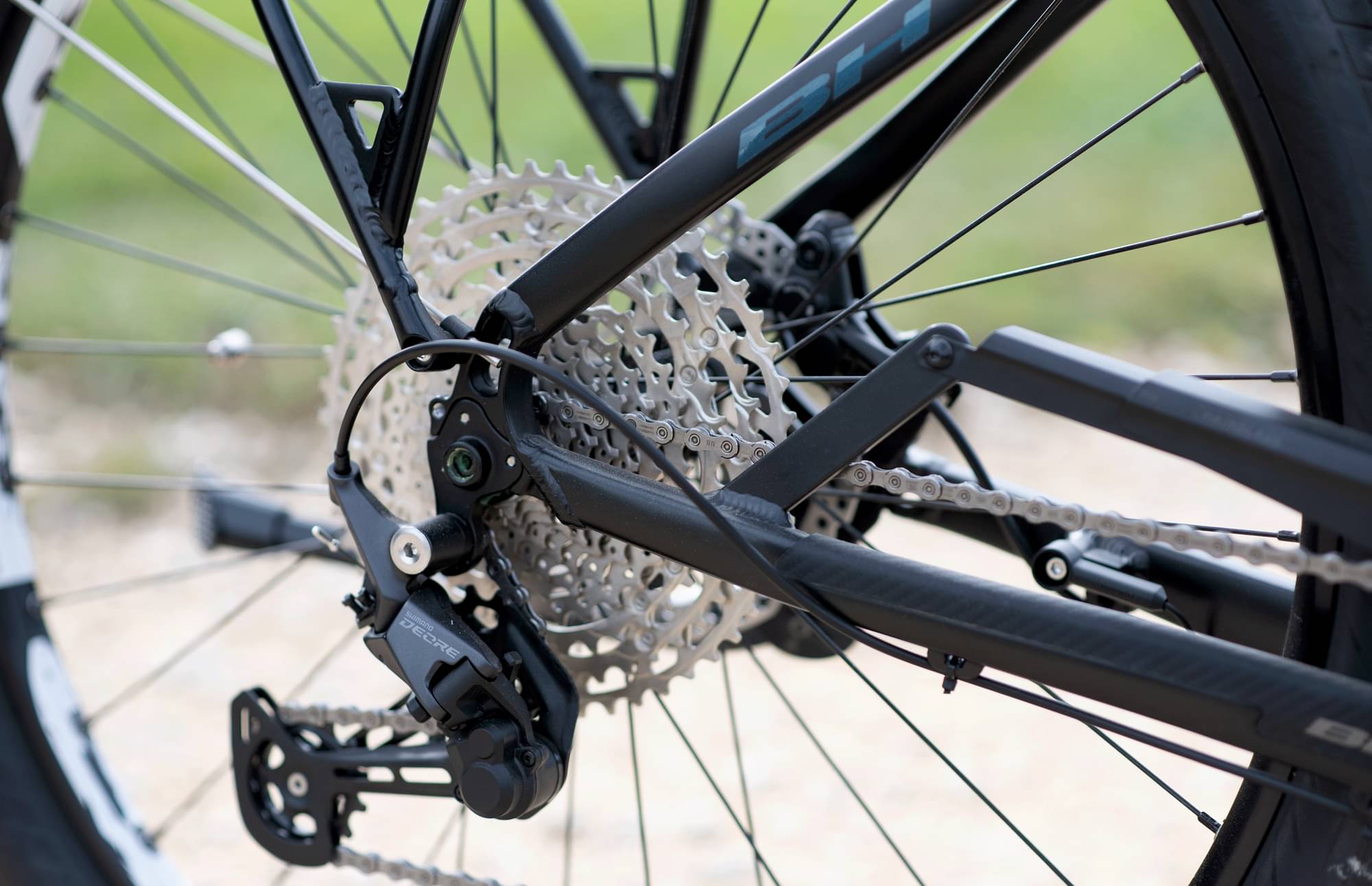

Rear Derailleur
Shimano Deore 11sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM5100 11sp (11-51T)
Crank
Shimano 38T-165mm
Chain
Shimano HG60
Pedals
Alloy
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 Trucky 30
Spokes
Stainless Steel
Tires
Schwalbe Super Moto-X 27,5"X2,4
Brakes
Brakes
Front: Shimano MT420 4 Piston 180mm, Rear: Shimano MT420 4 Piston 180mm
Cockpit
Stem
Ergotec Swell Ajustable
Handlebar
BH MTB Alloy Riser 35 720mm
Grips
Ergon GP10
Headset
Acros AZX-578 BL.
Seat
Saddle
Selle Royal Look In Relax
Seatpost
SR Suntour NCX
Motor & Battery
Motor
TS System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Top Tube Length | 578 mm | 588 mm | 598 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 690 mm | 700 | 710 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
