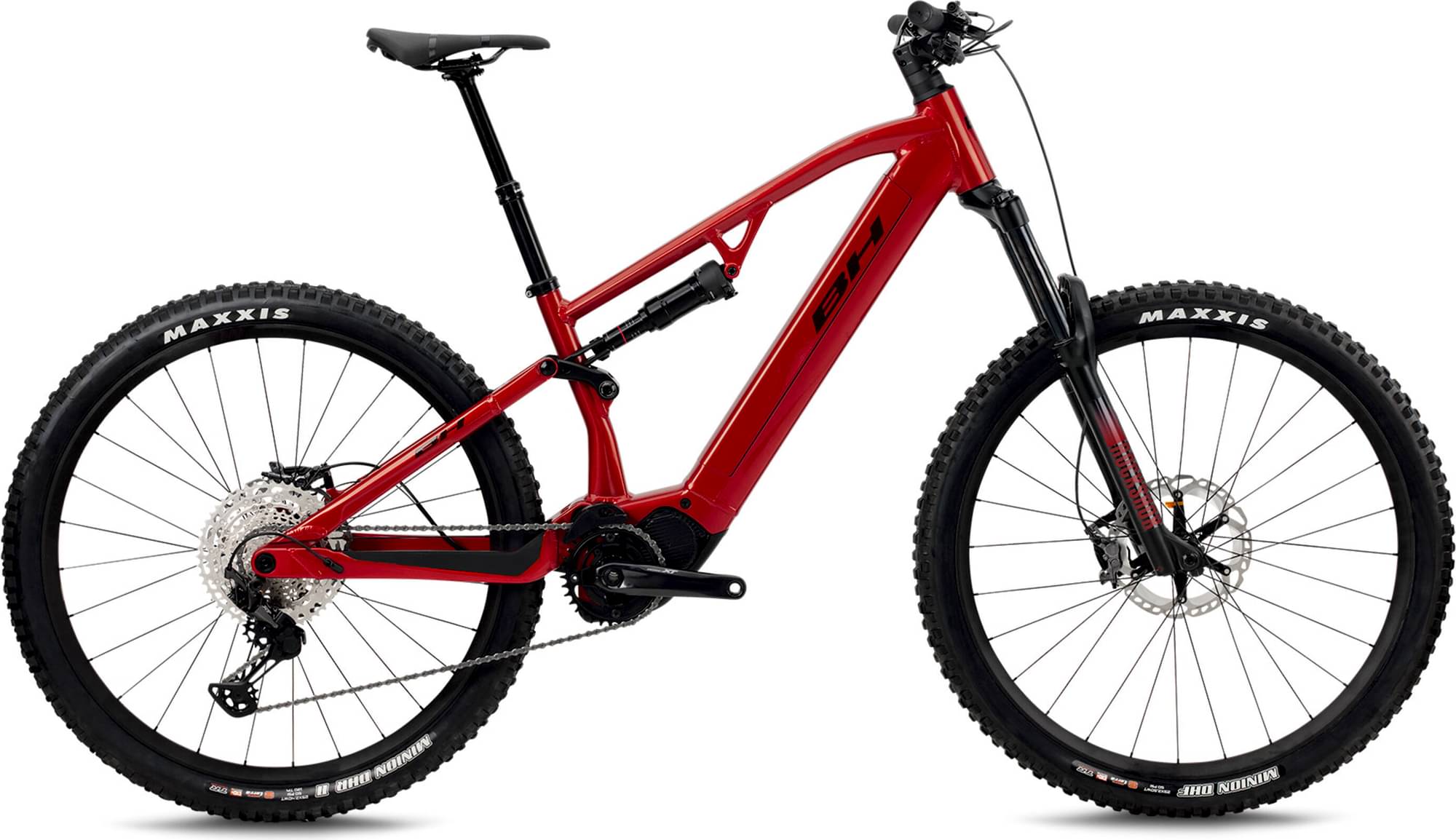

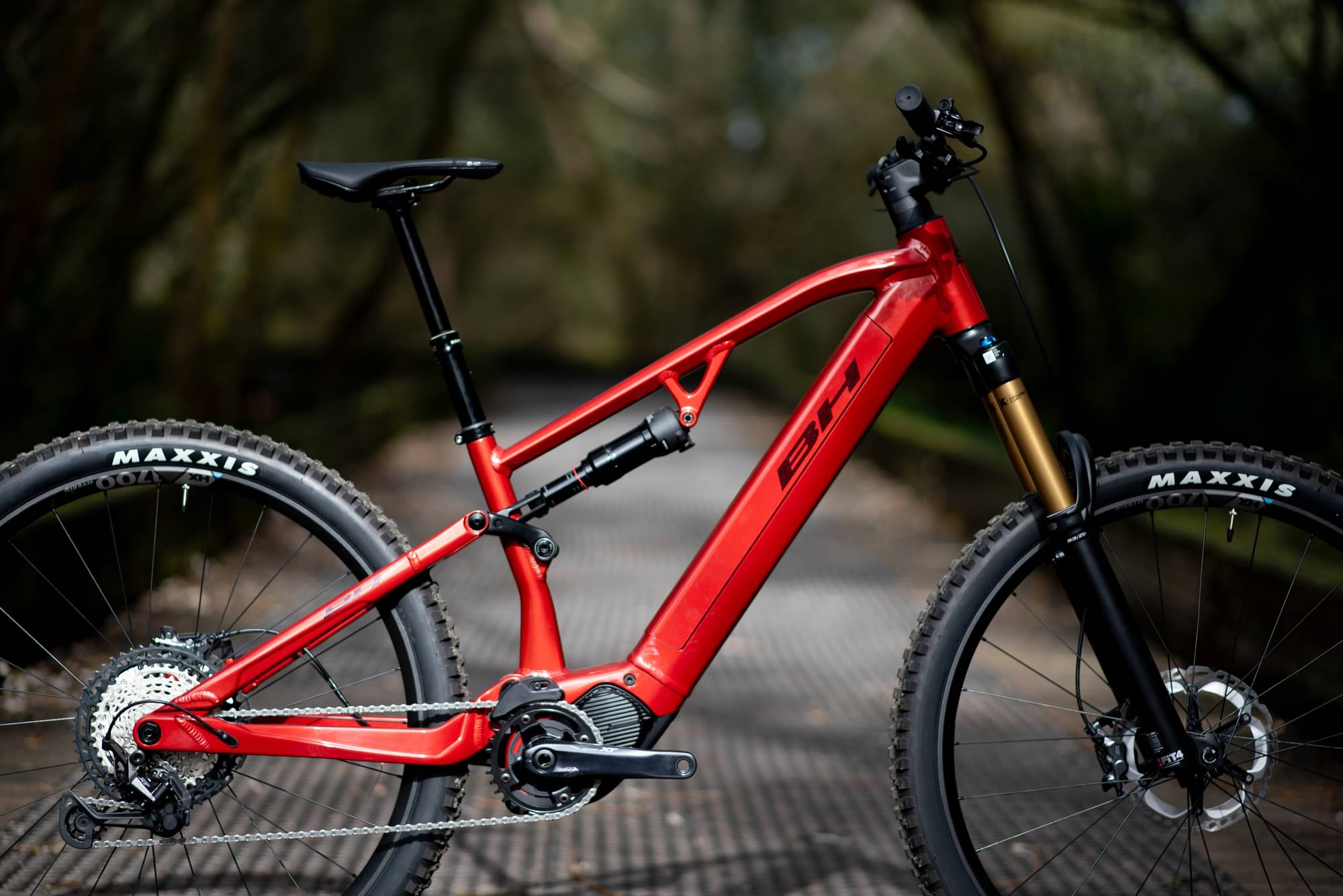

BH ATOMe LYNX PRO 8.2 2024
2024 E-bike
Estimate price |
6,355$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140 mm Full Suspension Alloy 29" internal cable routing
Suspension Fork
Rock Shox Recon RL 150mm 15QR

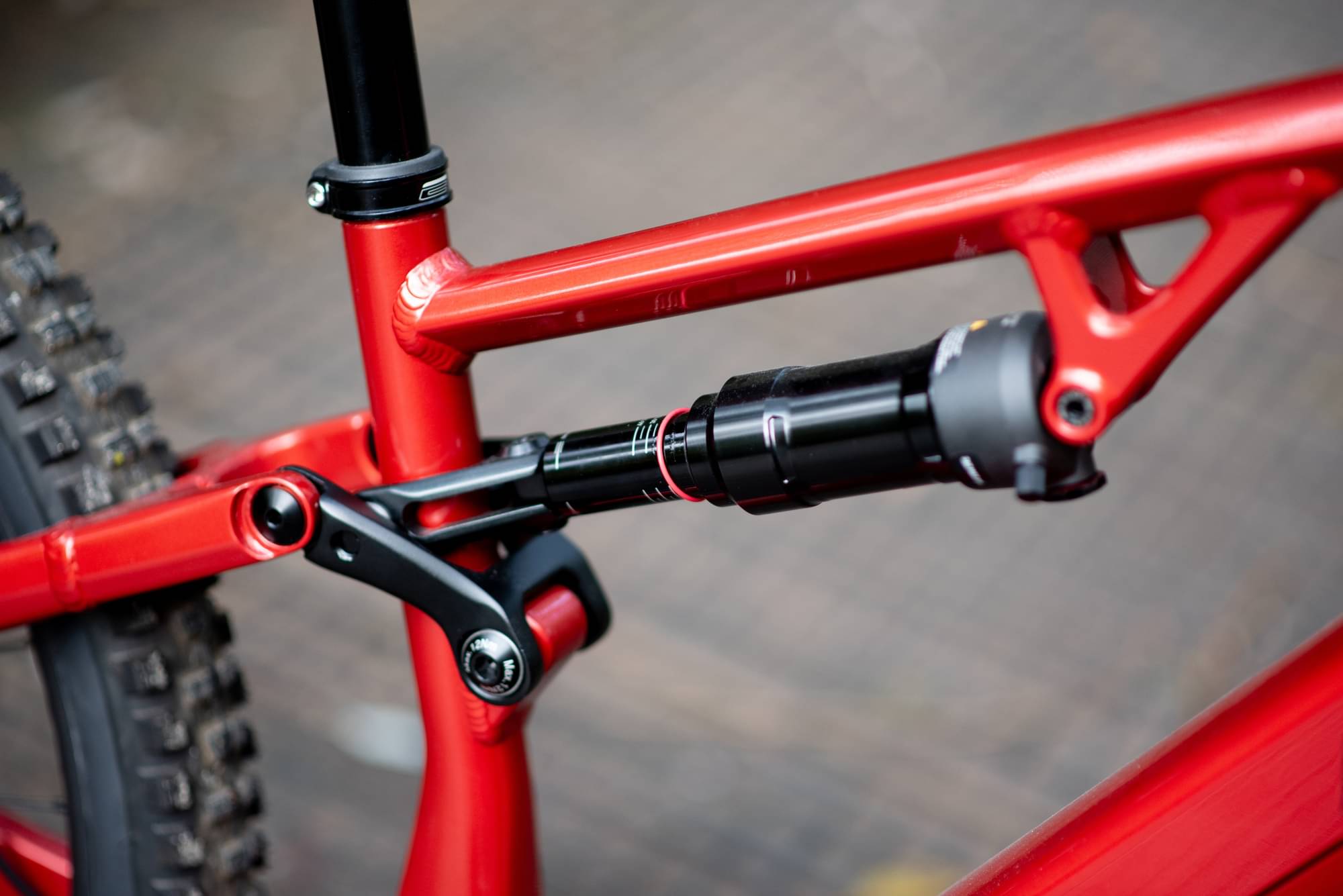

Rear Shock
Rock Shox Deluxe Debonair
Drivetrain

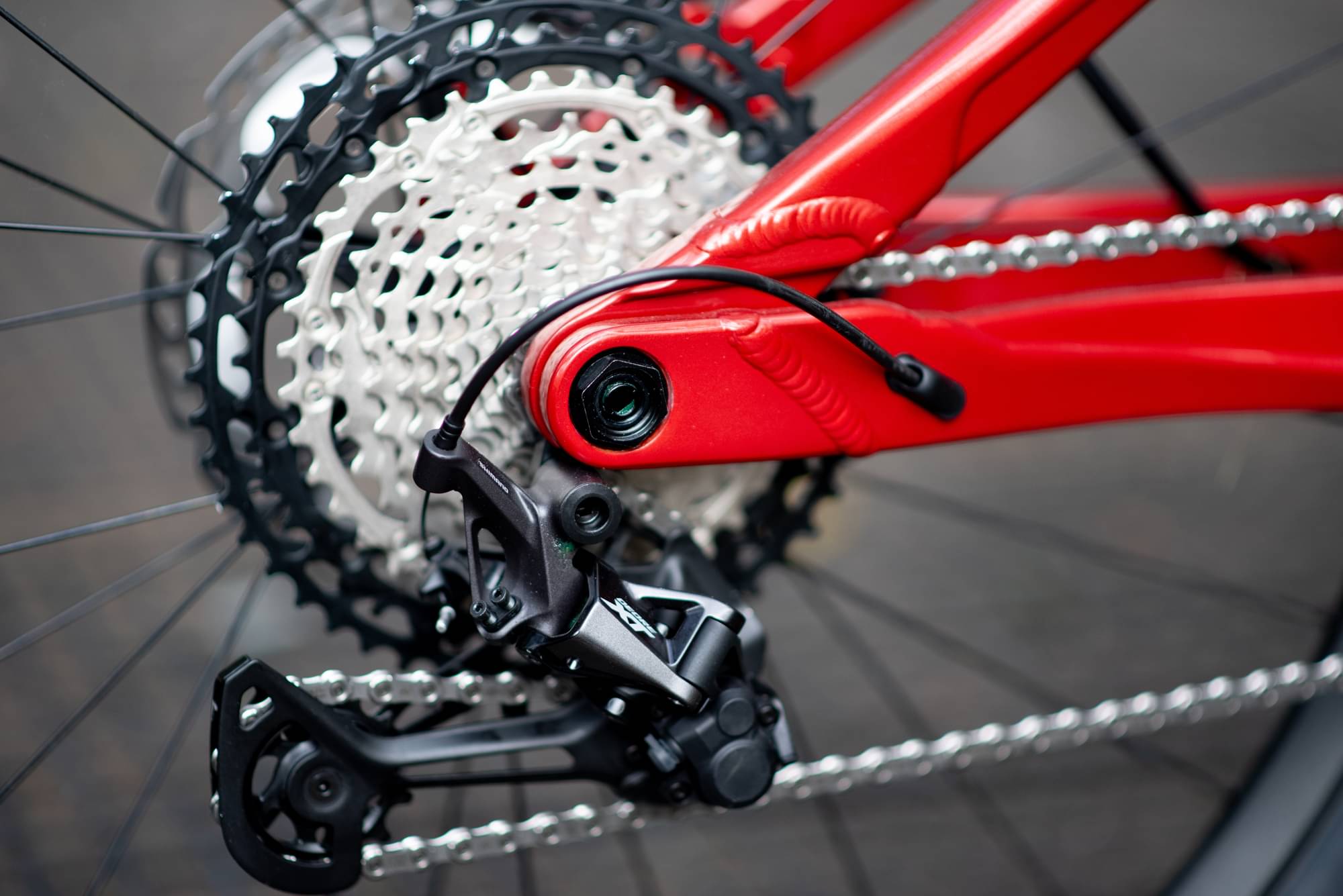

Rear Derailleur
Shimano Deore 11sp
Shift Levers
Shimano Deore
Cassette
Shimano CSM5100 11sp (11-51T)
Crank
Shimano 34T-165mm
Chain
Shimano HG60
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 Trucky 30
Spokes
Stainless Steel
Tires
Maxxis Minion TPI60 EXO TR 29"X2,5/2,4
Brakes
Brakes
Front: Shimano MT420 4 Piston 203mm, Rear: Shimano MT420 4 Piston 203mm
Cockpit
Stem
BH Ahead

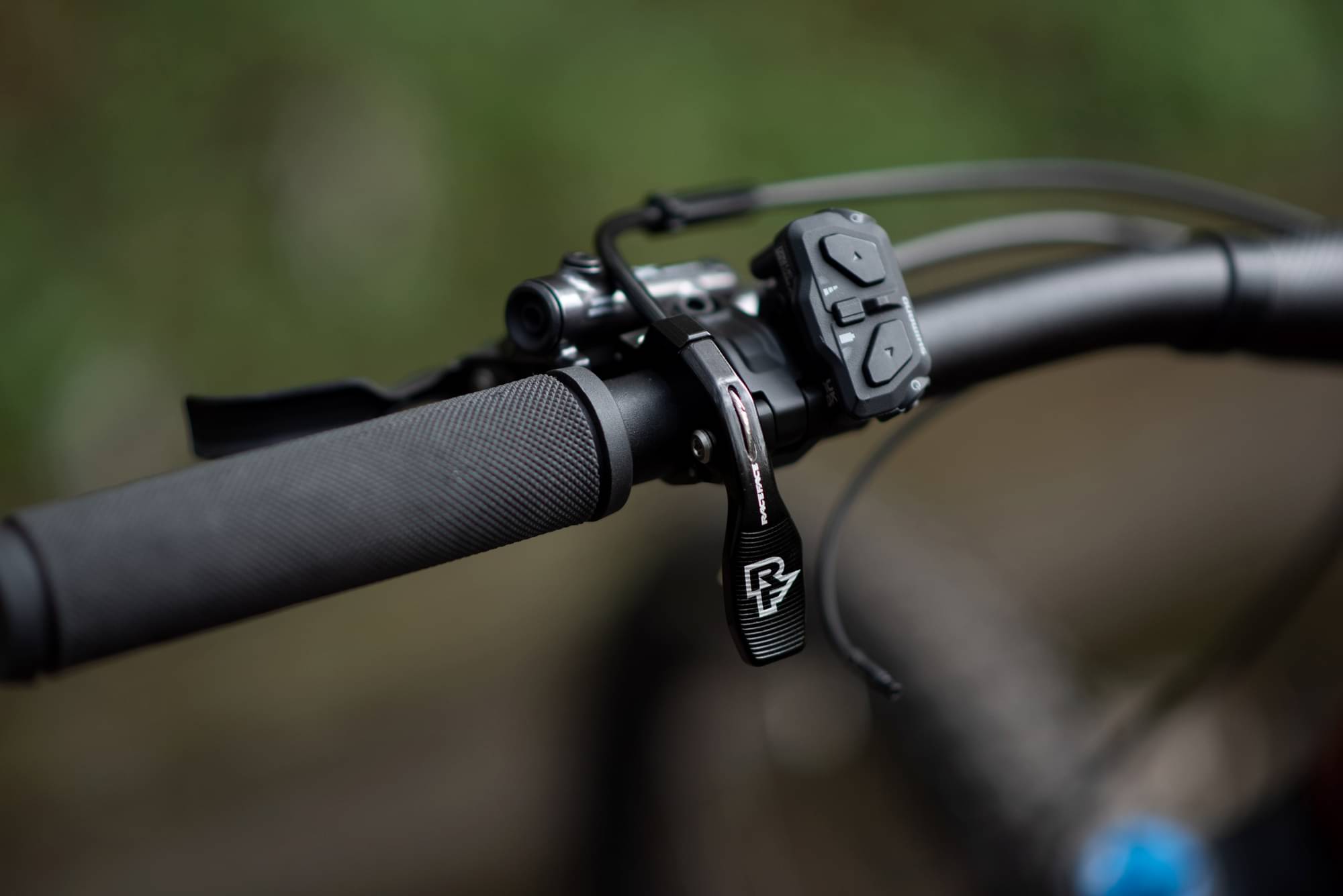

Handlebar
BH MTB Alloy Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AZX-578 BL.
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Kind Shock RAGEI
Motor & Battery
Motor
TS System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 278 mm | 307 mm | 328 mm |
| Top Tube Length | 580 mm | 605 mm | 623 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm |
| Wheelbase | 740 mm | 769 mm | 790 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
