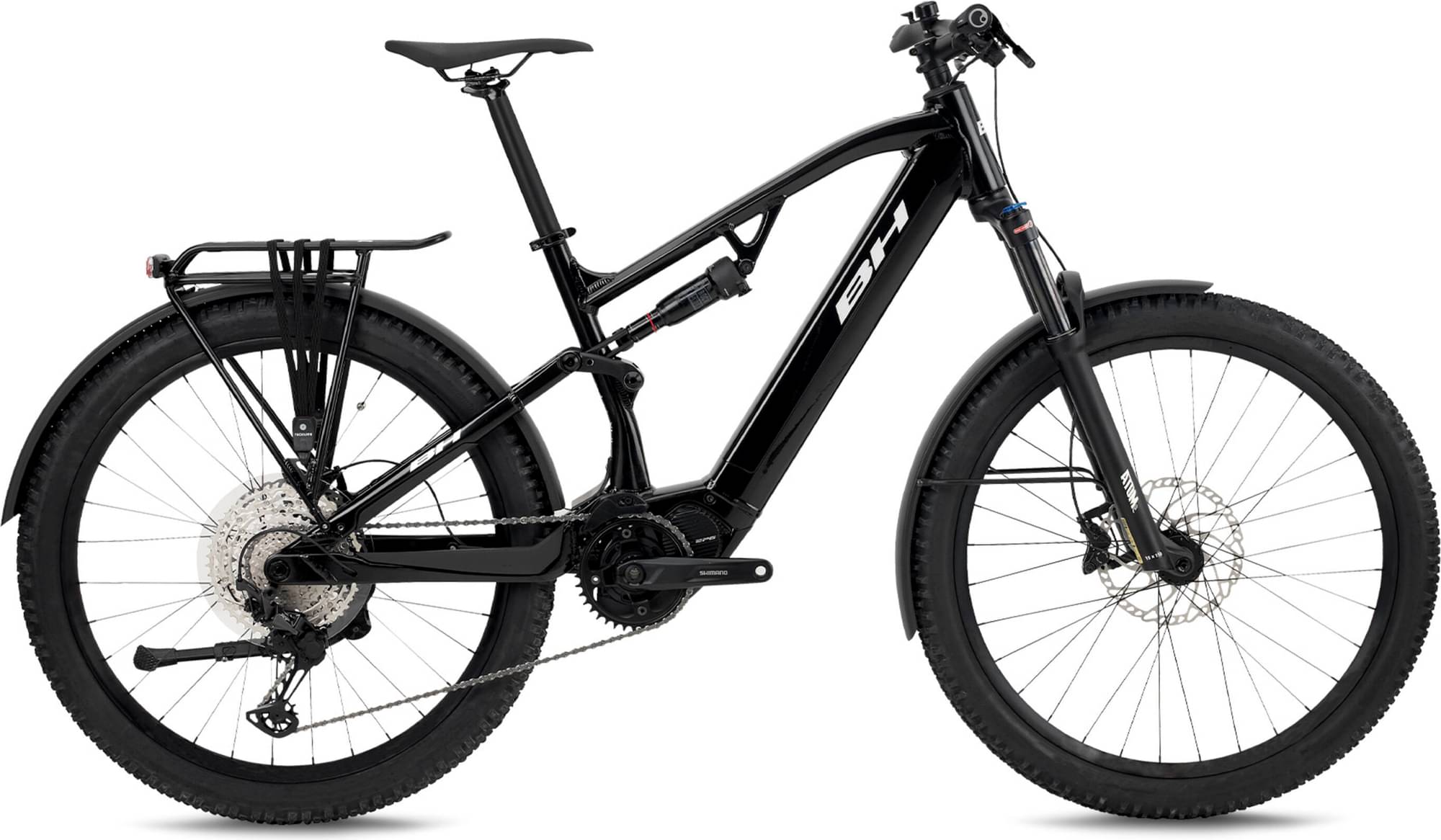

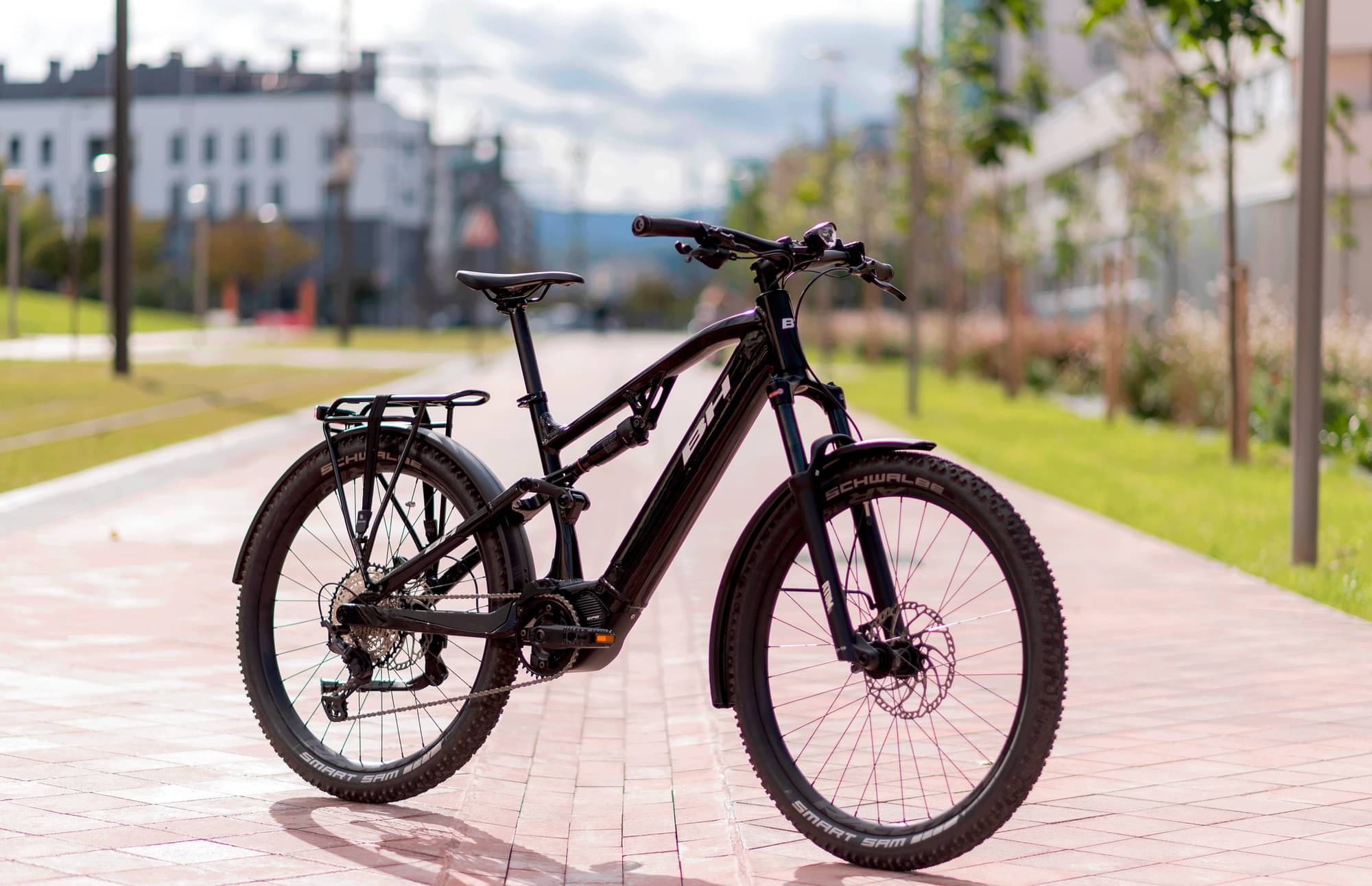

BH ATOMe SUV PRO-SE 2024
2024 E-bike
Estimate price |
6,355$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 120mm -
Travel Rear 100mm -
Fork Suntour XCR
-
Groupset XT, Deore -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 mm Full Suspensión City Wave Alloy 28", ICR
Suspension Fork
SR Suntour XCR34 LO 120mm 15QR

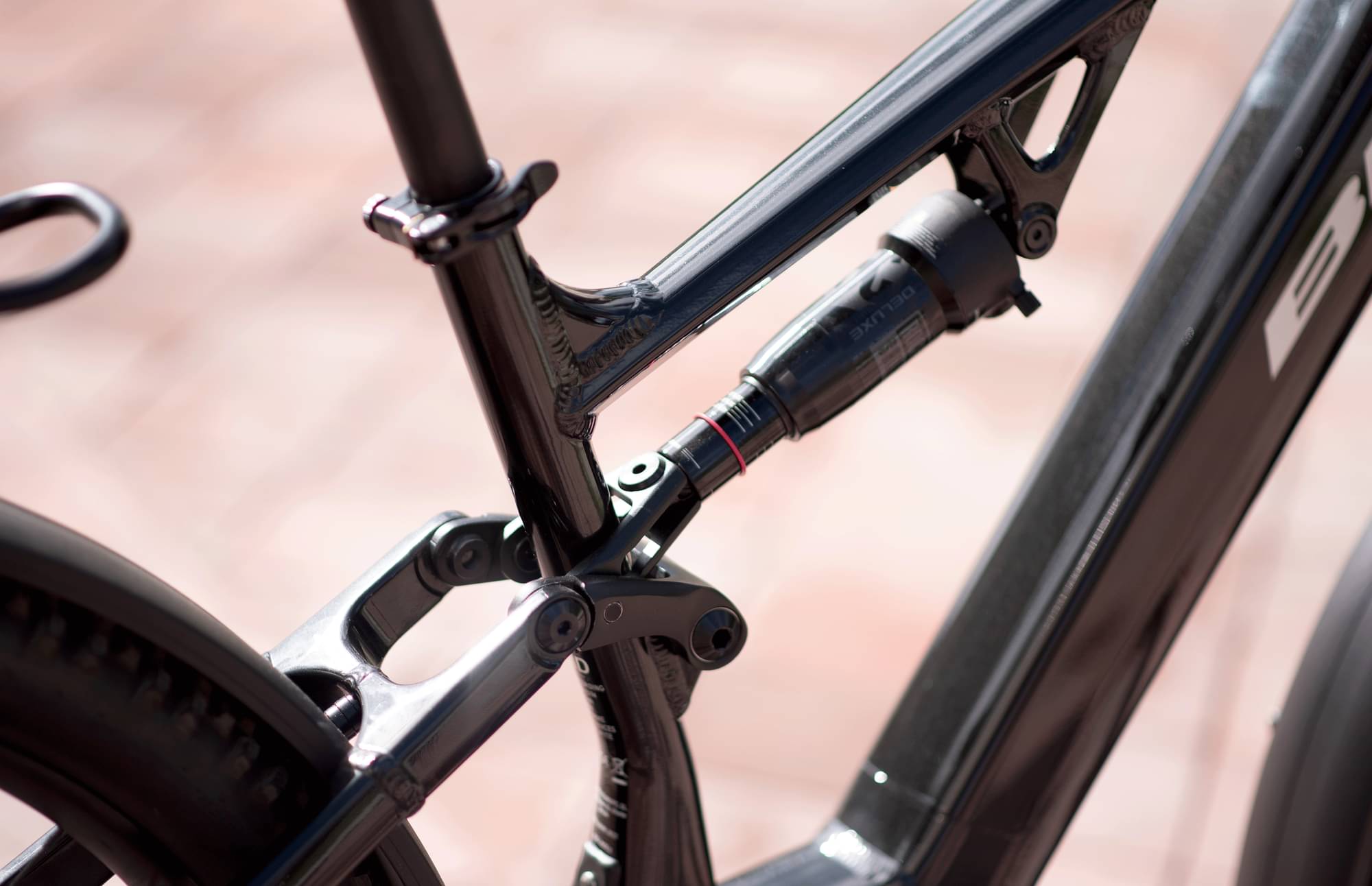

Rear Shock
Rock Shox Deluxe Debonair
Drivetrain
Rear Derailleur
Shimano XT 12sp
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
Shimano 38T-165mm
Chain
Shimano CNM6100
Pedals
Alloy
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 Trucky 30
Spokes
Stainless Steel
Tires
Schwalbe Hurricane 27,5X2,4
Brakes
Brakes
Front: Shimano MT420 4 Piston 180mm, Rear: Shimano MT420 4 Piston 180mm
Cockpit
Stem
Ergotec Swell Ajustable
Handlebar
BH MTB Alloy Riser 35 720mm

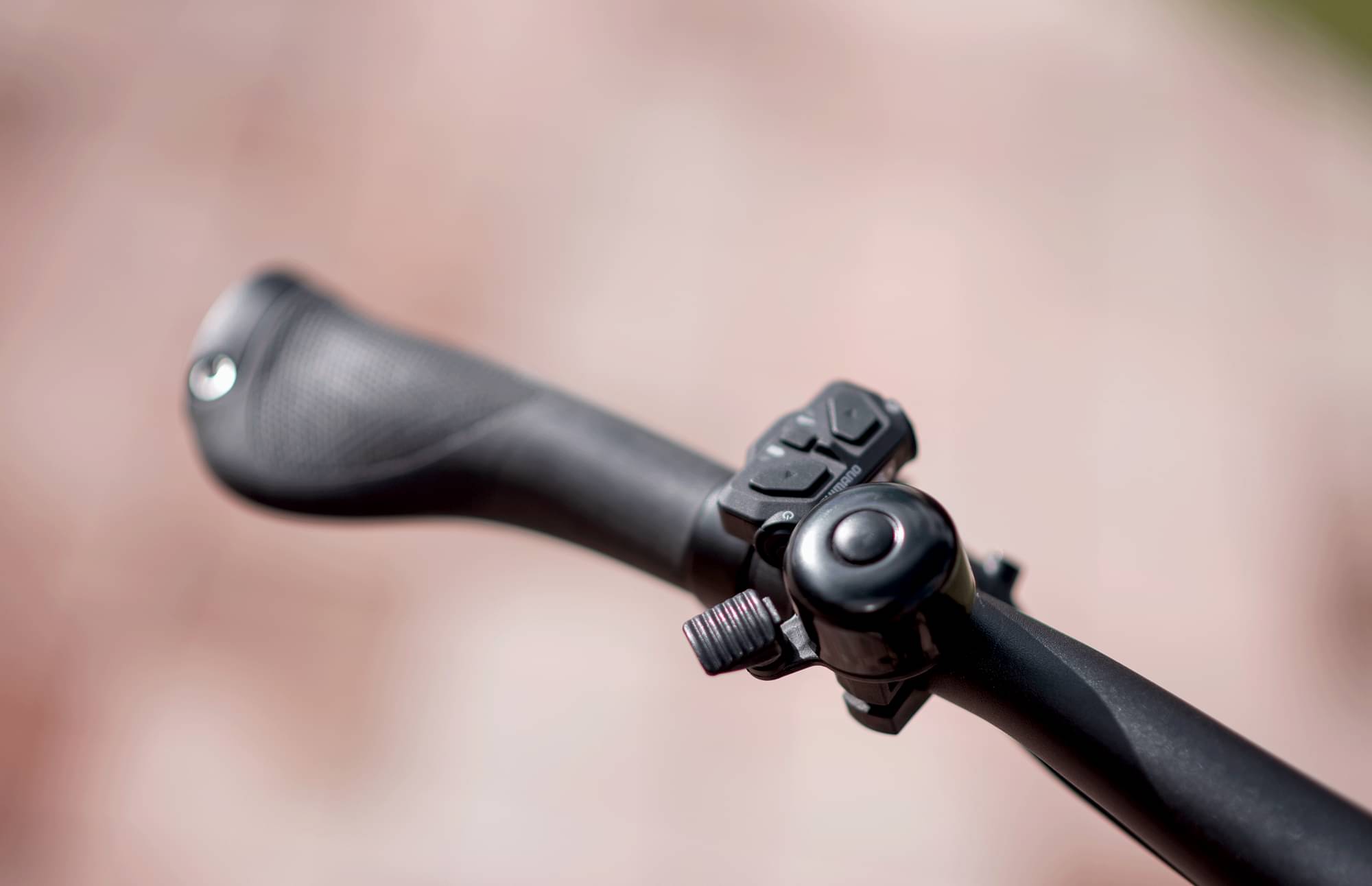

Grips
Ergon GP10
Headset
Acros AZX-578 BL.
Seat
Saddle
Selle Royal eZone
Seatpost
BH Alloy 31,6
Motor & Battery

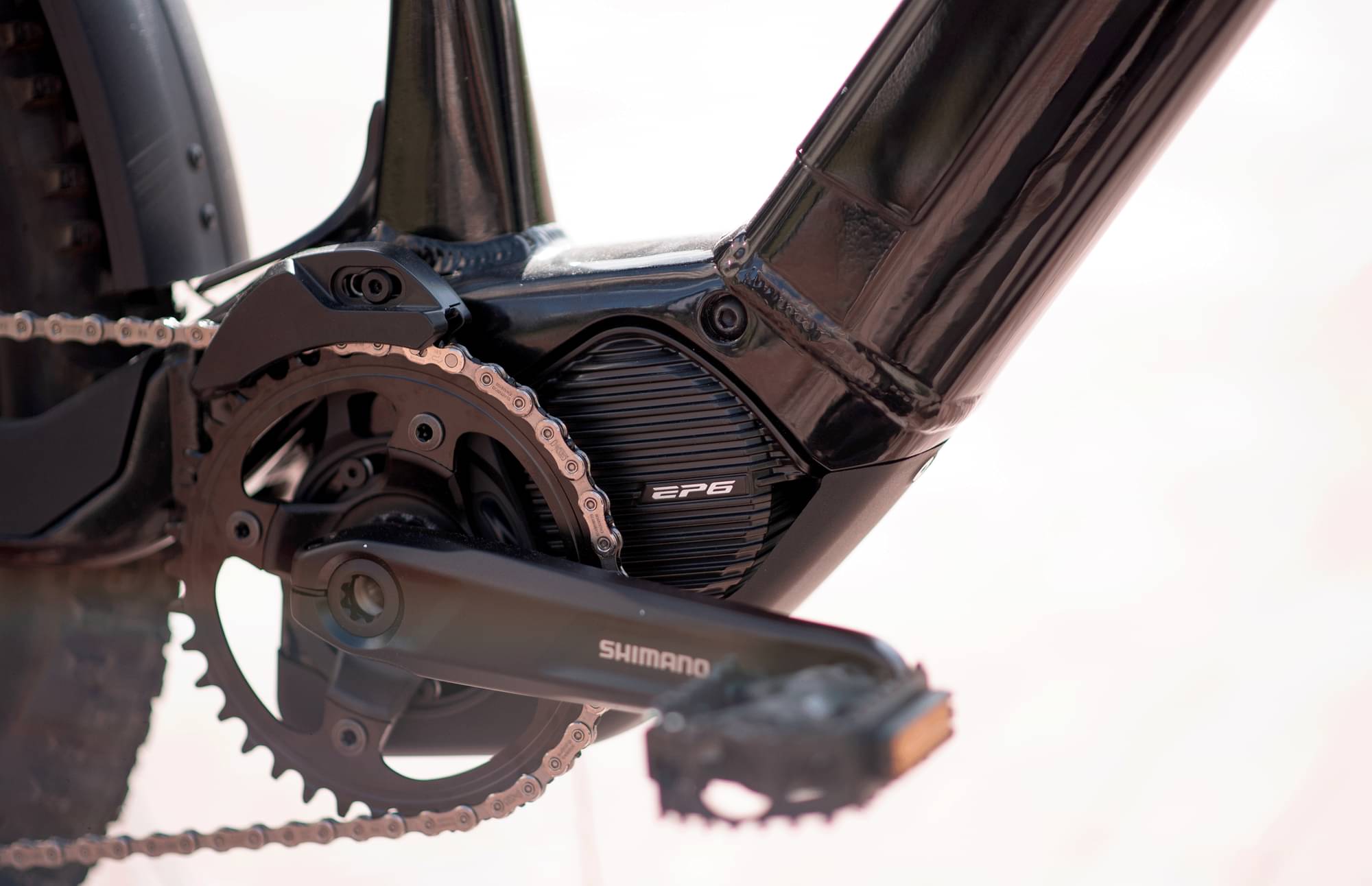

Motor
TS System
Battery
720Wh
Fit data
Geometry
