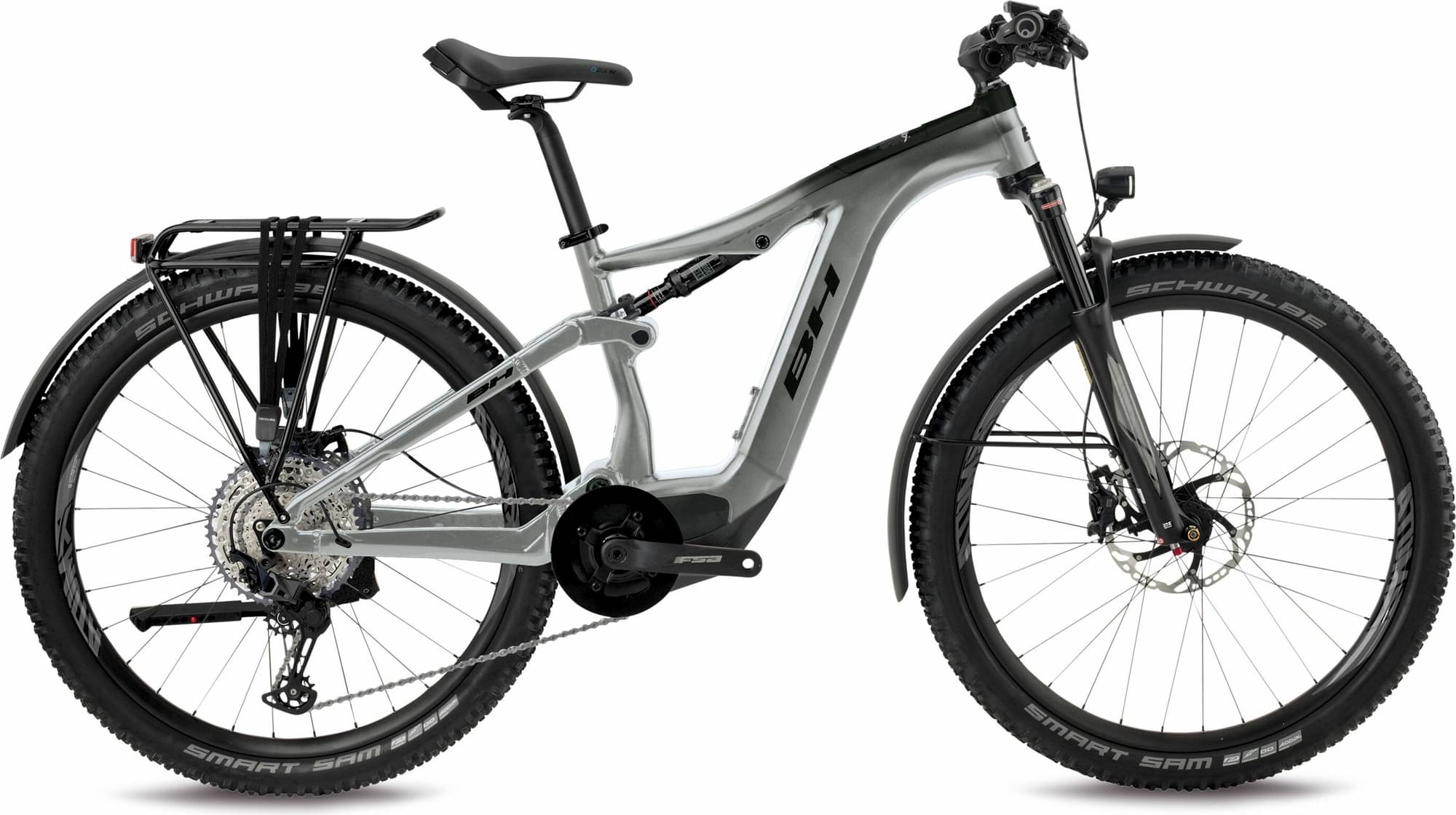

BH ATOMX CROSS PRO-S 2024

2024 E-bike
Estimate price | 8,128$
E-bike
Open compare Use advisor
Bh Atomx Cross Pro S 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Travel Front 120mm
  • Travel Rear 100mm
  • Fork Suntour XCR
  • Groupset XT, Deore
  • Suspension Full
  • Motor mid-drive
  • Battery 720Wh
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 171cm

  • MD

    168cm - 180cm

  • LG

    178cm - 189cm

  • XL

    186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

100mm Full Suspension Carbon 27,5"+ Alloy Rear Triangle

Suspension Fork

SR Suntour XCR34 LO 120mm 15QR

Rear Shock

Rock Shox Deluxe Sel

Drivetrain

Rear Derailleur

Shimano XT 12sp

Front Derailleur

-

Shift Levers

Shimano Deore

Cassette

Shimano CSM6100 12sp (10-51T)

Crank

FSA 38T-170mm

Chain

Shimano CNM6100

Wheels

Front Hub

BH

Rear Hub

BH

Rims

Race Face Ar 30 TR

Spokes

Stainless Steel

Tires

Schwalbe Smart Sam 27,5"X2,6

Brakes

Brakes

Front: Shimano XT 4 Piston 203mm, Rear: Shimano XT 4 Piston 203mm

Cockpit

Stem

Ergotec Adjustable

Handlebar

BH Lite Riser 720mm

Grips

Ergon GP10

Headset

Acros AZX-581 BL.

Seat

Saddle

Selle Royal eZone

Seatpost

BH Lite Alloy 31,6

Motor & Battery

Motor

X System

Battery

720Wh

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.468 mm1.389 mm1.349 mm1.336 mm
Bottom Bracket Height
346 mm346 mm346 mm346 mm
Stack
621 mm625 mm634 mm648 mm
Reach
423 mm450 mm470 mm485 mm
Top Tube Length
570 mm598 mm620 mm638 mm
Seat Tube Angle
76 °76 °76 °76 °
Seat Tube Length
390 mm410 mm440 mm480 mm
Head Tube Angle
65 °65 °65 °65 °
Head Tube Length
95 mm100 mm110 mm125 mm
Chainstay Length
454 mm454 mm454 mm454 mm
Wheelbase
739 mm767 mm790 mm813 mm
Wheels650650650650
Rider Min Height158 cm168 cm178 cm186 cm
Rider Max Height171 cm180 cm189 cm199 cm
