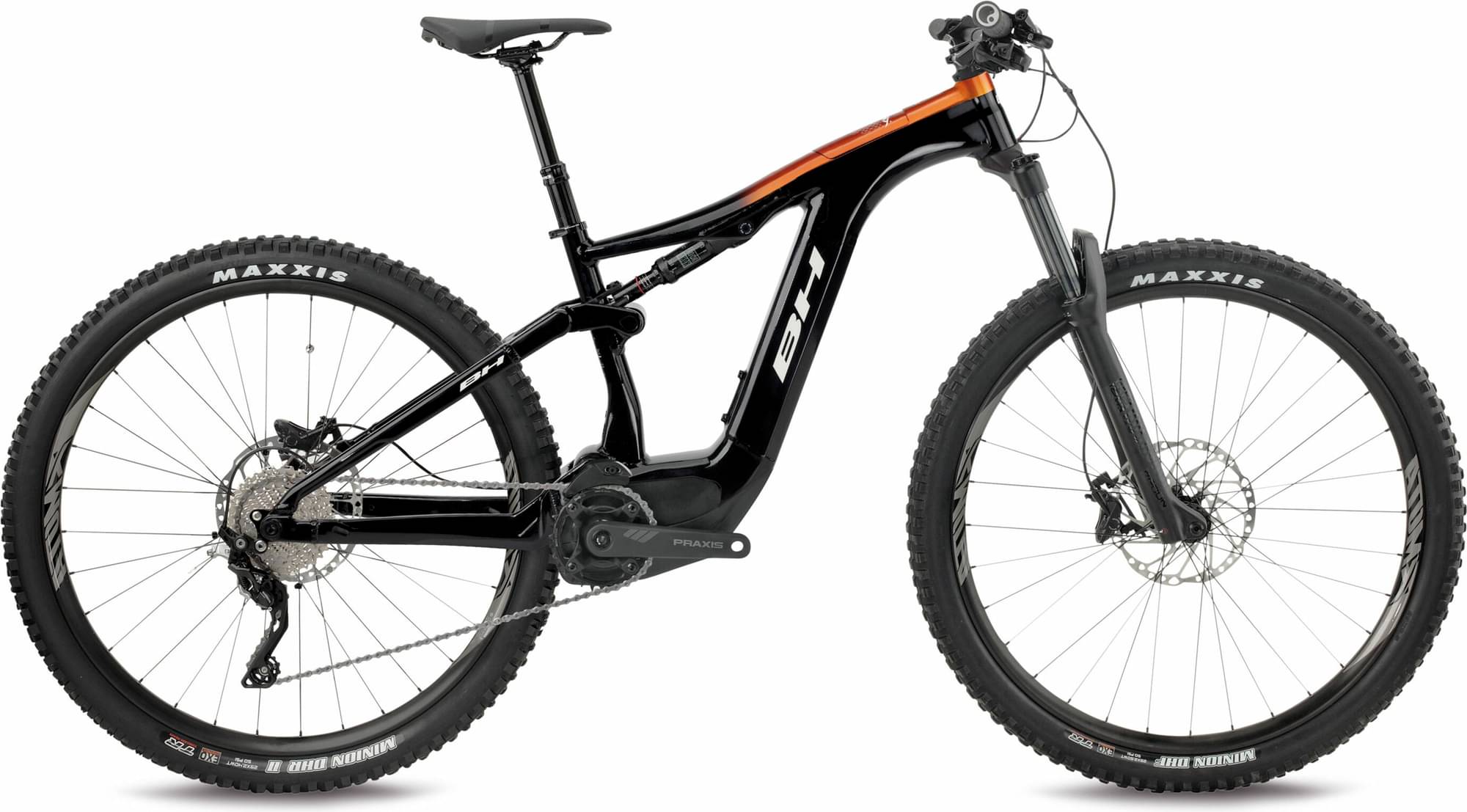

BH ATOMX LYNX PRO 8.2 2024
2024 E-bike
Estimate price |
7,627$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140mm Full Susp. Carbon 29", Acros ICR-Alloy Rear Triangle
Suspension Fork
Rock Shox Recon RL 140mm 15QR
Rear Shock
Rock Shox Deluxe Debonair
Drivetrain
Rear Derailleur
Shimano Deore 11sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM5100 11sp (11-51T)
Crank
Praxis 34T-165mm
Bottom Bracket
-
Chain
Shimano HG60
Pedals
-
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR
Brakes
Brakes
Front: Shimano MT420 4 Piston 203mm, Rear: Shimano MT420 4 Piston 203mm

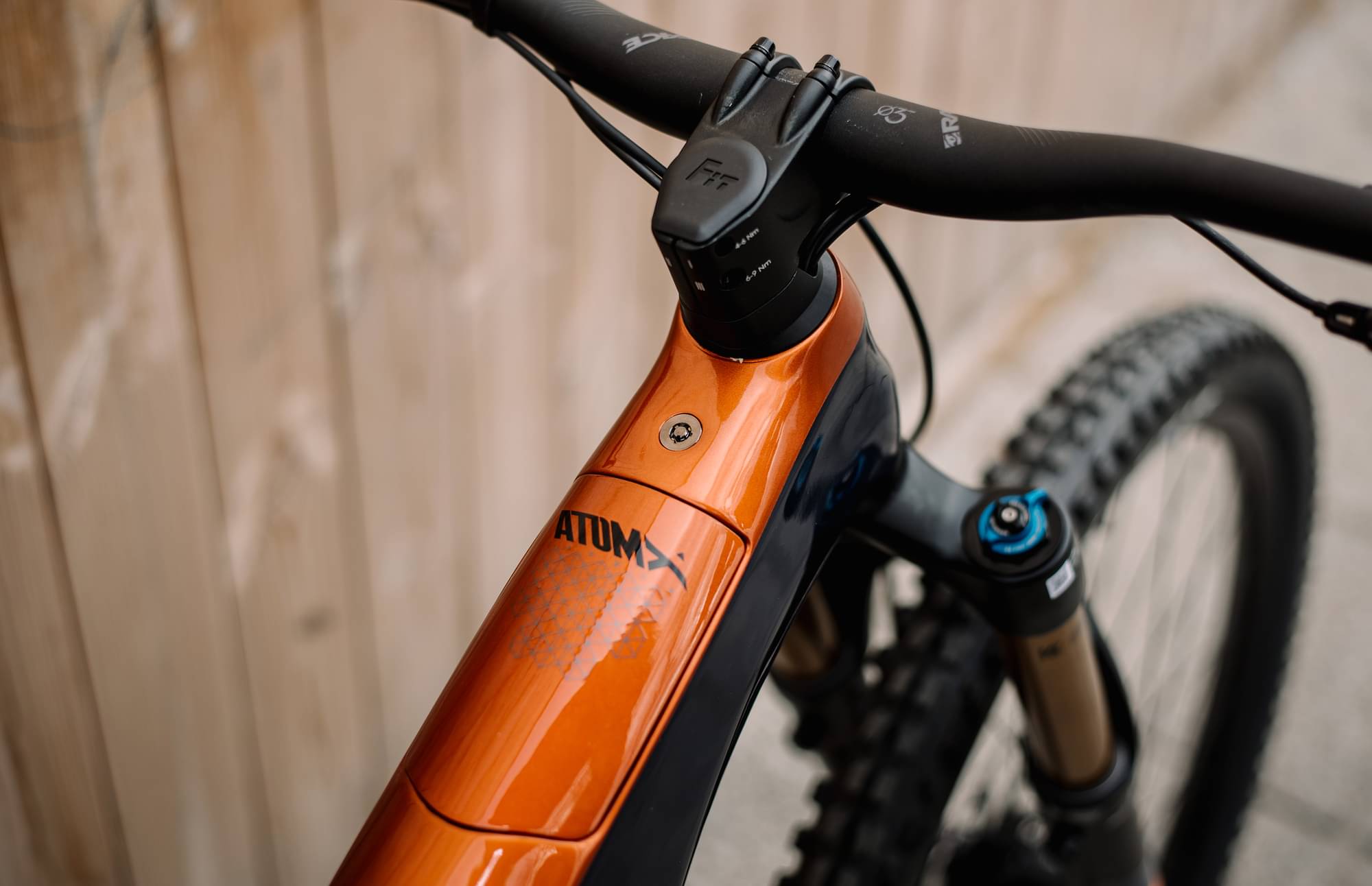

Cockpit
Stem
BH Evo 35 Fit
Handlebar
BH Lite 35 780mm
Grips
Ergon GE10
Headset
Acros AZX-581 BL.
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 100mm, MD 150mm, LA 150mm, XL 170mm
Motor & Battery
Motor
X System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 278 mm | 306 mm | 331 mm | 352 mm |
| Top Tube Length | 567 mm | 595 mm | 617 mm | 635 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 410 mm | 420 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 730 mm | 758 mm | 783 mm | 804 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
